Product Data Sheet

Global one-stop procurement platform for hydraulic spare parts.

Product Description

HAWE GR 2-2-G 24

The HAWE GR 2-2-G 24 is a solenoid-operated 2/2-way seated valve, designed for high-pressure hydraulic applications. Its compact and robust ball-seated design ensures zero-leakage shut-off, making it ideal for blocking hydraulic actuator movements or securing pressure in a circuit. This valve is widely used in machine tools, clamping fixtures, and general industrial machinery where reliability and leak-free performance are critical. The G 24 designation indicates a 24V DC solenoid for actuation.

Technical Specifications:

  • Type: 2/2-way seated valve
  • Actuation: Solenoid operated
  • Design: Ball valve
  • Max. Operating Pressure: 700 bar
  • Max. Flow Rate (Qmax): 25 lpm
  • Nominal Voltage: 24V DC
  • Hydraulic Connection: G 1/4
  • Fluid Temperature Range: -25°C to +80°C
  • Sealing: Zero-leakage in the closed state

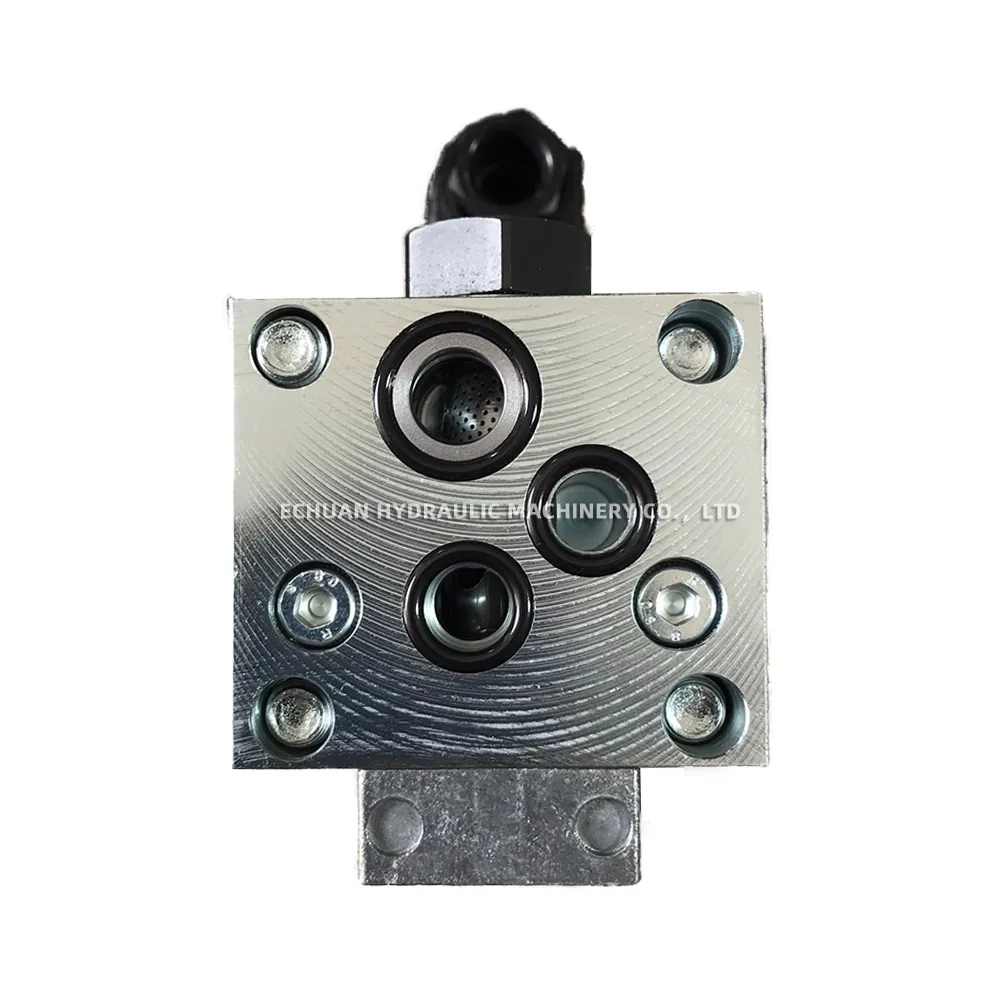

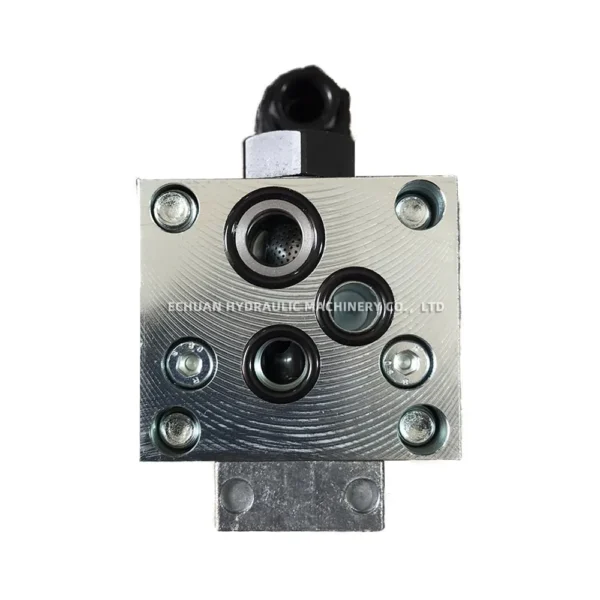

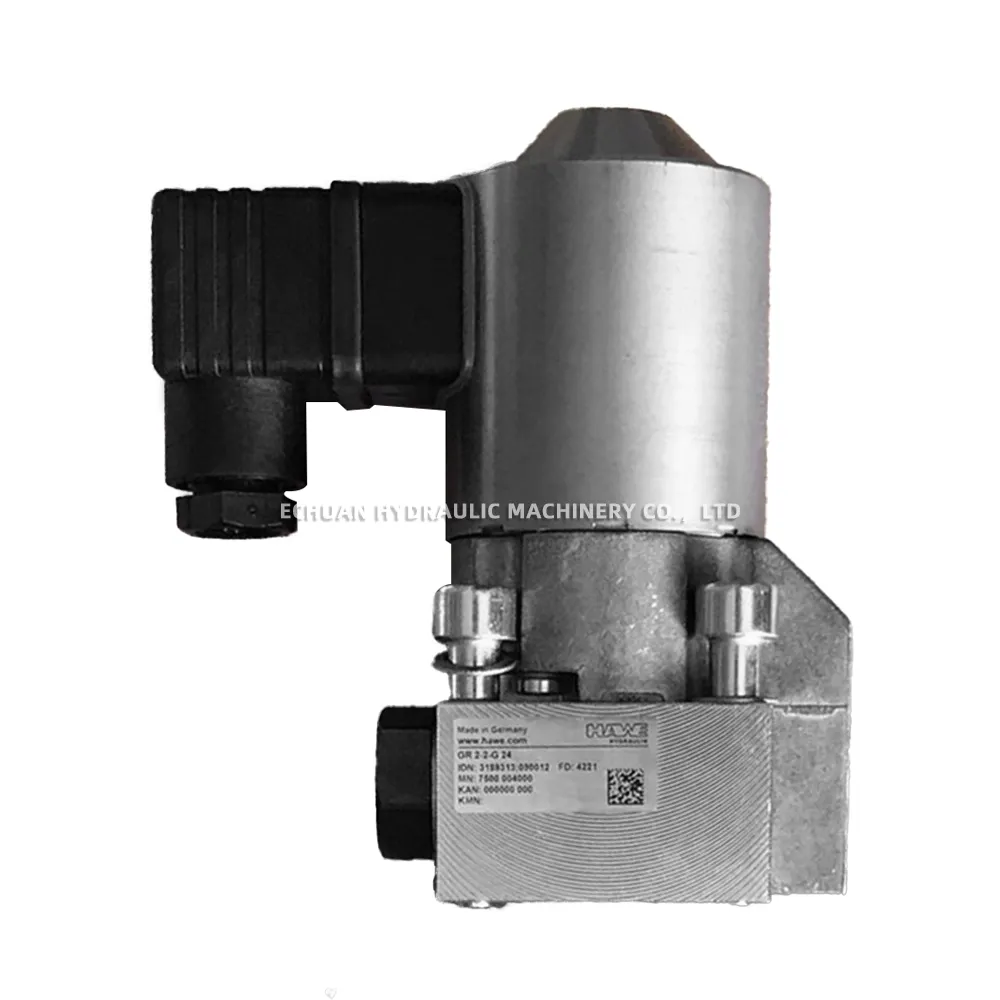

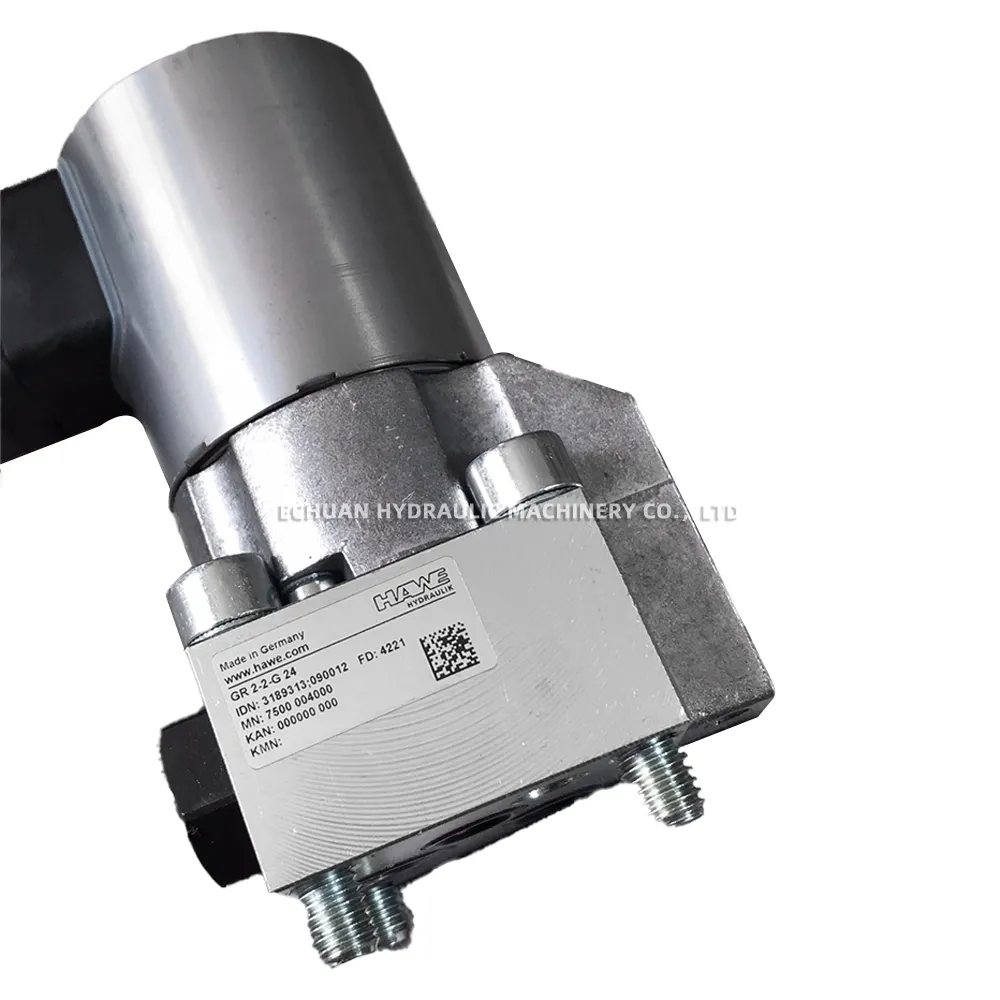

HAWE GR 2-2-G 24 - Image 1

HAWE GR 2-2-G 24 - Image 2

HAWE GR 2-2-G 24 - Image 3

HAWE GR 2-2-G 24 - Image 4

HAWE GR 2-2-G 24

Model:HAWE GR 2-2-G 24

BrandHAWE
ModelGR 2-2-G 24
Part No.HAWE GR 2-2-G 24
CategoryHydraulic valves
Linkhttps://www.echuan-hydraulic.com/product/hawe-gr-2-2-g-24
