Product Description

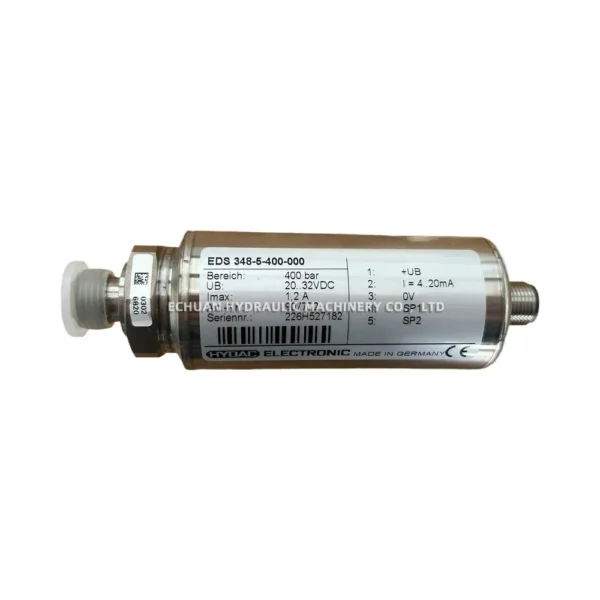

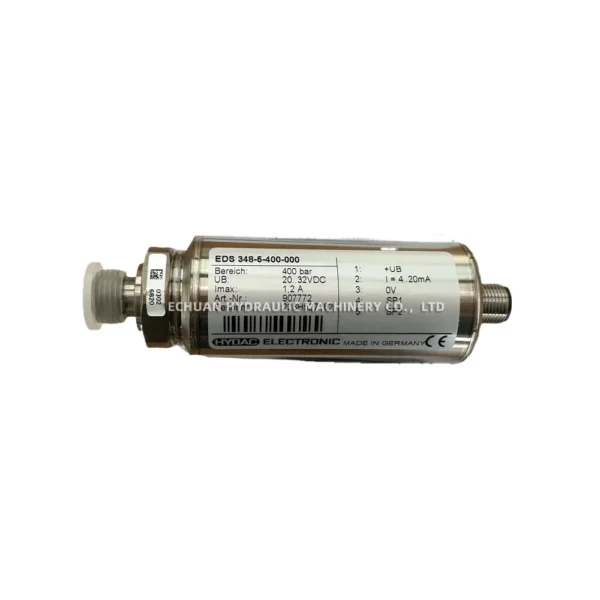

HYDAC EDS348-5-400-000

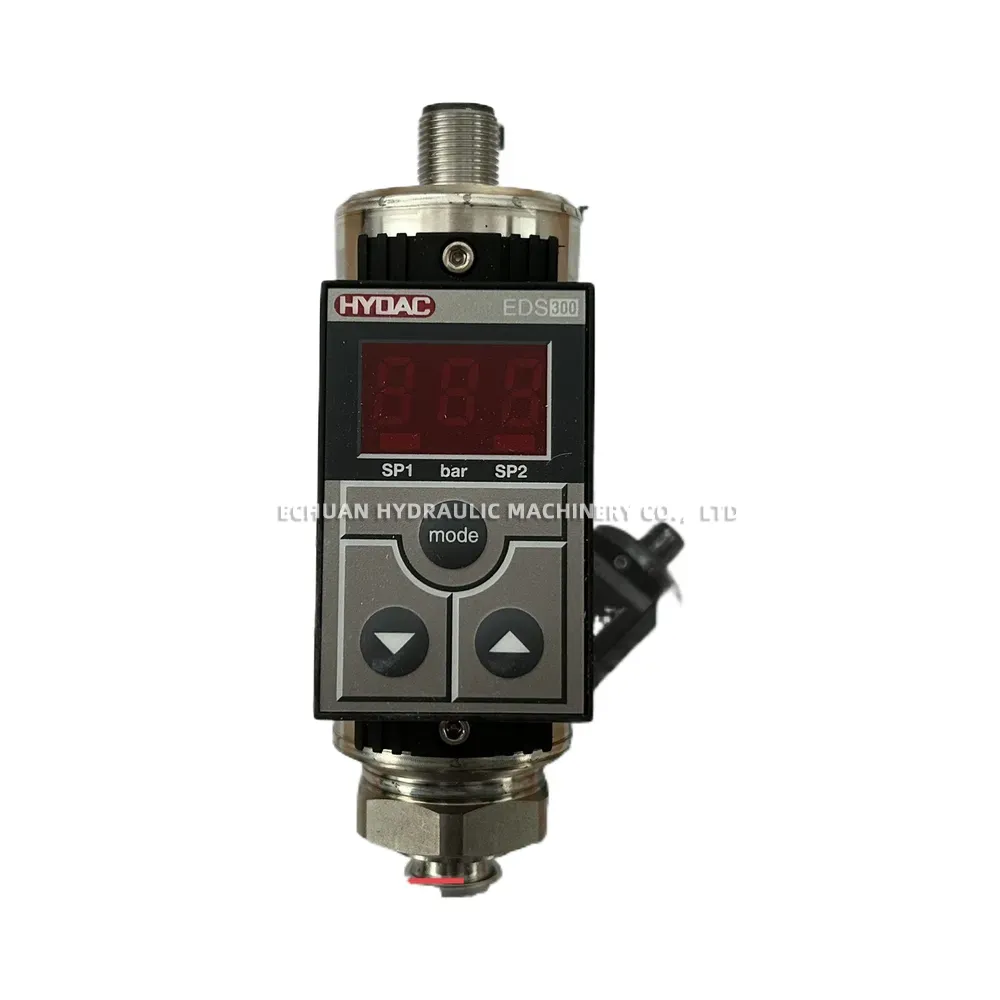

The HYDAC EDS 348 is a compact electronic pressure switch featuring an integrated digital display for indicating the system pressure. This model incorporates a stainless steel measuring cell with a thin-film strain gauge. It offers one PNP switching output and one 4-20 mA analog output. The device allows for easy parameter setting via a keypad, and its display and electrical connection can be rotated for optimal installation flexibility in various hydraulic and pneumatic applications.

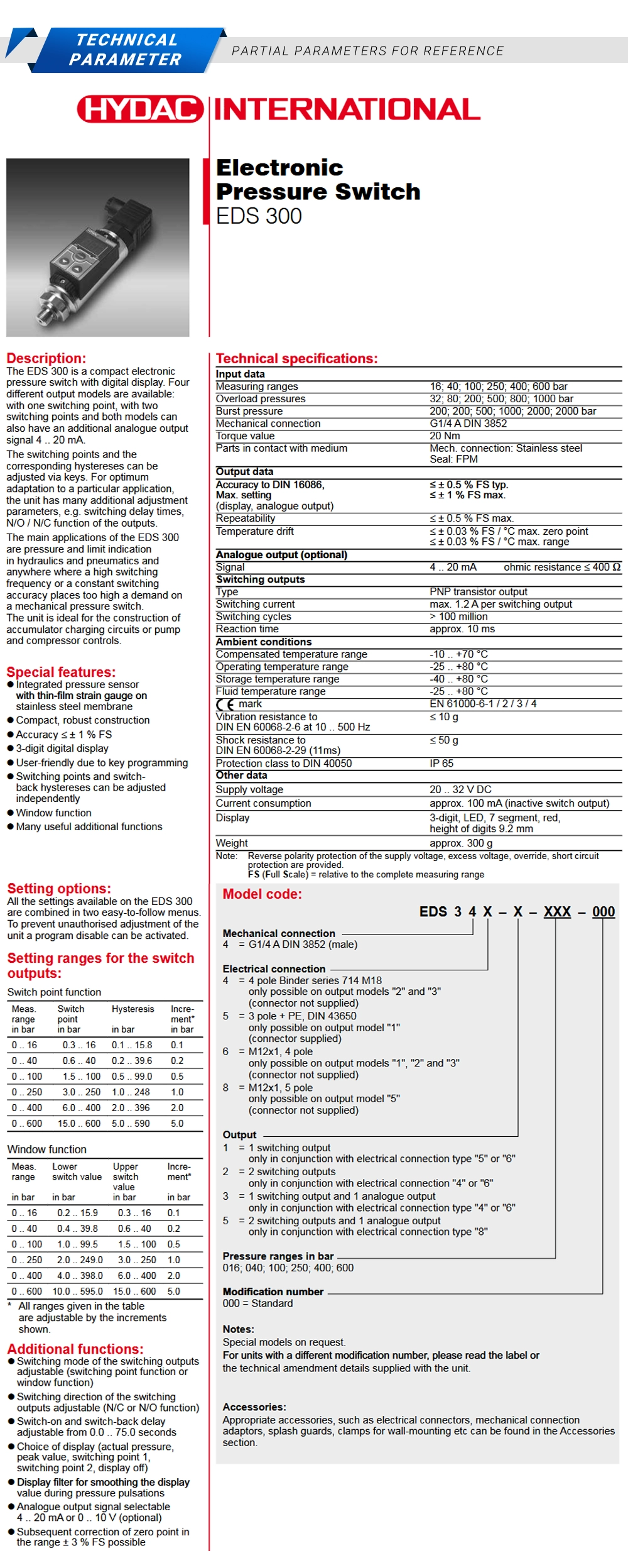

Technical Specifications:
- Pressure Range: 0 … 400 bar
- Output Signal: 1x PNP Switching Output + 1x Analog Output (4 … 20 mA, 3-wire)
- Accuracy (BFSL): ≤ ± 0.5 % FS typ.
- Supply Voltage: 9 … 35 V DC
- Electrical Connection: M12x1 Connector, 4-pole
- Process Connection: G1/4 A DIN 3852-E (Male)
- Protection Class: IP65 / IP67
- Display: 4-digit LED, red
- Fluid Temperature Range: -25 °C to +80 °C
- Switching Current (PNP Output): Max. 1.2 A
HYDAC EDS348-5-400-000
Model:HYDAC EDS348-5-400-000
| Brand | HYDAC |
|---|---|
| Model | EDS348-5-400-000 |
| Part No. | HYDAC EDS348-5-400-000 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/hydac-eds348-5-400-000 |
