Product Description

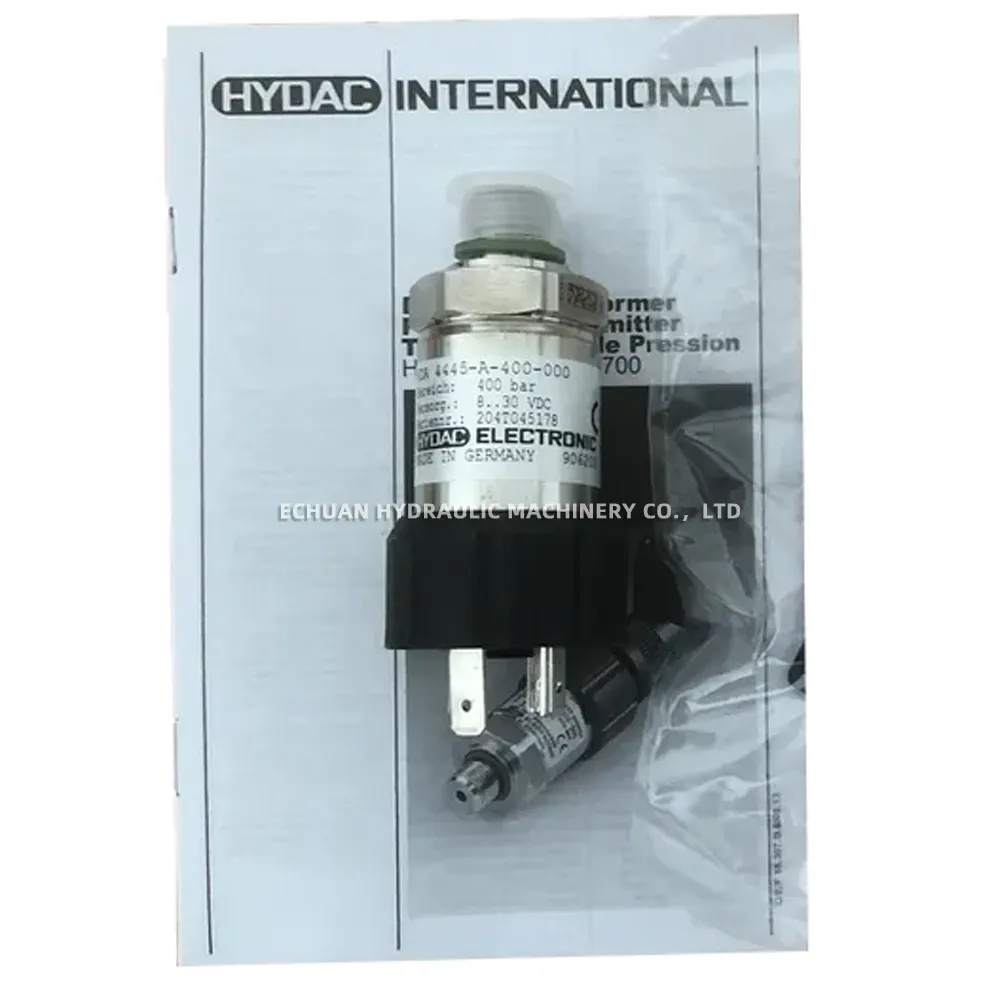

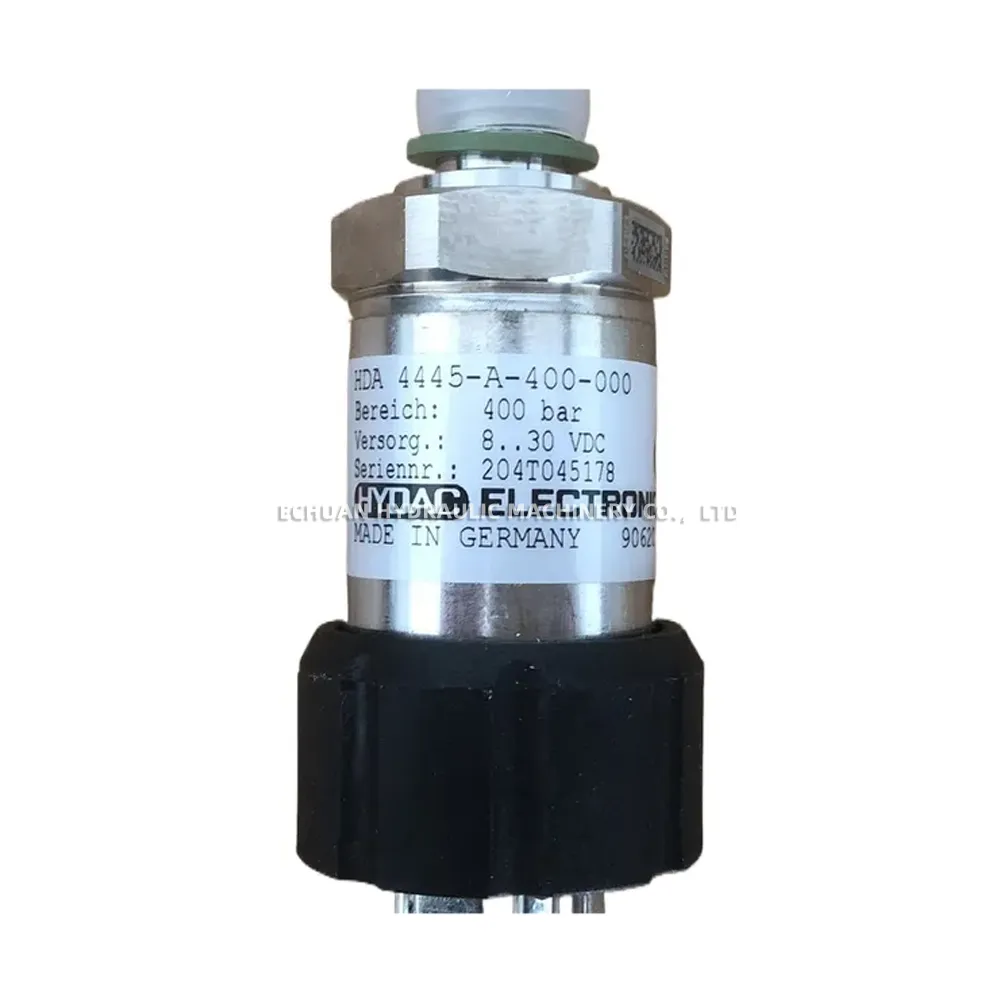

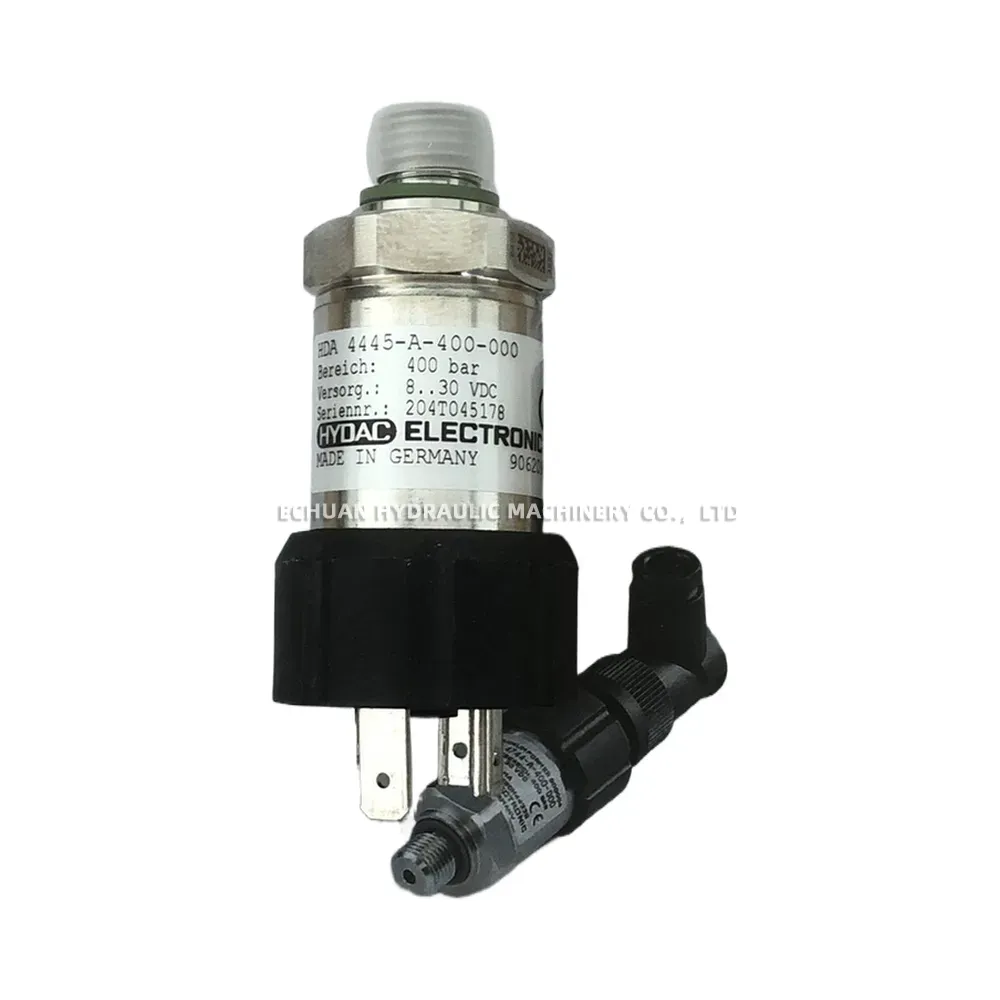

HYDAC HDA4445-A-400-000 Pressure Transmitter
The HYDAC HDA 4445 series pressure transmitter is designed for industrial and mobile hydraulic applications requiring a robust and reliable sensor. It features a stainless steel measuring cell with a thin-film strain gauge, ensuring high accuracy and excellent long-term stability. This specific model, HDA4445-A-400-000, measures absolute pressure and provides a standard 4 to 20 mA analog output signal. Its compact design and high protection rating make it suitable for demanding environments.

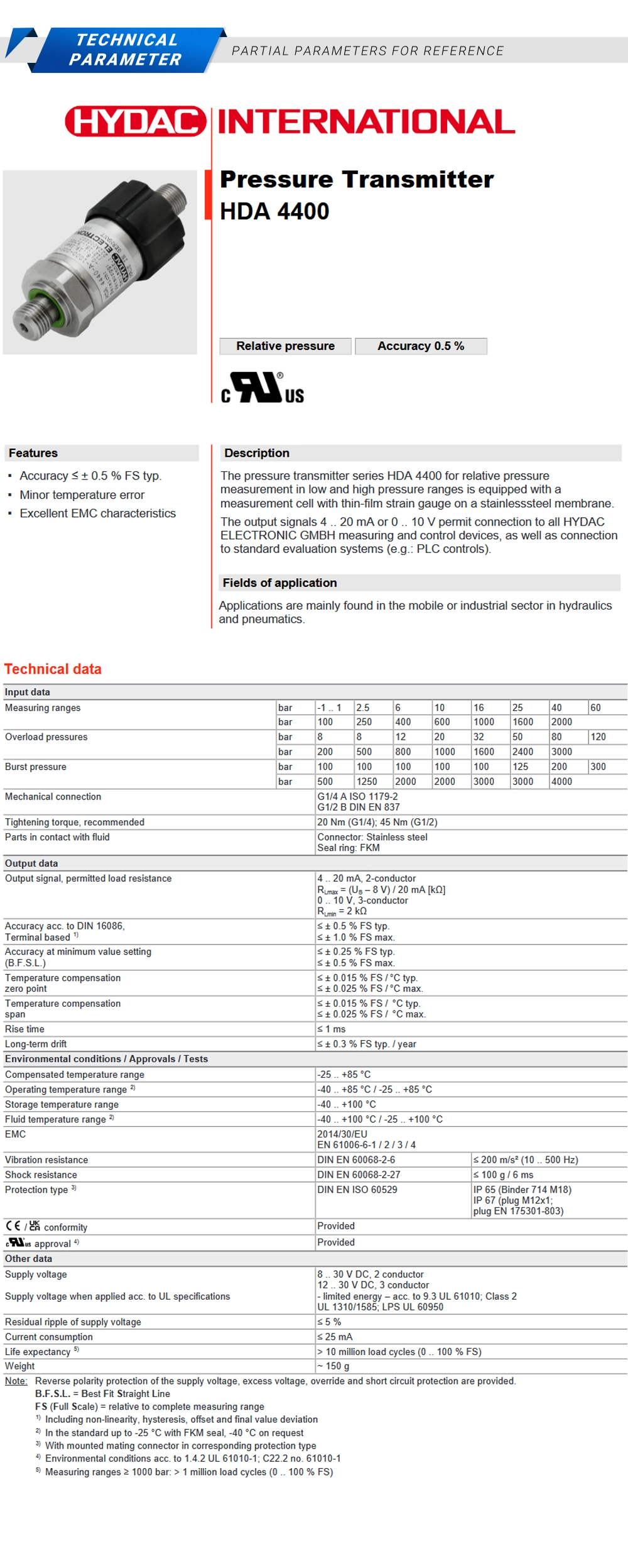

Technical Specifications:
- Type: Absolute Pressure Transmitter
- Series: HDA 4400
- Pressure Range: 0 … 400 bar
- Output Signal: 4 … 20 mA (2-wire)
- Accuracy (Typ.): ≤ ±0.5 % FS
- Accuracy (Max.): ≤ ±1.0 % FS
- Electrical Connection: M12x1 connector, 4-pole
- Supply Voltage: 8 … 30 V DC
- Pressure Connection: G1/4 A DIN 3852 (Male)
- Sensor Cell: Thin-film strain gauge on stainless steel diaphragm
- Wetted Parts Material: Stainless Steel
- Medium Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Protection Class: IP67 (when mated with corresponding connector)
HYDAC HDA4445-A-400-000
Model:HYDAC HDA4445-A-400-000
| Brand | HYDAC |
|---|---|
| Model | HDA4445-A-400-000 |
| Part No. | HYDAC HDA4445-A-400-000 |
| Category | Other products |
