Product Description

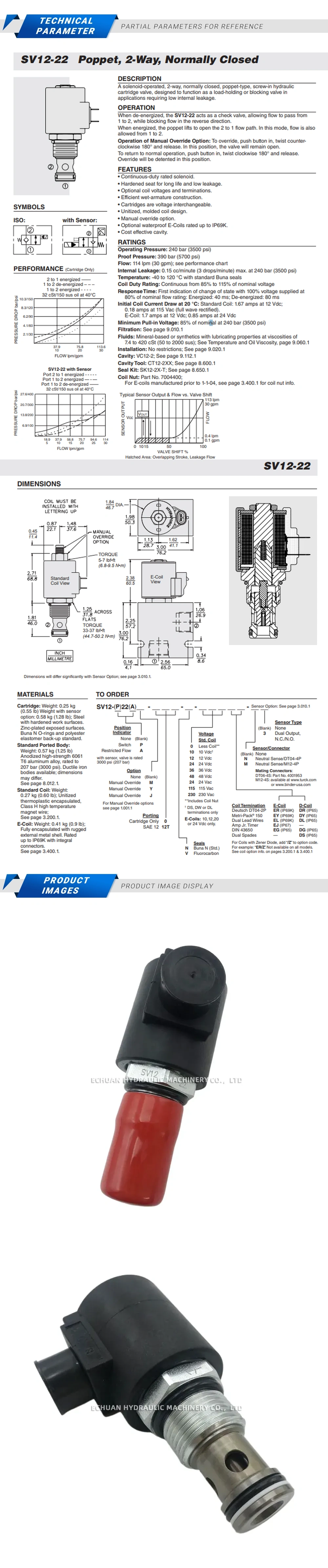

Hydraforce SV12-22-0-N-24DG
The Hydraforce SV12-22-0-N-24DG is a high-performance, solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is designed to act as a blocking or load-holding device in demanding hydraulic circuits. In its de-energized state, the SV12-22 blocks flow from port 2 to port 1. When the coil is energized, the poppet lifts, allowing flow from port 2 to port 1. The poppet-type construction ensures minimal leakage, making it ideal for applications requiring reliable load holding. Its robust design and hardened steel components provide long service life and consistent performance under high pressure.
Technical Specifications:
- Valve Type: Solenoid-operated, 2-way, normally closed, poppet-type
- Max Operating Pressure: 241 bar (3500 psi)
- Rated Flow: 114 lpm (30 gpm)
- Cavity: VC12-2
- Coil Voltage: 24V DC with DIN 43650 Connector
- Seal Material: Buna-N (Nitrile)
Hydraforce SV12-22-0-N-24DG
Order the Hydraforce SV12-22-0-N-24DG, a 2-way normally closed solenoid cartridge valve. This poppet-type valve operates at up to 241 bar (3500 psi) with a 114 lpm (30 gpm) flow rate and a 24V DC coil. Ideal for hydraulic load-holding and blocking applications.
