Product Description
HYDRAFORCE TS98-30-V
The HydraForce TS98-30-V is a high-performance, solenoid-operated, 3-way, 2-position, normally closed, poppet-type, screw-in hydraulic cartridge valve. It is designed for low-leakage load-holding and blocking applications. When de-energized, the valve blocks flow from port 2 to port 1, while allowing flow from port 1 to port 3. When the coil is energized, the poppet shifts, opening the flow path from port 2 to 1 and blocking port 3. The valve features a hardened poppet and seat for extended life and durability, making it a reliable choice for demanding hydraulic circuits.
Technical Specifications:
- Valve Type: Solenoid-operated, 3-way, 2-position, normally closed, poppet-type
- Maximum Operating Pressure: 241 bar (3500 psi)
- Maximum Flow Rating: 1.9 lpm (0.5 gpm)
- Cavity: T-8A
- Seal Material: Viton
- Valve Leakage: 1 drop/min (0.07 cc/min) max at 207 bar (3000 psi)

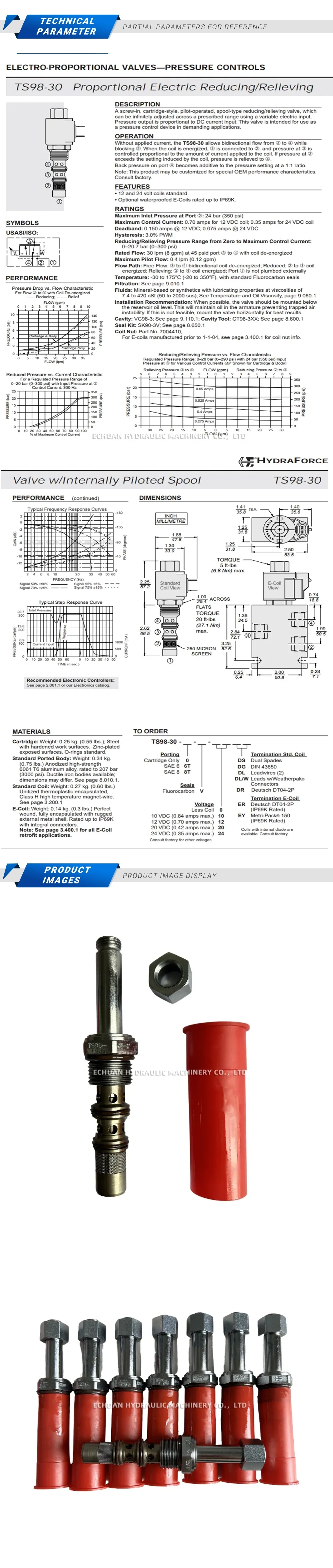

HYDRAFORCE TS98-30-V
Purchase the HydraForce TS98-30-V, a reliable 3-way, 2-position normally closed solenoid cartridge valve with Viton seals. Ideal for low-leakage hydraulic load-holding applications up to 241 bar (3500 psi).
| Brand | HYDRAFORCE |
|---|---|
| Model | TS98-30-V |
| Category | Hydraulic valves |
