Product Description
IMAC ILP-30M2 PWM Controller

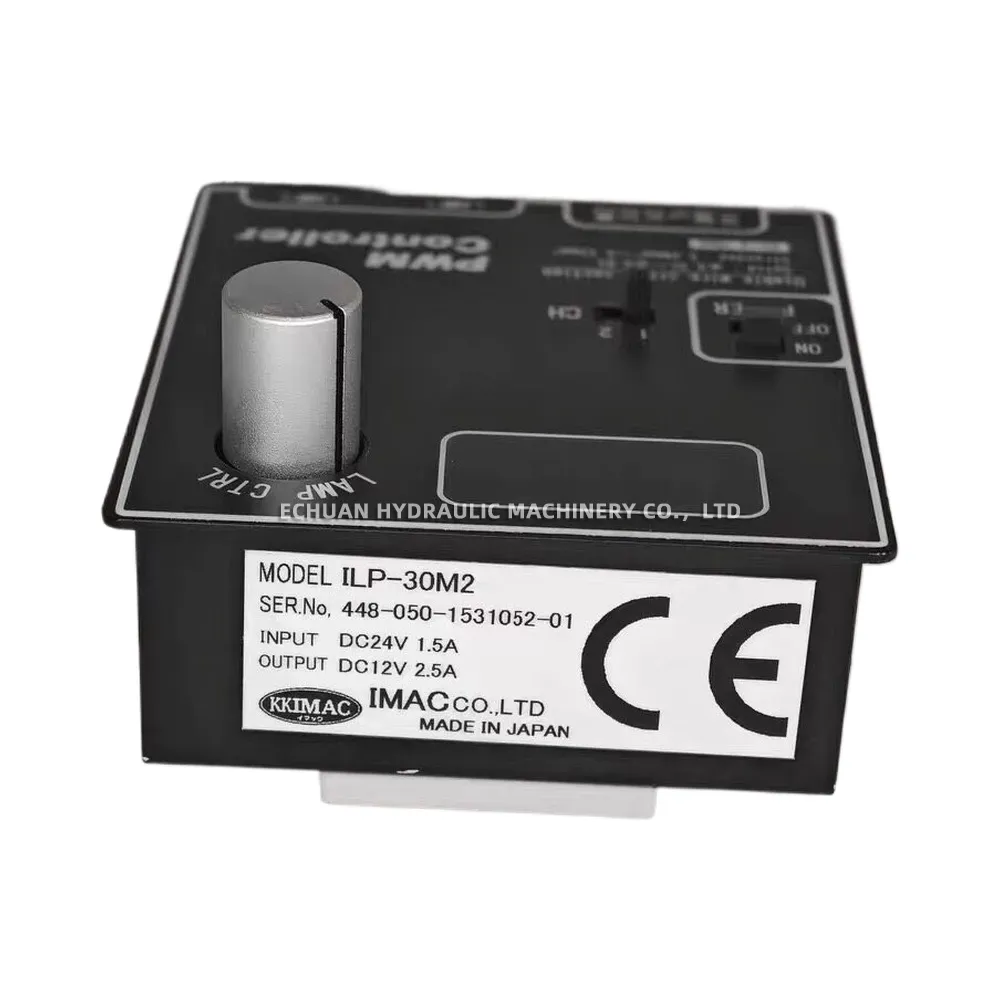

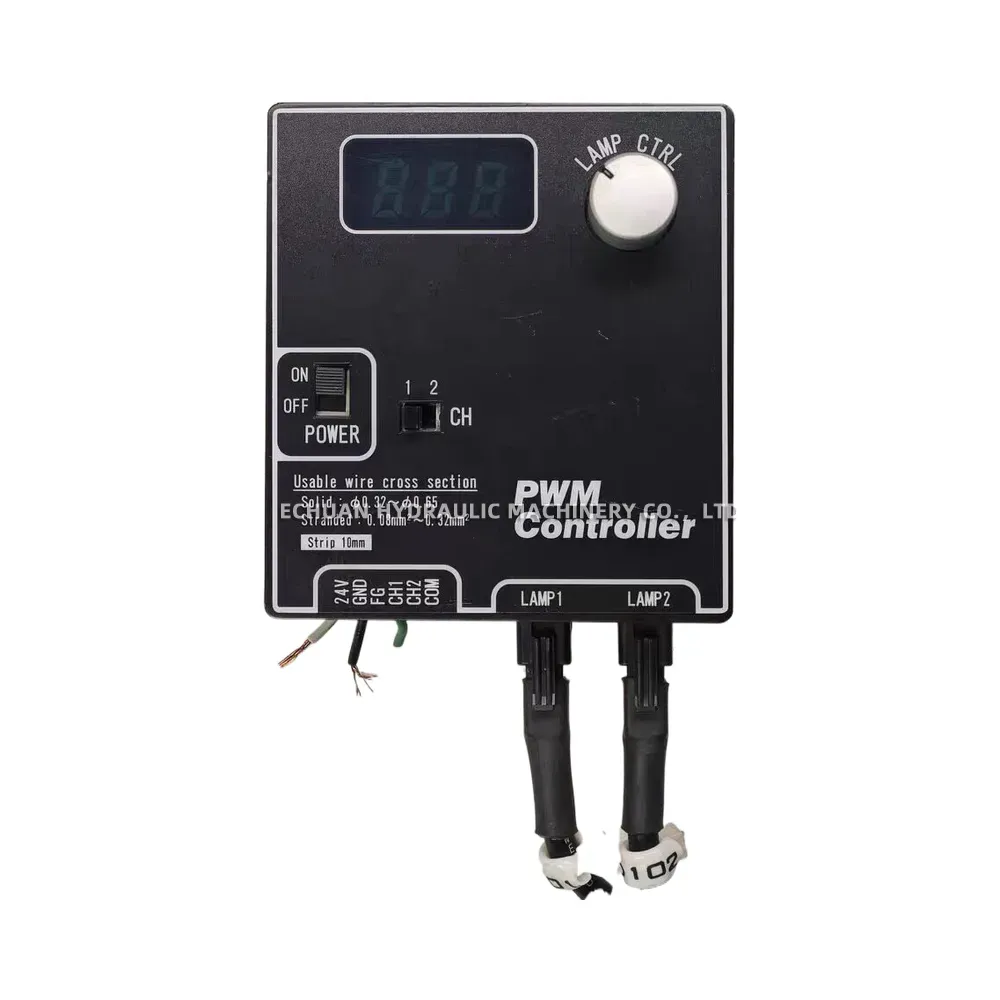

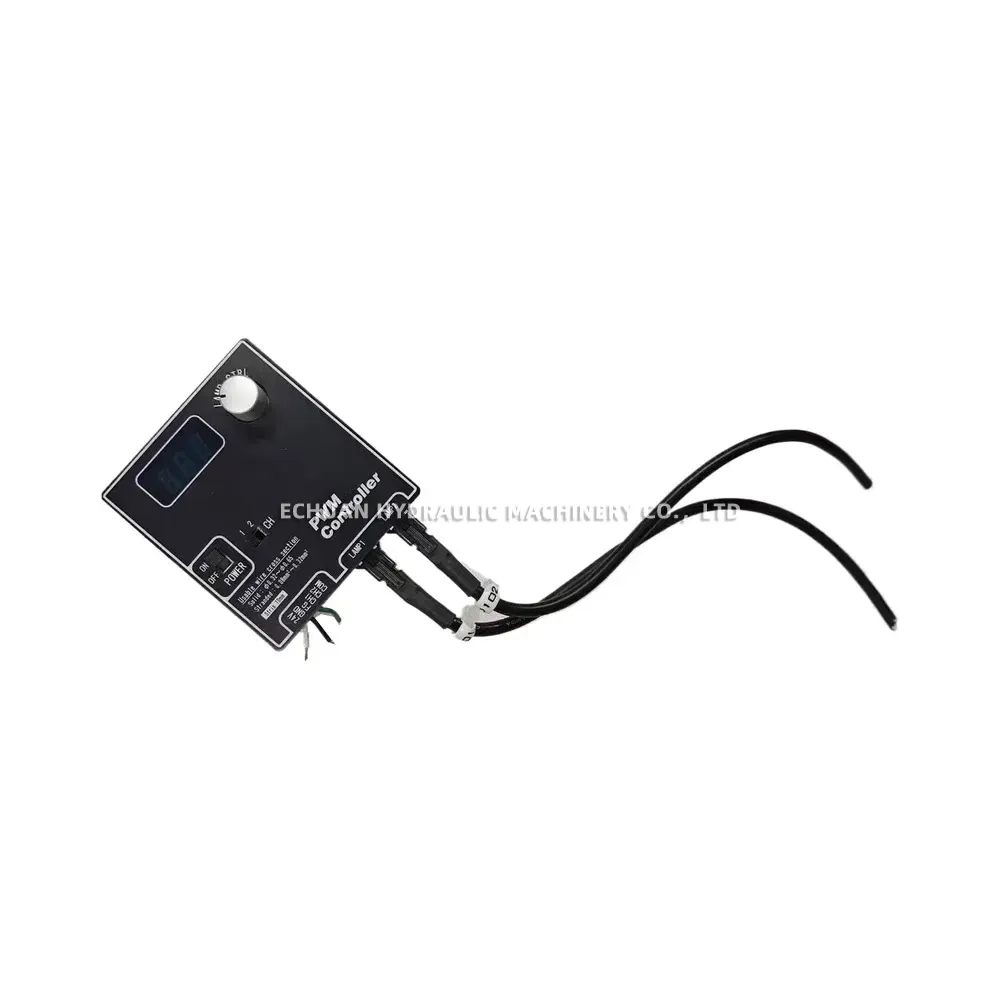

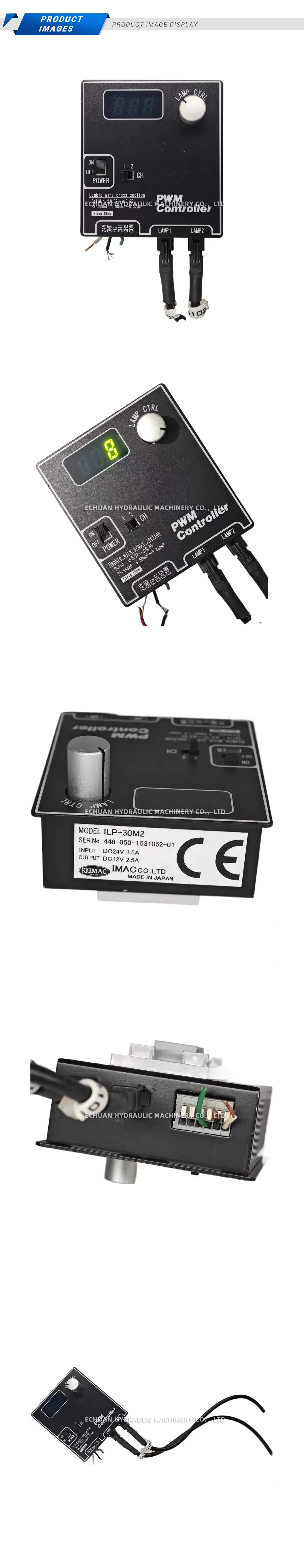

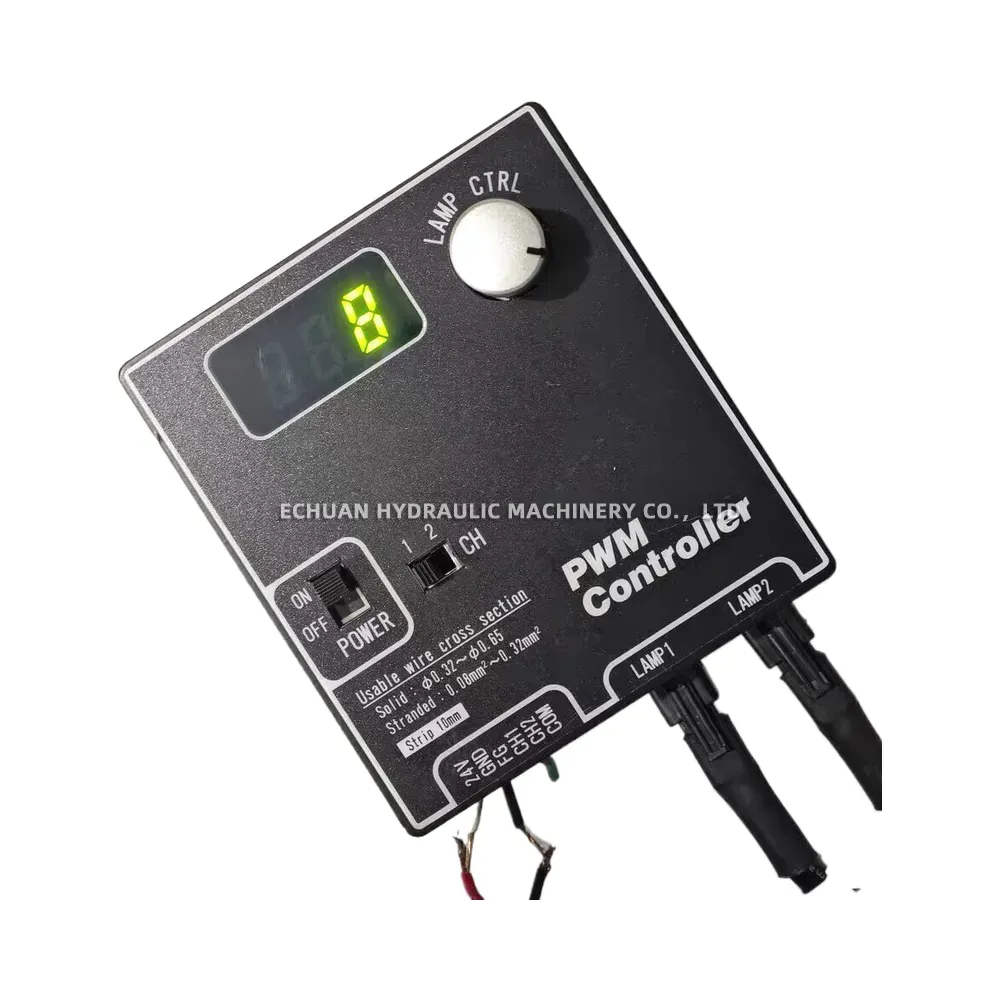

The IMAC ILP-30M2 is a high-performance PWM (Pulse Width Modulation) lamp controller specifically engineered for industrial machine vision and lighting applications. Manufactured in Japan by IMAC Co., Ltd., this CE-certified unit offers precise illumination control through an intuitive rotary knob and a clear digital LED display. It features dual-channel outputs (LAMP1 and LAMP2) equipped with a convenient channel selector switch, allowing for versatile and independent lighting setups. Operating on a DC24V 1.5A input, it delivers a highly stable DC12V 2.5A output, ensuring reliable and consistent lighting performance for critical inspection and factory automation tasks. The controller also includes secure wiring terminals designed to accommodate both solid and stranded wires, ensuring a robust and safe industrial installation.
Technical Specifications:
- Brand: IMAC
- Model: ILP-30M2
- Control Method: PWM (Pulse Width Modulation)
- Input Voltage/Current: DC24V 1.5A
- Output Voltage/Current: DC12V 2.5A
- Output Channels: Dual Output (LAMP1, LAMP2) with CH 1/2 selector switch
- Display: Digital LED Display

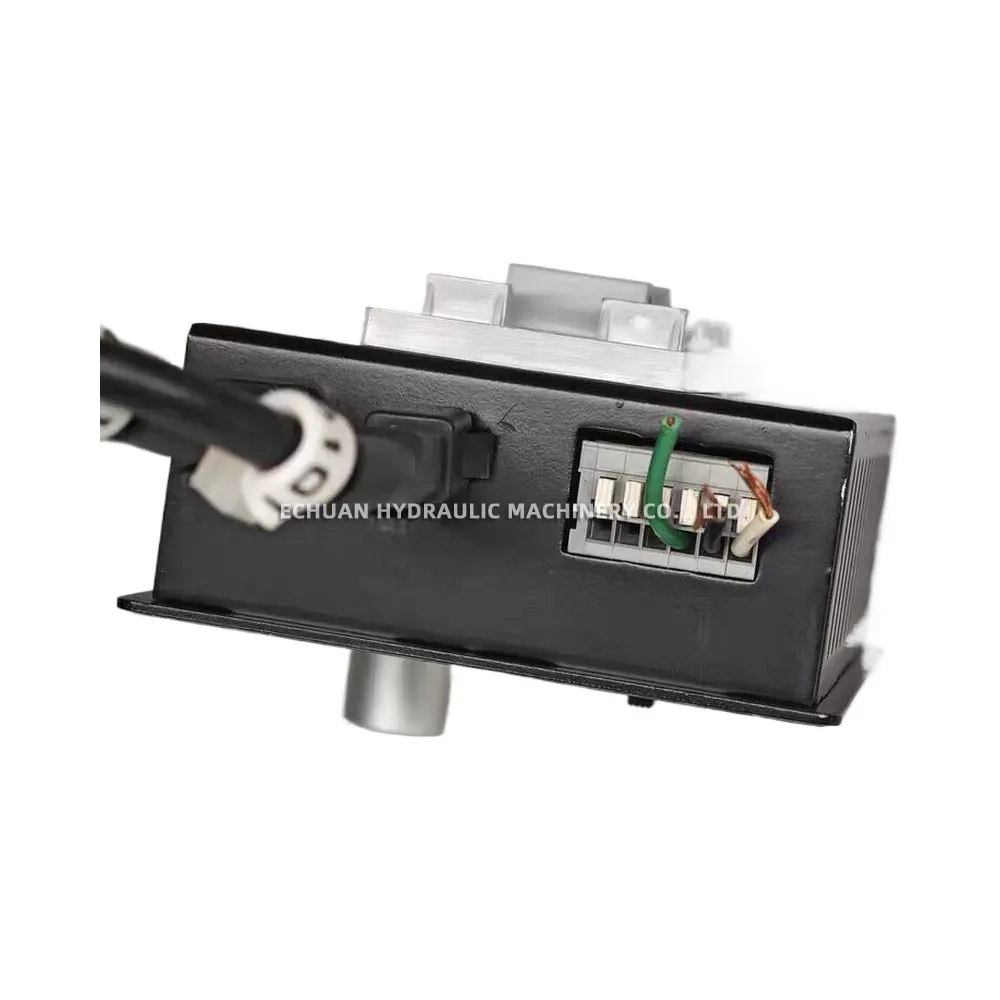

- Connection Terminals: 24V, GND, FG, CH1, CH2, COM
- Usable Wire (Solid): φ0.32 ~ φ0.65
- Usable Wire (Stranded): 0.08mm² ~ 0.32mm²
- Wire Strip Length: 10mm
- Certifications: CE Marked
- Country of Origin: Made in Japan
IMAC ILP-30M2 PWM Controller
Optimize your industrial lighting setups with the IMAC ILP-30M2 PWM Controller. Featuring dual-channel control, a digital LED display, DC24V input, and a stable DC12V 2.5A output, this Japanese-made, CE-certified controller delivers precise and reliable illumination management for machine vision and factory automation systems.
| Brand | IMAC |
|---|---|
| Model | ILP-30M2 |
| Part No. | 1028177635455 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/imac-ilp-30m2-pwm-controller |
