Product Description

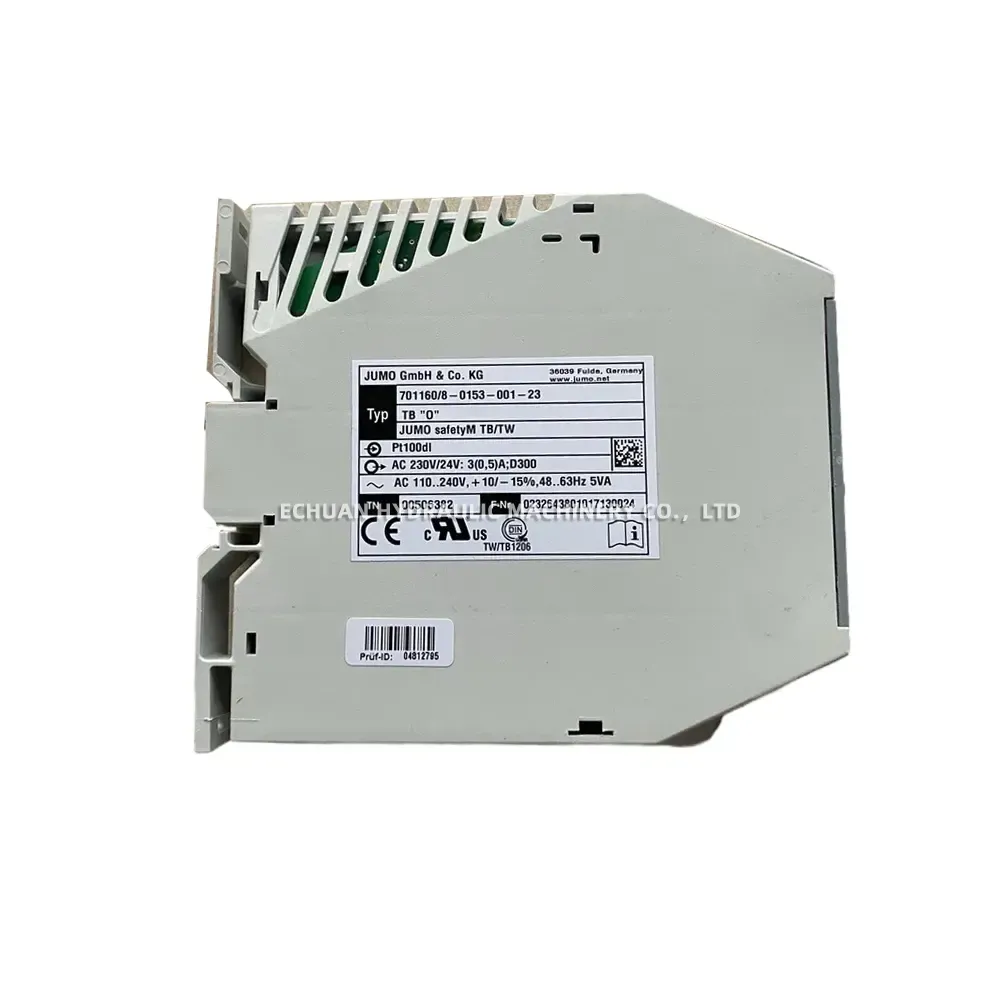

JUMO 701160/8-0153-001-23 Safety Temperature Monitor
The JUMO 701160/8-0153-001-23 safetyM TB/TW is a highly reliable safety temperature monitor designed to protect thermal processes and systems from critical over-temperature conditions. Featuring a precise Pt100dI input, this device ensures accurate temperature measurement and rapid response in demanding environments. It operates on a versatile AC 110 to 240V power supply and is equipped with robust relay outputs rated at 3A (AC 230V/24V). Certified with CE and cRUus approvals, this Type TB “O” monitor is an essential component for industrial automation, providing fail-safe temperature limitation and monitoring to ensure operational safety and equipment longevity.
Technical Specifications:
- Brand: JUMO
- Model: 701160/8-0153-001-23
- Part Number (TN): 00506382
- Product Series: safetyM TB/TW (Type TB “O”)
- Measuring Input: Pt100dI
- Power Supply: AC 110..240V, +10/-15%, 48..63Hz, 5VA
- Output Rating: AC 230V/24V: 3(0.5)A; D300
- Approvals & Certifications: CE, cRUus, GIRA TW/TB1206
JUMO 701160/8-0153-001-23 Safety Temperature Monitor
Shop the JUMO 701160/8-0153-001-23 safetyM TB/TW Safety Temperature Monitor. Engineered for precise thermal protection, featuring a Pt100dI input, 110-240V AC power supply, and global safety certifications (CE, cRUus). Ideal for secure and reliable industrial process automation.
| Brand | JUMO |
|---|---|
| Model | 701160/8-0153-001-23 |
| Part No. | 803174493602 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/jumo-701160-8-0153-001-23-safety-temperature-monitor |
