Product Description

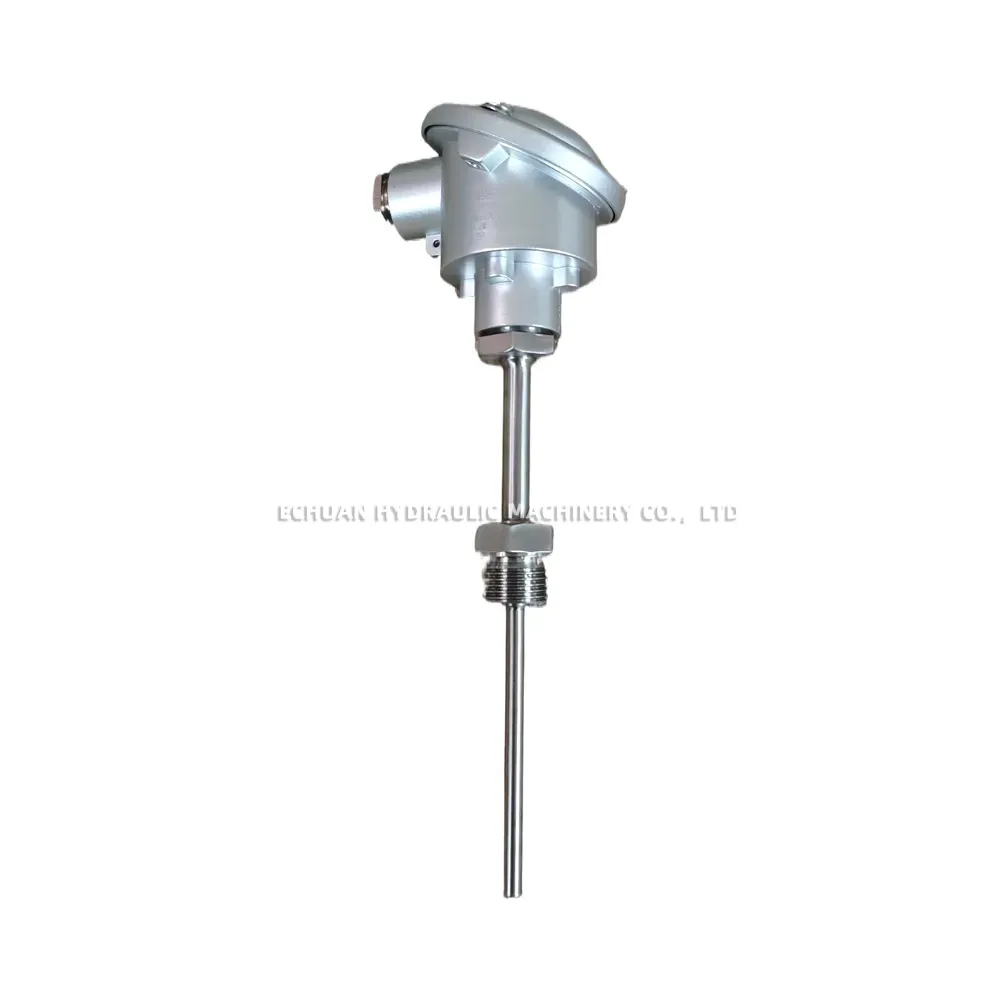

JUMO 90.239/999 PT100 RTD Temperature Sensor
The JUMO 90.239/999 PT100 RTD Temperature Sensor is a highly reliable and precise resistance thermometer engineered for demanding industrial environments. Equipped with a robust stainless steel probe stem and a durable aluminum connection head featuring a secure cable gland, this sensor offers exceptional protection against harsh conditions. It utilizes a single PT100 sensing element configured in a 3-wire circuit to deliver highly accurate temperature readings across a broad measuring range of -50°C to 400°C. Designed for versatility, it includes a threaded process connection with an adjustable compression fitting, ensuring flexible and secure installation for a wide variety of process control and automation applications.
Technical Specifications:
- Brand: JUMO
- Model/Type: 90.239/999

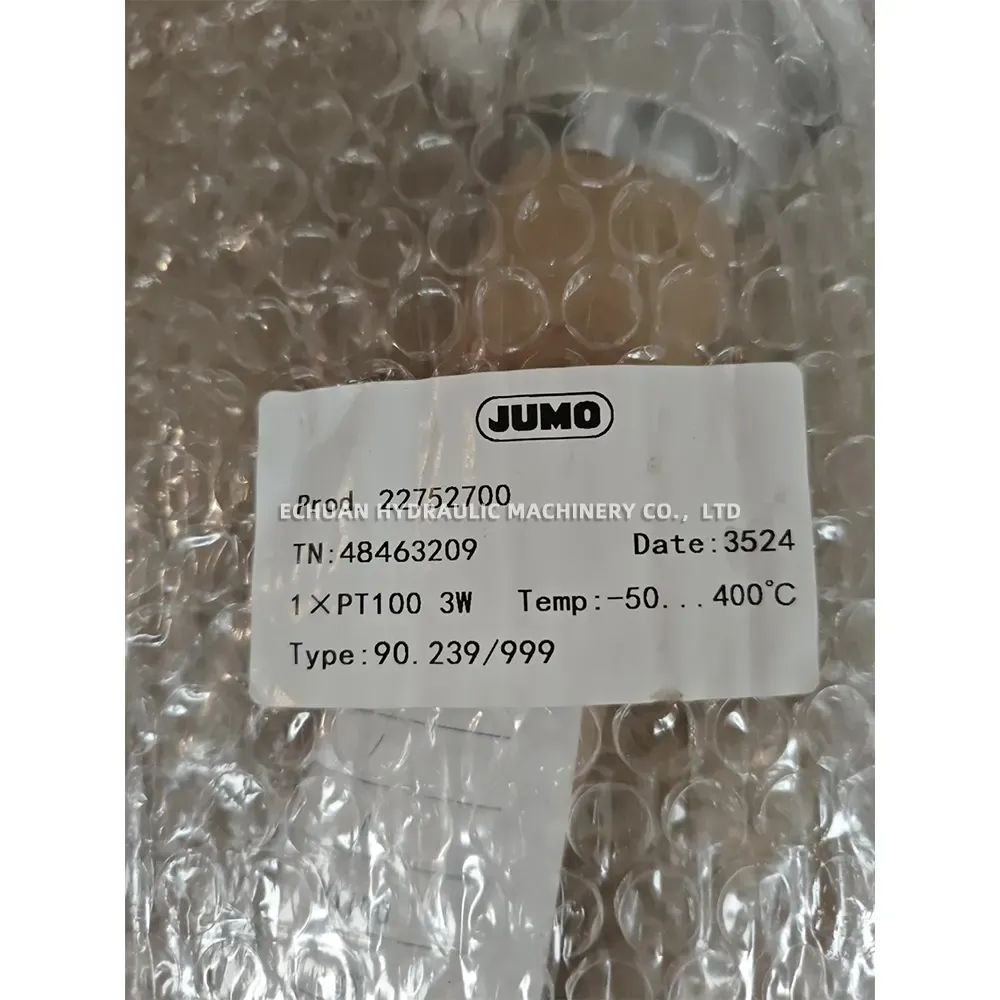

- Product Number (Prod.): 22752700 (TN: 48463209)
- Sensor Element: 1 x PT100
- Circuit Configuration: 3-Wire (3W)
- Measuring Range: -50°C to +400°C

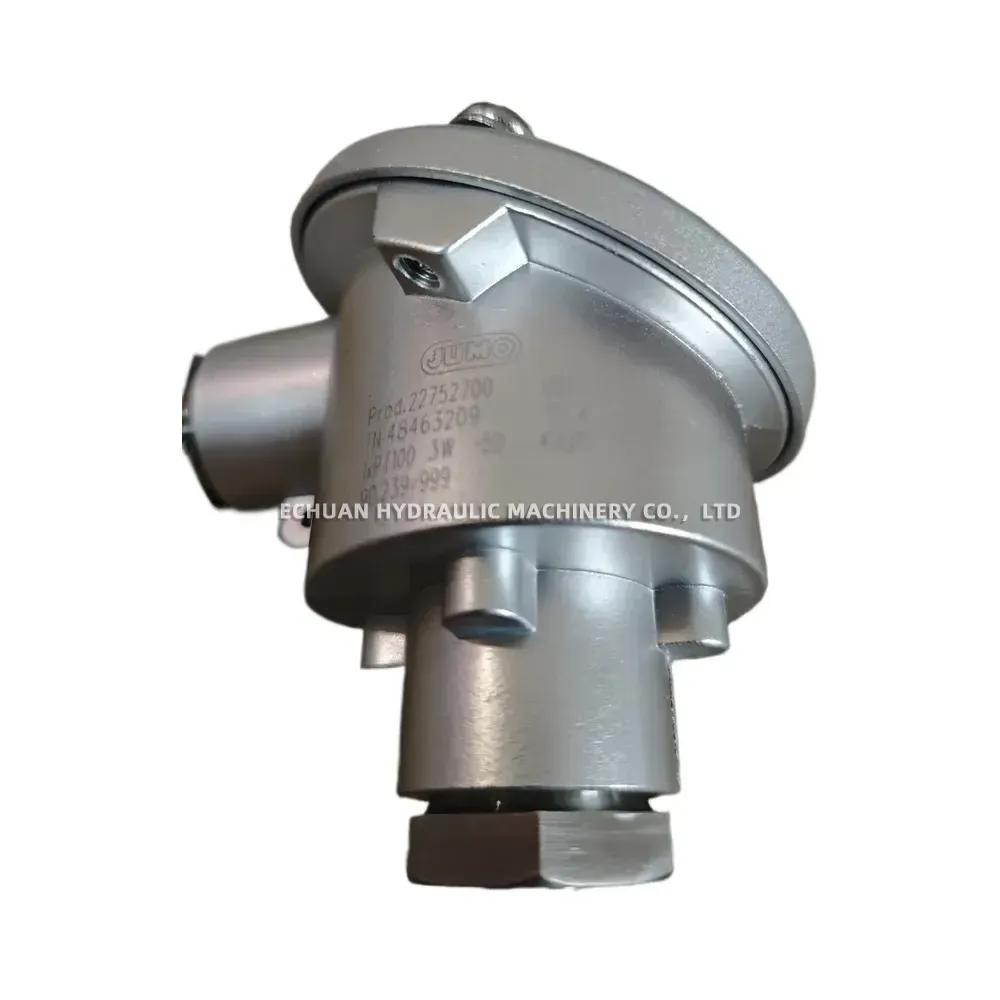

- Connection Head: Aluminum with cable gland
- Probe Material: Stainless steel
- Process Connection: Threaded process connection with adjustable compression fitting

JUMO 90.239/999 PT100 RTD Temperature Sensor
Shop the JUMO 90.239/999 PT100 RTD Temperature Sensor (Prod. 22752700) for accurate industrial temperature monitoring. Features a -50 to 400°C range, 3-wire configuration, durable stainless steel probe, and adjustable compression fitting for reliable and flexible installation.
| Brand | JUMO |
|---|---|
| Model | 90.239/999 |
| Part No. | 1003504531744 |
| Category | Electrical |
