Product Description
LCD System Controller Board

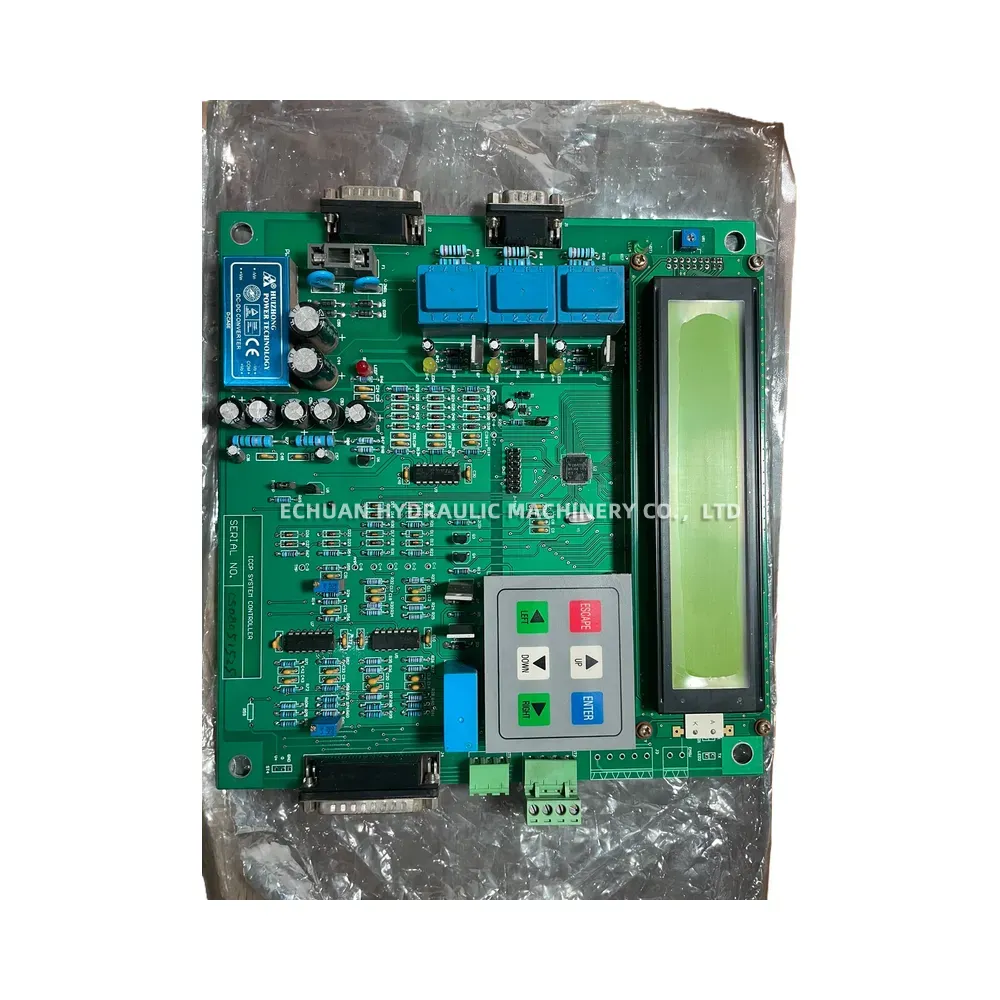

This is an industrial-grade LCD System Controller Board designed for a wide range of monitoring and control applications. The board integrates a complete user interface with a vertical LCD display and a 6-button membrane keypad, allowing for intuitive operation and status feedback. It is equipped with three robust relays for switching external loads, dual D-sub serial ports for communication with other devices, and multiple terminal blocks for secure I/O connections. An onboard DC-DC converter ensures stable power management for the entire assembly. With its comprehensive feature set, this controller is an ideal solution for embedded systems, machinery control, and automation projects requiring a compact and reliable human-machine interface (HMI).
Technical Specifications:
- User Interface: Integrated vertical LCD display module with a 6-button membrane keypad (Escape, Up, Down, Left, Right, Enter).
- Output Control: Three onboard blue relay blocks for controlling external circuits and devices.
- Communication Ports: Dual D-sub serial communication ports for data connectivity.
- Power Management: Onboard DC-DC converter module for regulated power.
- Connections: Screw-type terminal blocks for power and I/O wiring.
- Compliance: CE marked assembly.
LCD System Controller Board
Industrial LCD System Controller Board with integrated display, 6-button keypad, triple relays, and dual serial ports. A reliable solution for embedded control and HMI applications.
