Product Description

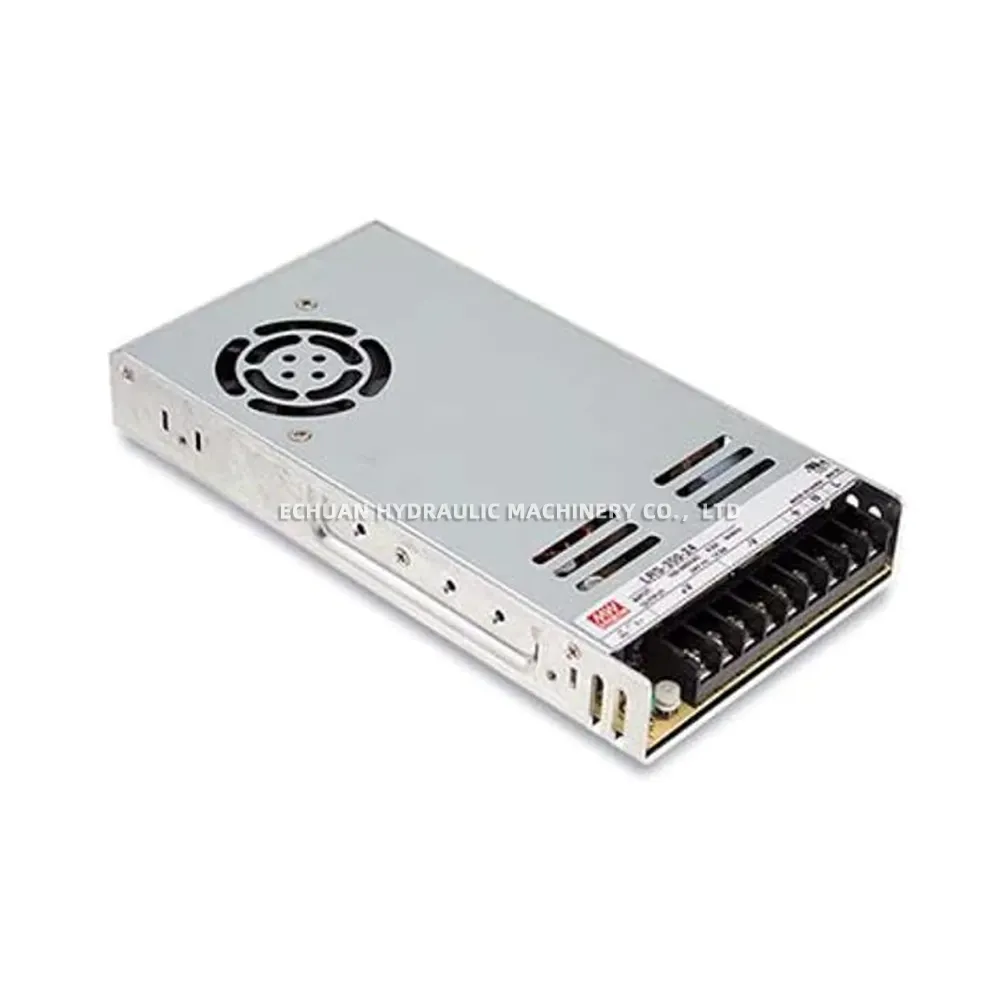

Meanwell LRS-350-12

The Meanwell LRS-350-12 is a high-performance, 350W single-output enclosed type power supply featuring a 30mm low-profile design. It operates on a switch-selectable AC input range, making it versatile for global applications. Engineered for reliability, it includes a built-in long-life fan for efficient cooling, allowing it to deliver full power up to 50°C. This unit is equipped with comprehensive protections against short circuit, overload, over voltage, and over temperature. Its high efficiency and robust design make the LRS-350-12 an excellent power solution for industrial automation machinery, control systems, mechanical and electrical equipment, and various electronic instruments.

Technical Specifications:

  • Output Voltage: 12V DC

  • Output Current: 29A

  • Rated Power: 348W

  • Input Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC (Selectable by switch)

  • Efficiency (Typ.): 85%

  • Dimensions (LxWxH): 215 x 115 x 30 mm

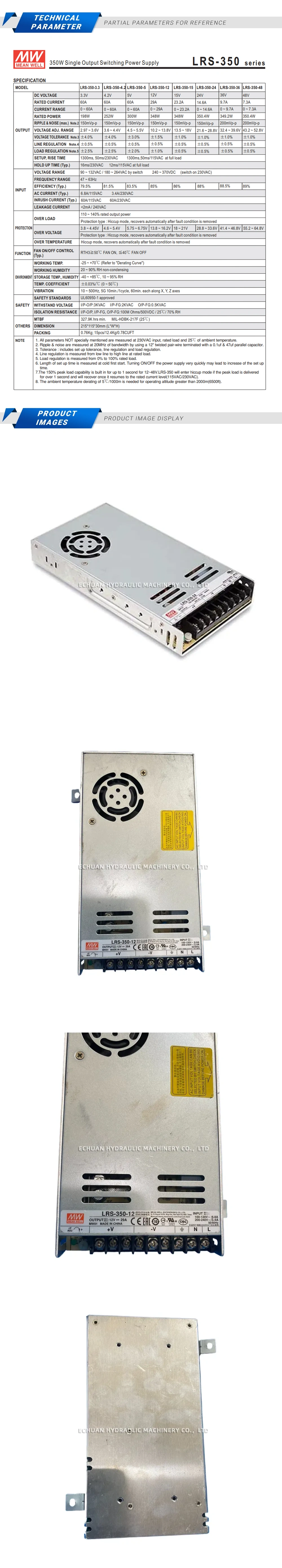

Meanwell LRS-350-12 Description

Meanwell LRS-350-12

Discover the Meanwell LRS-350-12, a reliable 350W 12V enclosed switching power supply. This efficient AC/DC converter is perfect for industrial automation, control systems, and electronic applications, featuring a low-profile design and built-in cooling.
