Product Description

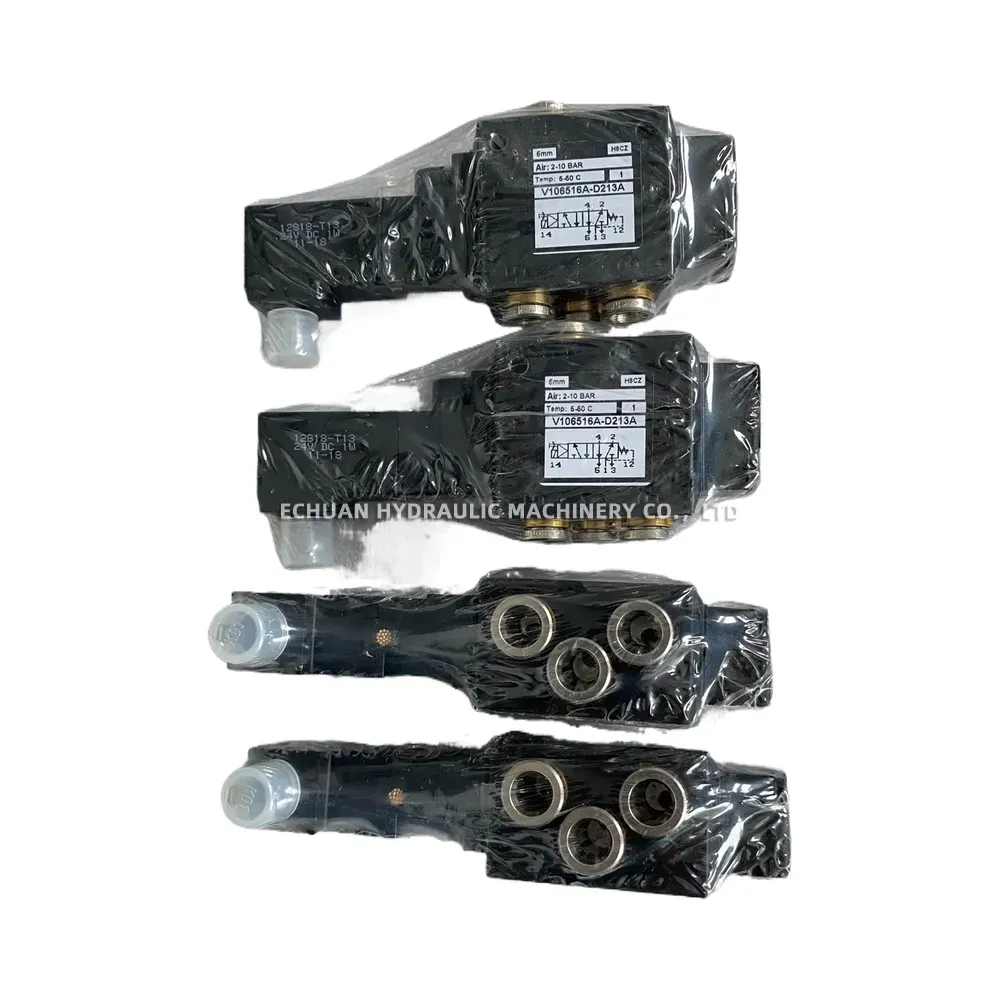

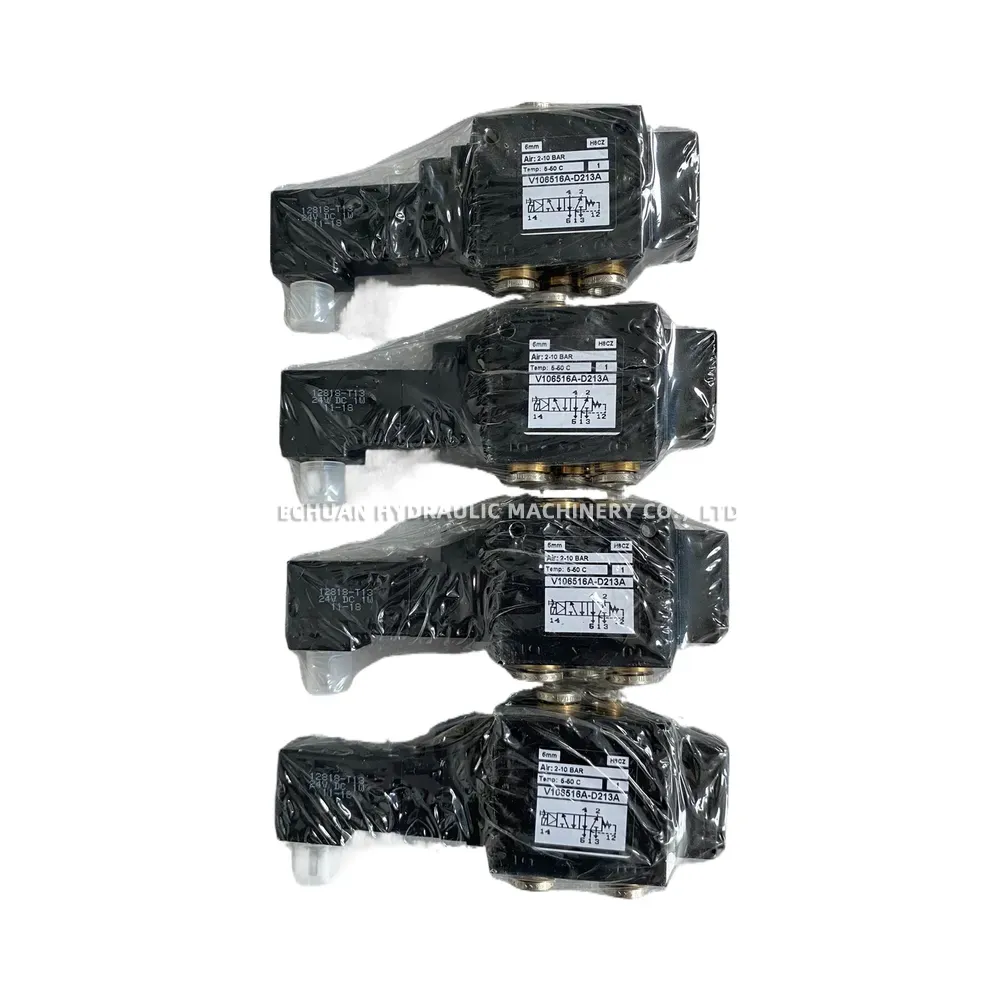

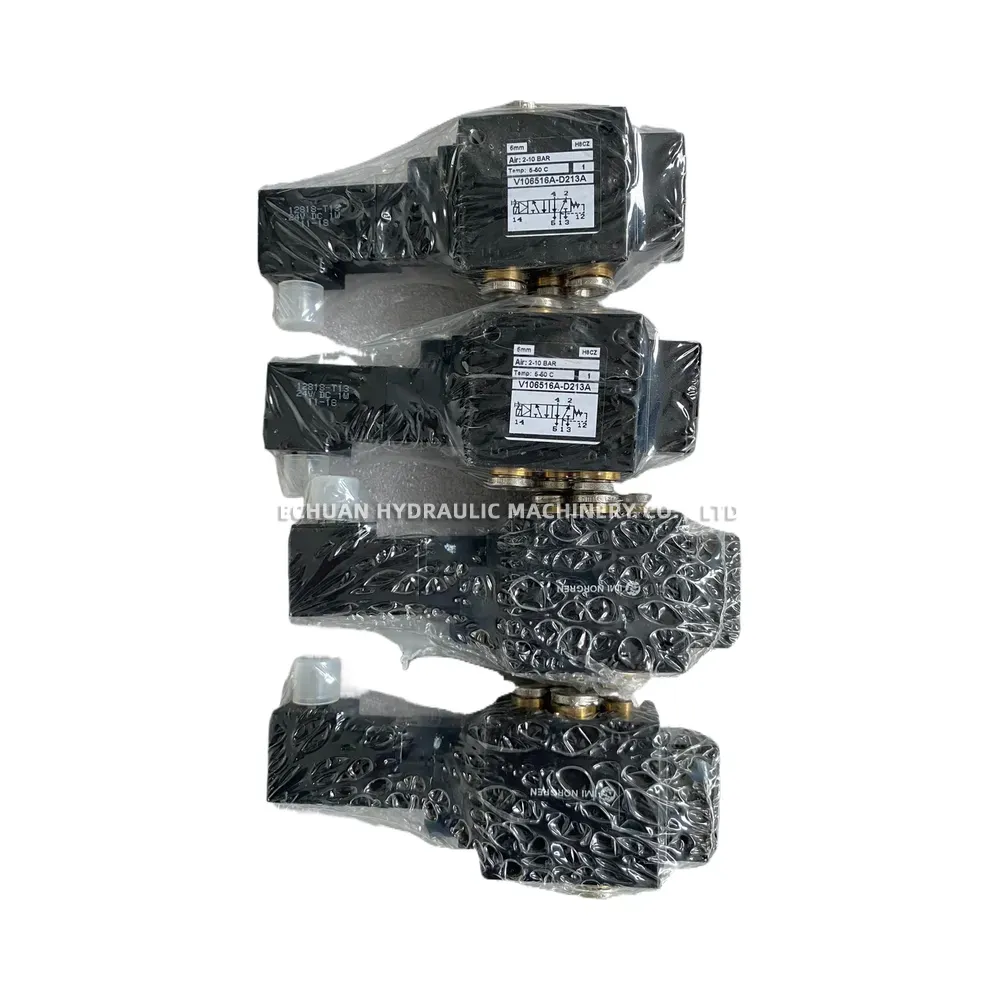

NORGREN V106516A-D213A
The NORGREN V106516A-D213A is a compact, direct-acting 3/2 normally closed (NC) inline solenoid valve from the V10 series. Designed for reliable performance in industrial automation and fluid control applications, it features G1/8 ports and is actuated by a solenoid with spring return. This specific model includes the D213A coil, typically specified for 24V DC operation with a DIN connector interface.
Technical Specifications:
- Manufacturer: NORGREN (IMI Precision Engineering)
- Valve Type: Inline Solenoid Valve
- Series: V10
- Function: 3/2 Normally Closed (NC)
- Actuation: Solenoid / Spring Return
- Port Size: G1/8
- Operating Pressure: -0.9 to 10 bar (approx.)
- Flow Coefficient (Kv): ~0.15 m³/h
- Coil Specification (D213A): 24V DC, 2W (typically with DIN Form C connector compatibility)
- Body Material: Brass (typical for V10 series)
- Seal Material: NBR (Nitrile) or FKM depending on variant
- Operating Temperature: Dependent on seals (e.g., -10°C to +50°C for NBR)
- Orifice Size: ~1.6 mm
NORGREN V106516A-D213A
Model:NORGREN V106516A-D213A
| Brand | Norgren |
|---|---|
| Model | V106516A-D213A |
| Part No. | NORGREN V106516A-D213A |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/norgren-v106516a-d213a |
