Product Description

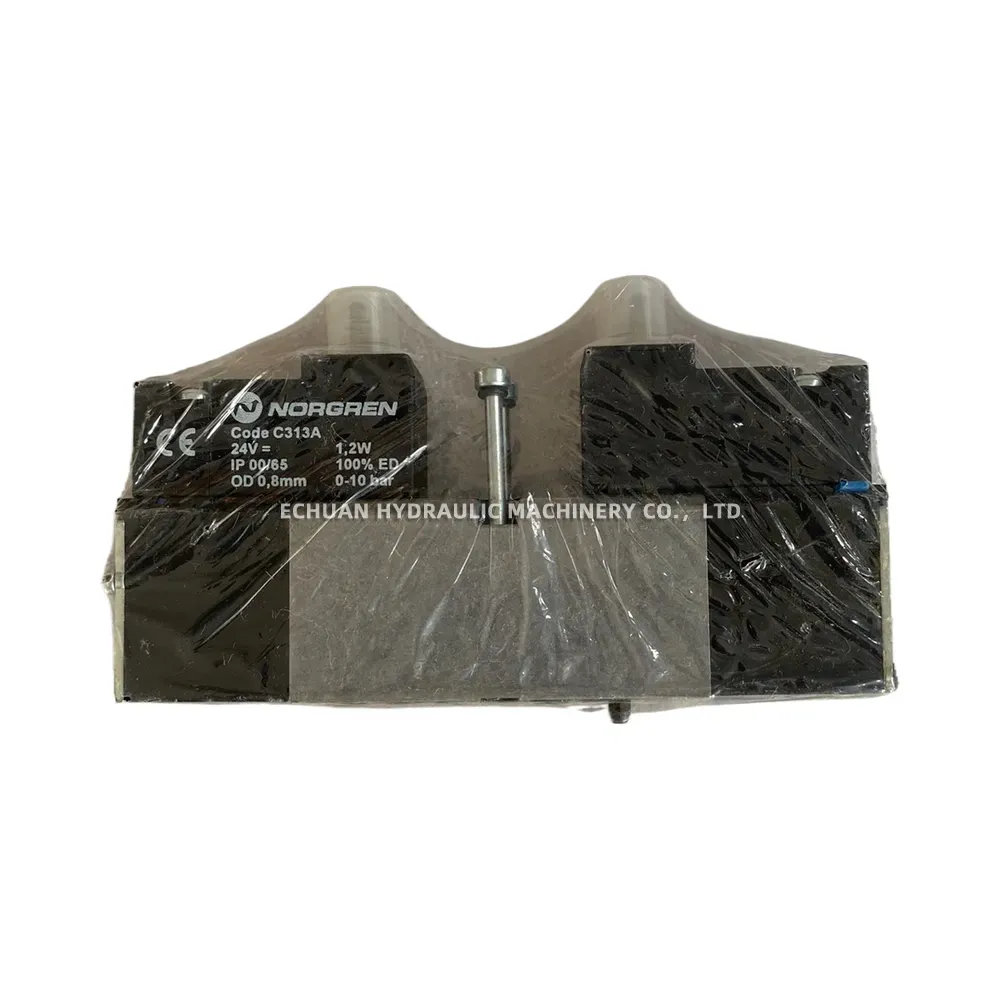

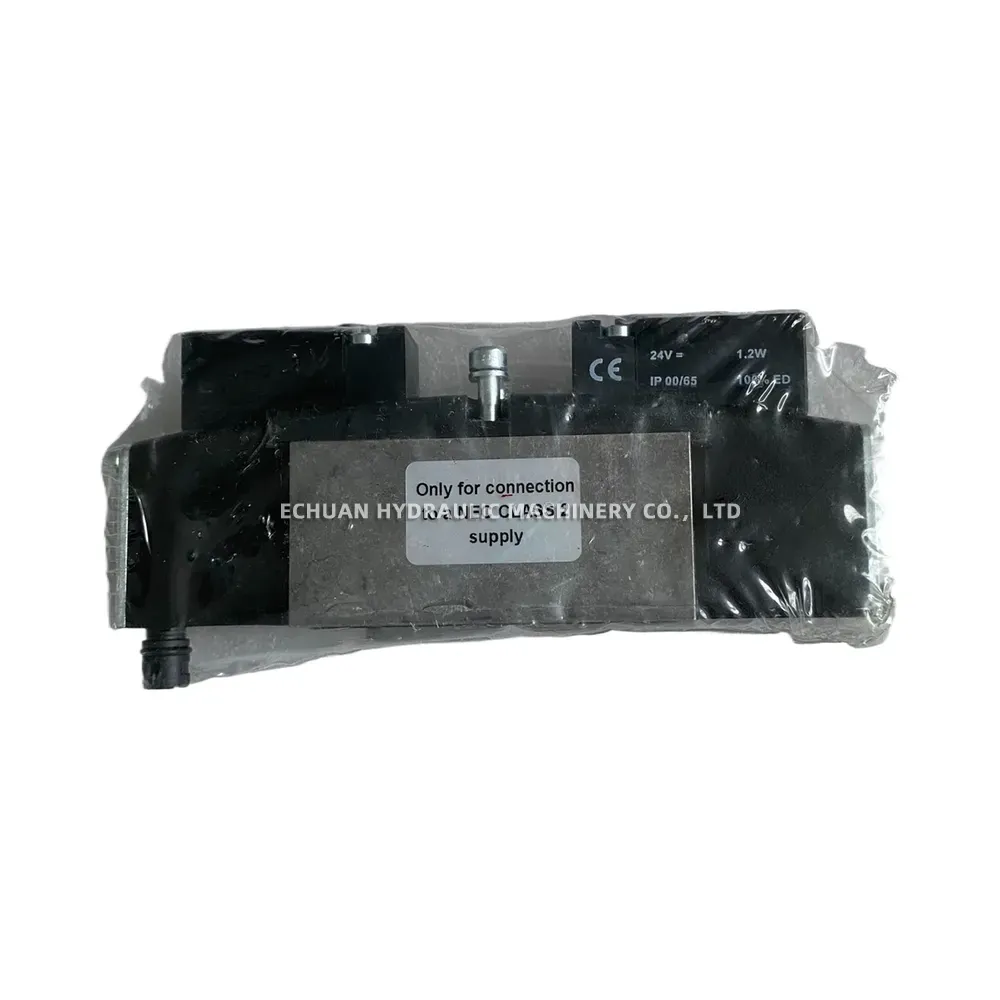

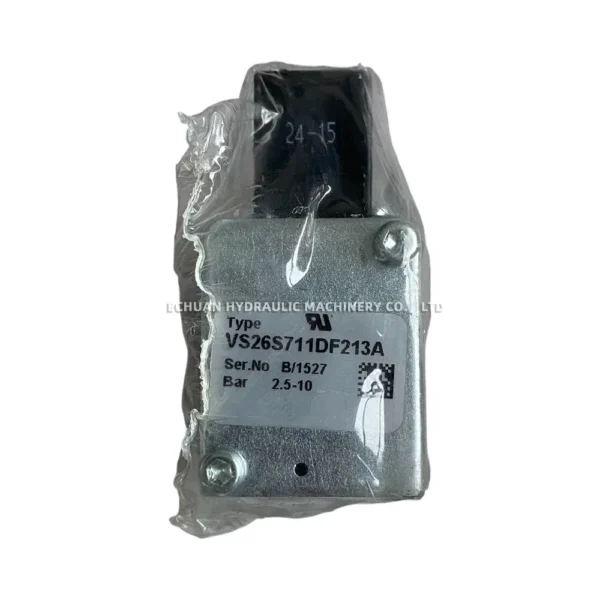

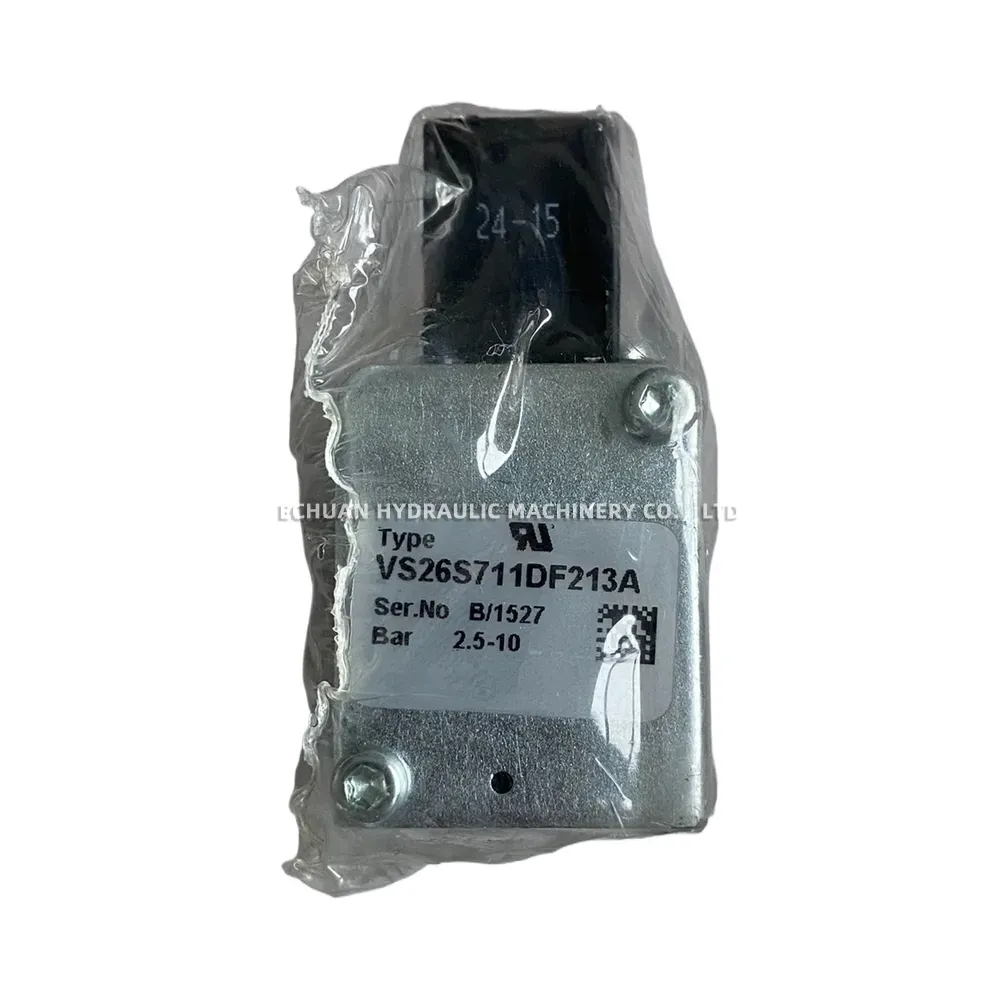

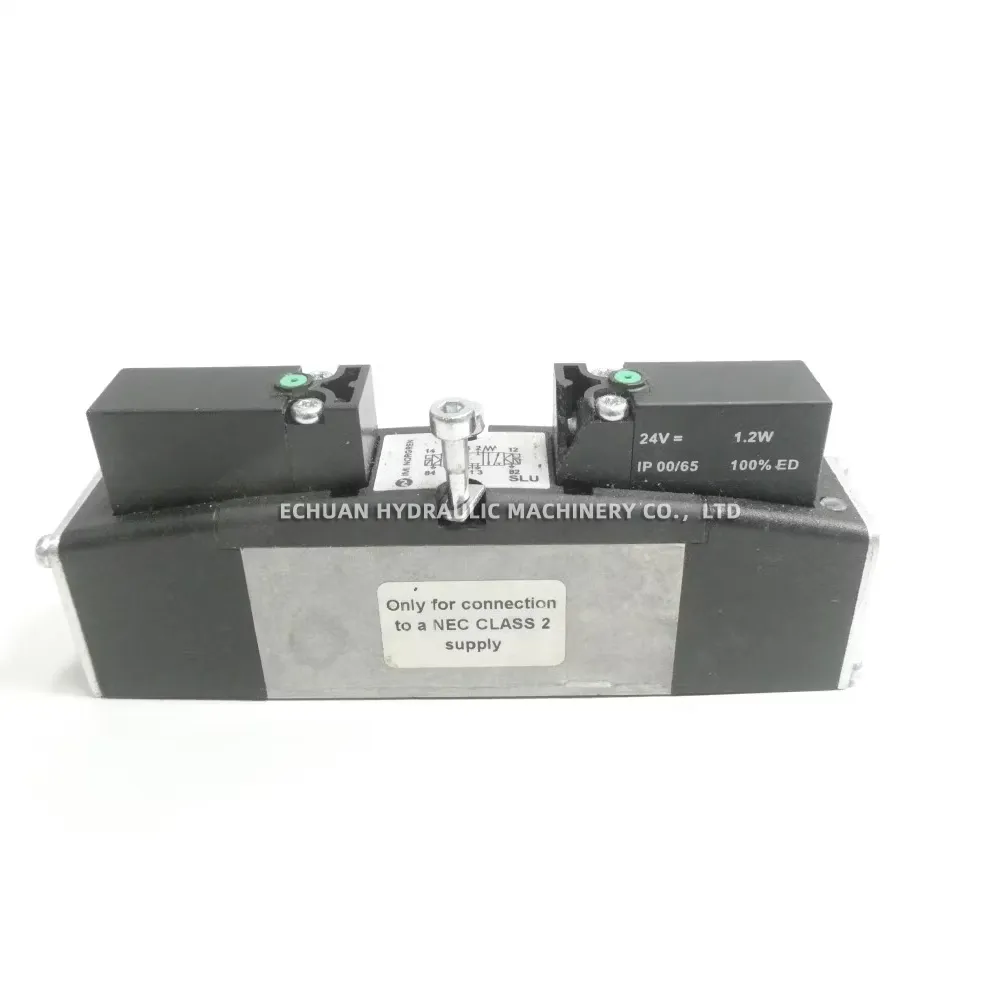

NORGREN VS26S711DF213A Solenoid Valve

The NORGREN VS26S711DF213A is a high-performance 5/2 way solenoid valve from the VS26 series, designed for sub-base mounting. This valve features solenoid actuation with a spring return mechanism, providing reliable directional control for pneumatic systems. It is engineered for industrial automation applications requiring robust performance and flexible integration via its sub-base design. The ‘213A’ suffix typically indicates specific coil and connection characteristics, commonly a 24V DC coil with a standard industrial connector.

Technical Specifications:

  • Manufacturer: Norgren
  • Series: VS26
  • Valve Function: 5/2 Way (5 Port, 2 Position)
  • Actuation: Solenoid/Spring Return
  • Mounting: Sub-base
  • Part Number: VS26S711DF213A
  • Coil Voltage: 24V DC (Indicated by ‘213A’)
  • Electrical Connection: DIN Form C Plug (Typically indicated by ‘A’ in ‘213A’)
  • Typical Operating Pressure: -0.9 to 10 bar (Subject to specific sub-base and application)
  • Typical Flow Rate: Approx. 1300 l/min (Associated with G1/4 port size common for VS26)
  • Fluid Medium: Compressed Air, Filtered, Lubricated or Non-Lubricated
  • Typical Temperature Range: -10°C to +50°C
  • Body Material: Aluminium Alloy
  • Seal Material: NBR (Nitrile Rubber)

NORGREN VS26S711DF213A

Model:NORGREN VS26S711DF213A
