Product Description

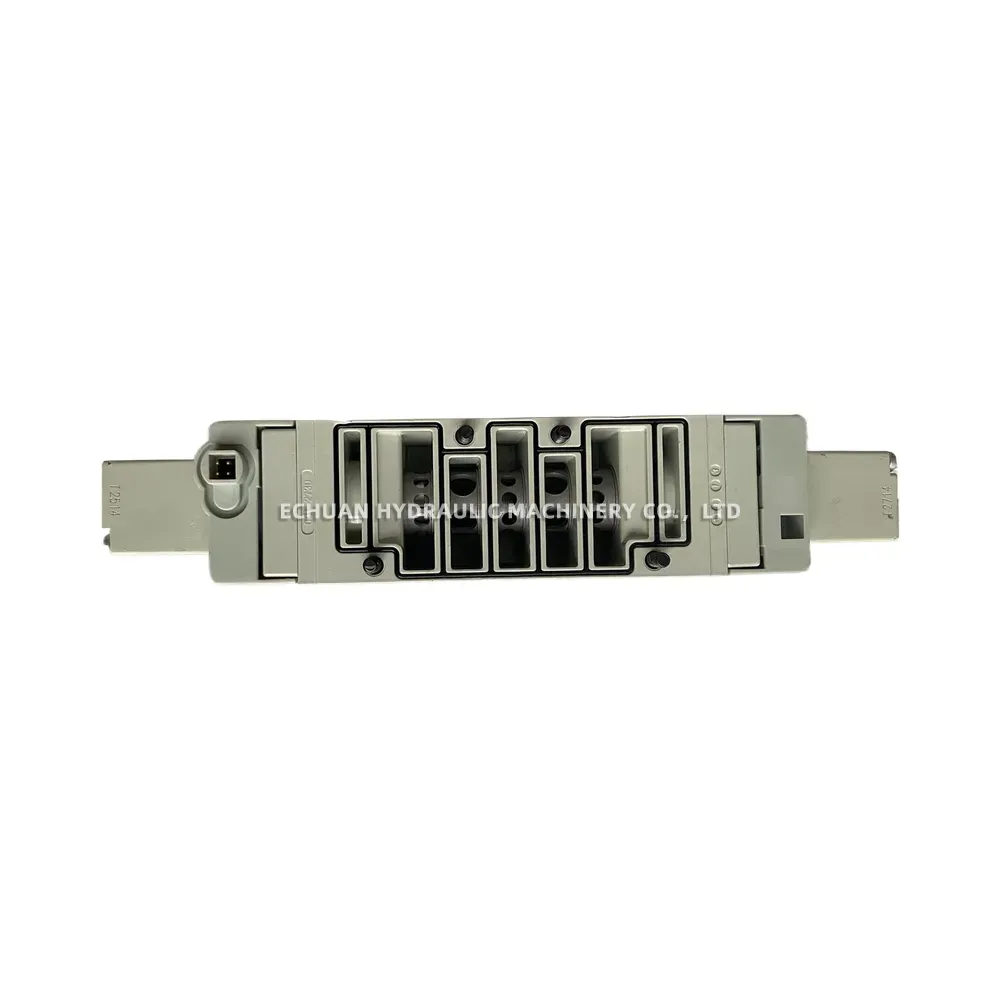

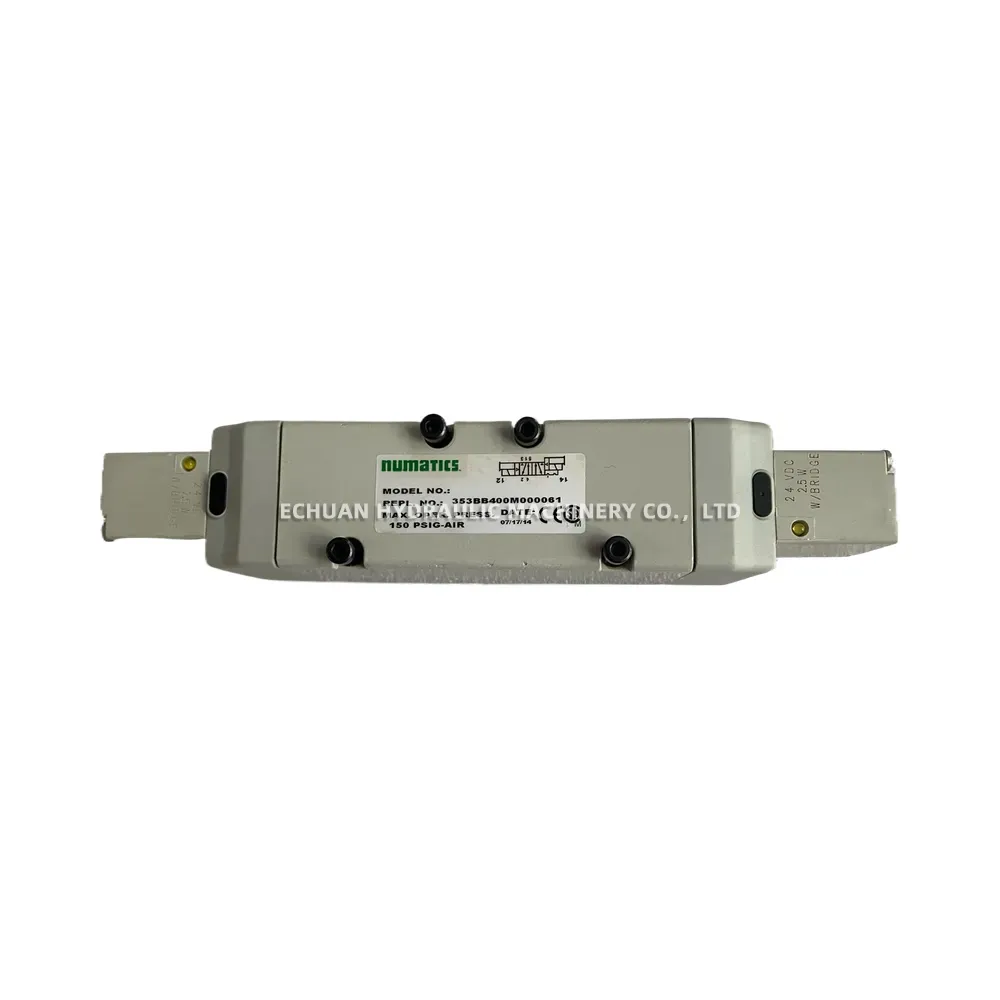

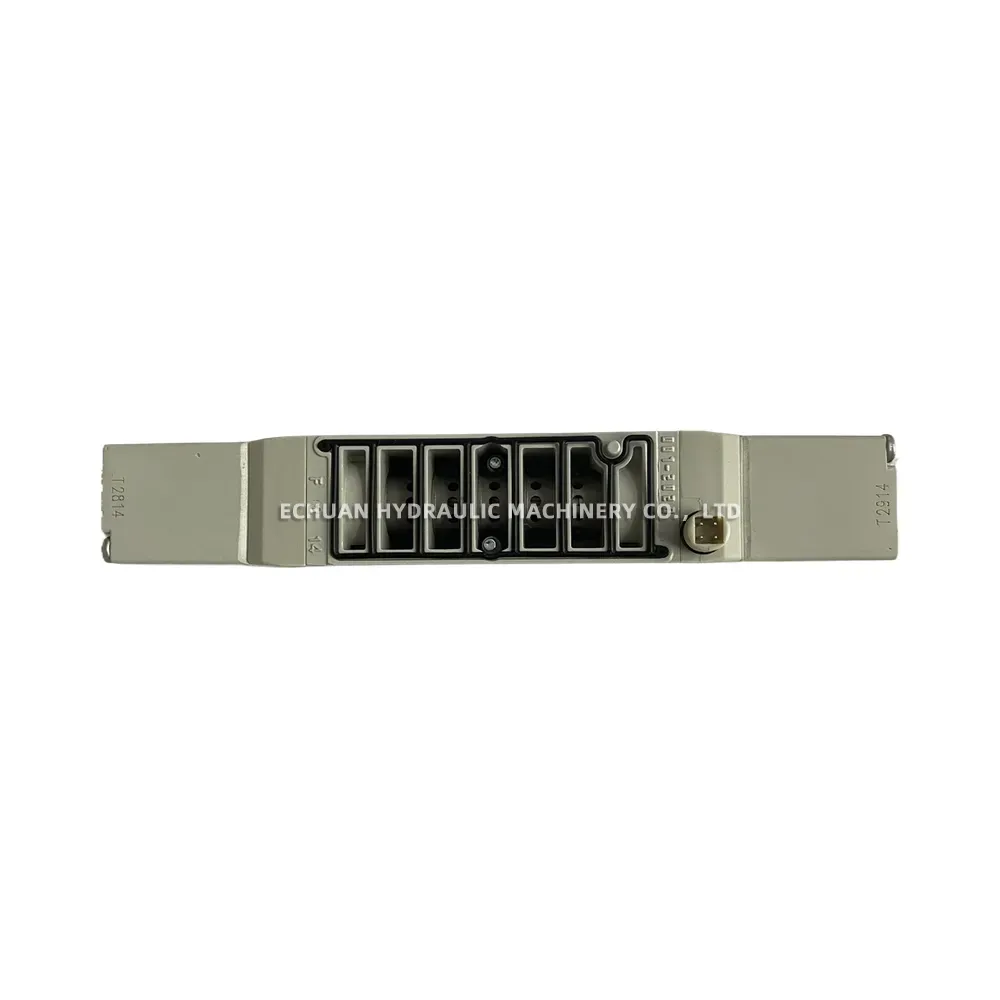

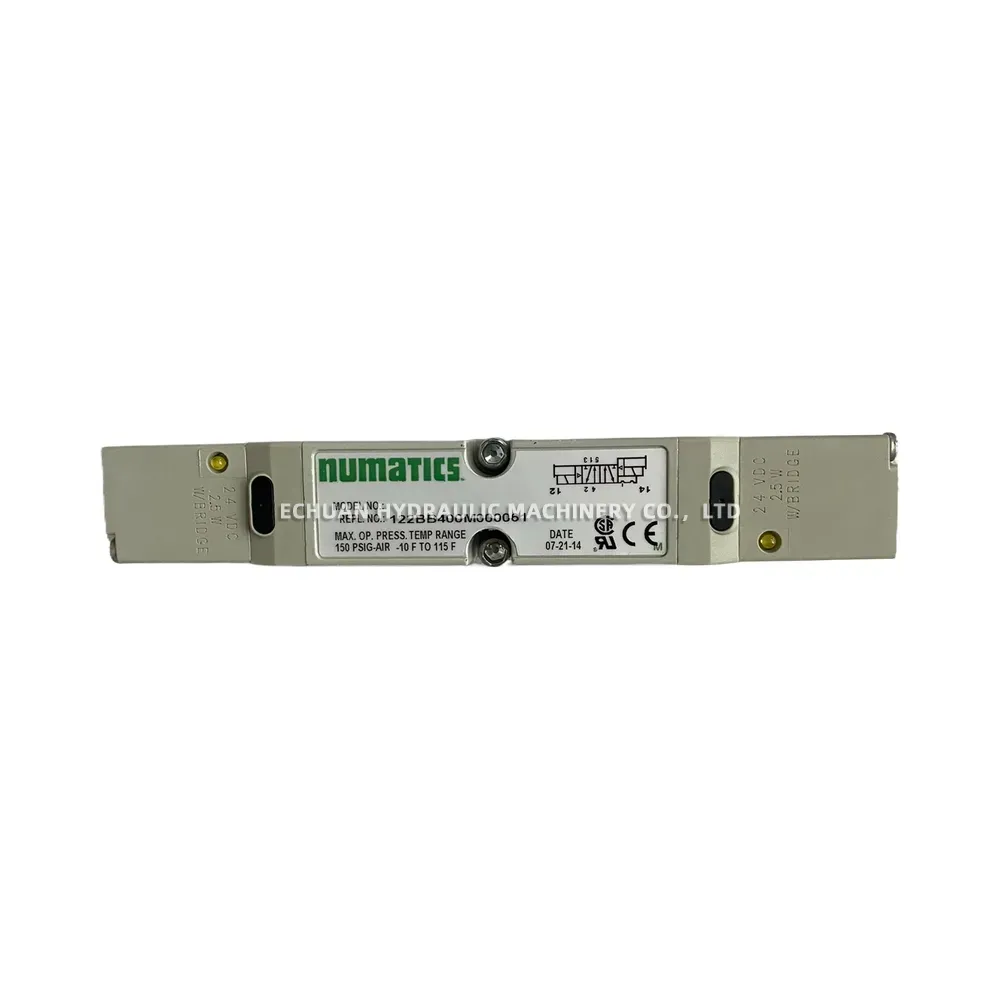

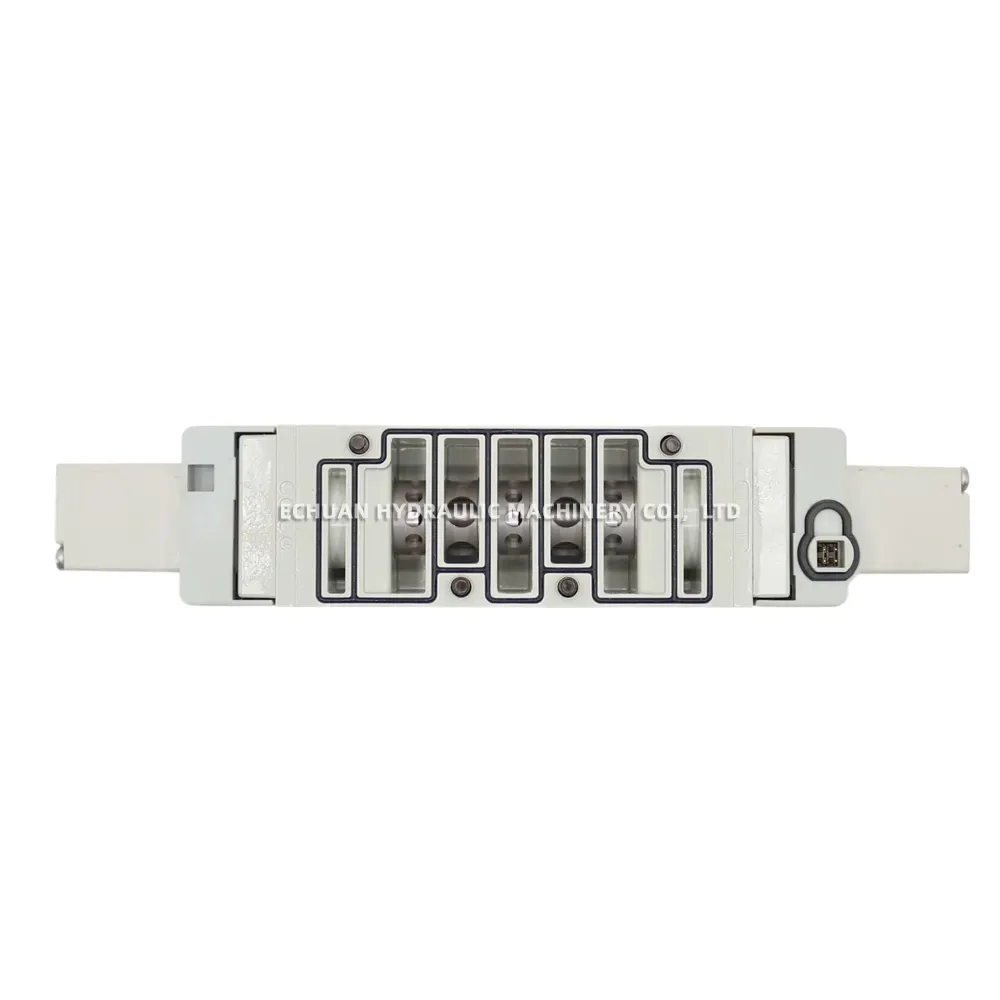

ASCO NUMATICS 353BB400M000061 Pulse Valve
The ASCO Numatics Series 353 is a high-performance diaphragm pulse valve designed specifically for dust collector system applications. It combines high flow rates, long operational life, and extremely fast opening and closing times to deliver effective and reliable filter cleaning. This valve features an integral solenoid pilot and is engineered for optimal performance in reverse jet dust collector systems.
Technical Specifications:
- Valve Type: Diaphragm Pulse Valve
- Series: 353
- Function: 2-Way / 2-Position, Normally Closed
- Pipe Size: 1 1/2″ NPT
- Body Material: Aluminium
- Diaphragm Material: TPE (Thermoplastic Elastomer)
- Operating Pressure Range: 0.35 – 8.5 bar (5 – 125 psi)
- Ambient Temperature Range: -40°C to +82°C (-40°F to +180°F)
- Flow Factor (Kv): 46 m³/h
- Flow Factor (Cv): 53
- Pilot Type: Integral Solenoid Pilot (Coil details may vary with specific configuration/order)
- Application: Dust Collector Systems
NUMATICS 353BB400M000061
Model:NUMATICS 353BB400M000061
