Product Description

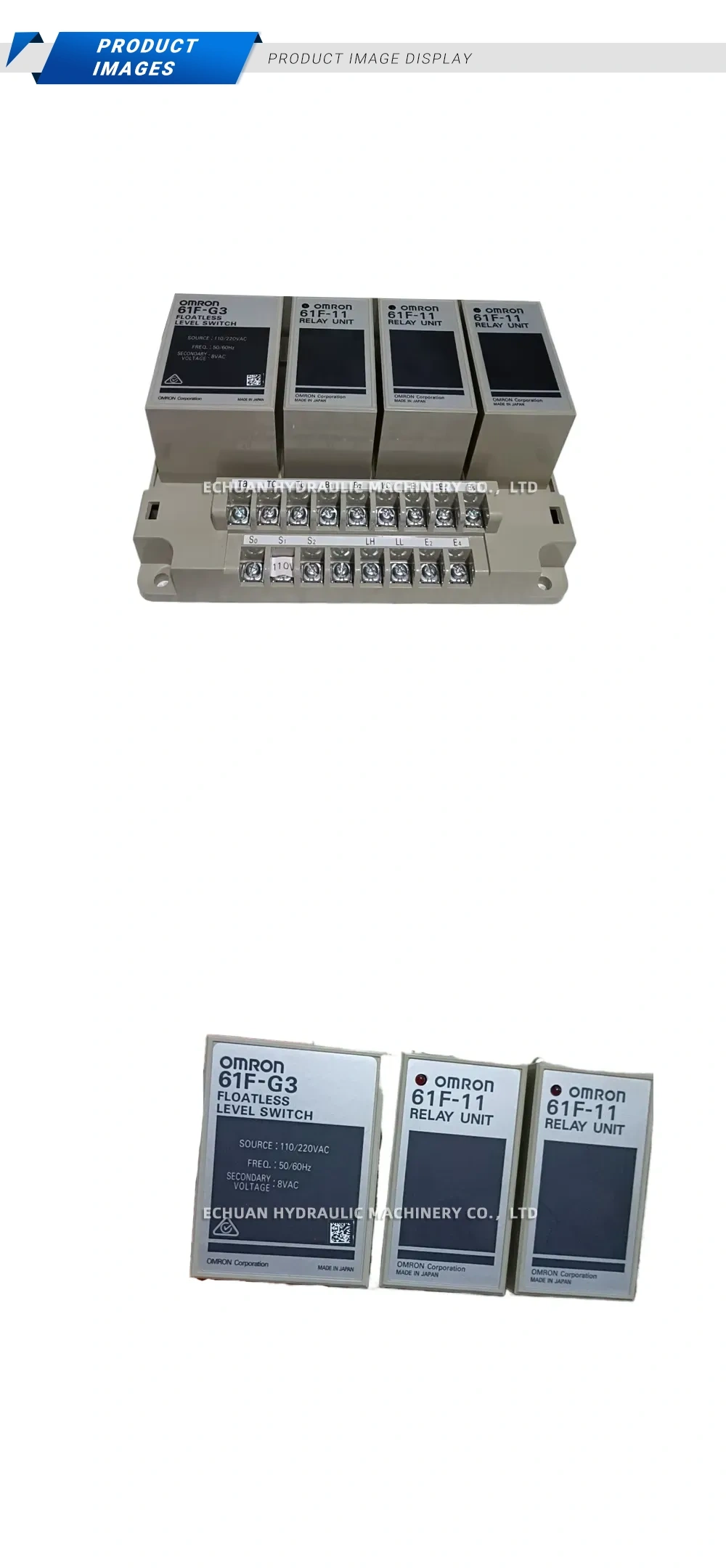

Omron 61F-11
The Omron 61F-11 is a highly reliable and industry-standard floatless level switch designed for automatic control of water supply and drainage systems. It is ideal for monitoring the level of conductive liquids in various applications, including industrial facilities, commercial buildings, and water treatment plants. This compact and easy-to-install controller utilizes the conductive properties of the liquid to detect levels via electrodes, eliminating the need for mechanical floats. Its robust design ensures stable operation and long service life, making it a go-to solution for liquid level management.
Technical Specifications:
- Rated Voltage: 100/110/120/200/220/240 VAC (Model dependent)
- Operating Frequency: 50/60 Hz
- Control Output: SPDT Relay, 5 A at 220 VAC (Resistive Load)
- Interelectrode Voltage: 8 VAC
- Power Consumption: Approx. 3.5 VA max
- Ambient Operating Temperature: -10°C to 55°C

Omron 61F-11
Discover the Omron 61F-11 Floatless Level Switch, a compact and reliable controller for automatic water supply and drainage. Ideal for industrial liquid level control applications.
