Product Description

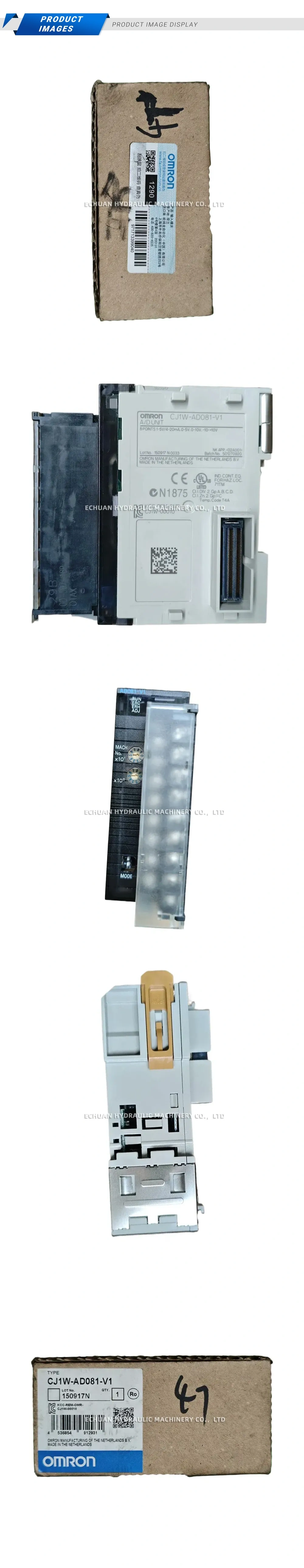

Omron CJ1W-ADO81-V1
The Omron CJ1W-ADO81-V1 is a high-performance analog output unit designed for seamless integration with Omron’s CJ-series programmable logic controllers (PLCs). This module provides eight independent analog output channels, offering exceptional flexibility with user-selectable voltage and current signal ranges for each point. It is engineered for applications requiring precise and responsive control of devices such as inverters, servo drives, proportional valves, and other actuators. Featuring a high resolution of 1/8000 and a rapid conversion speed of 250 µs per point, the CJ1W-ADO81-V1 ensures accurate and reliable performance in demanding industrial automation and process control environments.
Technical Specifications:
- Model: CJ1W-ADO81-V1
- Number of Analog Outputs: 8 points
- Signal Range (Selectable): 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, 0 to 20 mA
- Resolution: 1/8000
- Conversion Speed: 250 µs/point
- Accuracy (at 25°C): Voltage: ±0.2% of F.S., Current: ±0.3% of F.S.
- Current Consumption: 420 mA at 5 VDC, 150 mA at 24 VDC
- External Connection: Removable 18-point terminal block
Omron CJ1W-ADO81-V1
Enhance your control system with the Omron CJ1W-ADO81-V1, a versatile 8-point analog output unit for CJ-series PLCs. It delivers high-resolution (1/8000) and high-speed control with selectable voltage and current outputs for precise industrial applications.
| Brand | OMRON |
|---|---|
| Model | CJ1W-ADO81-V1 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/omron-cj1w-ado81-v1 |
