Product Description

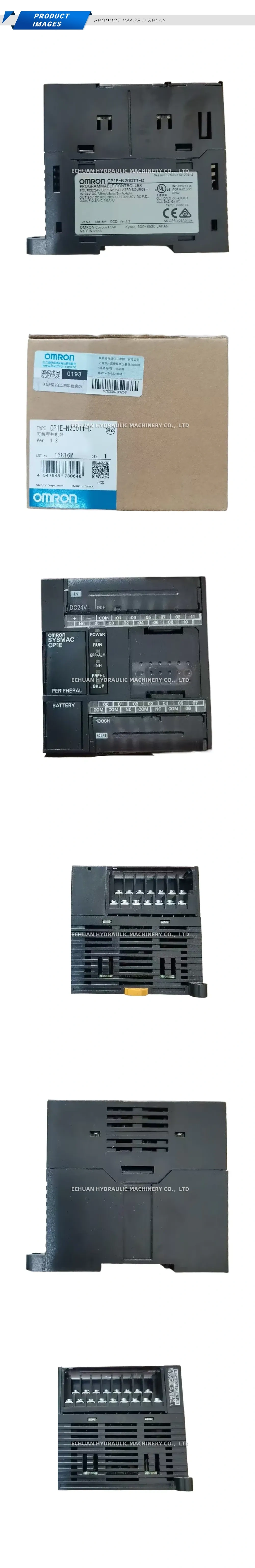

Omron CP1E-N20DT1-D
The Omron CP1E-N20DT1-D is a compact and cost-effective programmable logic controller (PLC) designed for small-scale automation and machine control applications. Part of the CP1E N-type series, it offers a perfect balance of functionality and simplicity. This model features 20 built-in I/O points (12 inputs and 8 outputs), a 24 VDC power supply, and sinking transistor outputs, making it ideal for controlling a variety of devices. With a built-in USB port for easy programming and monitoring, along with high-speed counters and pulse outputs, the CP1E-N20DT1-D provides powerful control capabilities for packaging machines, conveyors, and other simple automated systems.
Technical Specifications:
- Model: CP1E-N20DT1-D
- Power Supply Voltage: 24 VDC
- I/O Points: 12 DC Inputs / 8 Transistor Sinking (NPN) Outputs
- Program Capacity: 8K steps
- Data Memory Capacity: 8K words
- Communication Port: Built-in USB (Type B)
- High-Speed Counter Function: Yes (100 kHz/2 axes, 10 kHz/4 axes)
- Pulse Output Function: Yes (100 kHz/2 axes)
Omron CP1E-N20DT1-D
Omron CP1E-N20DT1-D compact PLC with 20 I/O points, 24 VDC power, and NPN transistor outputs. Features a built-in USB port, high-speed counters, and pulse outputs for efficient and cost-effective machine automation.
| Brand | OMRON |
|---|---|
| Model | CP1E-N20DT1-D |
| Category | Electrical |
