Product Description

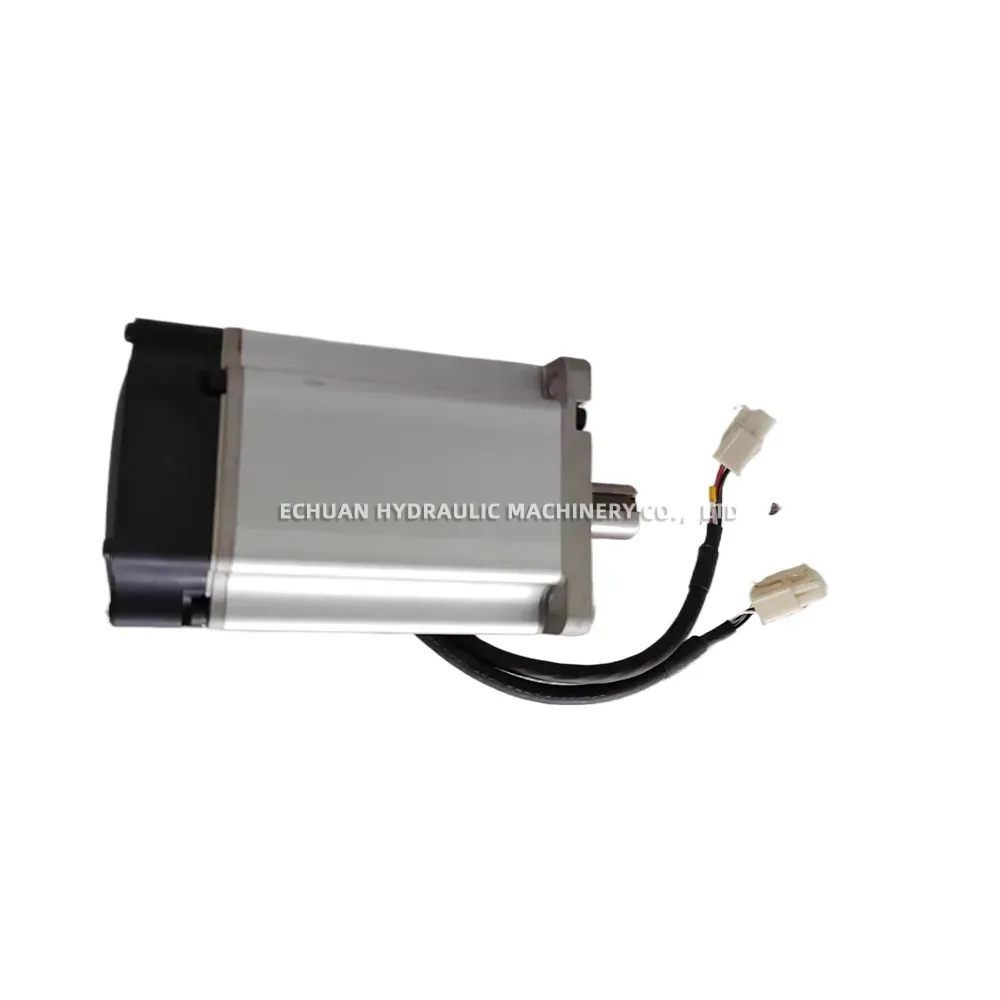

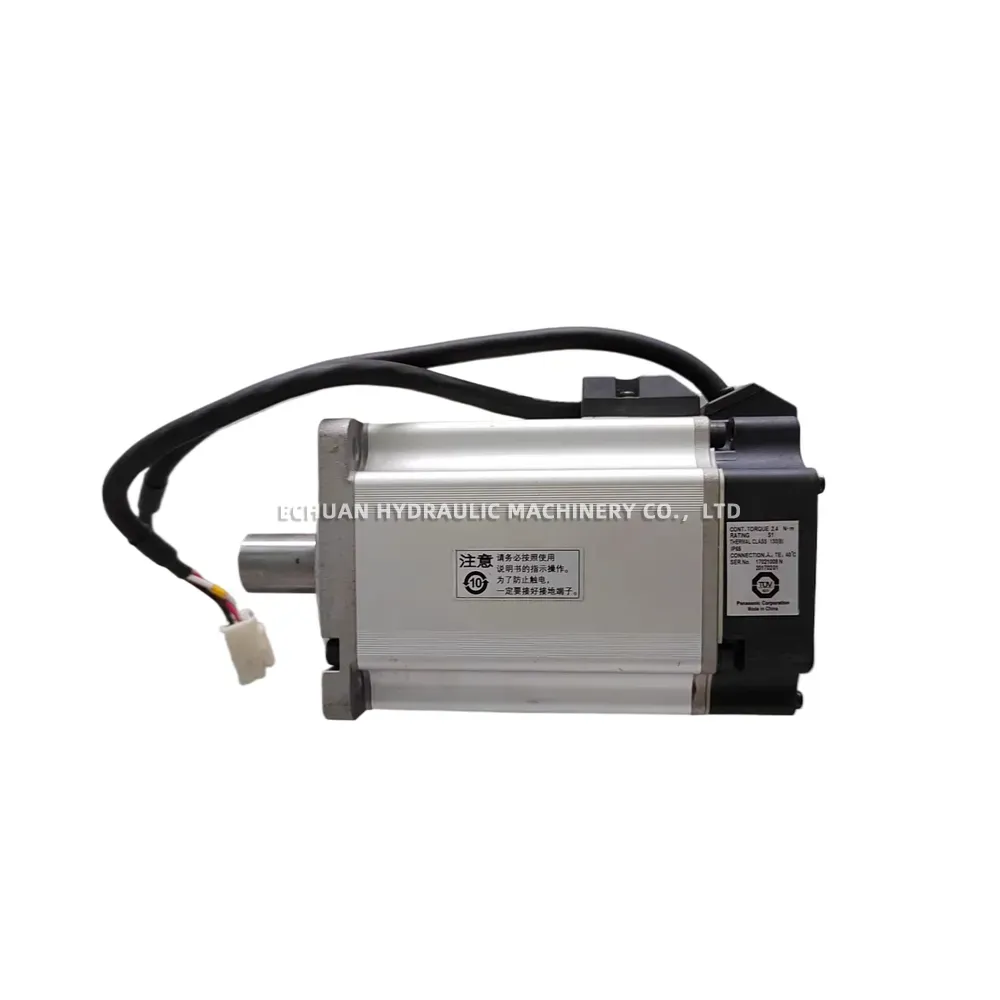

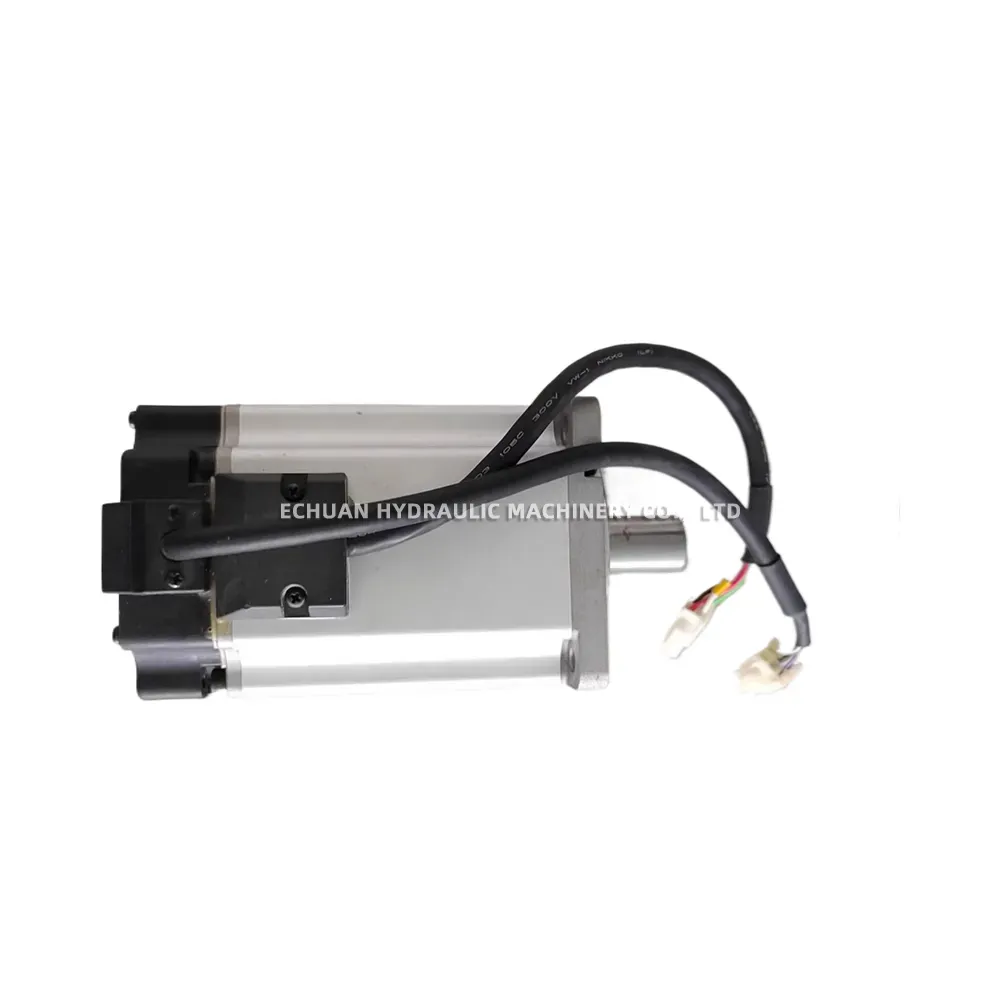

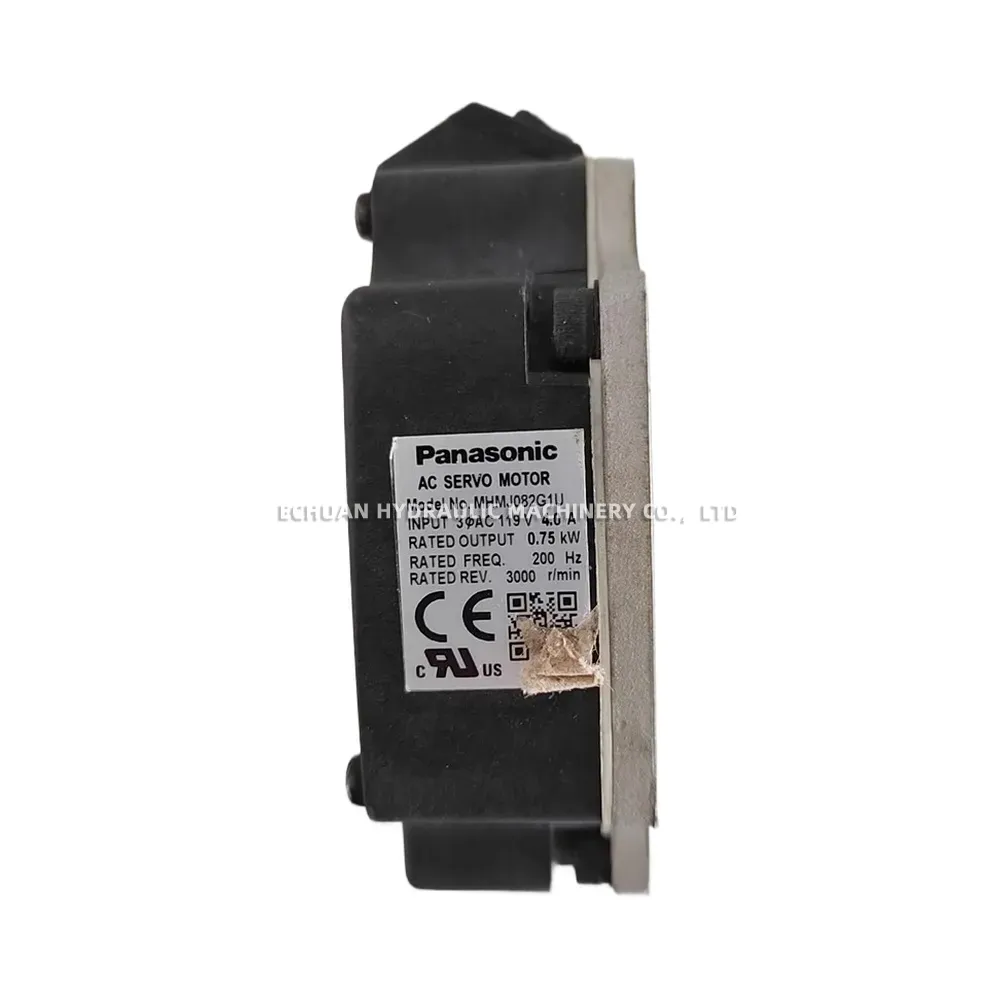

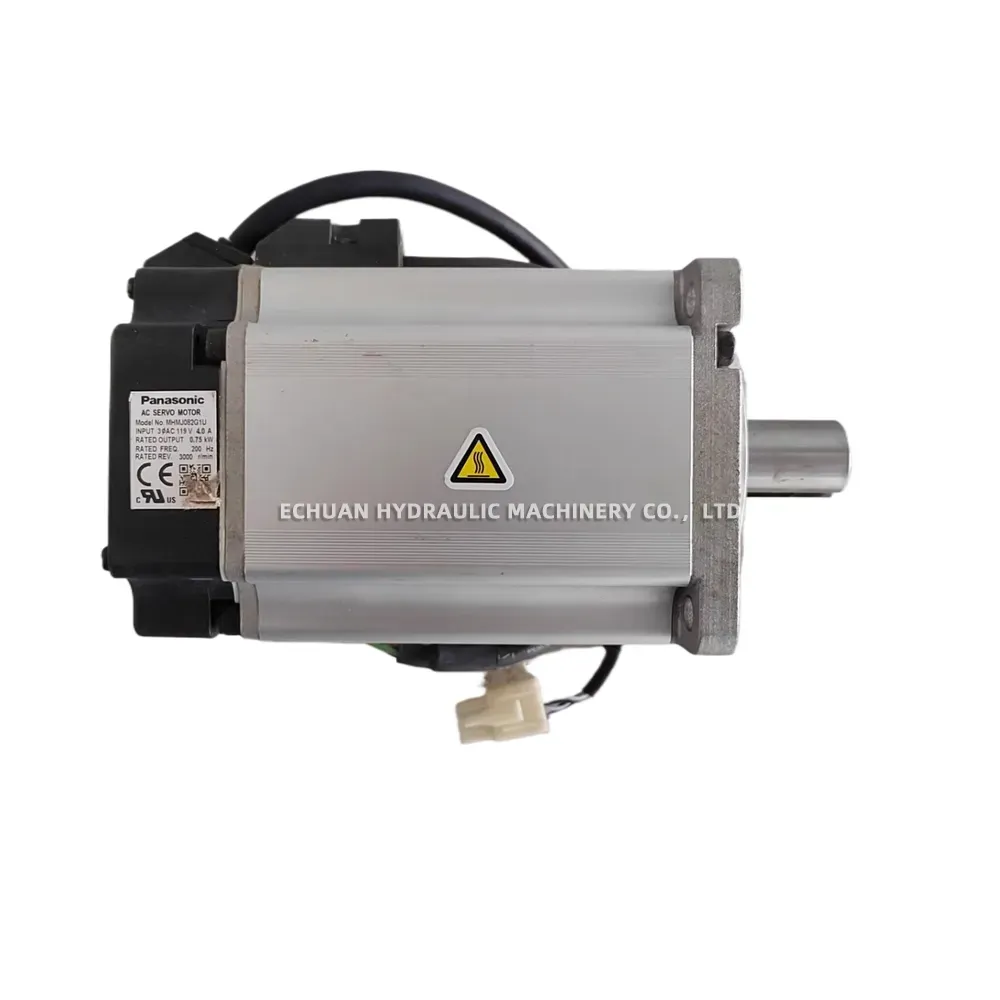

Panasonic MHMJ082G1U MINAS A6 AC Servo Motor
The Panasonic MHMJ082G1U is a high-performance AC servo motor from the MINAS A6 series, designed for industrial automation applications requiring precise motion control. This 750W motor features a high-resolution 23-bit absolute encoder for accurate positioning and achieves a rapid speed response frequency of 3.2 kHz. Its compact design, combined with high speed and torque capabilities, makes it suitable for various machinery aiming to improve productivity and efficiency. The motor operates on a 200V AC power supply and offers stable operation even under demanding conditions.
Technical Specifications:
- Series: MINAS A6
- Motor Type: AC Servo Motor
- Rated Output Power: 750 W (0.75 kW)
- Power Supply Voltage: 200 V AC
- Rated Speed: 3000 r/min
- Maximum Speed: 6500 r/min
- Rated Torque: 2.39 Nm
- Maximum Peak Torque: 8.36 Nm
- Encoder Type: 23-bit Absolute/Incremental System
- Flange Size: 80 mm sq.
- Shaft Type: Straight shaft with keyway and center tap
- IP Rating: IP65 (excluding shaft penetration part and connector)
Panasonic MHMJ082G1U
Model:Panasonic MHMJ082G1U
| Brand | Panasonic |
|---|---|
| Model | MHMJ082G1U |
| Part No. | Panasonic MHMJ082G1U |
| Category | Servo motors |
