Product Description

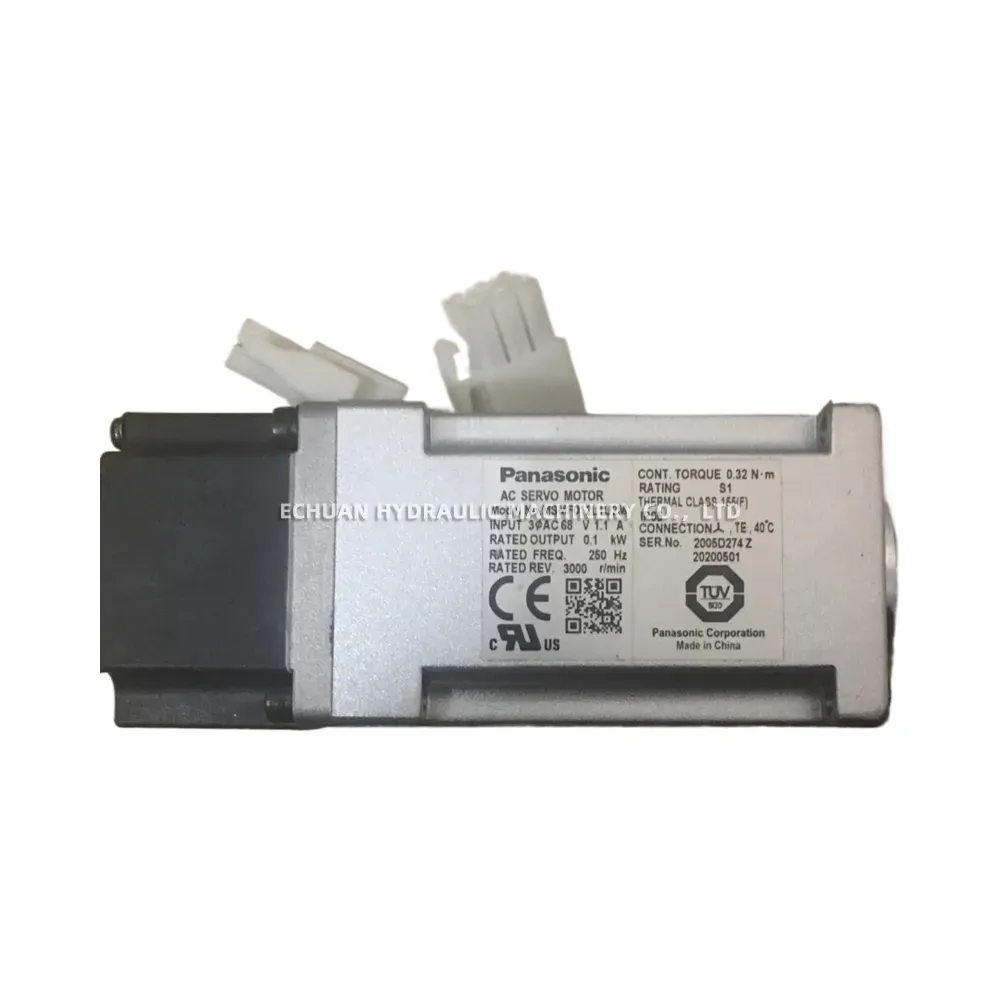

Panasonic MSMF012L1U2M
The Panasonic MSMF012L1U2M is a low inertia AC servo motor belonging to the MINAS A6 family. Designed for high-speed positioning and precise motion control, it offers stable operation and is suitable for a wide range of industrial automation applications requiring compact size and high performance. Features include a high-resolution encoder for accurate feedback and compliance with relevant safety and environmental standards.
Technical Specifications:
- Motor Type: AC Servo Motor
- Series: MINAS A6 Family (MSMF – Low Inertia)
- Rated Output Power: 100 W
- Power Supply Voltage: AC 200 V
- Rated Speed: 3000 r/min
- Maximum Speed: 6500 r/min
- Rated Torque: 0.318 N·m
- Encoder Type: 23-bit Absolute/Incremental System
- Flange Size: 40 mm square
- Shaft Type: Straight shaft with keyway and center tap
- Protection Rating: IP65 (excluding rotating portion of output shaft and leadwire end)
- Frame Size: A-Frame
Panasonic MSMF012L1U2M
Type:Panasonic MSMF012L1U2M
| Brand | Panasonic |
|---|---|
| Model | MSMF012L1U2M |
| Category | Servo motors |
