Product Description

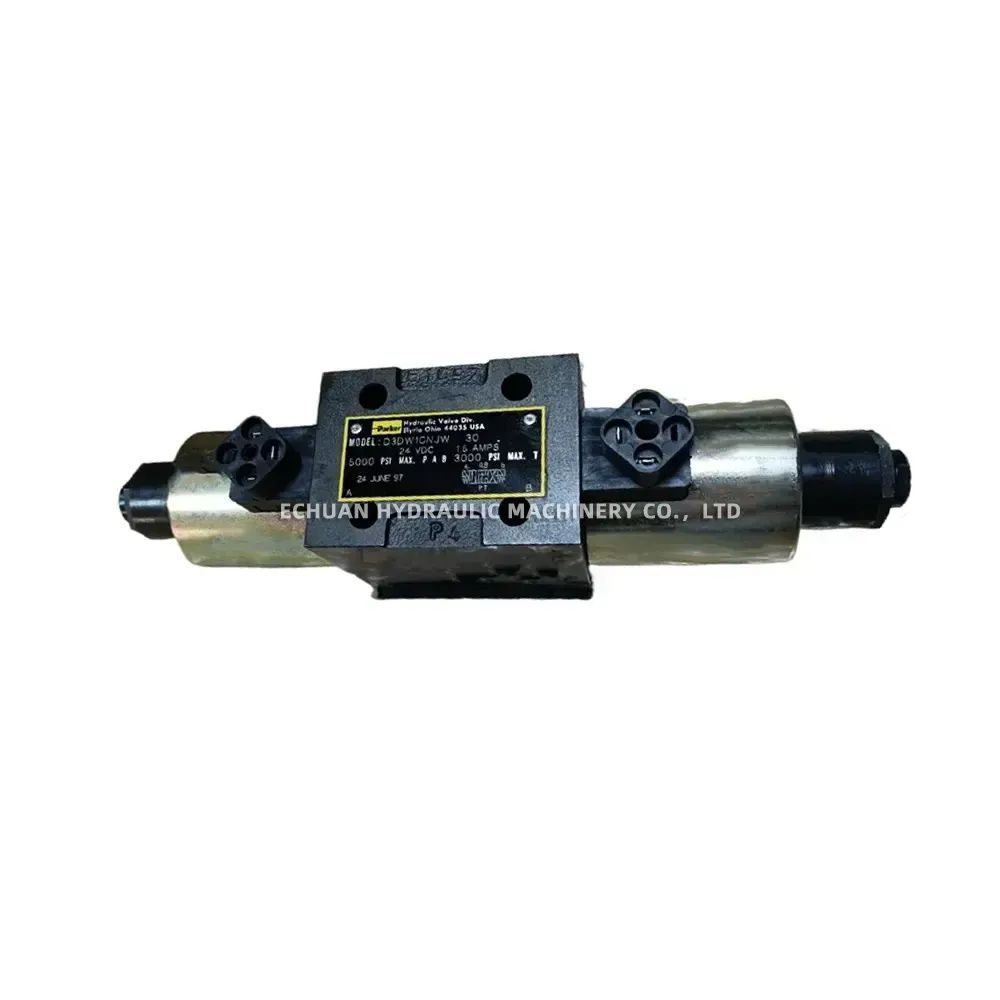

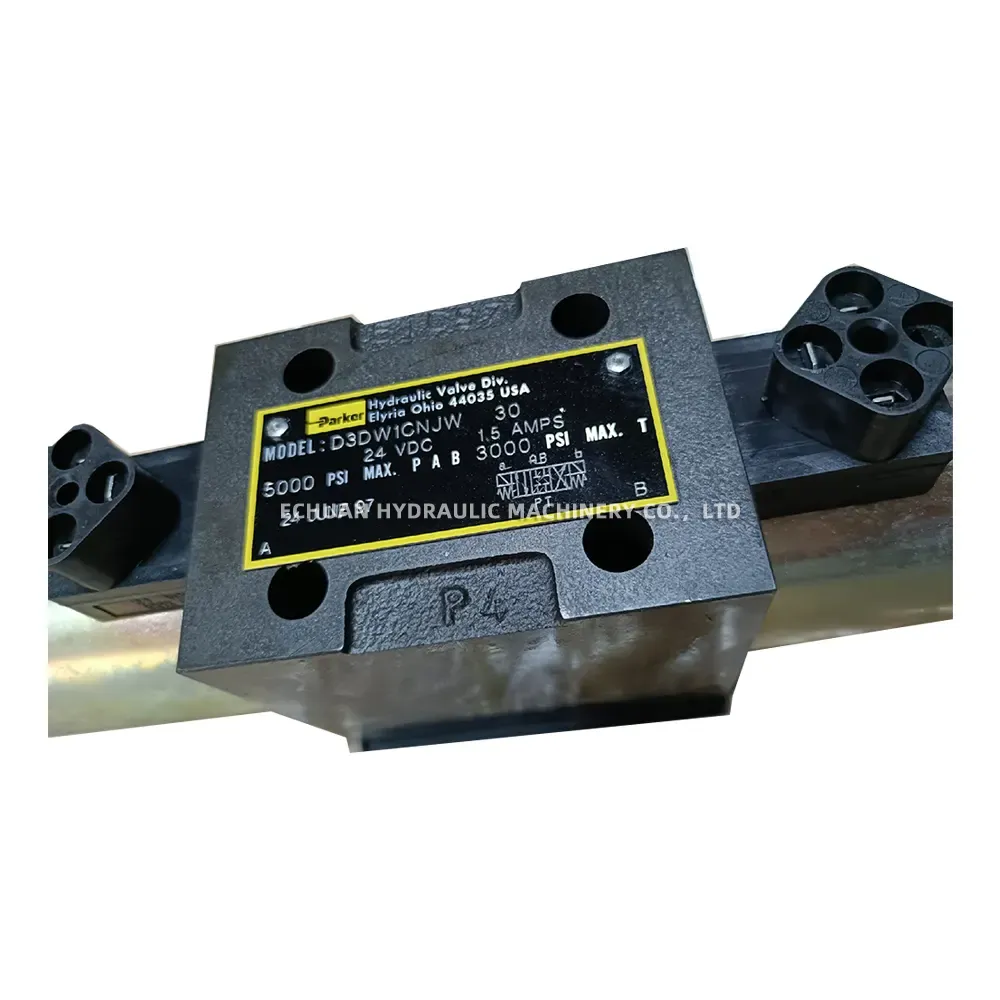

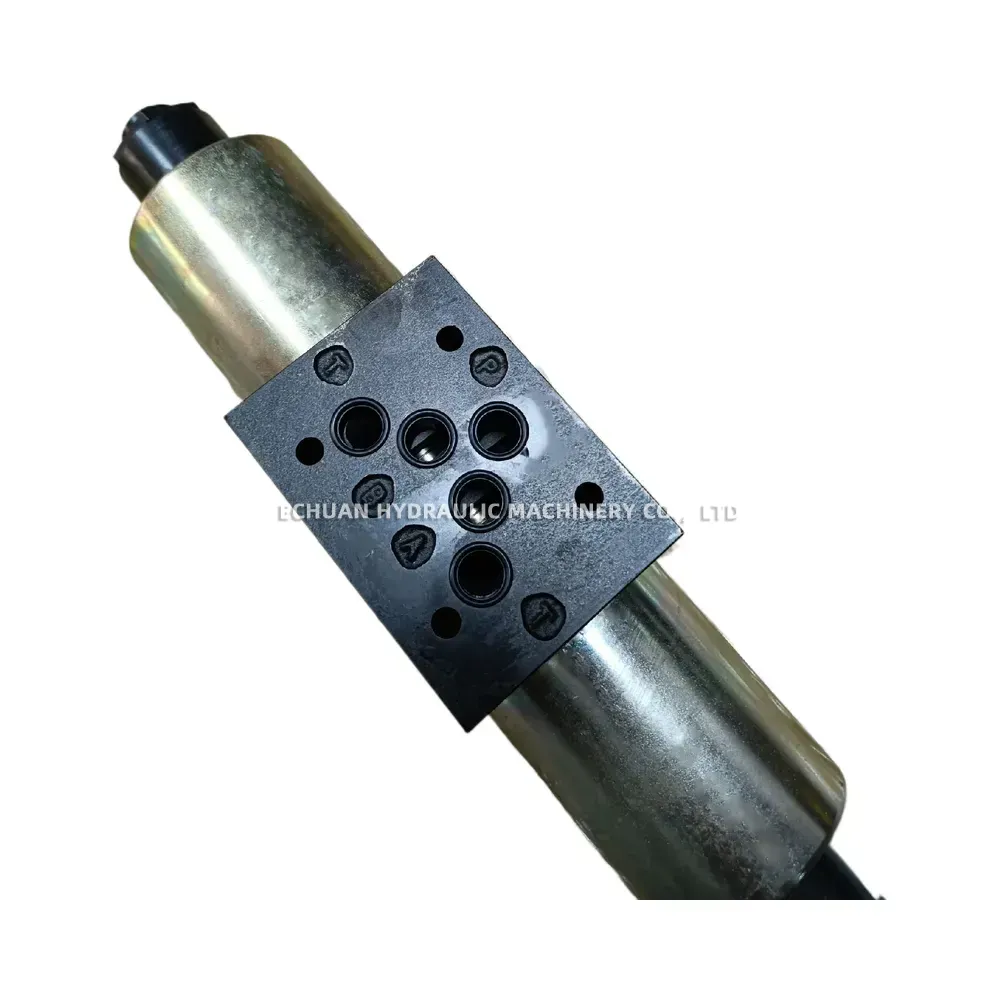

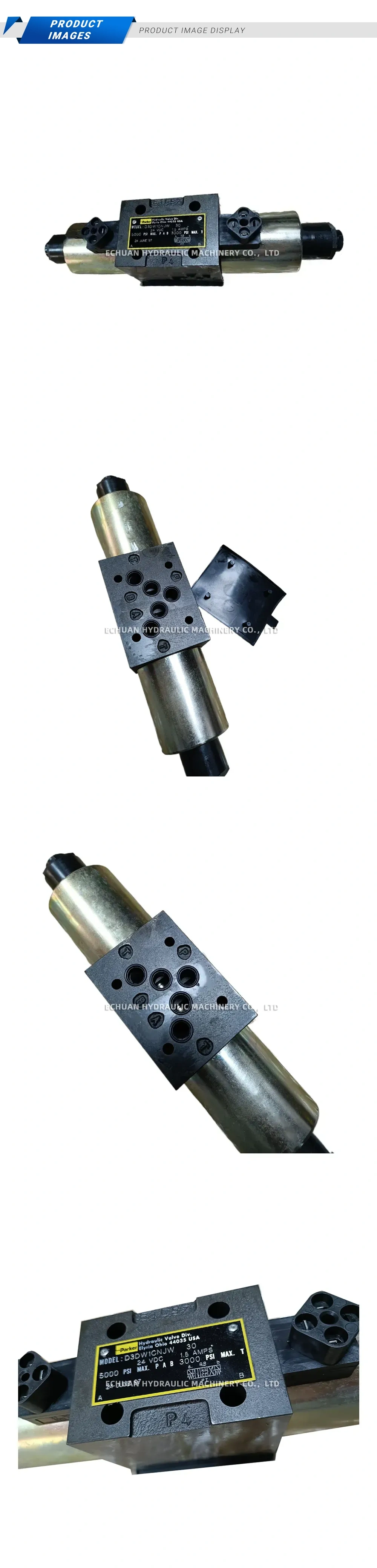

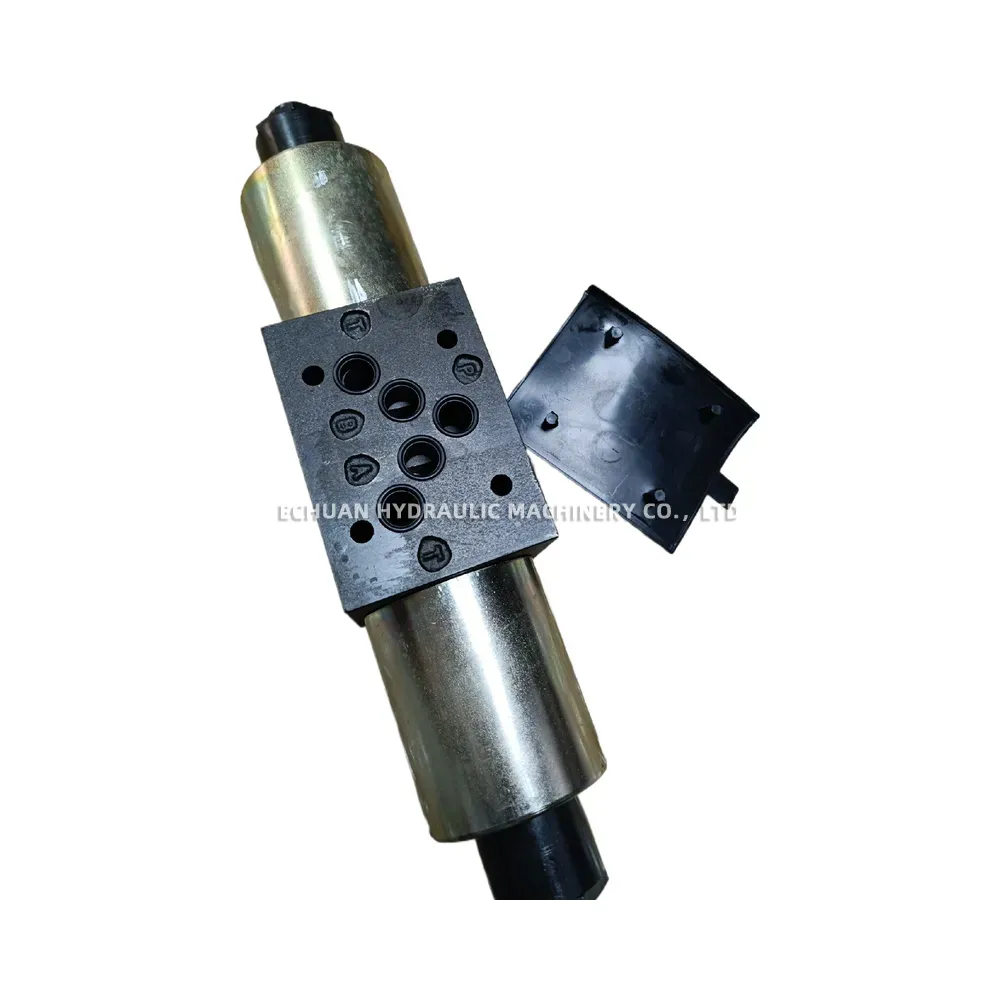

Parker D3DW1CNJW-30 Hydraulic Solenoid Directional Control Valve
The Parker D3DW1CNJW-30 is a high-performance, direct-operated solenoid directional control valve engineered for reliable fluid power management in demanding industrial environments. As part of Parker’s proven D3DW series, this 3-position, 4-way valve features double solenoid actuation with a spring-centered spool mechanism, ensuring precise and consistent hydraulic flow control. It is powered by a robust 24 VDC, 1.5 Amp coil equipped with standard DIN-style electrical connectors. Designed for heavy-duty applications, it boasts a maximum operating pressure of 5000 PSI on ports P, A, and B, alongside a 3000 PSI rating on the tank (T) port. Manufactured in the USA by Parker’s Hydraulic Valve Division, this subplate-mounted valve delivers exceptional durability and seamless integration into your existing hydraulic systems.
Technical Specifications:
- Brand: Parker
- Model: D3DW1CNJW-30
- Valve Type: Direct-operated solenoid directional control valve
- Spool Configuration: 3-Position, 4-Way
- Actuation: Double solenoid, spring centered
- Coil Voltage: 24 VDC
- Current Rating: 1.5 Amps
- Max Operating Pressure (Ports P, A, B): 5000 PSI
- Max Operating Pressure (Port T): 3000 PSI
- Mounting: Subplate mounting interface
- Electrical Connections: DIN-style connectors on both solenoids
- Country of Origin: Made in USA
Parker D3DW1CNJW-30 Hydraulic Solenoid Directional Control Valve
Upgrade your hydraulic system with the Parker D3DW1CNJW-30 Solenoid Directional Control Valve. This USA-made, 3-position, 4-way direct-operated valve features a 24 VDC double solenoid, spring centering, and handles up to 5000 PSI. Ideal for heavy-duty industrial fluid control.
| Brand | Parker |
|---|---|
| Model | D3DW1CNJW-30 |
| Part No. | 869070660660 |
| Category | Hydraulic valves |
