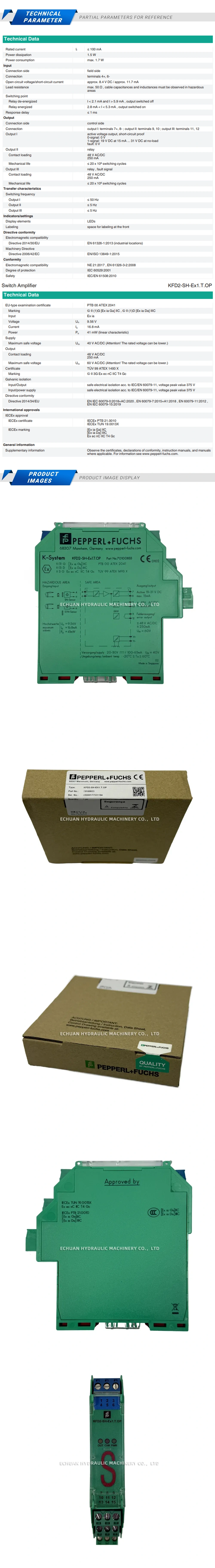

Product Description
Pepperl+Fuchs KFD2-SH-EX1.T.OP 70100833
The Pepperl+Fuchs KFD2-SH-EX1.T.OP is a high-integrity, 1-channel isolated barrier designed for intrinsically safe applications. It serves as a switch amplifier, safely transferring digital signals from NAMUR sensors or mechanical contacts located in hazardous areas to control systems in safe areas. This device features a passive transistor output and integrated line fault detection (LFD) to monitor for short-circuits or lead breakages in the field circuit, ensuring system reliability. With a SIL 2 rating according to IEC 61508, it is suitable for use in safety-instrumented systems. The unit is easily mounted on a 35 mm DIN rail and can be powered via the Power Rail system for simplified wiring and installation.
Technical Specifications:
- Signal Type: Digital Input
- Functional Safety: SIL 2 (acc. to IEC 61508)
- Supply Voltage: 20 … 30 V DC
- Input: For NAMUR sensors (EN 60947-5-6) or dry contacts
- Output: 1 passive transistor output
- Features: Line fault detection (LFD), reversible mode of operation
- Ambient Temperature: -20 to 60 °C (-4 to 140 °F)
- Mounting: 35 mm DIN mounting rail acc. to EN 60715:2001
Pepperl+Fuchs KFD2-SH-EX1.T.OP 70100833
Discover the Pepperl+Fuchs KFD2-SH-EX1.T.OP (70100833), a 1-channel SIL 2 isolated barrier and switch amplifier. Ideal for NAMUR sensors in hazardous areas, it features a passive transistor output and line fault detection.
