Product Description

Pepperl+Fuchs NBN40-L2-E2-V1

The Pepperl+Fuchs NBN40-L2-E2-V1 is a high-performance inductive proximity sensor designed for reliable non-contact detection of metallic objects in demanding industrial environments. Featuring a generous 40 mm non-flush sensing range, this sensor provides flexible mounting options. Its robust housing and IP68 protection rating ensure durability and resistance to dust and water ingress. The sensor operates with a PNP normally open (NO) output and is equipped with a standard M12 (V1) connector for quick and secure installation, making it an ideal choice for automation, material handling, and machine control applications.

Technical Specifications:

  • Sensing Range (Rated Operating Distance): 40 mm

  • Installation: Non-flush

  • Output Type: PNP, Normally Open (NO)

  • Operating Voltage: 10 … 30 V DC

  • Switching Frequency: 0 … 100 Hz

  • Connection Type: V1 connector (M12 x 1), 4-pin

  • Degree of Protection: IP68

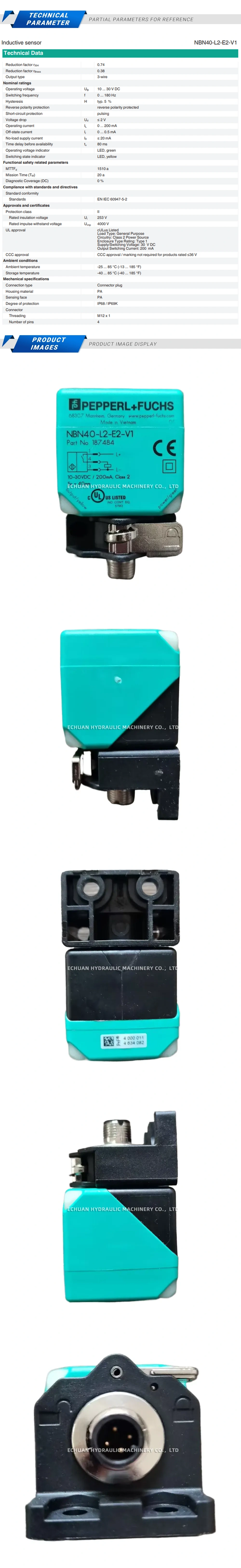

Pepperl+Fuchs NBN40-L2-E2-V1 Description

Pepperl+Fuchs NBN40-L2-E2-V1

Discover the Pepperl+Fuchs NBN40-L2-E2-V1 inductive sensor, featuring a 40mm non-flush sensing distance, PNP NO output, and a rugged M12 connector for reliable object detection in industrial automation.
