Product Description

Pepperl+Fuchs VBA-4E4A-KE1-Z/E2

The Pepperl+Fuchs VBA-4E4A-KE1-Z/E2 is a robust AS-Interface module designed for decentralized I/O applications in industrial automation. Part of the G11 series, it features a single-piece housing that allows for rapid and secure mounting. This module provides four digital inputs for connecting PNP sensors and four short-circuit and overload-protected PNP digital outputs for controlling actuators. It connects directly to the AS-Interface flat cable for both communication and power, while standard M12 connectors are used for I/O connections. With an IP67 protection rating, this module is built to withstand harsh industrial environments, making it a reliable solution for integrating standard sensors and actuators into an AS-Interface network.

Technical Specifications:

  • Number of I/O: 4 digital inputs (PNP) and 4 digital outputs (PNP)

  • Operating Voltage: 26.5 … 31.6 V DC from AS-Interface

  • AS-Interface Profile: S-7.A.7

  • Degree of Protection: IP67

  • Connection Type: M12 x 1 connectors for I/O; AS-Interface flat cable connection

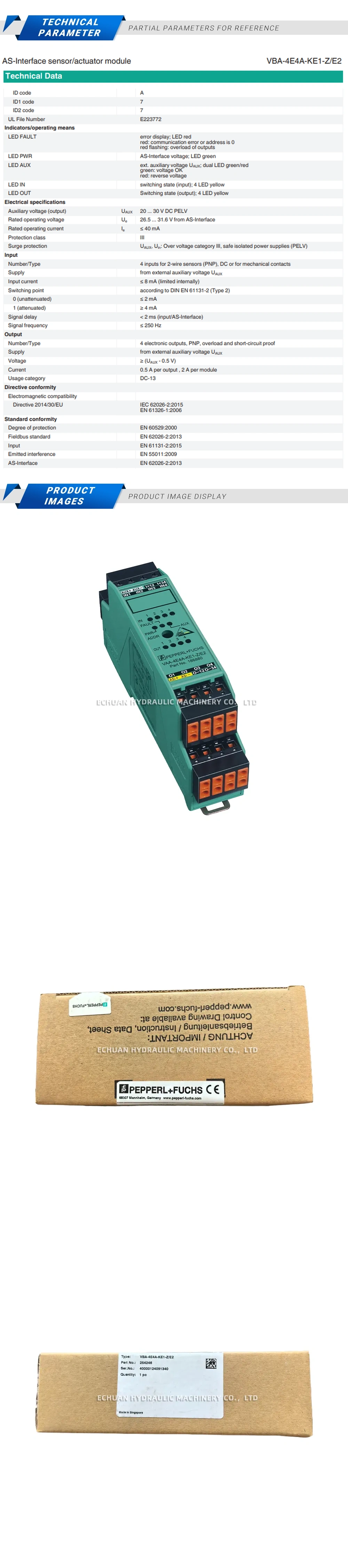

Pepperl+Fuchs VBA-4E4A-KE1-Z/E2 Description

Pepperl+Fuchs VBA-4E4A-KE1-Z/E2

Discover the Pepperl+Fuchs VBA-4E4A-KE1-Z/E2, an IP67-rated AS-Interface I/O module with 4 digital inputs and 4 digital outputs. Ideal for rugged industrial environments, it features a G11 housing and M12 connections for easy installation.
