Product Description

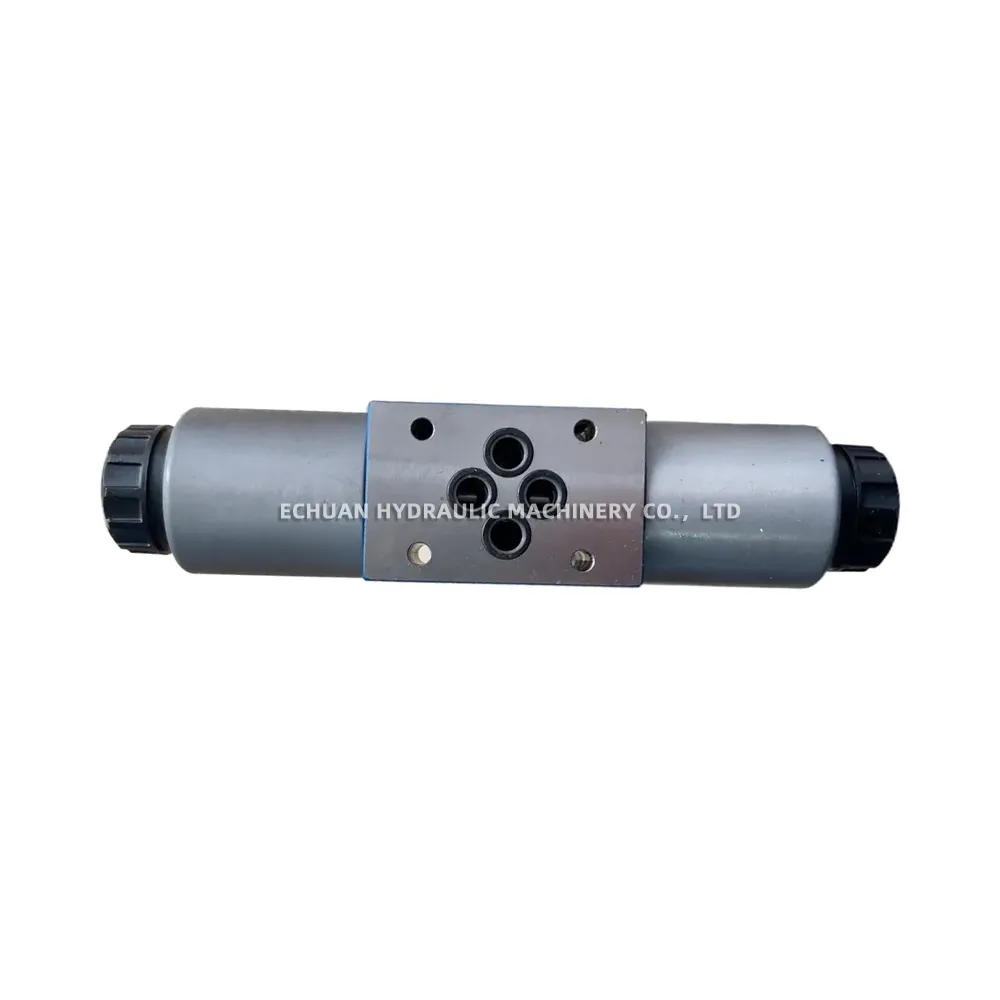

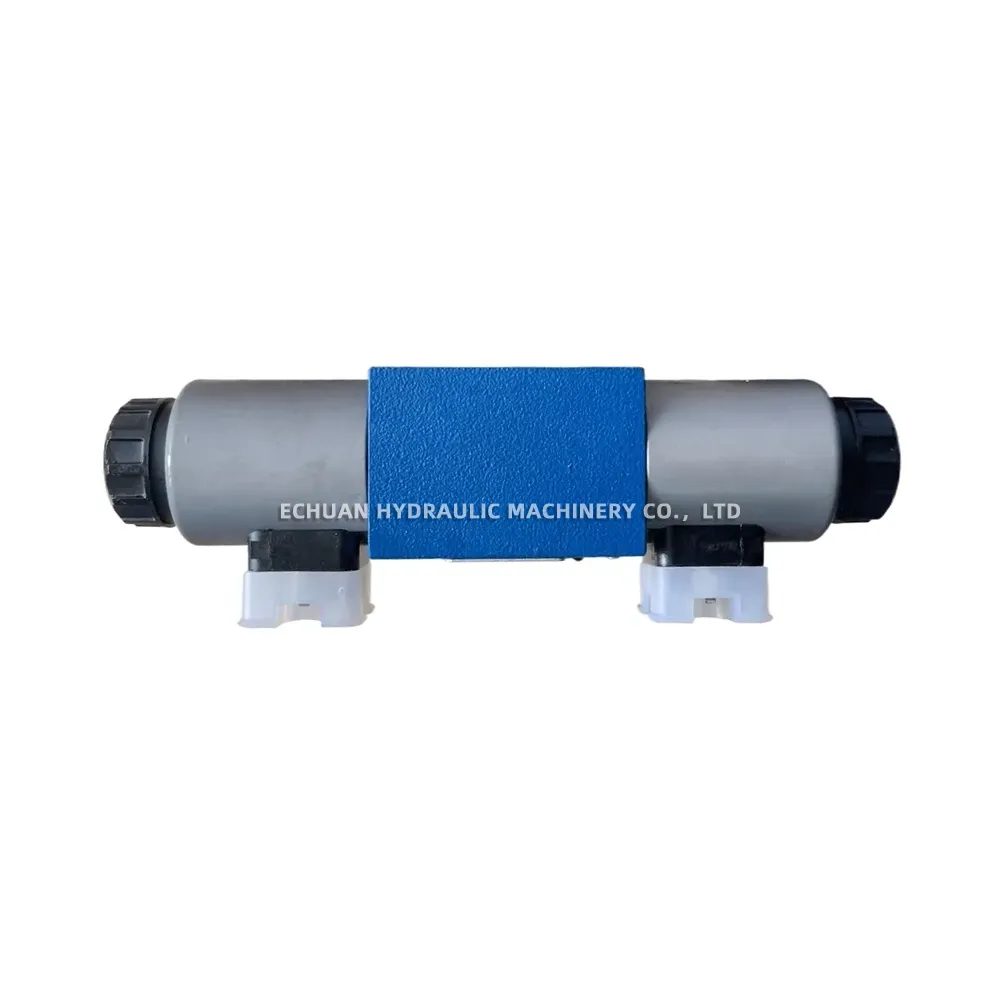

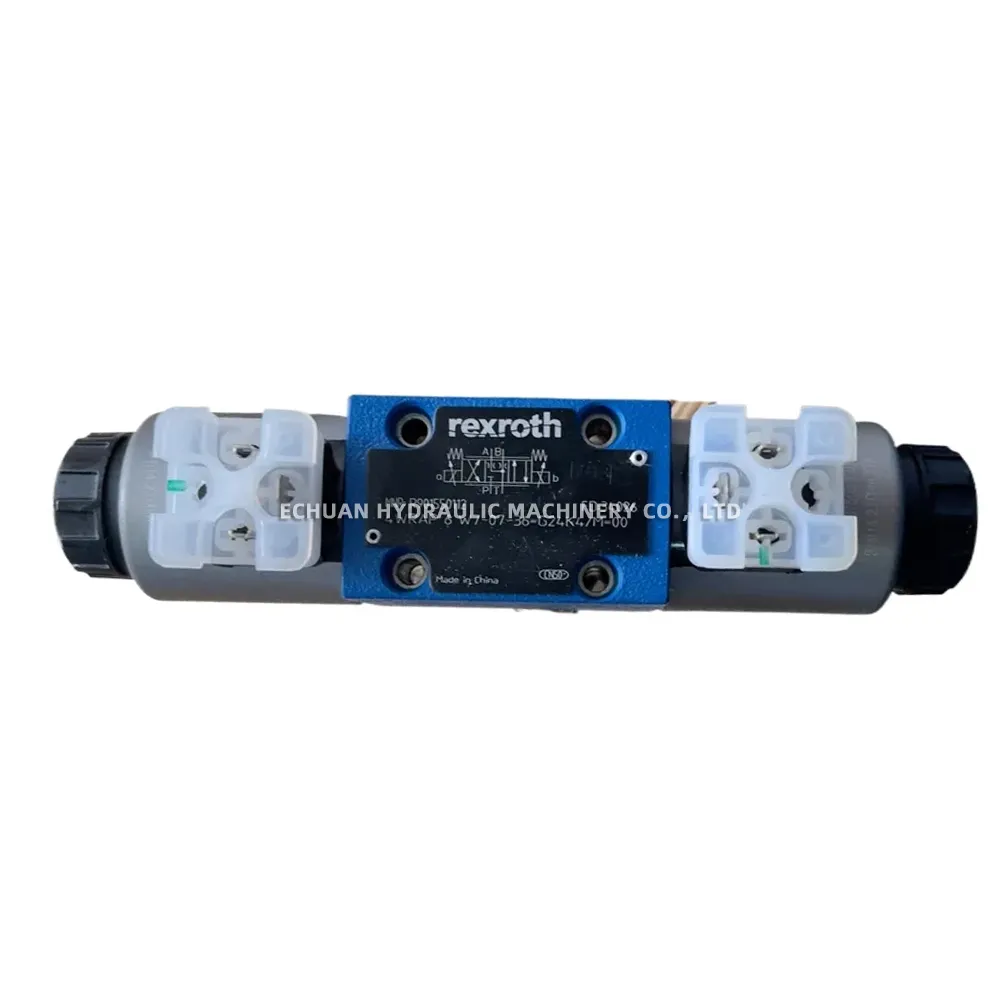

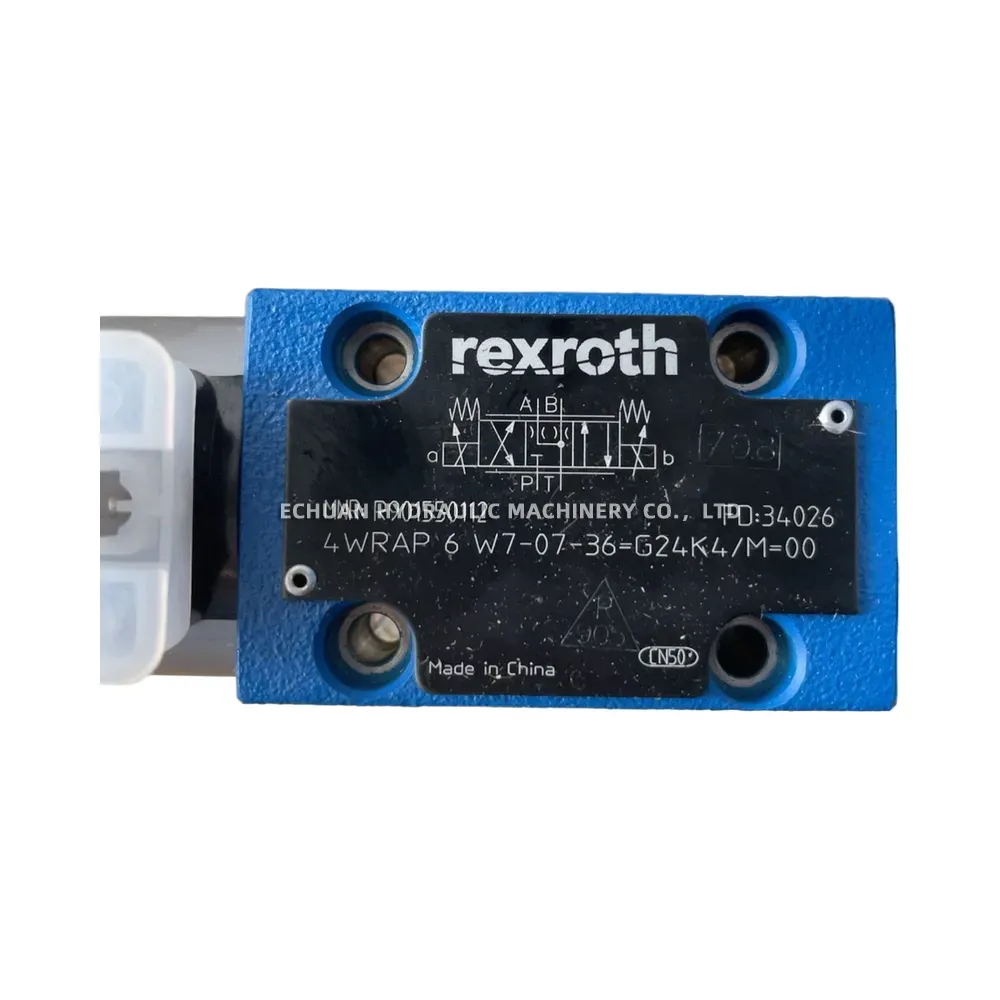

Rexroth 4WRAP6W7-07-36=G24K4/M=00 Proportional Directional Valve R901550112
The Rexroth 4WRAP6W7-07-36=G24K4/M=00 is a direct operated proportional directional control valve with electrical position feedback. Designed for subplate mounting according to ISO 4401-03 standards (NG6), it precisely controls the direction and magnitude of fluid flow in hydraulic systems. This valve features a proportional solenoid actuator, integrated electronics (OBE), and a specific W7 spool configuration for defined flow paths. The electrical position feedback ensures accurate spool positioning corresponding to the command signal, making it suitable for applications requiring high precision and repeatability in flow control.
Technical Specifications:
- Valve Type: Direct Operated Proportional Directional Control Valve
- Series: 4WRAP6
- Size: NG6 (Nominal Size 6)
- Mounting Interface: ISO 4401-03-02-0-05
- Actuation: Proportional solenoid with electrical position feedback
- Spool Symbol: W7
- Nominal Flow Rate (@ 10 bar Δp): 7 l/min
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T): 210 bar
- Supply Voltage: 24V DC
- Electrical Connection: Connector DIN EN 175301-803 (Form A) – K4
- Seal Material: NBR (M)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524
- Fluid Temperature Range: -20°C to +80°C
- Material Number: R901550112
Rexroth 4WRAP6W7-07-36=G24K4/M=00 R901550112
Model:Rexroth 4WRAP6W7-07-36=G24K4/M=00 R901550112
| Brand | Rexroth |
|---|---|
| Model | 4WRAP6W7-07-36=G24K4/M=00 R901550112 |
| Part No. | Rexroth 4WRAP6W7-07-36=G24K4/M=00 R901550112 |
| Category | Hydraulic valves |
