Product Description

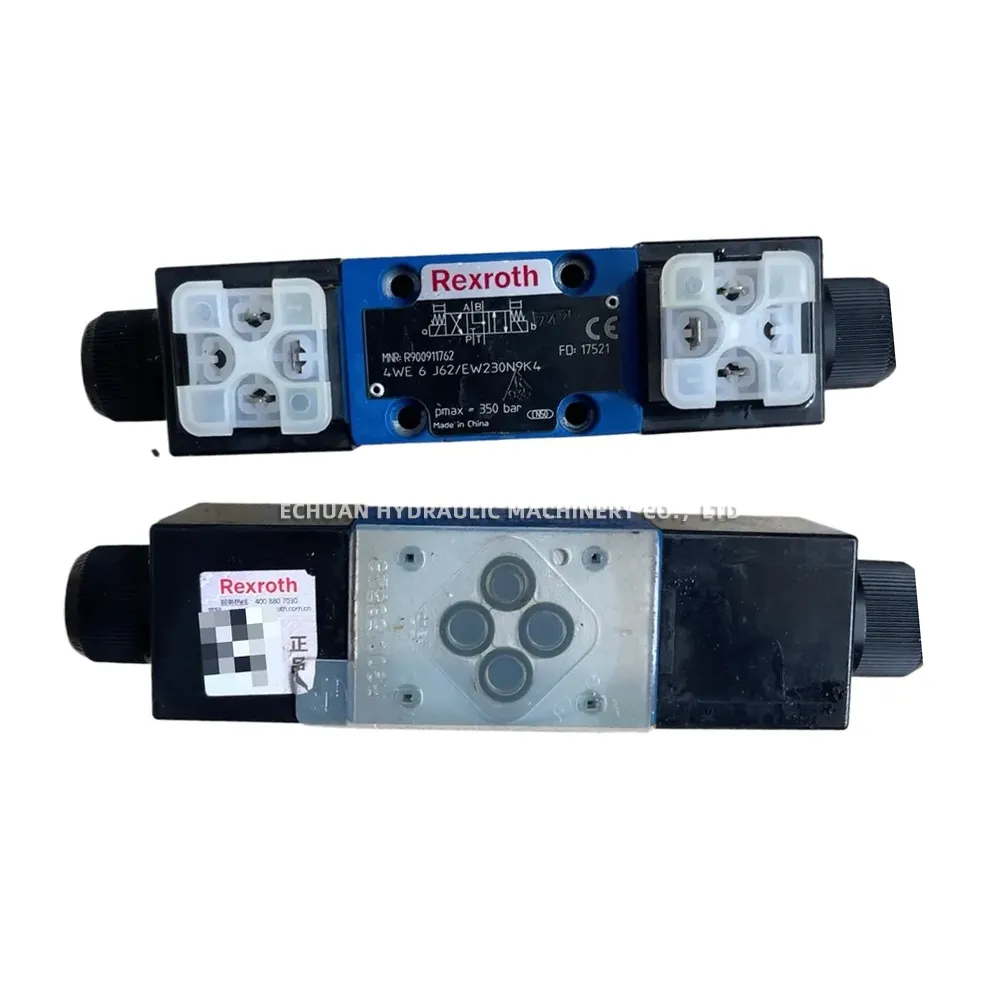

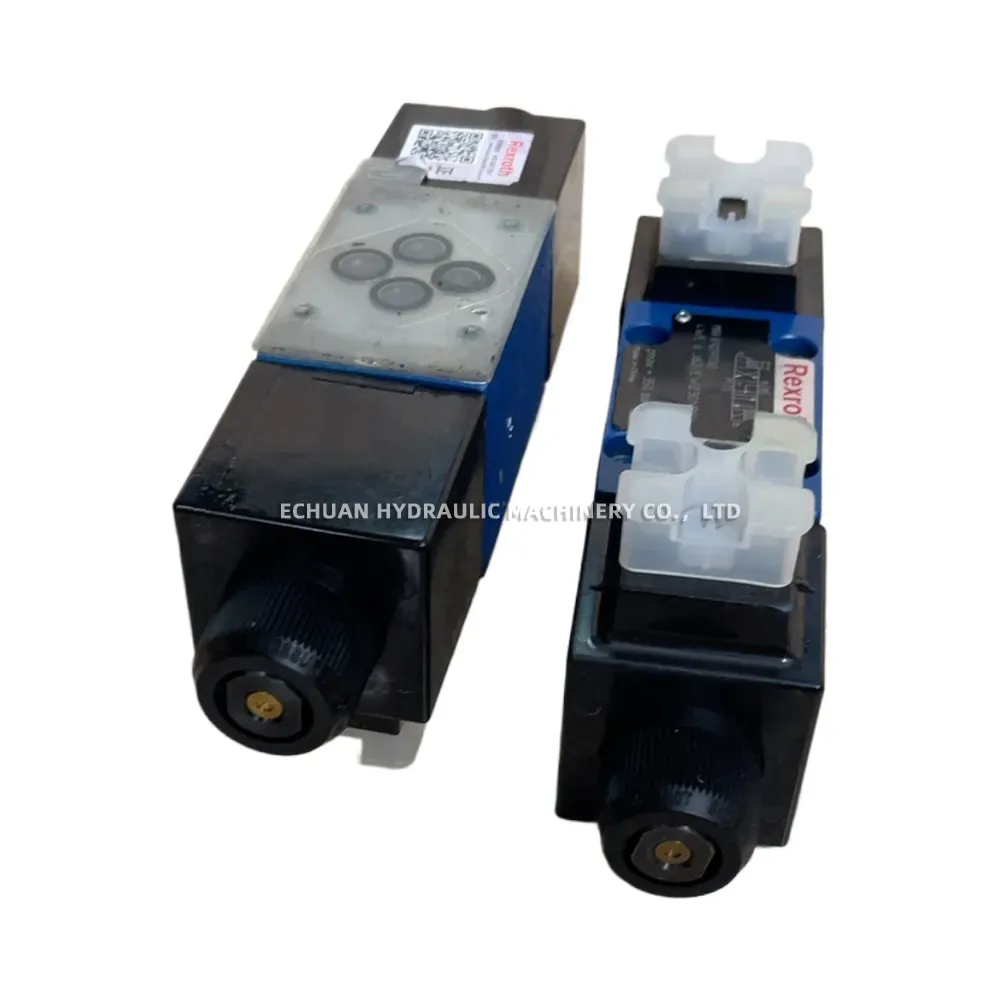

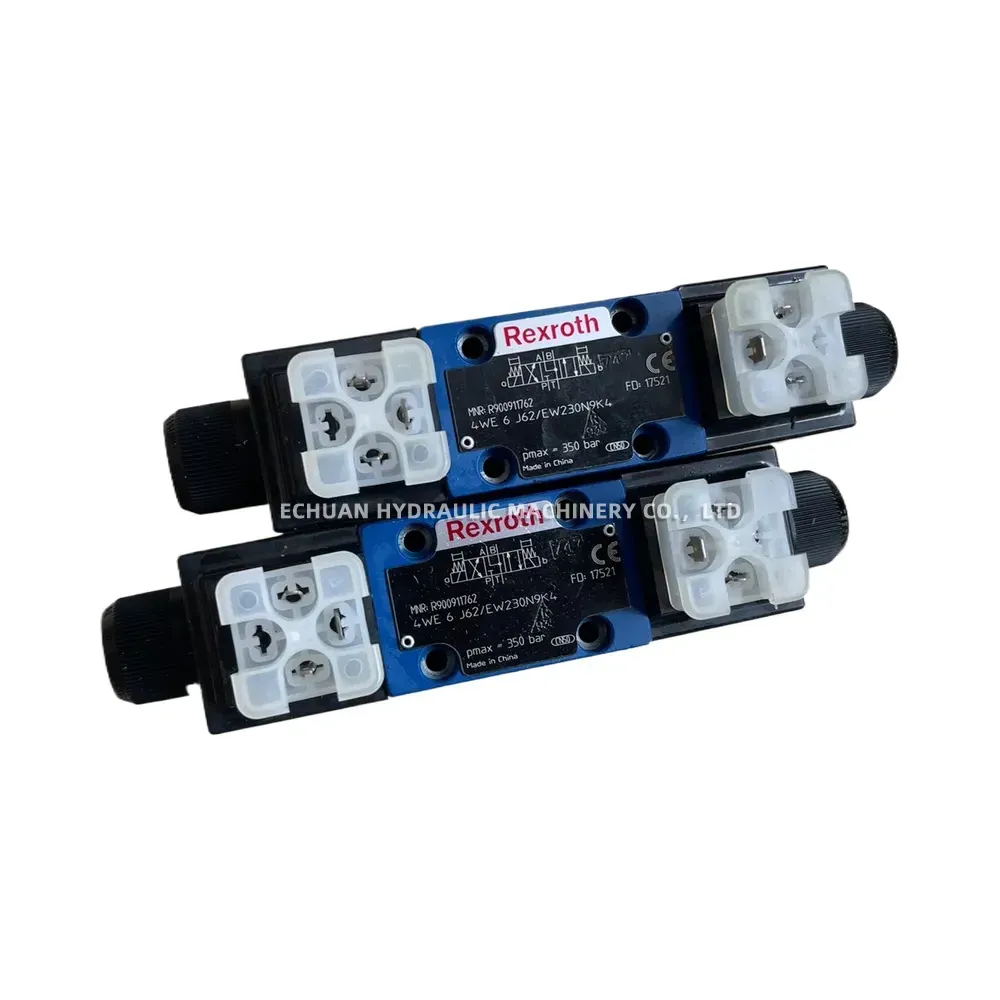

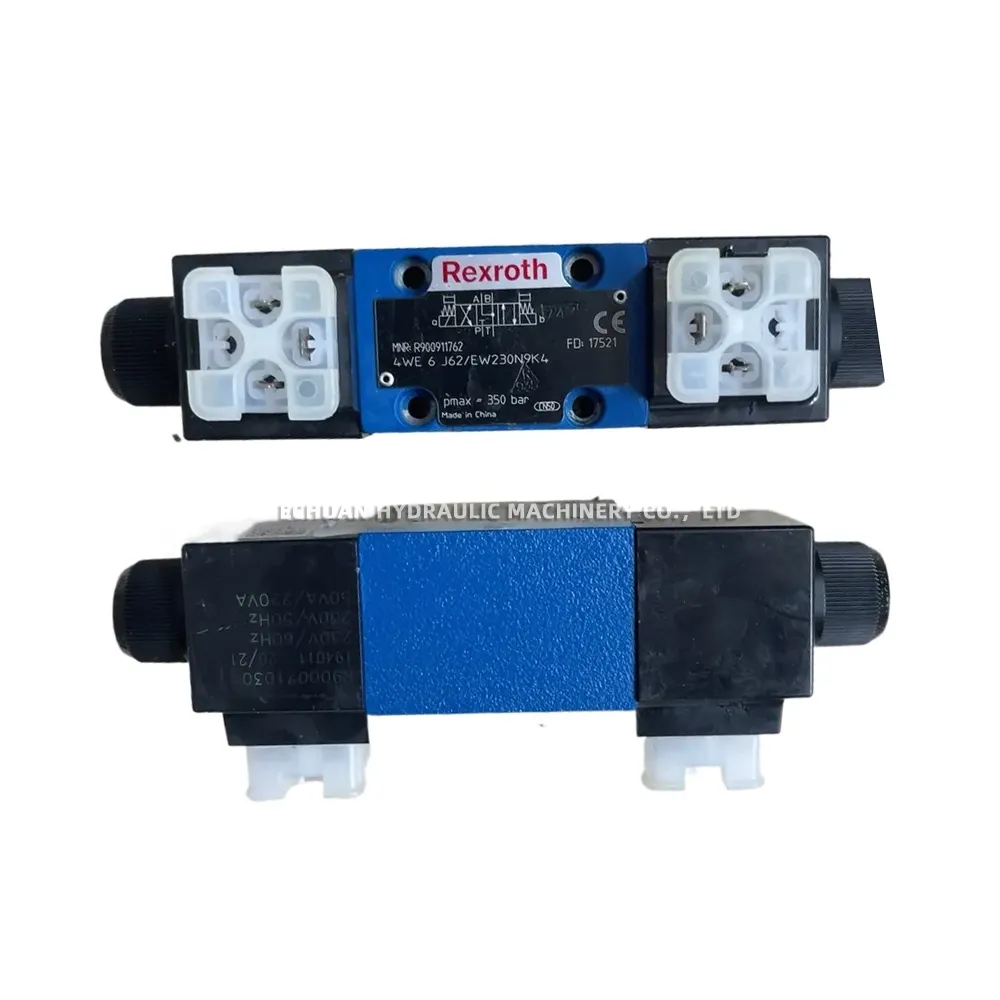

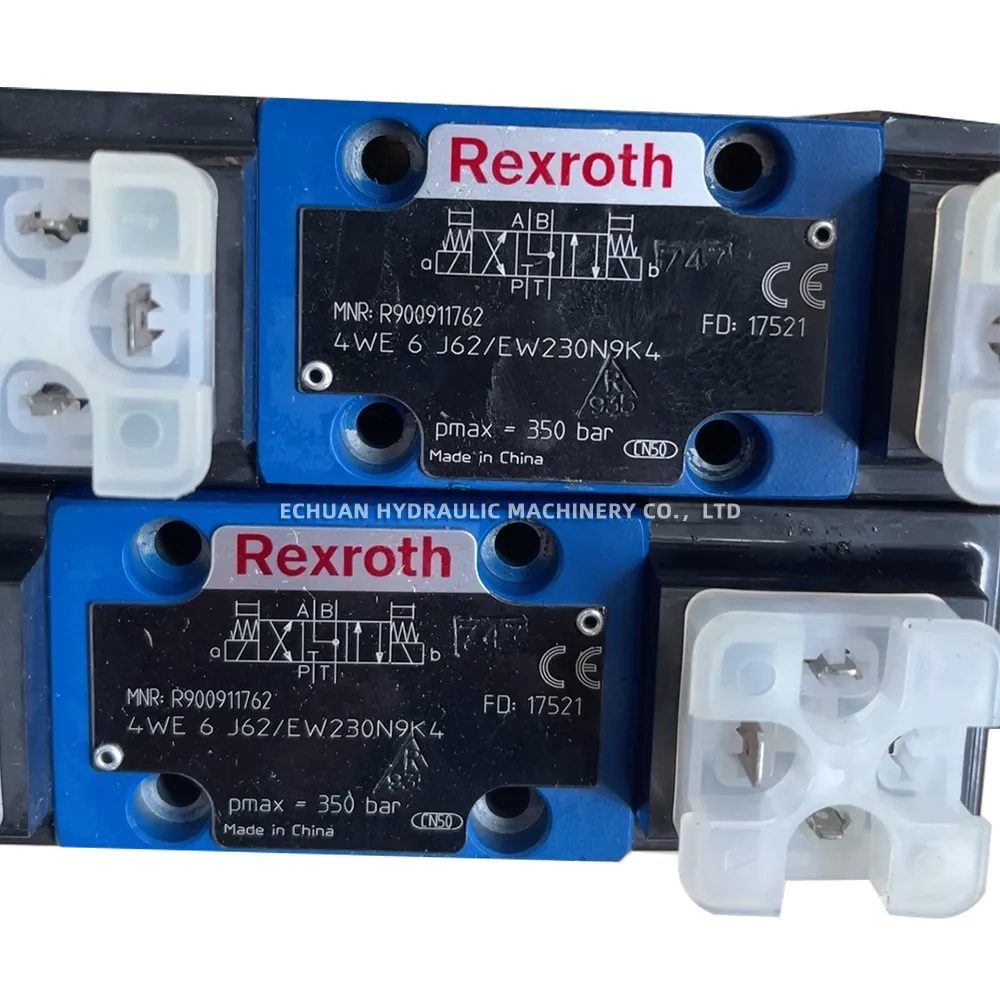

Rexroth R900911762 4WE6J62/EW230N9K4
The Rexroth R900911762 4WE6J62/EW230N9K4 is a direct-operated directional spool valve with solenoid actuation. Part of the WE 6 series, this size 6 valve features a ‘J’ spool configuration (3-position, spring-centered, all ports blocked in the center position). It is designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. This model operates with a 230V AC solenoid and utilizes NBR seals, suitable for standard hydraulic applications. The valve conforms to the ISO 4401-03 mounting pattern (NG6 / CETOP 03).
Technical Specifications:
- Component Series: 6X (60 to 69)
- Valve Type: Directional Spool Valve
- Actuation Type: Solenoid, direct operated
- Size: 6 (NG6 / CETOP 03)
- Spool Symbol: J (Spring-centered, P, A, B, T blocked in center position)
- Supply Voltage: 230V AC, 50/60 Hz (EW230)
- Electrical Connection: Connector DIN EN 175301-803 (K4)
- Sealing Material: NBR (N9)
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Maximum Flow Rate: 80 l/min (21 GPM)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524, Viscosity range 10…800 mm²/s
- Mounting Pattern: ISO 4401-03-02-0-05 (NFPA T3.5.1 R2-2002 D03)
- Weight: Approx. 1.45 kg
Rexroth R900911762 4WE6J62/EW230N9K4
Model:Rexroth R900911762 4WE6J62/EW230N9K4
| Brand | Rexroth |
|---|---|
| Model | R900911762 4WE6J62/EW230N9K4 |
| Part No. | Rexroth R900911762 4WE6J62/EW230N9K4 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/rexroth-r900911762-4we6j62-ew230n9k4 |
