Product Description

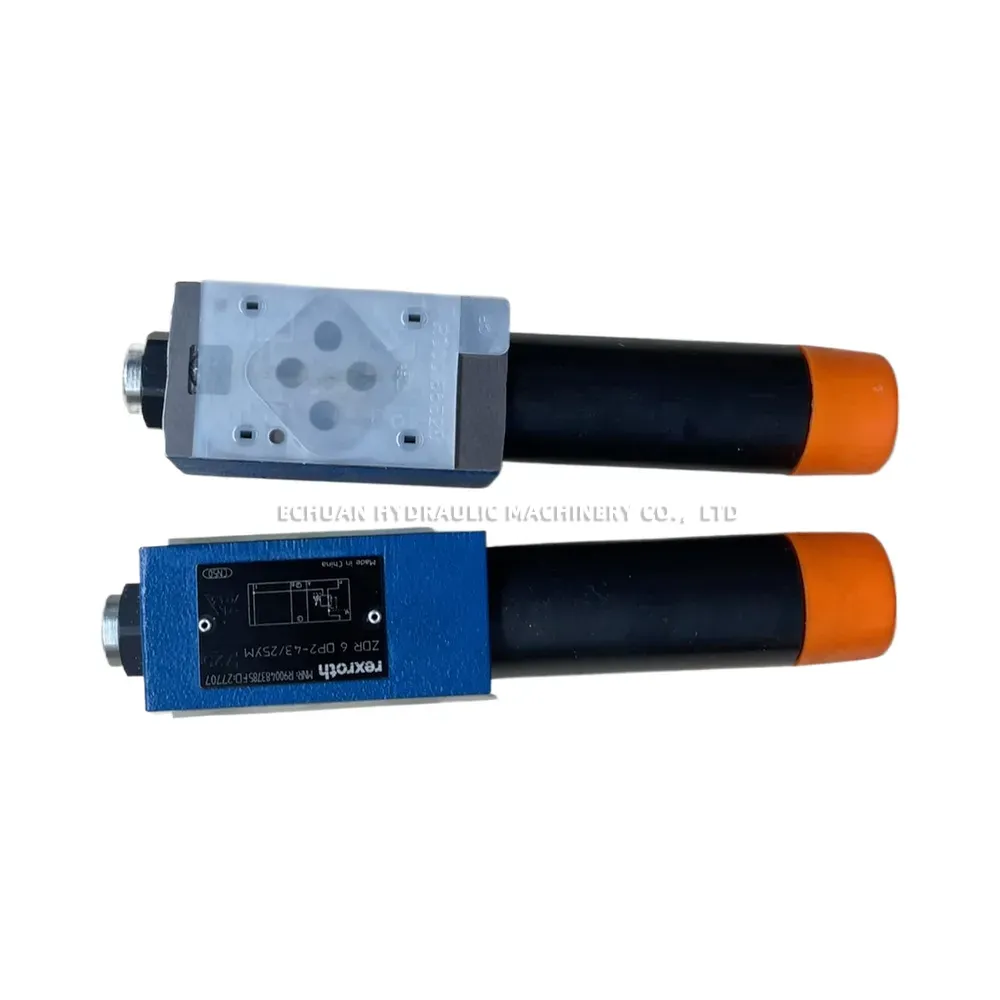

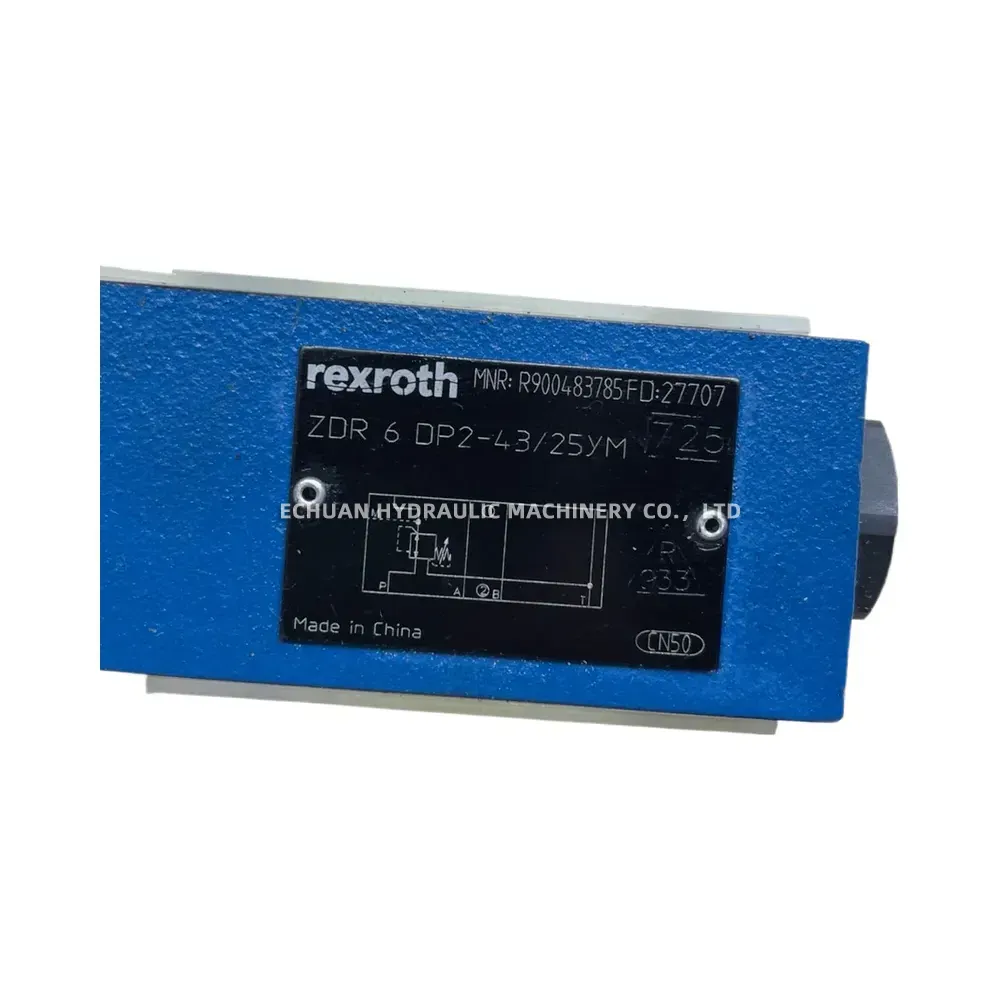

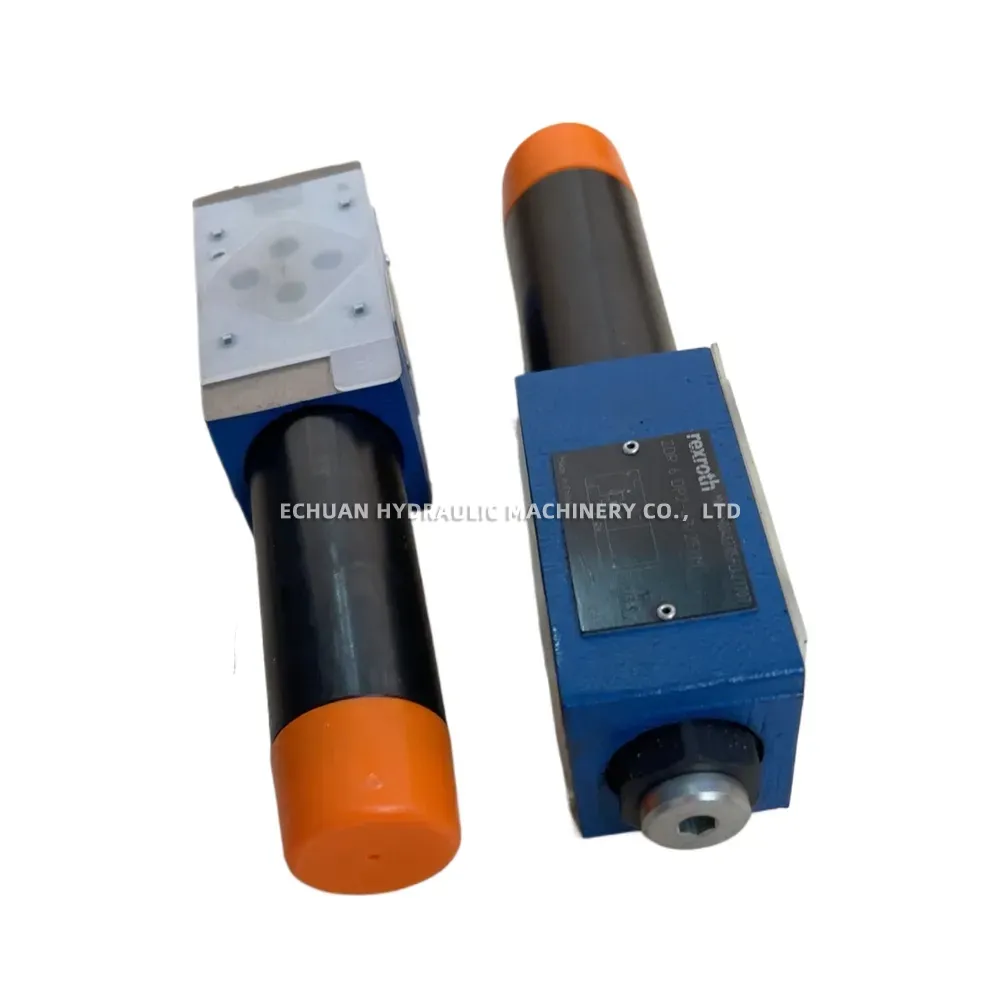

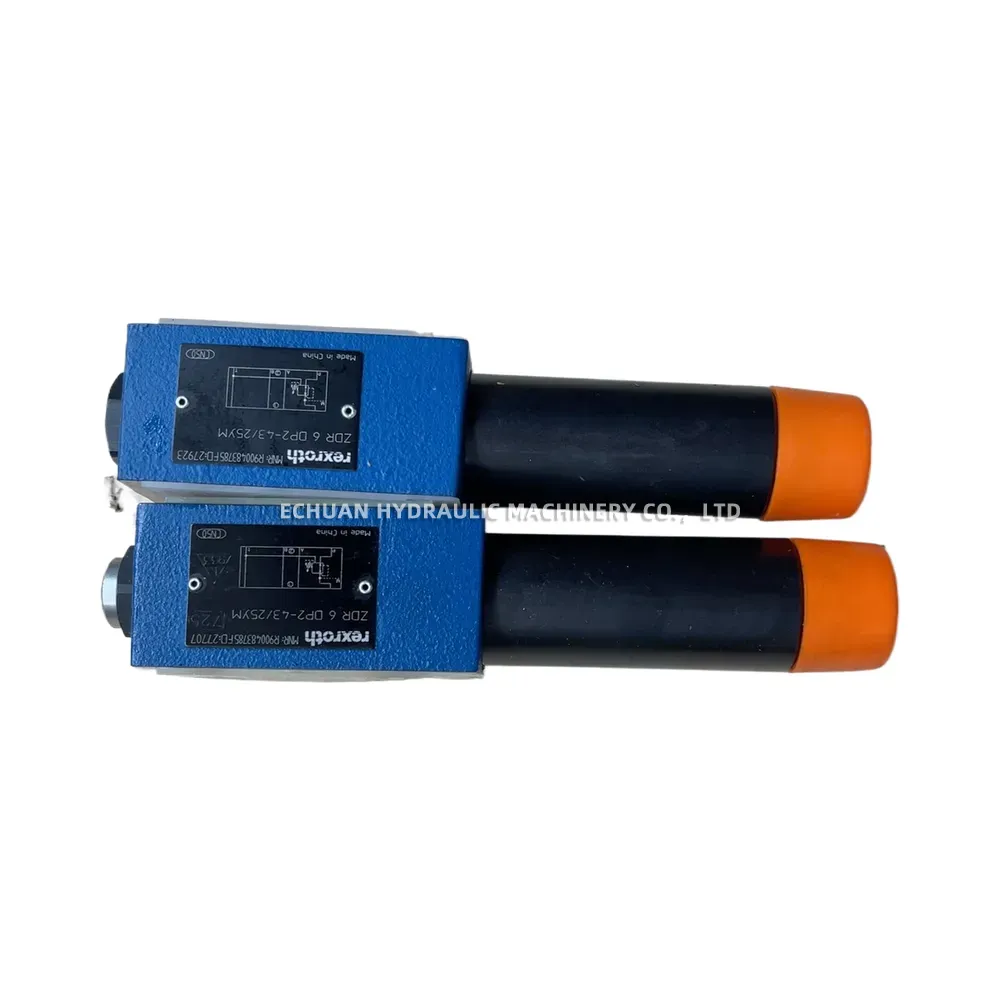

Rexroth ZDR6DP2-43/25YM Pressure Reducing Valve R900483785
The Rexroth ZDR 6 DP is a direct operated pressure reducing valve designed in a sandwich plate configuration. This 3-way version is specifically engineered to reduce the system pressure in port A. It maintains a set reduced pressure in port A even when system pressure fluctuates at a higher level. The valve includes an integrated check valve, allowing free flow from port A1 to P1. This model features a pressure setting range up to 25 bar and includes a pressure gauge connection port (G1/4) for monitoring the reduced pressure. It is suitable for mounting patterns according to ISO 4401-03-02-0-05.
Technical Specifications:
- Manufacturer: Bosch Rexroth
- Type: ZDR – Pressure reducing valve, direct operated, sandwich plate design
- Size: 6 (NG6 / CETOP 03)
- Actuation: Direct operated
- Configuration: DP2 – Pressure reduction in port A, 3-way version
- Series: 4X (43 denotes specific design iteration/features within the series)
- Maximum Operating Pressure (Port P, B): 210 bar (3045 psi)
- Maximum Operating Pressure (Port A, T): 210 bar (3045 psi)
- Pressure Adjustment Range: Up to 25 bar (363 psi)
- Maximum Flow: 30 l/min (approx. 8 GPM)
- Mounting Interface: ISO 4401-03-02-0-05
- Hydraulic Fluid: Mineral oil (HL, HLP) acc. to DIN 51524; other fluids on request
- Fluid Temperature Range: -30°C to +80°C
- Seals: M (NBR Seals)
- Options: Y (Pressure gauge connection port G1/4)
- Weight: Approx. 1.3 kg (2.87 lbs)
Rexroth ZDR6DP2-43/25YM R900483785
Model:Rexroth ZDR6DP2-43/25YM R900483785
| Brand | Rexroth |
|---|---|
| Model | ZDR6DP2-43/25YM R900483785 |
| Part No. | Rexroth ZDR6DP2-43/25YM R900483785 |
| Category | Hydraulic valves |
