Product Description

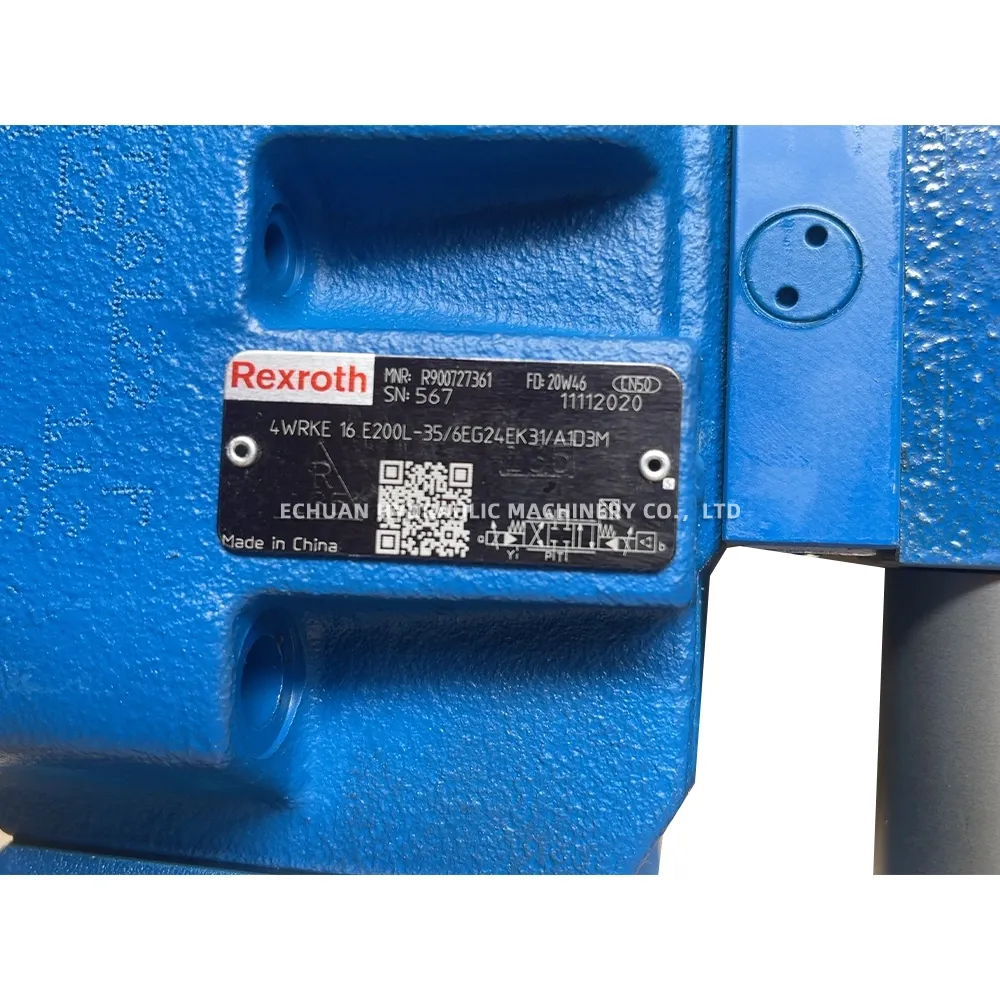

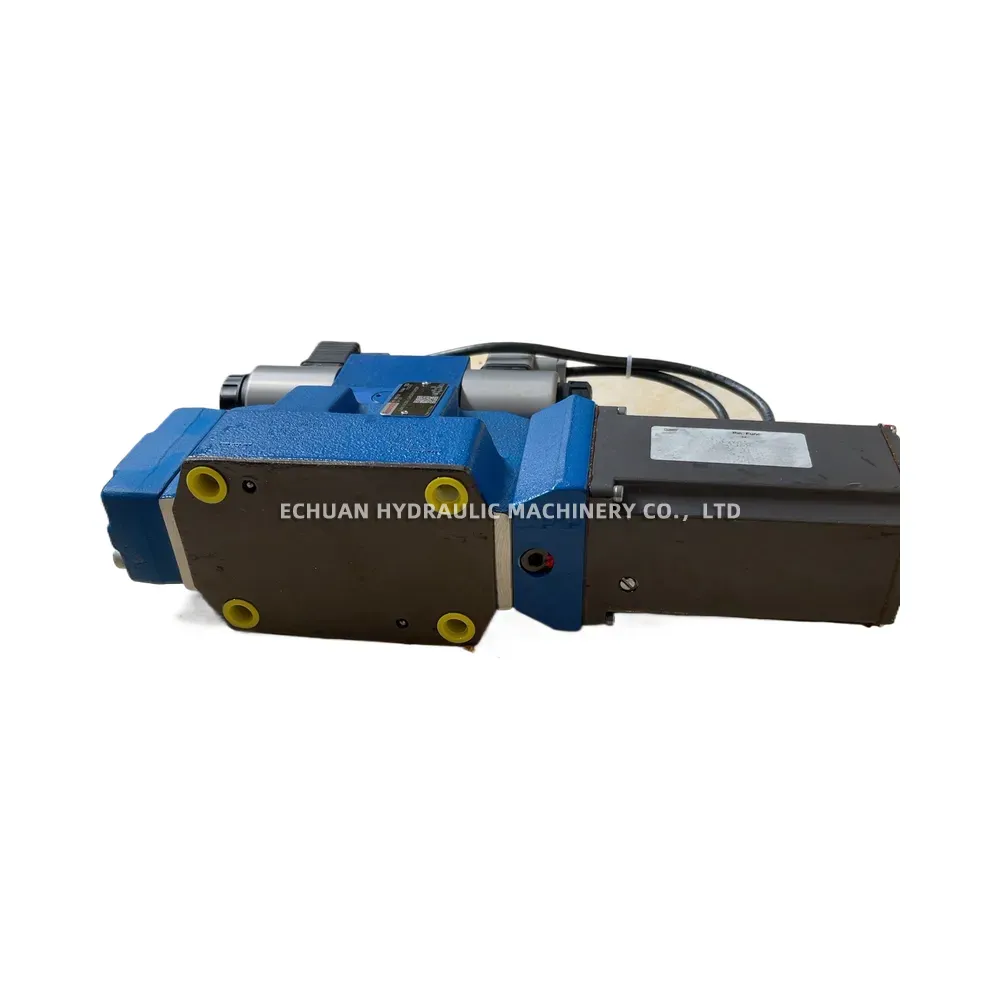

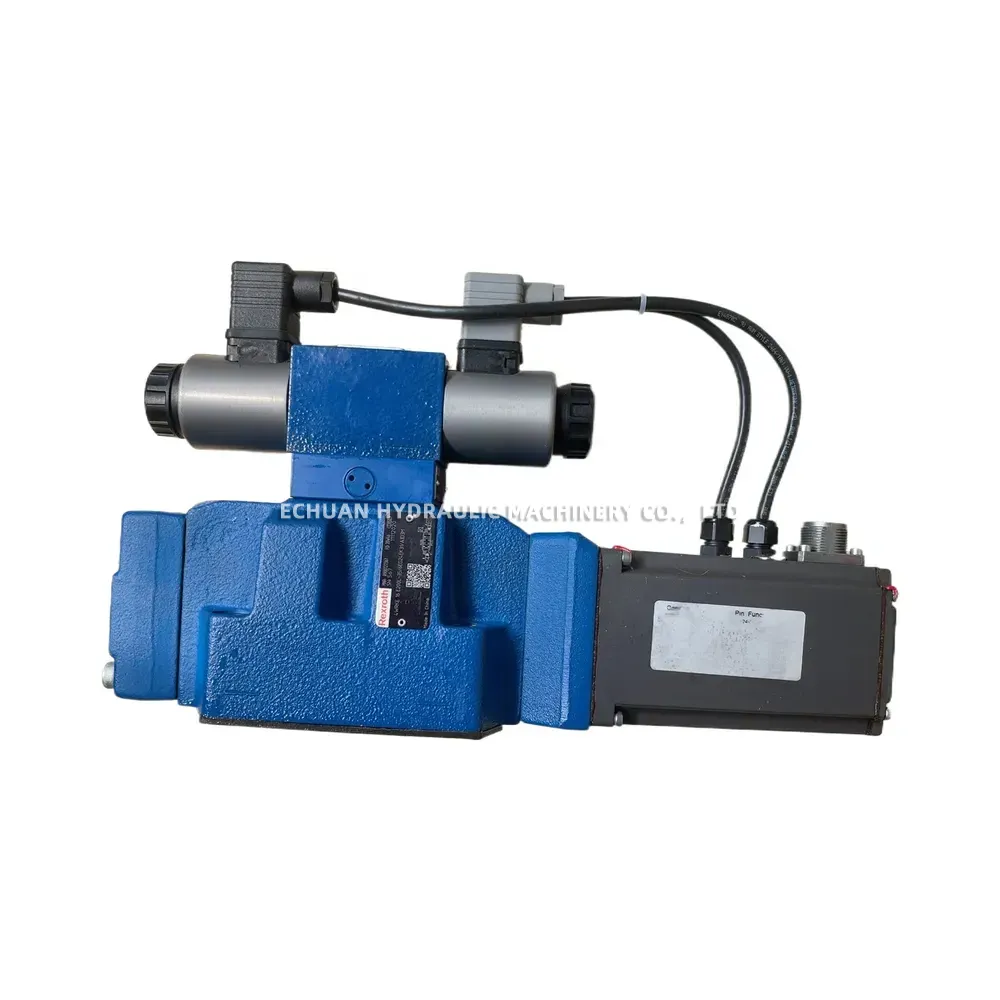

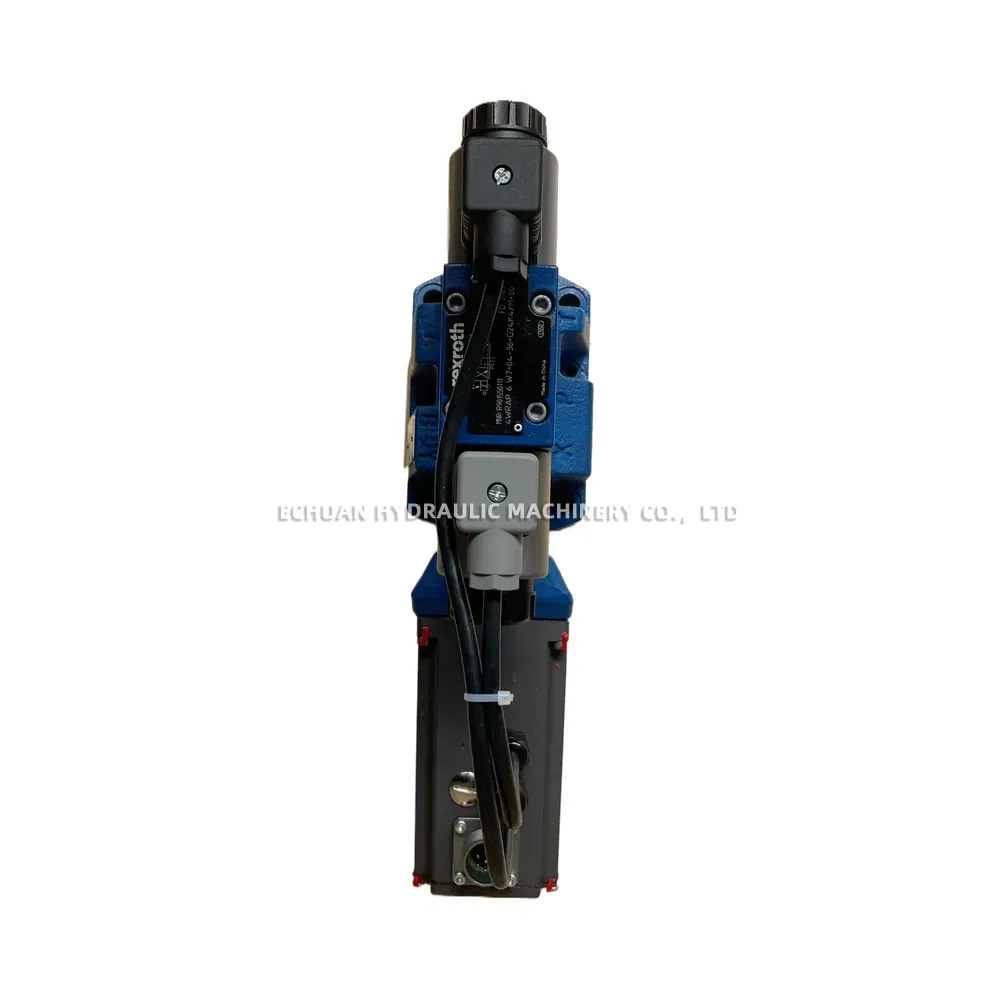

Rexroth R900727361 4WRKE16E200L-35/6EG24EK31/A1D3M Proportional Directional Valve
The Rexroth R900727361 (model 4WRKE16E200L-35/6EG24EK31/A1D3M) is a high-performance, direct operated proportional directional control valve. It features integrated electronics (OBE) and electrical position feedback for the control spool, ensuring precise control of flow direction and magnitude. This NG16 size valve is designed for subplate mounting according to ISO 4401 standards. The integrated electronics simplify installation and setup, accepting a standard +/- 10V command signal. Its robust construction and FKM seals make it suitable for demanding industrial hydraulic applications requiring accurate electrohydraulic control.
Technical Specifications:
- Component Series: 3X (35)
- Valve Type: Proportional Directional Valve
- Actuation: Direct operated proportional solenoid with integrated electronics (OBE)
- Size: NG16 (Nominal Size 16)
- Mounting Pattern: ISO 4401-07-07-0-05
- Spool Symbol: E (E200L)
- Maximum Flow Rate: 200 L/min
- Maximum Operating Pressure (Ports P, A, B): 350 bar
- Maximum Operating Pressure (Port T): 210 bar
- Supply Voltage: 24V DC (EG24)
- Electrical Connection: Connector EN 175201-804, 6 + PE (K31)
- Command Signal Interface: +/- 10V (A1)
- Position Feedback: Electrical spool position feedback
- Seal Material: FKM (Viton) (D3)
- Auxiliary Designation: Mounting bolts included (M)
Rexroth R900727361 4WRKE16E200L-35/6EG24EK31/A1D3M
Model:Rexroth R900727361 4WRKE16E200L-35/6EG24EK31/A1D3M
| Brand | Rexroth |
|---|---|
| Model | R900727361 4WRKE16E200L-35/6EG24EK31/A1D3M |
| Part No. | Rexroth R900727361 4WRKE16E200L-35/6EG24EK31/A1D3M |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/rexroth-r900727361-4wrke16e200l-35-6eg24ek31-a1d3m |
