Product Description

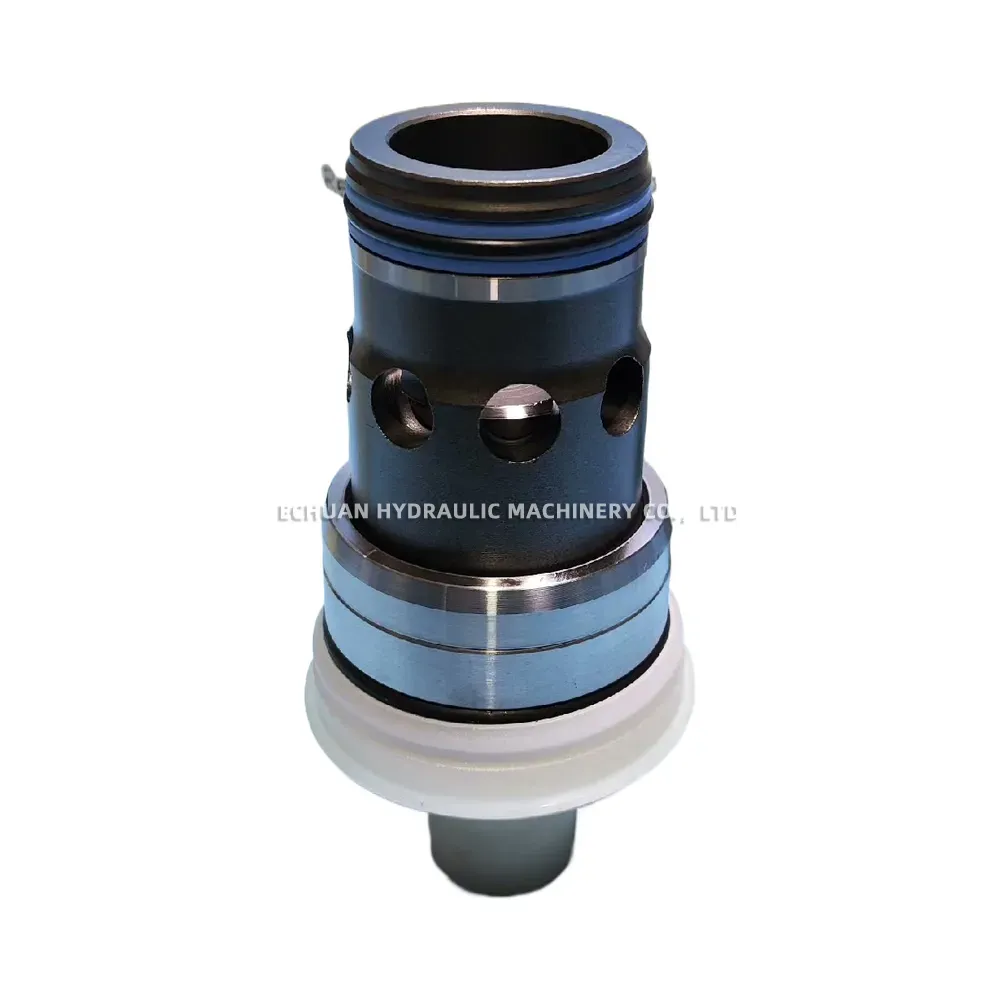

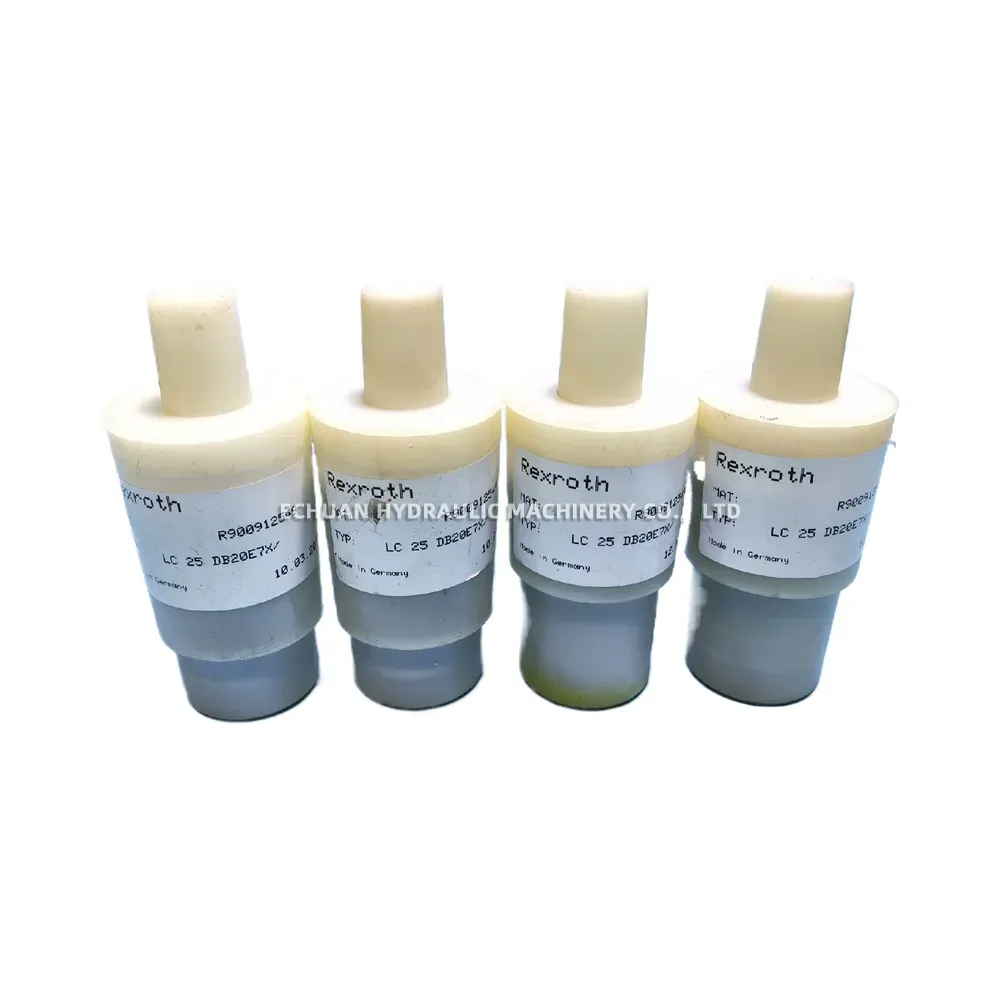

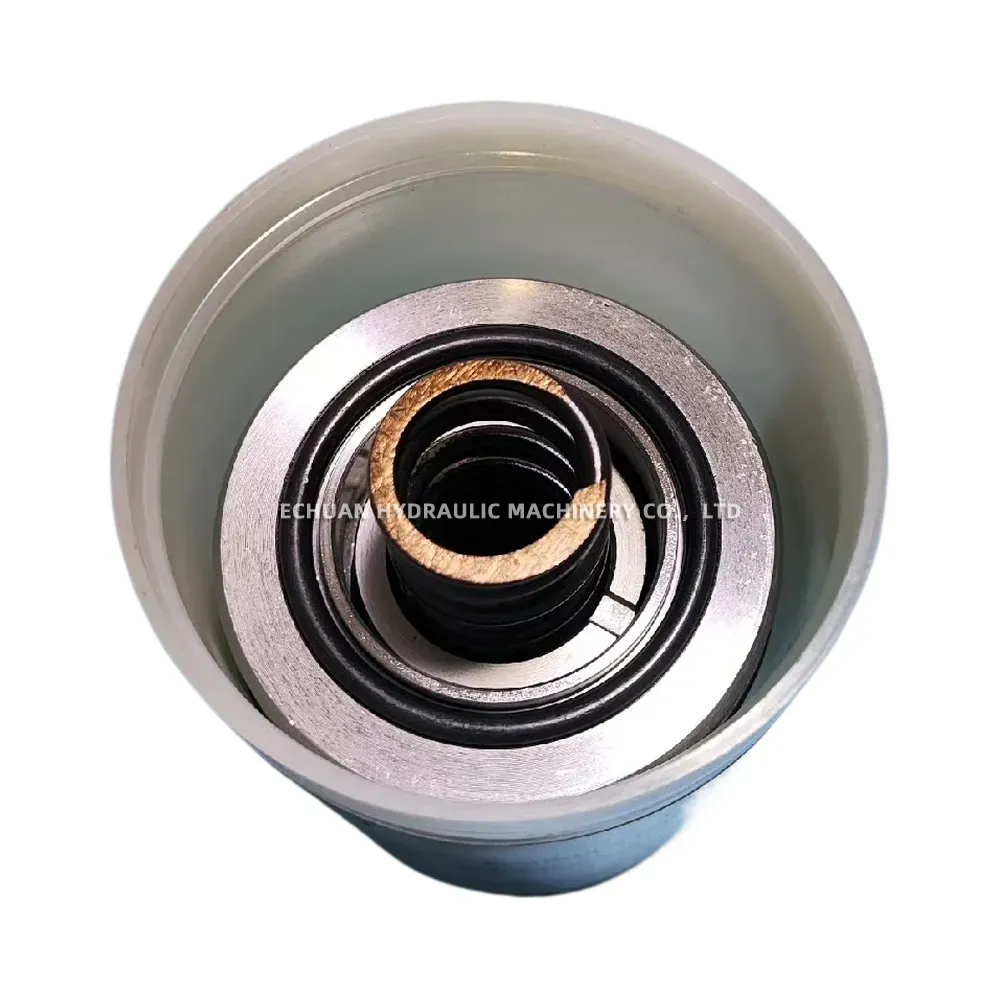

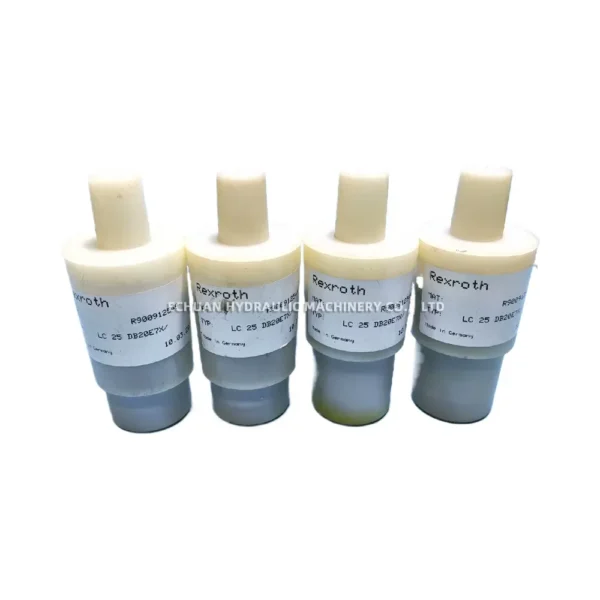

Rexroth LC25DB20E7X Logic Cartridge Check Valve
The Rexroth LC25DB20E7X is a high-performance logic check valve insert designed for cavity mounting according to ISO 7368. As part of the LC..DB..E series, this cartridge valve provides reliable free flow in one direction while ensuring leak-free blocking in the opposite direction using a poppet design. It is intended for integration into hydraulic control blocks and manifolds, offering a compact and efficient solution for directional control tasks in various industrial hydraulic systems. The ’20’ designation indicates a 2.0 bar cracking pressure, and the ‘E’ signifies NBR seals suitable for standard mineral oil-based hydraulic fluids.
Technical Specifications:
- Type: Logic Cartridge Check Valve Insert
- Series: LC..DB..E
- Nominal Size (NG): 25
- Cavity Standard: Form A, ISO 7368
- Designation Code: LC25DB20E7X
- Valve Type: Check valve (DB)
- Cracking Pressure: 2.0 bar (Code 20)
- Sealing Material: NBR (Code E)
- Component Series: 7X (70 to 79)
- Maximum Operating Pressure: 350 bar (5076 psi)
- Maximum Flow: approx. 400 l/min (106 US gpm) – refer to datasheet pressure drop curves
- Hydraulic Fluid Temperature Range (NBR seals): -30°C to +80°C (-22°F to +176°F)
- Compatible Fluids: Mineral oils (HL, HLP) according to DIN 51524; other fluids on request
Rexroth LC25DB20E7X R900912549
Model:Rexroth LC25DB20E7X R900912549
| Brand | Rexroth |
|---|---|
| Model | LC25DB20E7X R900912549 |
| Part No. | Rexroth LC25DB20E7X R900912549 |
| Category | Hydraulic valves |
