Product Description

Rexroth M-2SED6PK14 /350CG24N9K4 R900203993

The Rexroth M-2SED6PK14 /350CG24N9K4 is a direct solenoid-actuated directional seat valve, designed for reliable leak-free closure of one port, even during extended periods under pressure. This pilot-operated 2/2 way valve features a normally closed configuration (P blocked in rest position) and is suitable for subplate mounting according to ISO 4401-03-02-0-05 standards. It incorporates a concealed manual override for emergency operation and utilizes FKM seals compatible with various hydraulic fluids. The robust design allows for a maximum operating pressure of 350 bar, making it suitable for demanding industrial hydraulic applications requiring secure isolation or control.

Technical Specifications:

  • Manufacturer: Bosch Rexroth
  • Valve Type: 2/2 Directional Seat Valve, Pilot Operated
  • Series: SED
  • Size: NG6 (CETOP 03)
  • Actuation: Solenoid
  • Spool Symbol: P (Normally Closed – P blocked)
  • Max Operating Pressure: 350 bar (5076 psi)
  • Max Flow Rate: 25 l/min (6.6 gpm)
  • Solenoid Voltage: 24V DC
  • Electrical Connection: DIN EN 175301-803 Form A (without indicator light) – Code N9
  • Sealing Material: FKM (Viton) – Code K4
  • Manual Override: Yes, Concealed (Type C)
  • Mounting Interface: ISO 4401-03-02-0-05
  • Hydraulic Fluid: Mineral oil (HL, HLP) DIN 51524, others on request
  • Part Number: R900203993

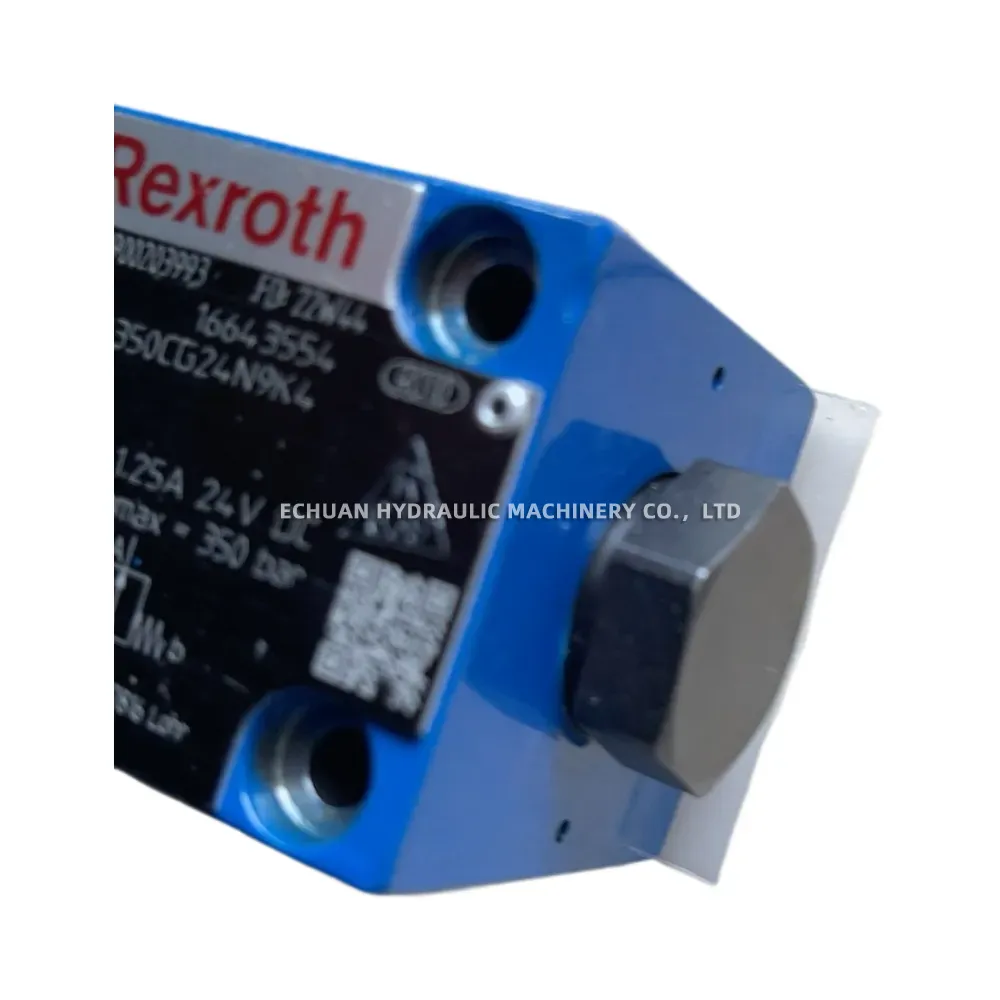

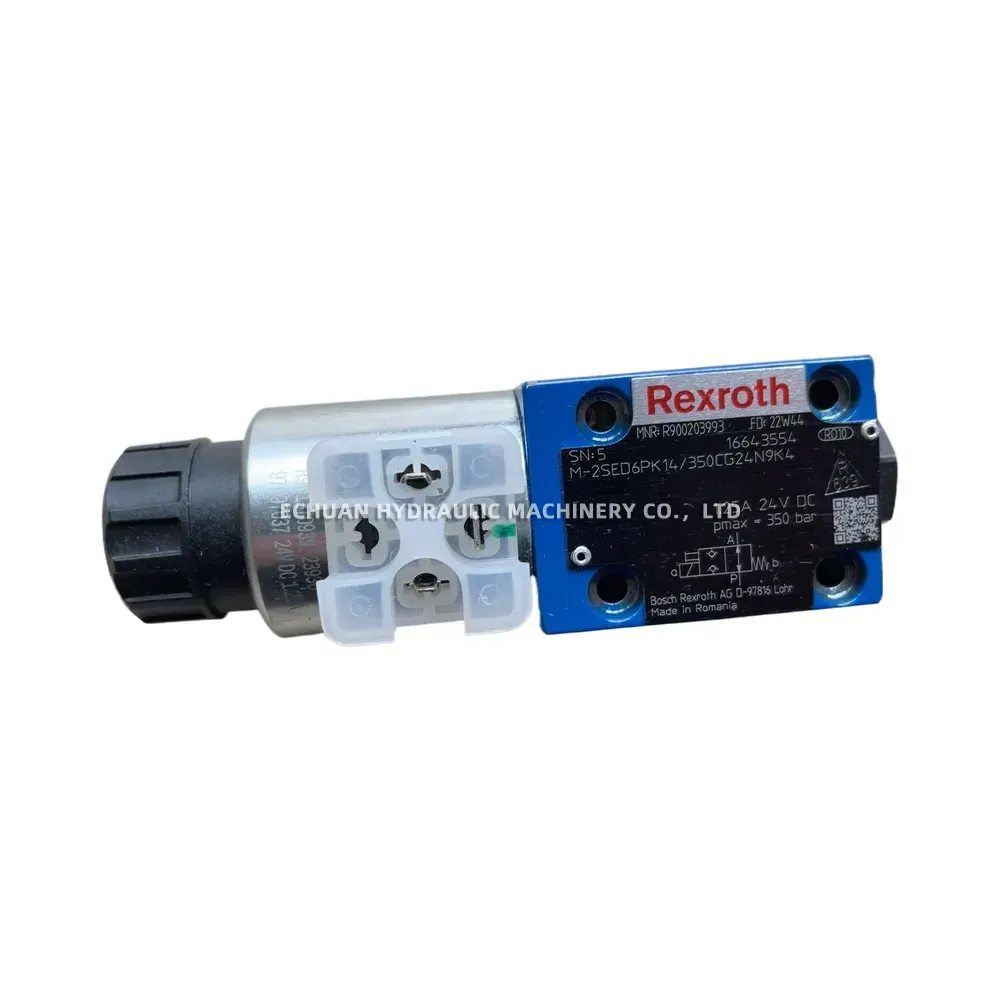

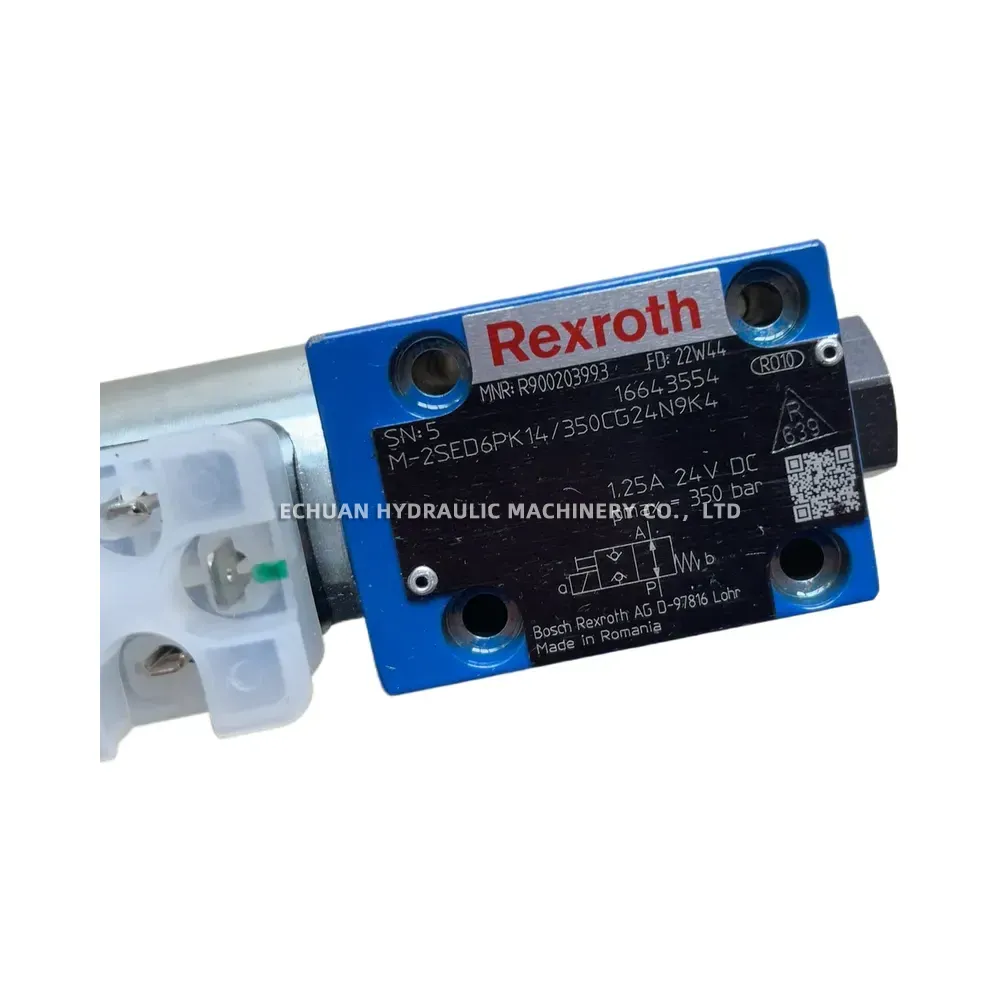

Rexroth M-2SED6PK14 /350CG24N9K4 R900203993 - Image 1

Rexroth M-2SED6PK14 /350CG24N9K4 R900203993 - Image 2

Rexroth M-2SED6PK14 /350CG24N9K4 R900203993 - Image 3

Rexroth M-2SED6PK14 /350CG24N9K4 R900203993 - Image 4

Rexroth M-2SED6PK14 /350CG24N9K4 R900203993

Model:Rexroth M-2SED6PK14 /350CG24N9K4 R900203993

BrandRexroth
ModelM-2SED6PK14 /350CG24N9K4 R900203993
Part No.Rexroth M-2SED6PK14 /350CG24N9K4 R900203993
CategoryHydraulic valves
