Product Description

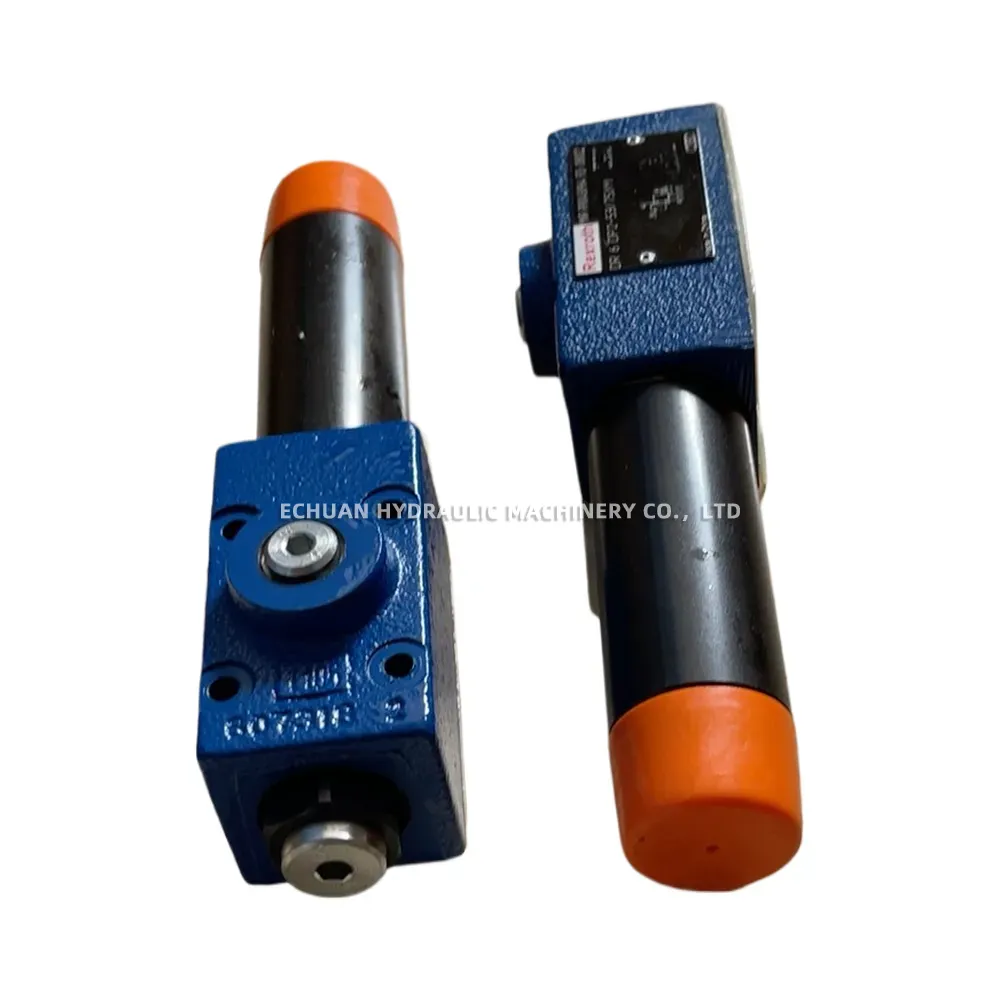

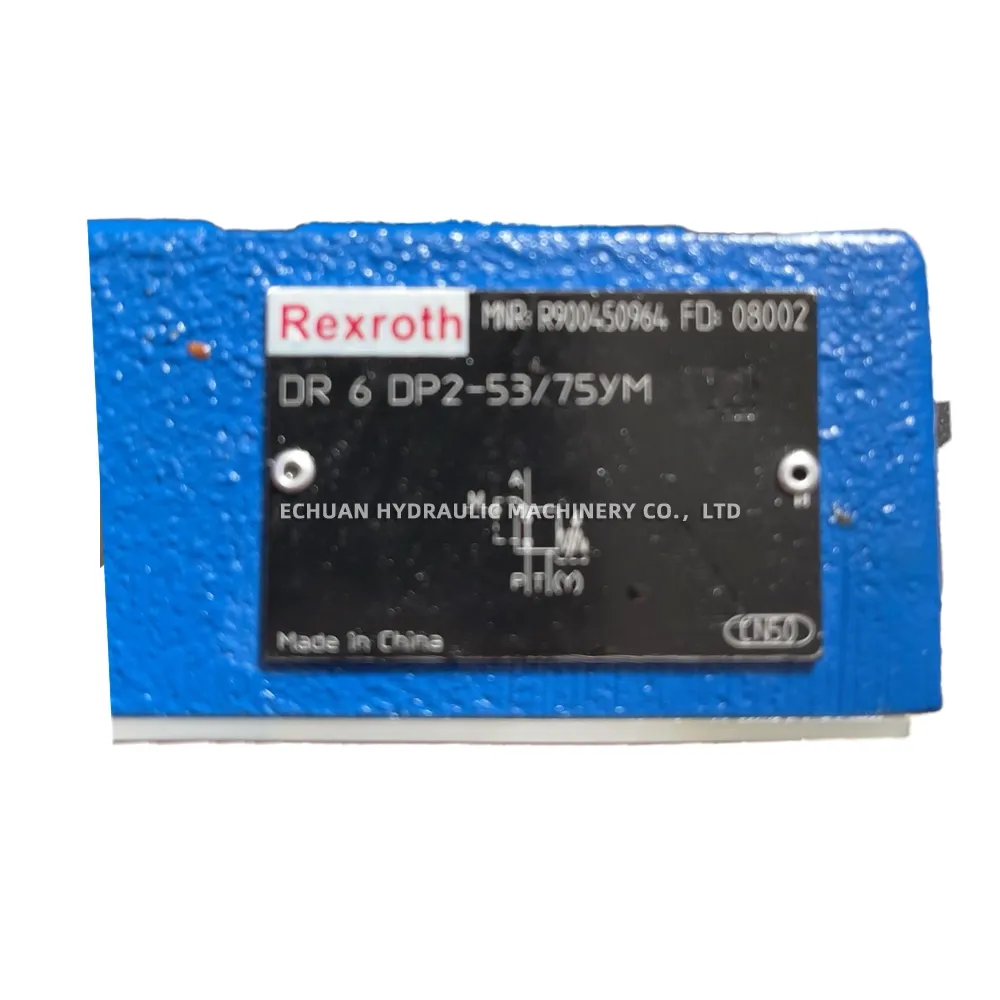

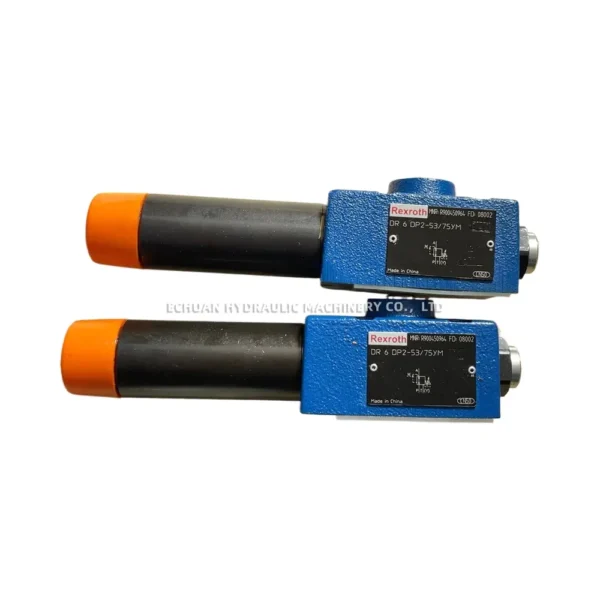

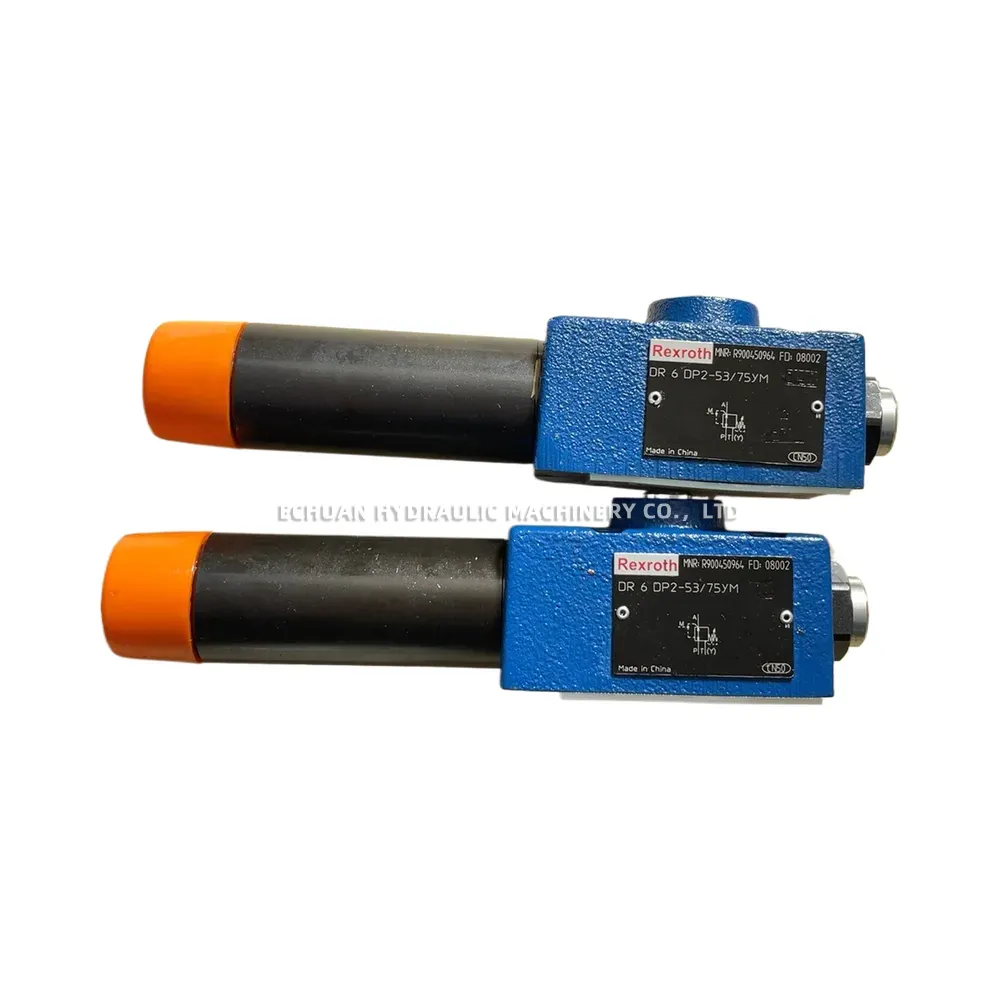

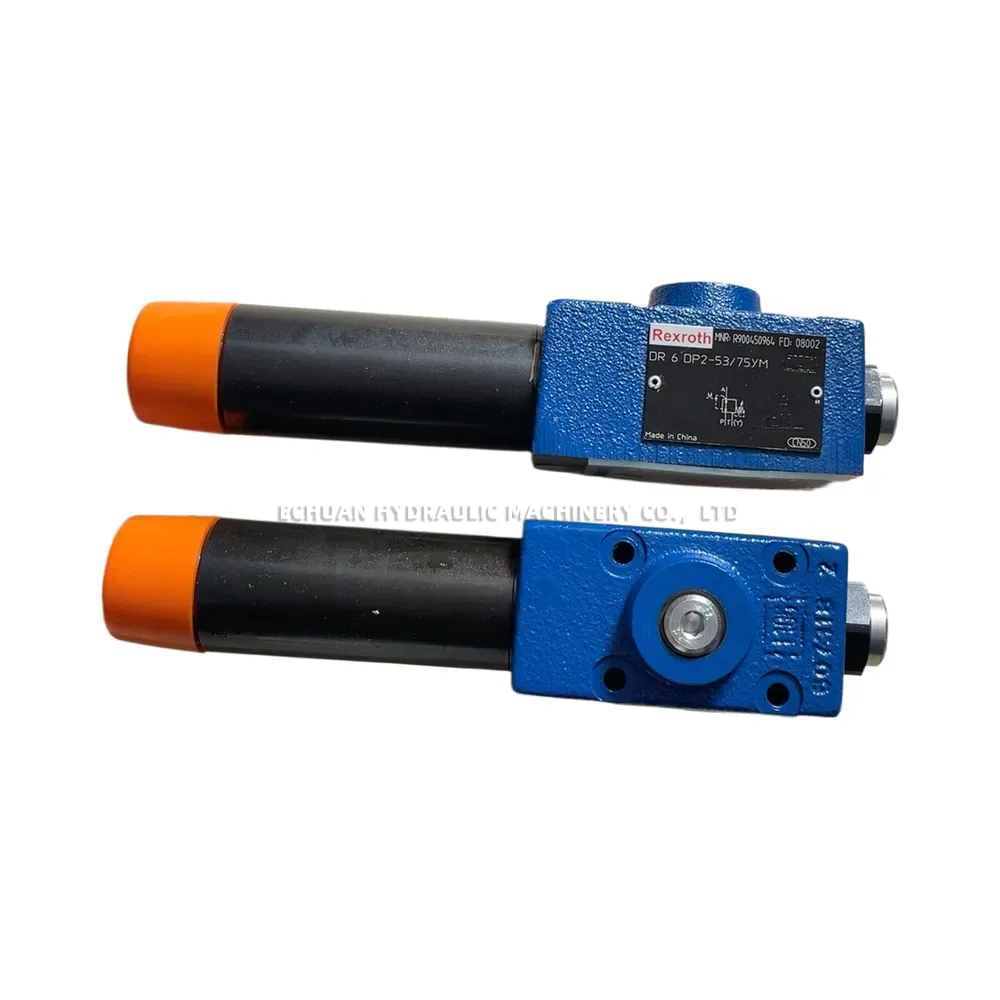

Rexroth R900450964 DR6DP2-53/75YM
The Rexroth R900450964 DR6DP2-53/75YM is a direct operated pressure reducing valve of sandwich plate design, size 6. It is designed to reduce the operating pressure in a specific section of a hydraulic system. This model features an integrated check valve for free flow from the actuator port (A) to the tank port (T). Pressure adjustment is facilitated by a rotary knob with a scale, allowing for a maximum pressure setting of 75 bar in the secondary circuit. It conforms to the ISO 4401-03-02-0-05 mounting pattern (NG6) and includes FKM seals (Y) suitable for mineral oils and phosphate esters.

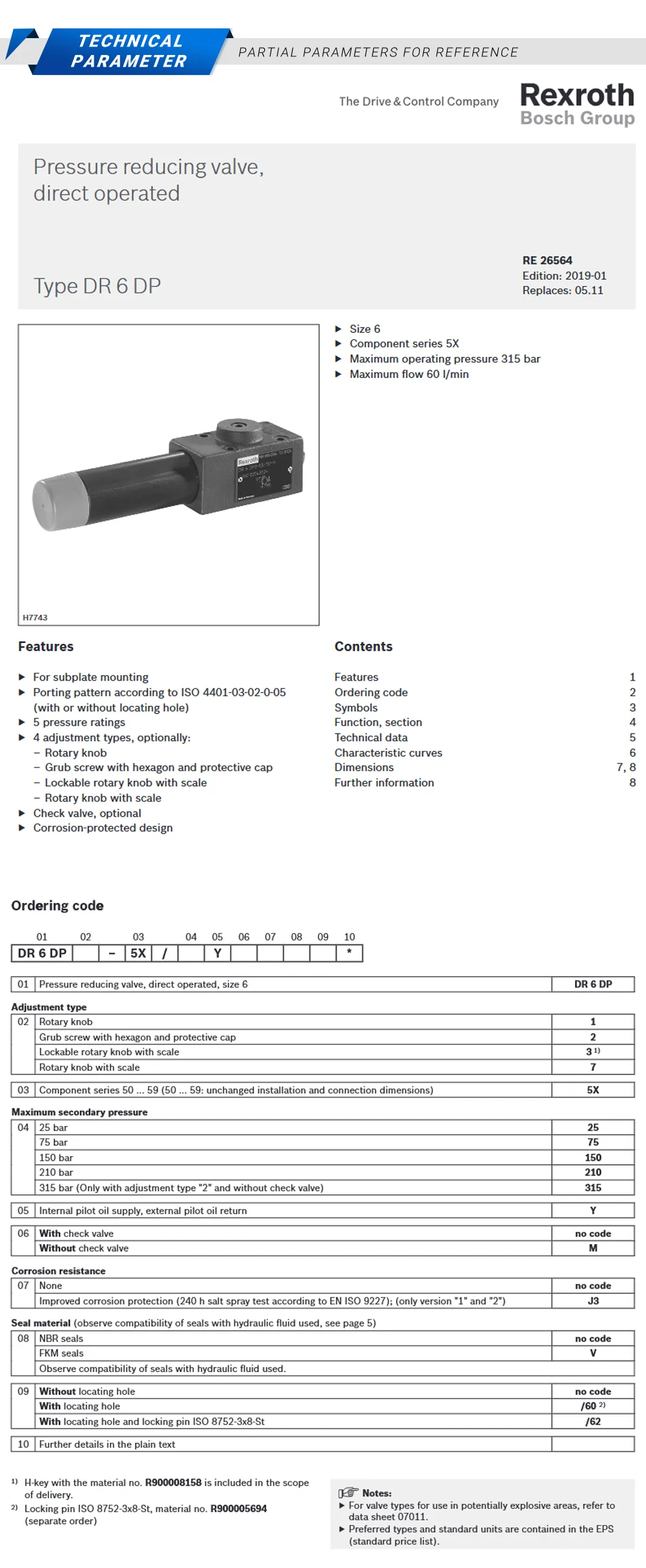

Technical Specifications:
- Type: Pressure reducing valve, direct operated
- Series: DR 6 DP
- Size: 6
- Mounting Pattern: ISO 4401-03-02-0-05 (NG6)
- Actuation Type: Rotary knob with scale
- Pressure Function: Reducing in channel P1
- Maximum Pressure Setting: 75 bar (1088 psi)
- Maximum Operating Pressure (Inlet P): 315 bar (4568 psi)
- Maximum Flow: Approx. 30 l/min (7.9 GPM)
- Check Valve: Integrated (for free return flow A → T)
- Sealing Material: Y (FKM – Fluoroelastomer)
- Hydraulic Fluid Compatibility: Mineral oil (HL, HLP) DIN 51524; Phosphate ester (HFD-R)
- Component Series: 5X (50 to 59)
Rexroth R900450964 DR6DP2-53/75YM
Model:Rexroth R900450964 DR6DP2-53/75YM
| Brand | Rexroth |
|---|---|
| Model | R900450964 DR6DP2-53/75YM |
| Part No. | Rexroth R900450964 DR6DP2-53/75YM |
| Category | Hydraulic valves |
