Product Description

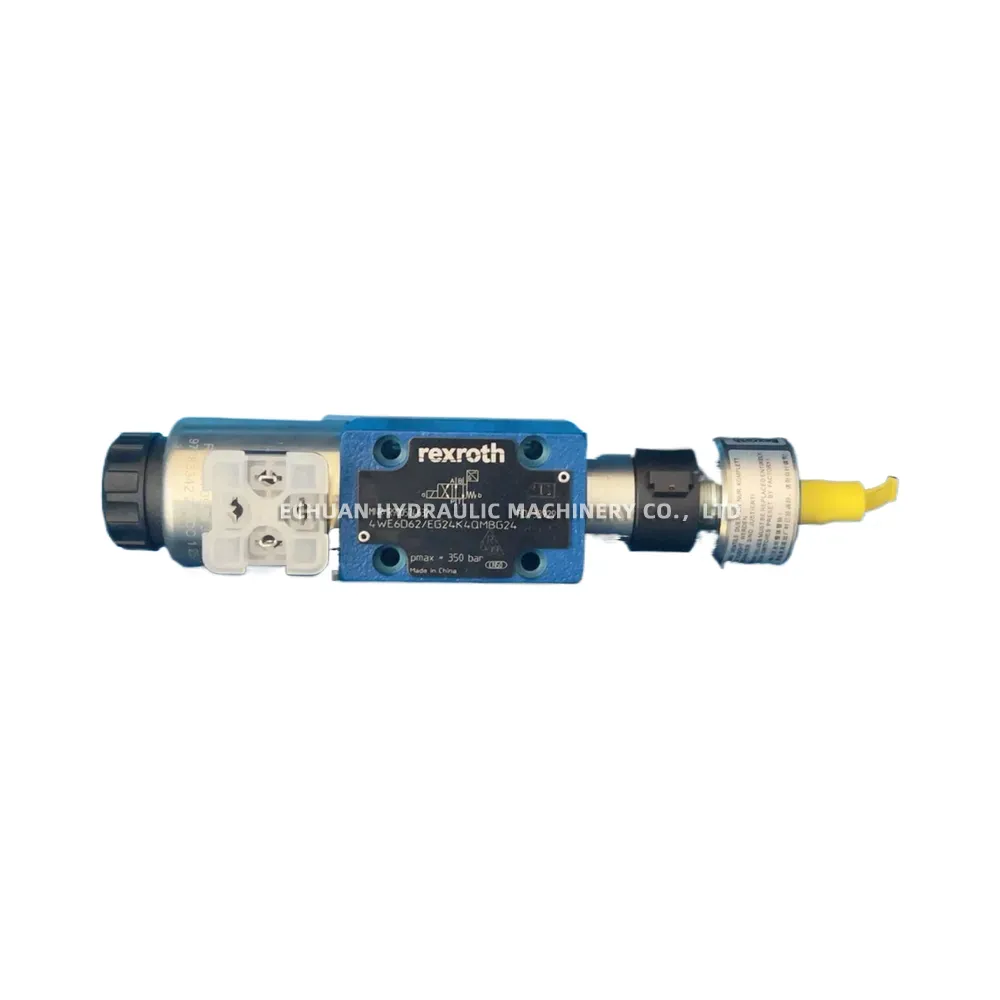

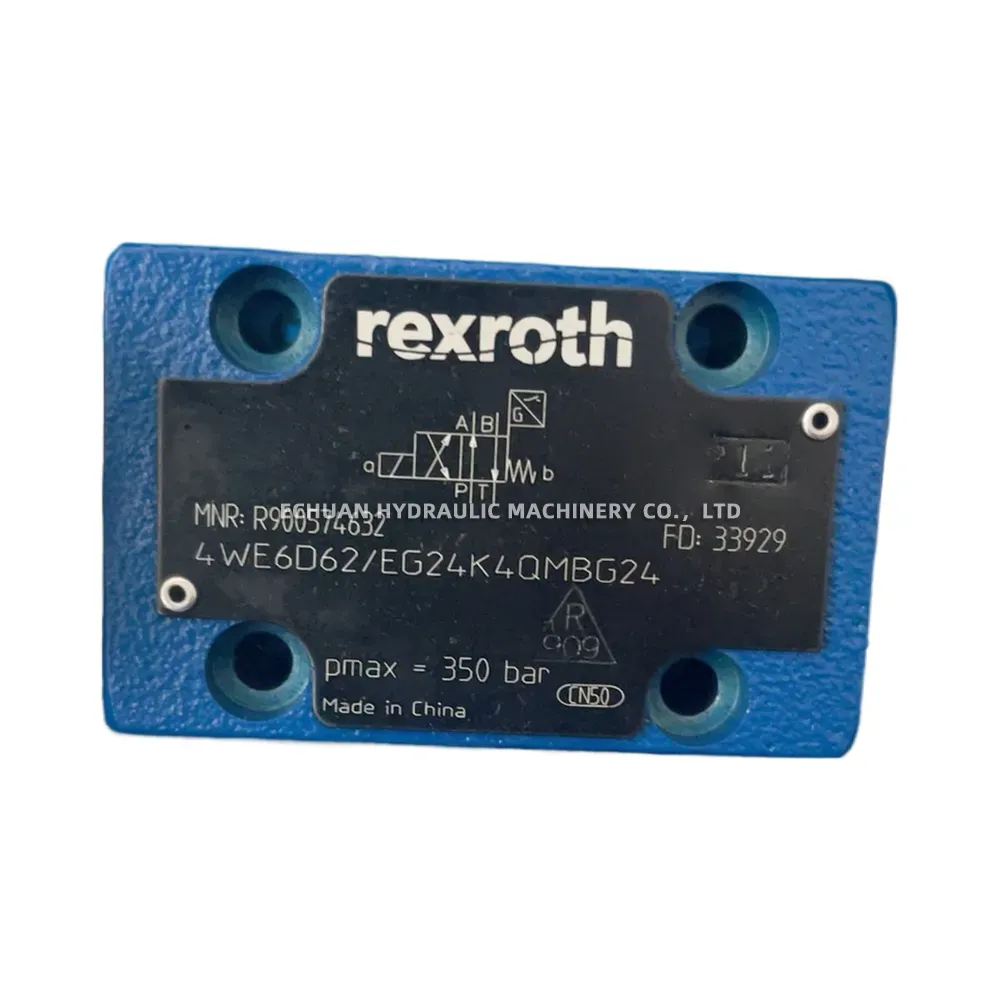

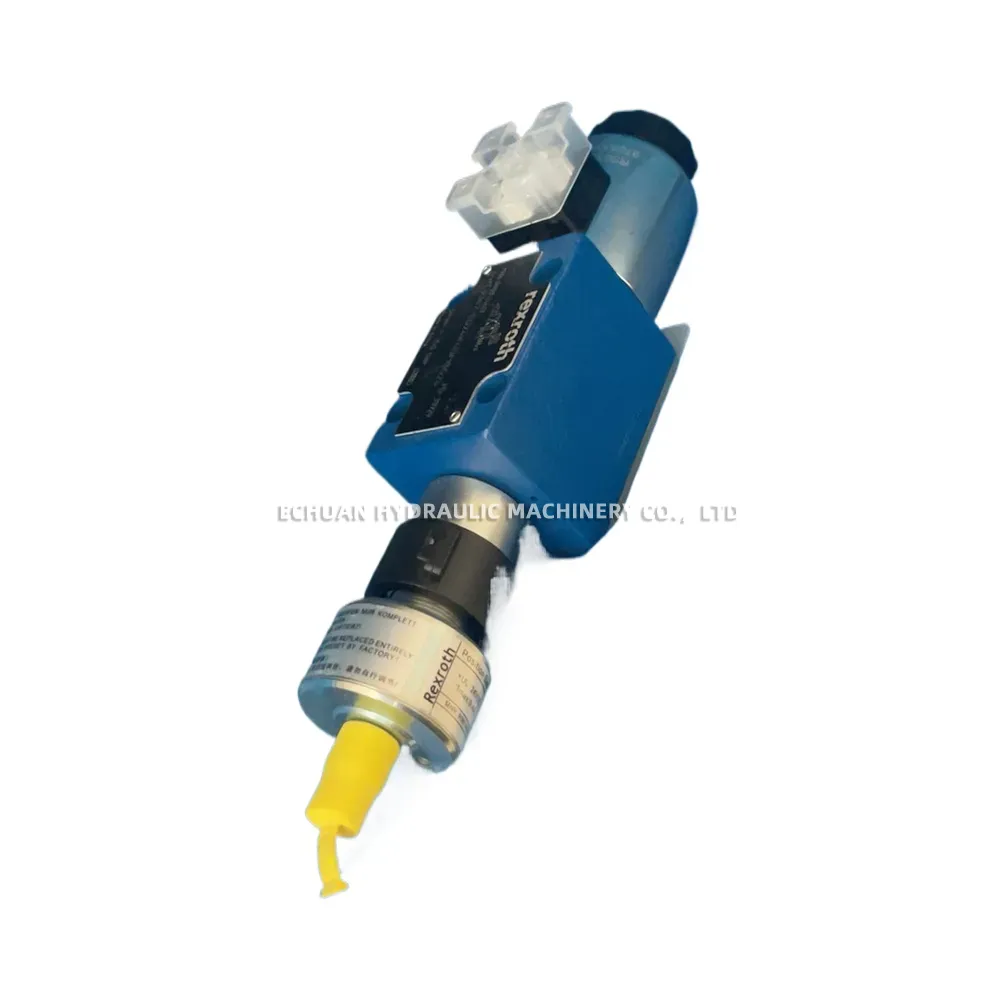

Rexroth R900574632 4WE 6 D62/EG24K4QMBG24
The Rexroth R900574632 is a 4/3 directional spool valve, direct operated, with solenoid actuation. Belonging to the 4WE 6 series, this size 6 valve features the ‘D62’ spool symbol. It is designed for reliable control of the start, stop, and direction of fluid flow in hydraulic systems. The valve is actuated by a 24V DC solenoid (EG24) and includes an individual electrical connection (K4) conforming to DIN EN 175301-803. It also features a concealed manual override (QMBG24) for emergency operation or setup, along with an integrated bridge rectifier. This valve mounts onto a standard interface according to ISO 4401-03-02-0-05 (NG6 / CETOP 03).
Technical Specifications:
- Type: Directional Spool Valve
- Series: 4WE 6
- Size: 6 (NG6 / CETOP 03)
- Actuation: Solenoid, Direct Operated
- Spool Symbol: D62 (4/3 Way)
- Operating Voltage: 24V DC (EG24)
- Electrical Connection: Individual Connector DIN EN 175301-803 (K4)
- Auxiliary Actuation: Concealed Manual Override (QMBG24)
- Integrated Component: Bridge Rectifier (BG24)
- Mounting Interface: ISO 4401-03-02-0-05
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Maximum Flow Rate: 80 l/min (21 GPM)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524, other fluids on request
- Fluid Temperature Range: -30°C to +80°C (-22°F to +176°F)
- Seals: NBR (Standard)
Rexroth R900574632 4WE 6 D62/EG24K4QMBG24
Model:Rexroth R900574632 4WE 6 D62/EG24K4QMBG24
