Product Description

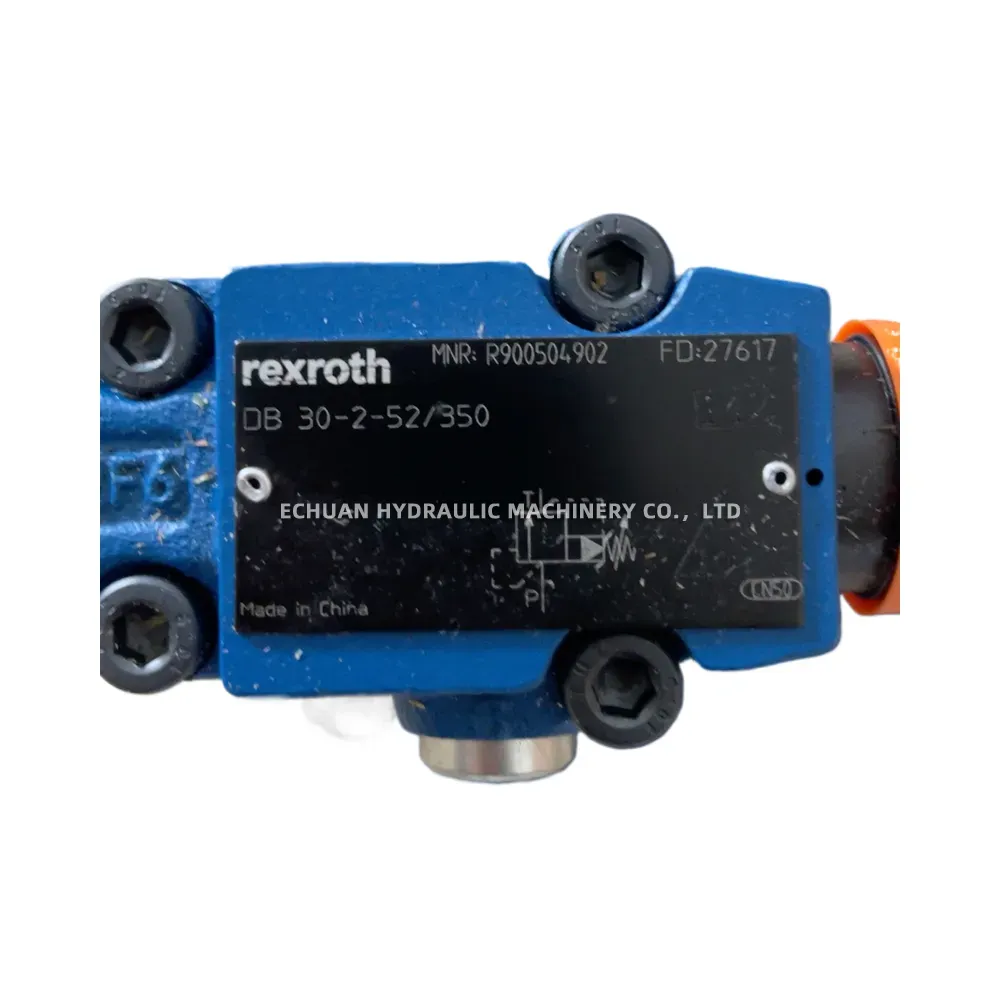

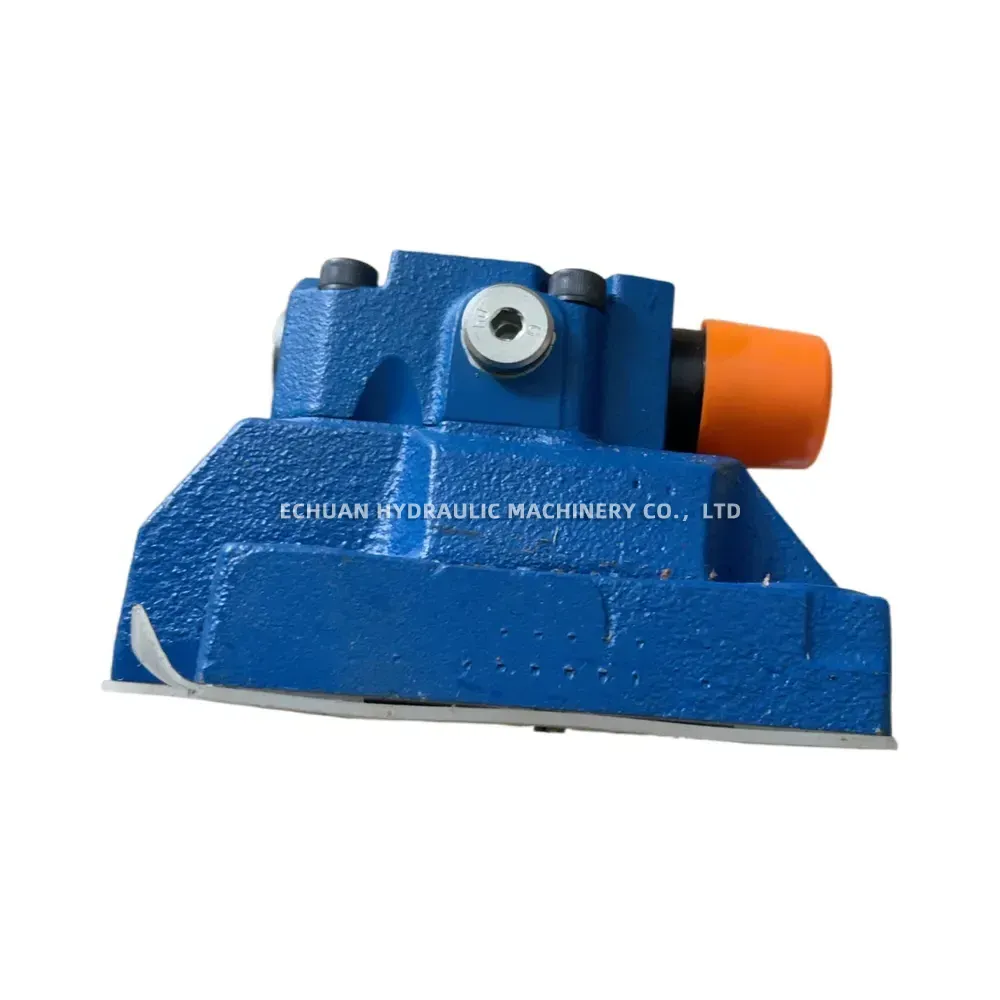

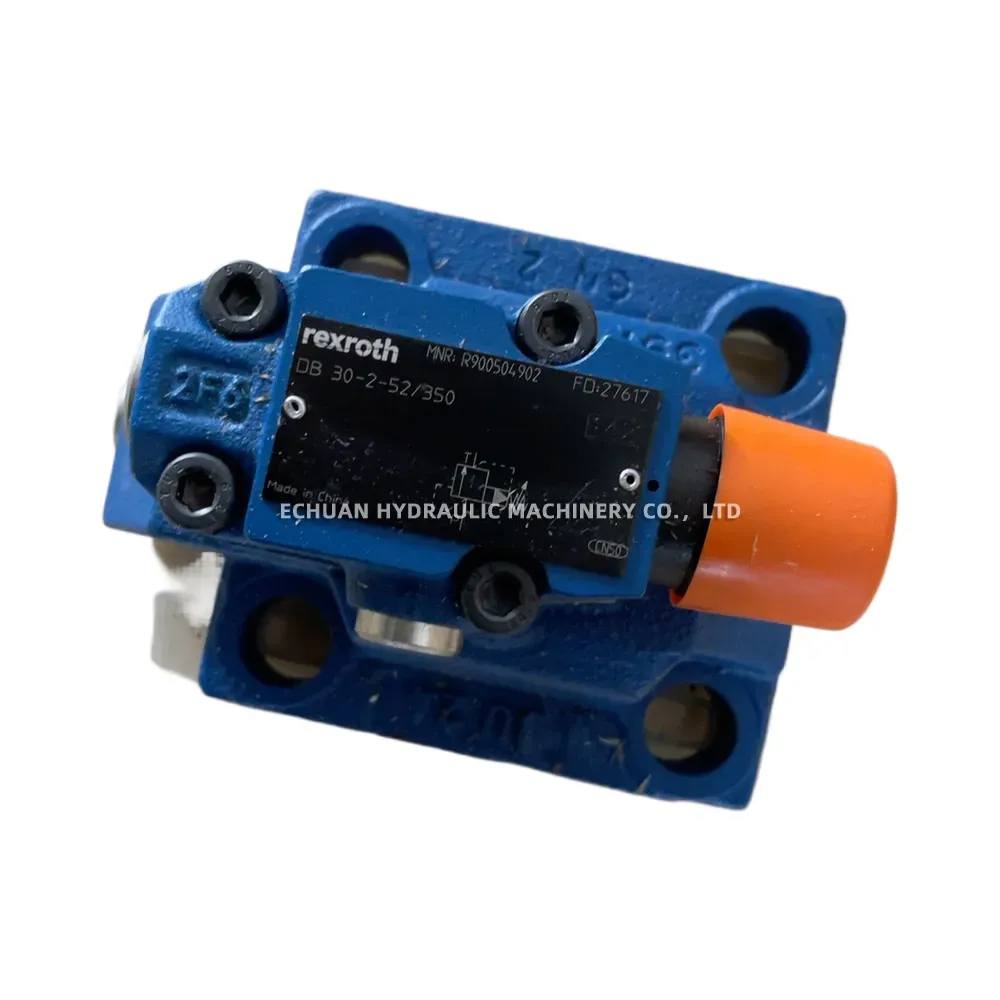

Rexroth R900504902 DB30-2-52/350
The Rexroth R900504902 DB30-2-52/350 is a pilot-operated pressure relief valve designed as a cartridge valve for insertion into standardized cavities according to ISO 7368. Its primary function is to limit the pressure within a hydraulic system to a predetermined maximum level. This valve features an integrated pilot control valve (version 2) and is set for a maximum pressure of 350 bar. Its pilot-operated design ensures stable pressure control across varying flow rates, making it suitable for demanding hydraulic applications requiring reliable pressure limitation.
Technical Specifications:
- Type: Pilot-operated pressure relief valve
- Model Code: DB30-2-52/350
- Material Number: R900504902
- Size (NG): 30
- Mounting Style: Cartridge valve for ISO 7368 cavity
- Component Series: 5X (52)
- Maximum Pressure Setting: 350 bar
- Type of Actuation: Hydraulic
- Adjustment Type: Typically Screw with protective cap (standard)
- Seals: NBR (standard for mineral oil HL, HLP)

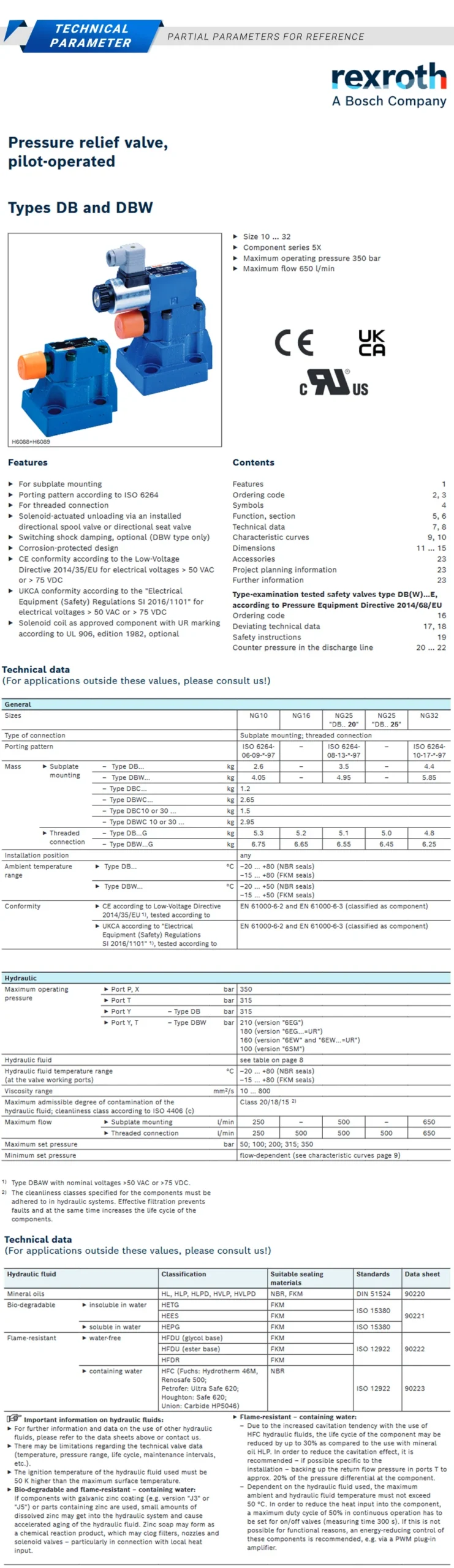

- Maximum Flow: Refer to datasheet (dependent on pressure differential and application)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524
Rexroth R900504902 DB30-2-52/350
Model:Rexroth R900504902 DB30-2-52/350
| Brand | Rexroth |
|---|---|
| Model | R900504902 DB30-2-52/350 |
| Part No. | Rexroth R900504902 DB30-2-52/350 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/rexroth-r900504902-db30-2-52-350 |
