Product Description

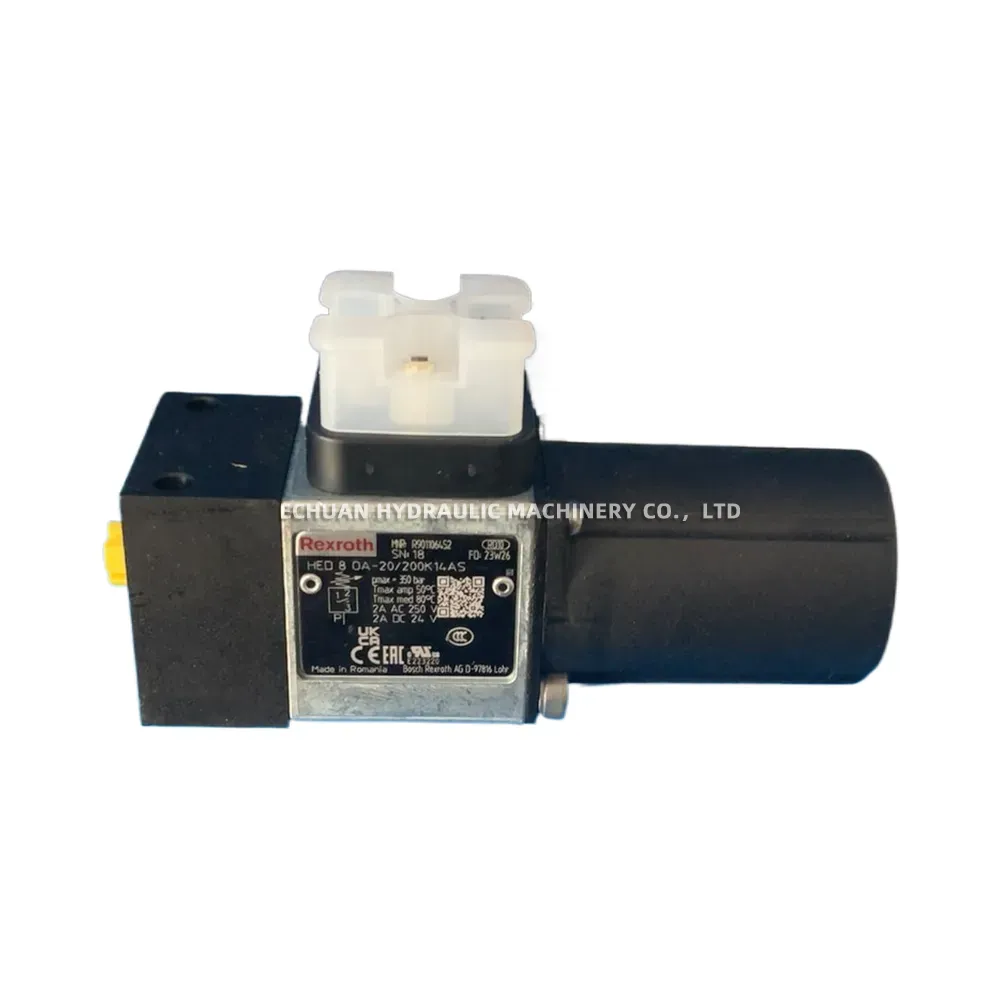

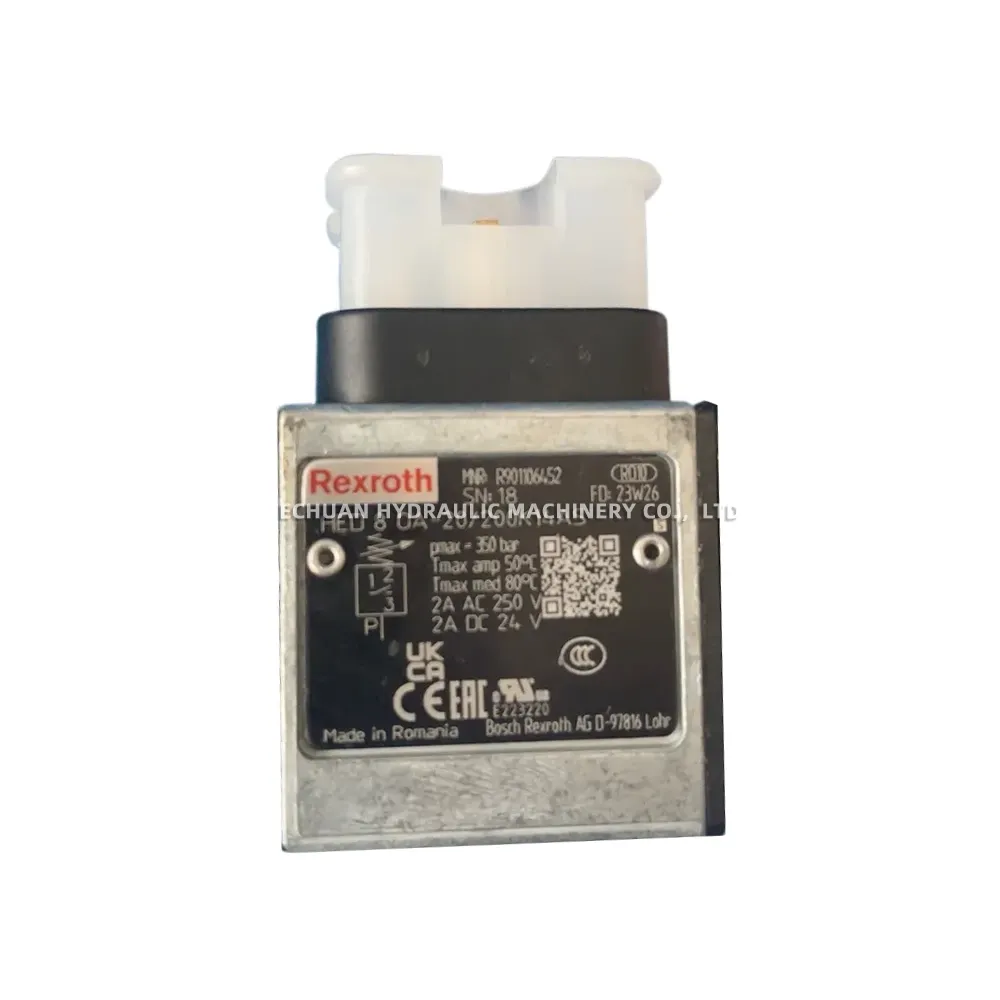

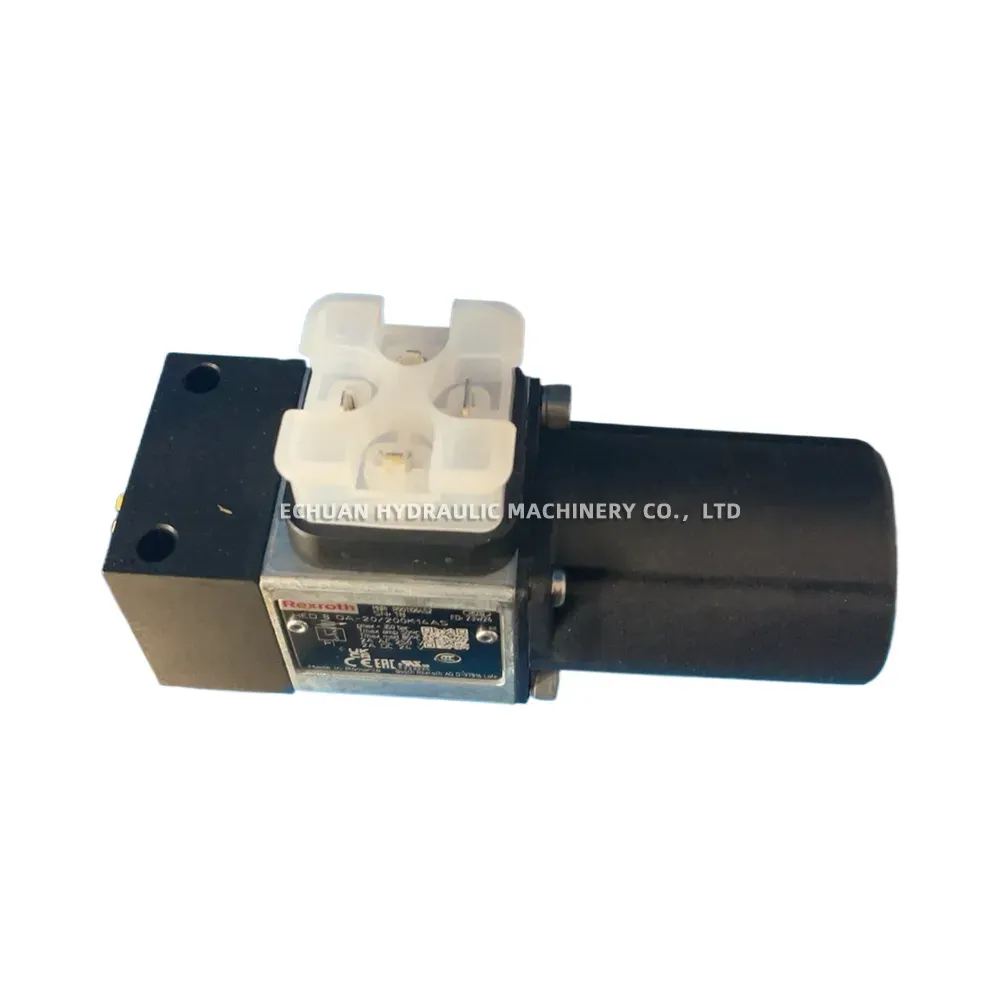

Rexroth R901106452 HED8OA-20/200K14AS
The Rexroth HED 8 OA is a piston-type pressure switch designed for monitoring pressure levels within hydraulic systems. This specific model, R901106452 (HED8OA-20/200K14AS), allows for pressure adjustments up to 200 bar via a rotary knob with a scale. It provides an electrical signal when the set pressure threshold is reached, typically used for control or safety functions. The device features a robust construction suitable for industrial hydraulic applications and includes an electrical connector for straightforward integration.
Technical Specifications:
- Type: Piston Pressure Switch
- Series: HED 8 OA 2X (20)
- Pressure Setting Range: Up to 200 bar
- Maximum Operating Pressure: 630 bar
- Adjustment Type: Rotary knob with scale (AS)
- Electrical Connection: Plug-in connector EN 175301-803, 4-pole (3 + PE), with component plug (K14)
- Hydraulic Connection: G1/4 thread
- Switching Element: Micro switch with changeover contact
- Seal Material: NBR
- Pressure Differential (Hysteresis): Approx. 10-16% (dependent on setting)
- Permissible Voltage: Max. 250 V AC / Max. 30 V DC
- Permissible Current: Max. 4 A (AC) / Max. 4 A (DC, resistive)
- Hydraulic Fluid Temperature Range: -30°C to +80°C
- Protection Class (with connector mounted): IP65
Rexroth R901106452 HED8OA-20/200K14AS
Model:Rexroth R901106452 HED8OA-20/200K14AS
| Brand | Rexroth |
|---|---|
| Model | R901106452 HED8OA-20/200K14AS |
| Part No. | Rexroth R901106452 HED8OA-20/200K14AS |
| Category | Hydraulic valves |
