Product Description

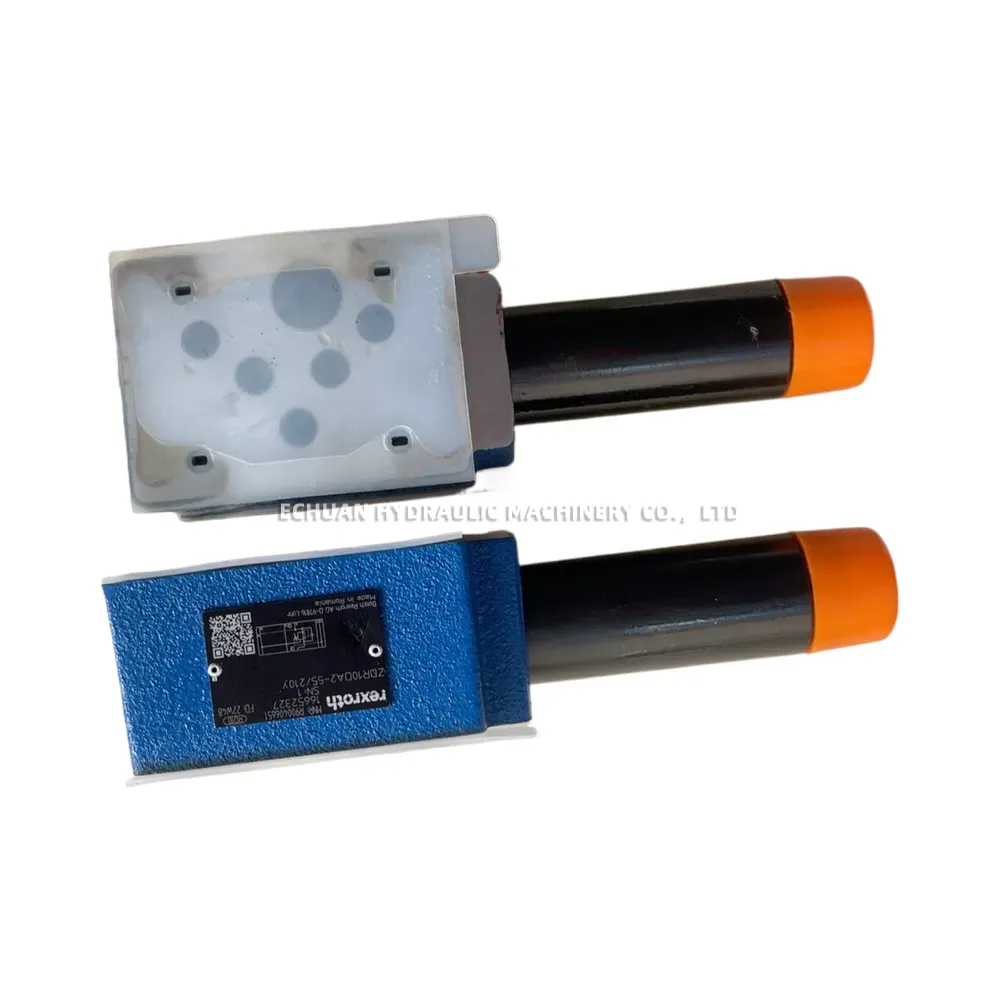

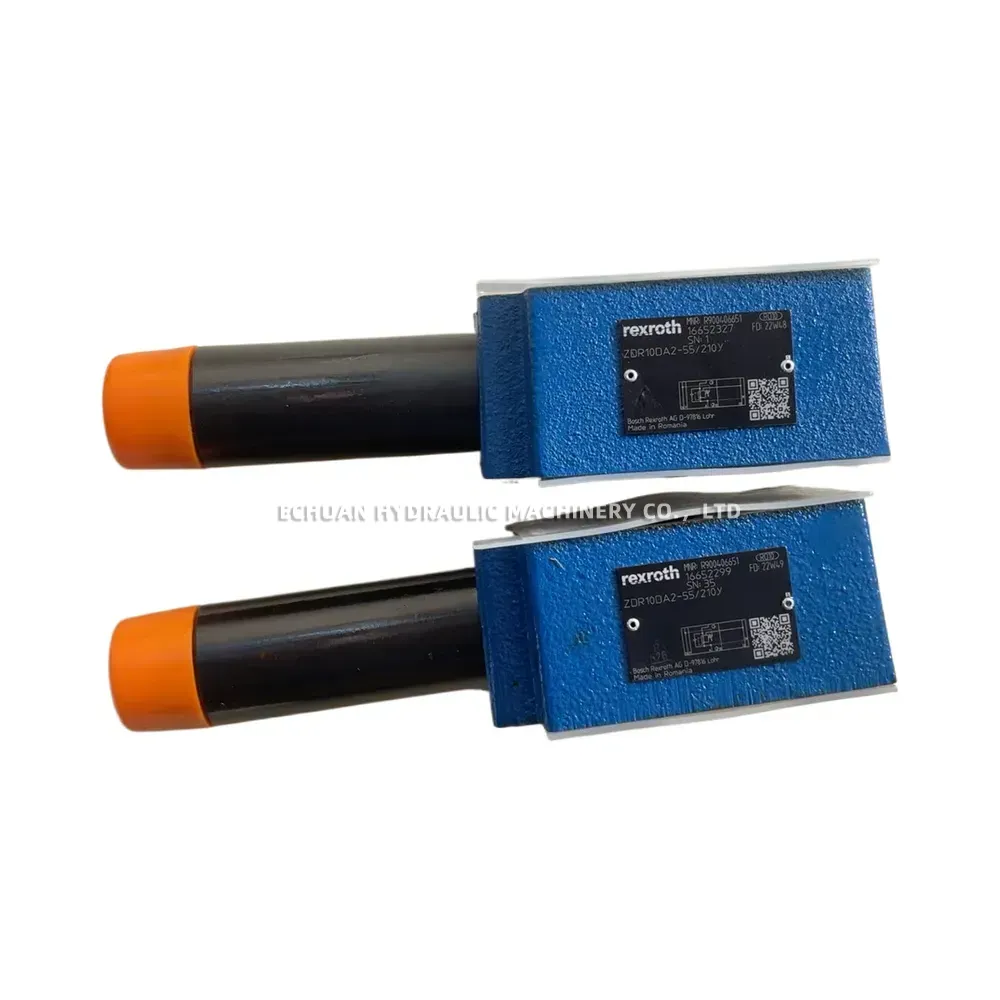

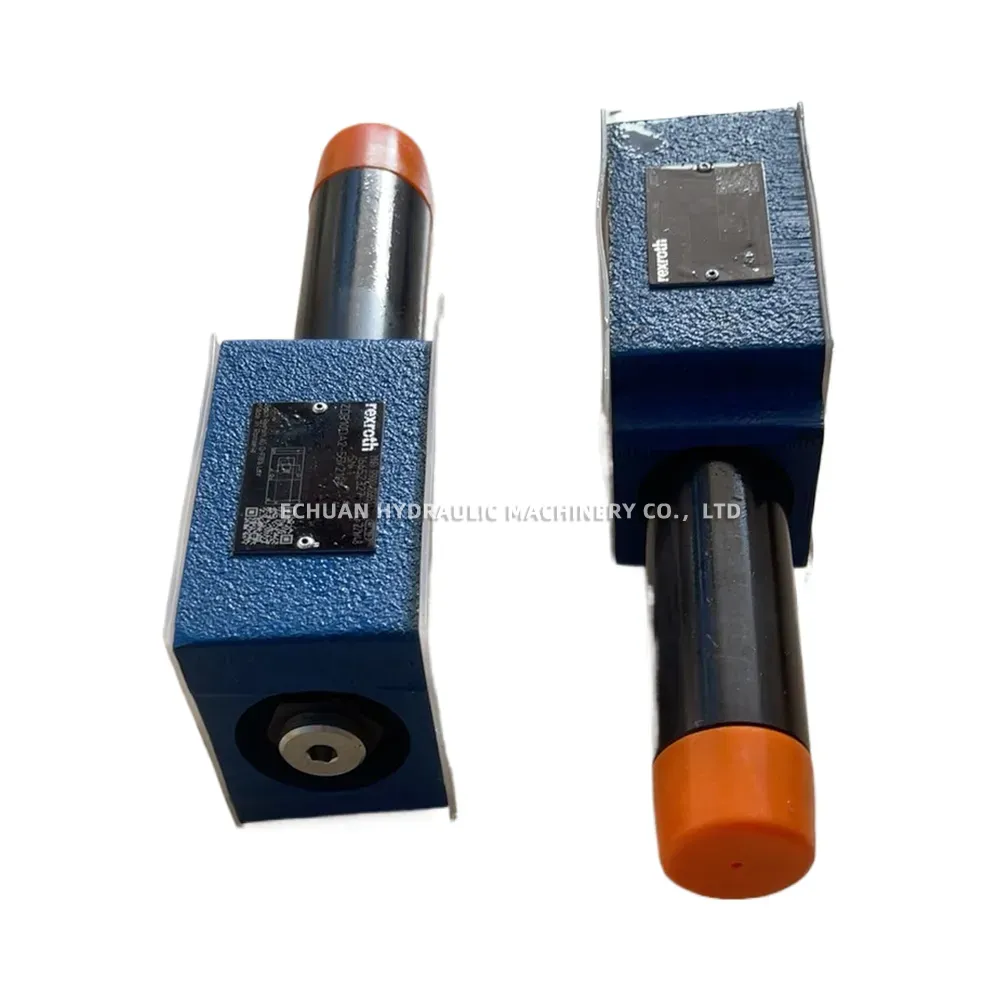

Rexroth R900406651 ZDR10DA2-55/210Y
The Rexroth ZDR10DA2-55/210Y is a direct-operated pressure reducing valve designed in a sandwich plate configuration for vertical stacking assemblies. It adheres to the ISO 4401-05-04-0-05 (NG10) porting pattern. This valve is used to reduce the system pressure in port A. It belongs to component series 5X and features a pressure adjustment range up to 210 bar, adjustable via a sleeve with hexagon and protective cap. This valve type ensures a reduced, stable pressure in a specific part of a hydraulic circuit, independent of higher inlet pressures.
Technical Specifications:
- Valve Type: Pressure reducing valve, direct operated
- Design: Sandwich plate valve
- Size: NG10 (Nominal Size 10)
- Mounting Interface: ISO 4401-05-04-0-05
- Component Series: 5X (50 to 59 installation and connection dimensions unchanged)
- Pressure Reduction: Port A
- Maximum Operating Pressure (Inlet): 315 bar
- Pressure Setting Range: Up to 210 bar
- Adjustment Type: Sleeve with hexagon and protective cap (Y)
- Maximum Flow: approx. 80 l/min
- Hydraulic Fluid Temperature Range: -30°C to +80°C
- Weight: approx. 2.6 kg
- Seals: NBR (Nitrile rubber)
Rexroth R900406651 ZDR10DA2-55/210Y
Model:Rexroth R900406651 ZDR10DA2-55/210Y
| Brand | Rexroth |
|---|---|
| Model | R900406651 ZDR10DA2-55/210Y |
| Part No. | Rexroth R900406651 ZDR10DA2-55/210Y |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/rexroth-r900406651-zdr10da2-55-210y |
