Product Description

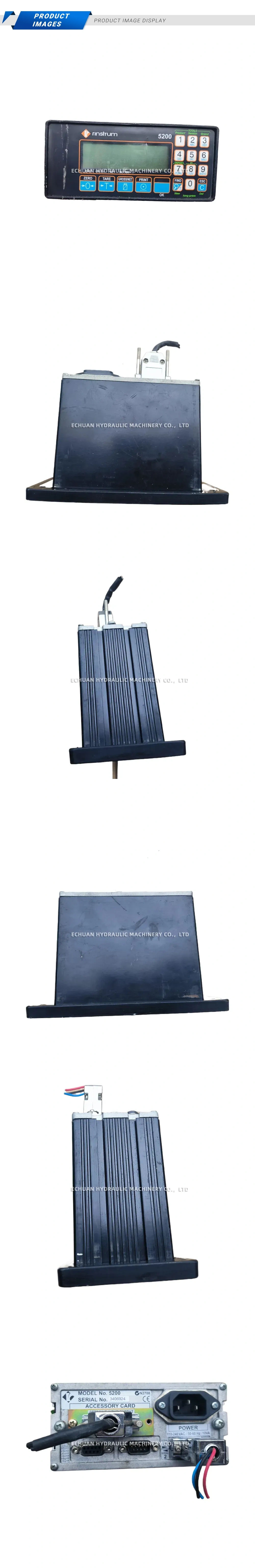

Rinstrum 5200
The Rinstrum 5200 is a high-performance, panel-mount digital weight indicator designed for a wide range of industrial weighing applications. Featuring a large, bright 6-digit LED display, it ensures excellent readability even in challenging lighting conditions. Its robust IP65-rated front panel provides protection against dust and water ingress, making it suitable for harsh environments. The 5200 is highly versatile, equipped with standard RS232/RS485 serial ports for seamless integration with PLCs, PCs, and other control systems. It is an ideal solution for applications such as weighbridges, batching systems, process control, and general-purpose industrial weighing, offering reliability, accuracy, and ease of use.
Technical Specifications:
- Display: 6-digit, 20mm (0.8″) high-contrast red LED display
- Enclosure: Panel mount, stainless steel fascia with IP65 rated front panel
- Power Supply: 12-24V DC
- Load Cell Excitation: 10V DC, capable of driving up to 8 x 350 ohm load cells
- Communication: 2 x full duplex serial ports (RS232/RS485)
- Inputs/Outputs: 2 x Digital Inputs, 2 x Digital Outputs (standard)
- A/D Conversion Rate: Up to 60 samples per second
Rinstrum 5200
The Rinstrum 5200 is a versatile and reliable panel-mount digital weight indicator, featuring a large LED display and robust IP65-rated front panel, ideal for industrial weighing, batching, and process control applications.
