Product Description

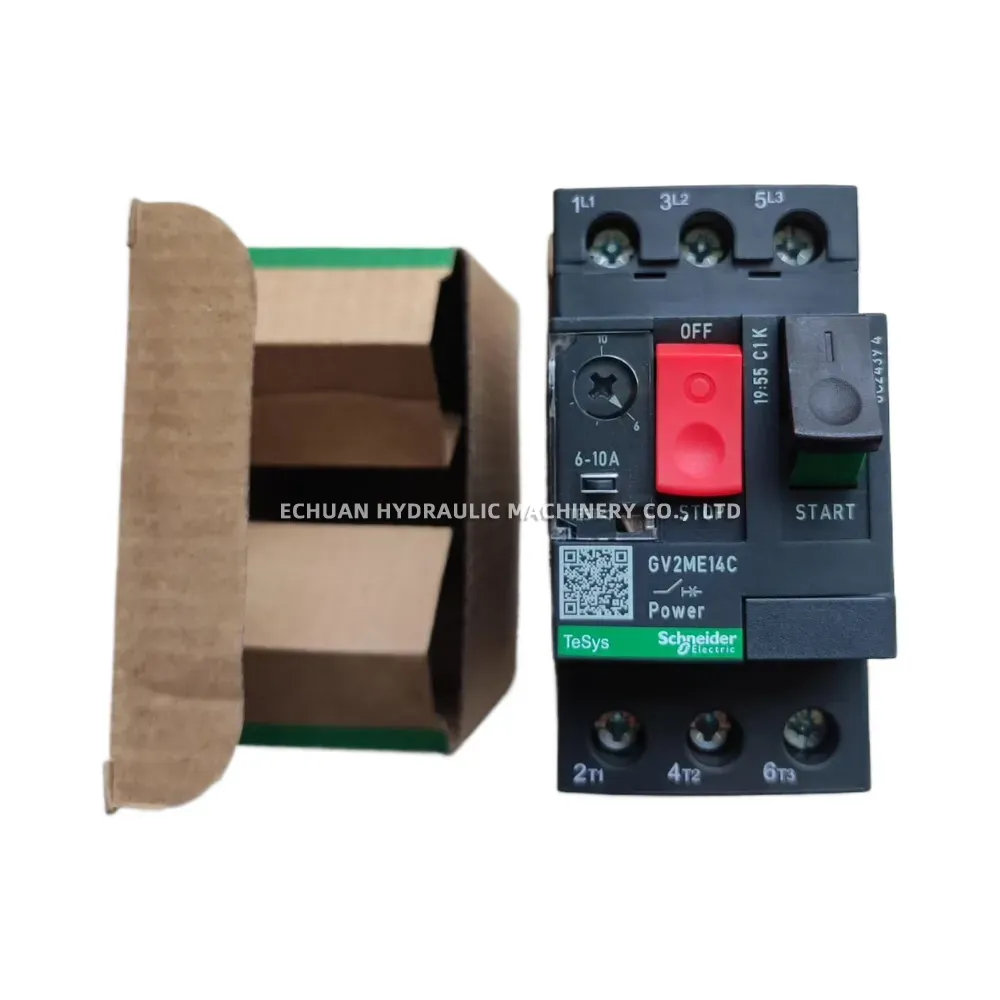

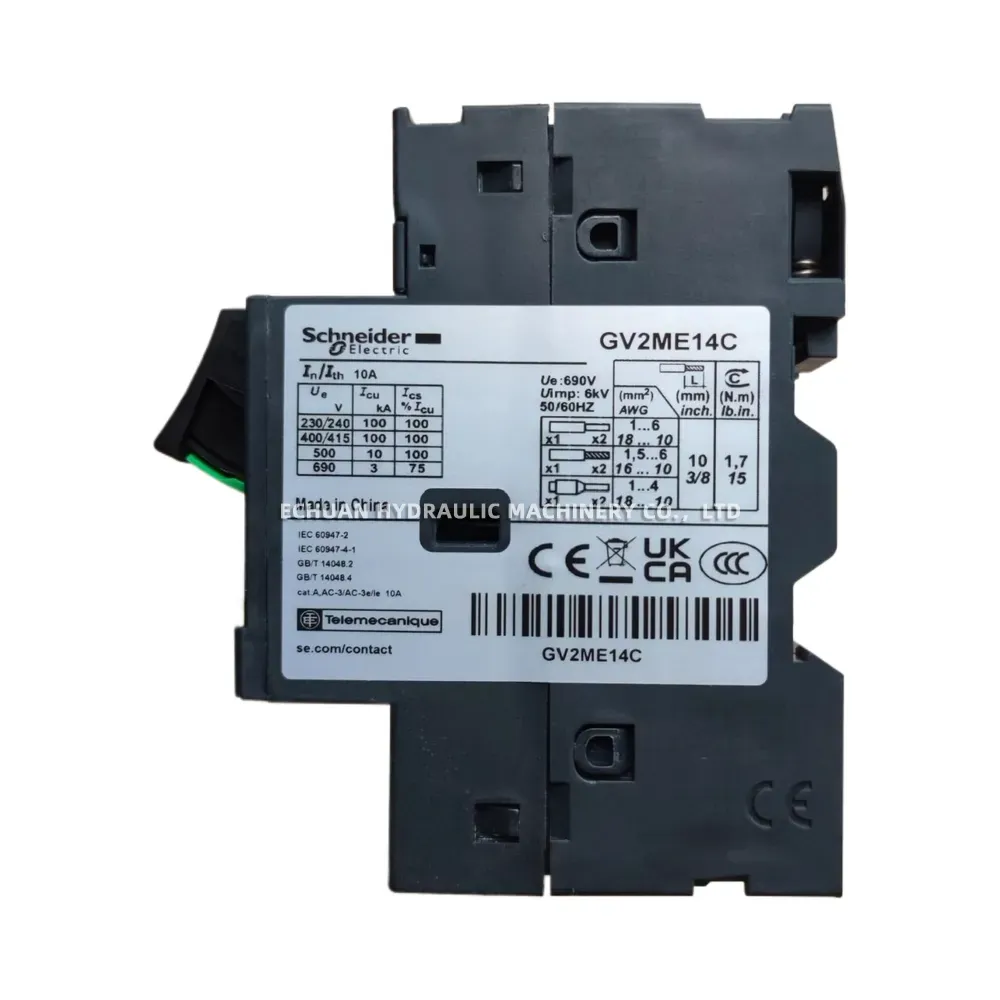

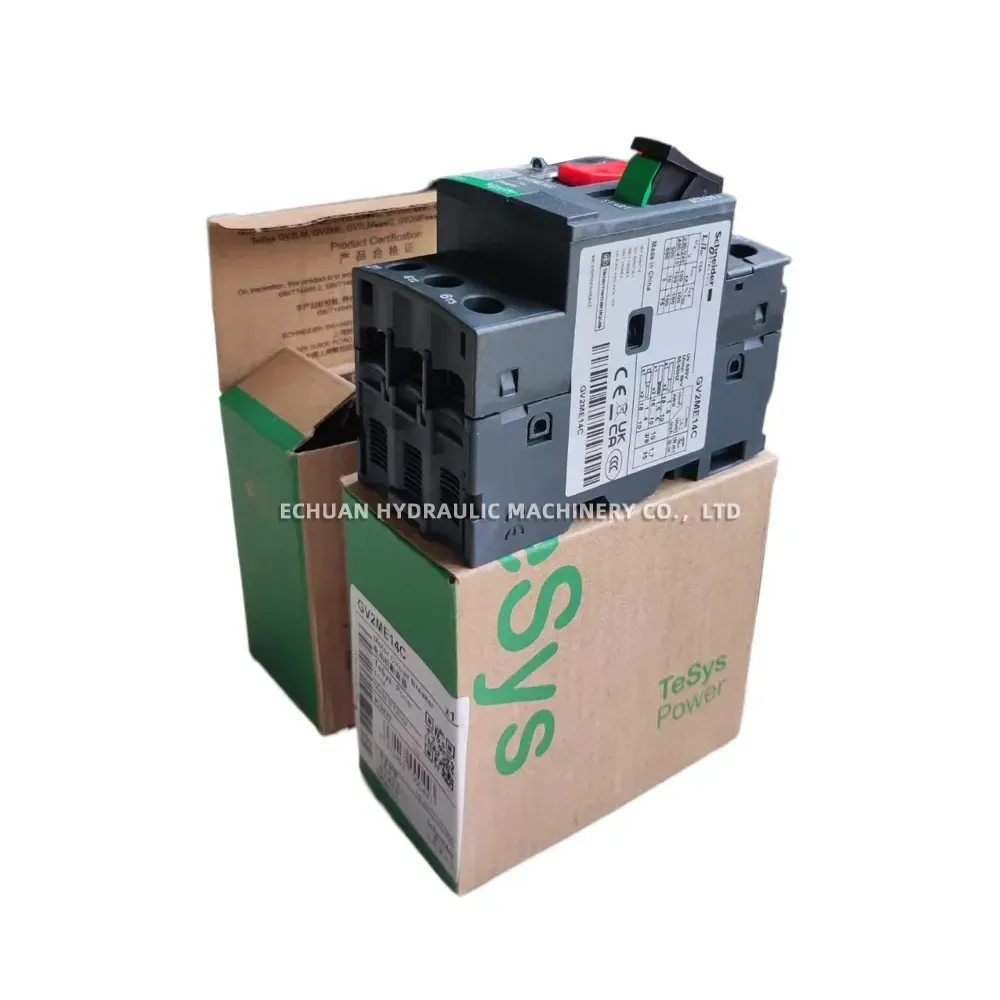

Schneider Electric GV2ME14C Motor Circuit Breaker

The Schneider Electric TeSys Power GV2ME14C is a premium 3-pole thermal-magnetic motor circuit breaker engineered for reliable motor protection and control. Featuring an adjustable thermal current setting range of 6 to 10 A and a rated operational voltage of up to 690 V AC, this compact device is perfect for AC-3 and AC-3e utilization categories. It delivers exceptional safety with an ultimate breaking capacity (Icu) of 100 kA at 400/415 V and a 6 kV rated impulse withstand voltage. Designed for user convenience, the GV2ME14C is equipped with intuitive START/STOP push-button controls, a rotary current setting dial, a built-in TEST function, and secure screw clamp terminals. Fully compliant with IEC 60947-2, IEC 60947-4-1, and carrying CE, UKCA, and CCC certifications, it is the ideal solution for demanding industrial environments.

Technical Specifications:

  • Brand: Schneider Electric

  • Model: GV2ME14C

  • Product Type: Thermal-Magnetic Motor Circuit Breaker

  • Number of Poles: 3-Pole

  • Current Setting Range: 6 – 10 A

  • Rated Current (In/Ith): 10 A

  • Rated Operational Voltage (Ue): Up to 690 V AC (50/60 Hz)

  • Rated Impulse Withstand Voltage (Uimp): 6 kV

  • Ultimate Breaking Capacity (Icu): 100 kA @ 230/240 V & 400/415 V; 10 kA @ 500 V; 3 kA @ 690 V

  • Utilization Category: AC-3 / AC-3e

  • Control Type: Push-button (START/STOP)

  • Terminal Type: Screw clamp terminals

  • Standards & Certifications: IEC 60947-2, IEC 60947-4-1, GB/T 14048.2, GB/T 14048.4, CE, UKCA, CCC

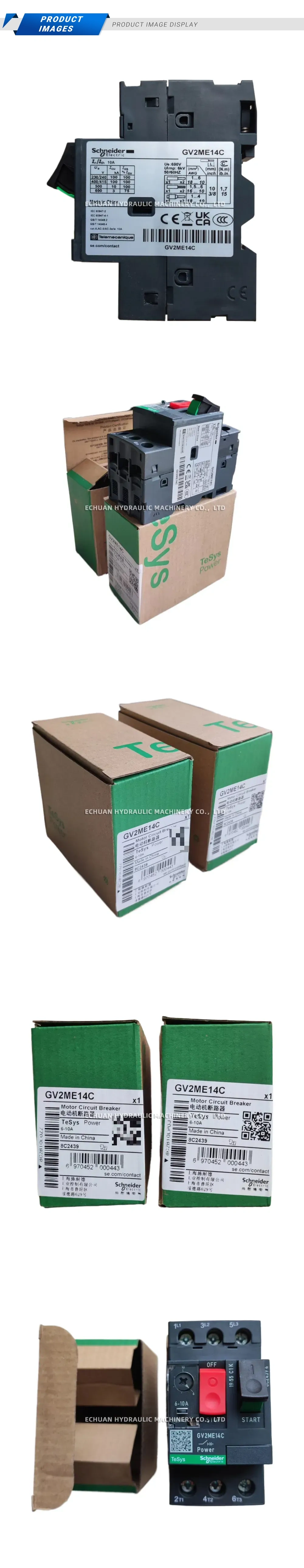

Schneider Electric GV2ME14C Motor Circuit Breaker Description

Schneider Electric GV2ME14C Motor Circuit Breaker

Shop the Schneider Electric GV2ME14C TeSys Power Motor Circuit Breaker. This robust 3-pole, 6-10A thermal-magnetic protector features push-button control, 100kA breaking capacity (at 400V), and CE/UKCA/CCC certifications for reliable AC-3/AC-3e industrial motor protection.

BrandSchneider Electric
ModelGV2ME14C
Part No.903285867119
CategoryElectrical
