Product Description
Schneider Electric RM22TG20 3-Phase Control Relay
The Schneider Electric Harmony RM22TG20 is a highly reliable 3-phase control relay engineered for comprehensive phase sequence and phase loss monitoring. Operating within a rated supply voltage range of 208 to 480V AC (50-60Hz), this DIN rail-mountable relay ensures the safety and stability of your three-phase electrical networks and equipment. It features two changeover (C/O) output contacts with a maximum current rating of 8A, making it ideal for industrial control panels, motor protection, and HVAC applications. Built to comply with stringent international standards including IEC 60255-1 and IEC 60947-5-1, the RM22TG20 delivers robust performance and carries multiple global certifications such as CE, cULus, CSA, and CCC.
Technical Specifications:
- Brand: Schneider Electric (Harmony Relays)
- Model: RM22TG20
- Monitoring Functions: Phase sequence and phase loss
- Rated Supply Voltage (L1/L2/L3): 3AC 208-480V, 50-60Hz
- Power Consumption: 18VA maximum

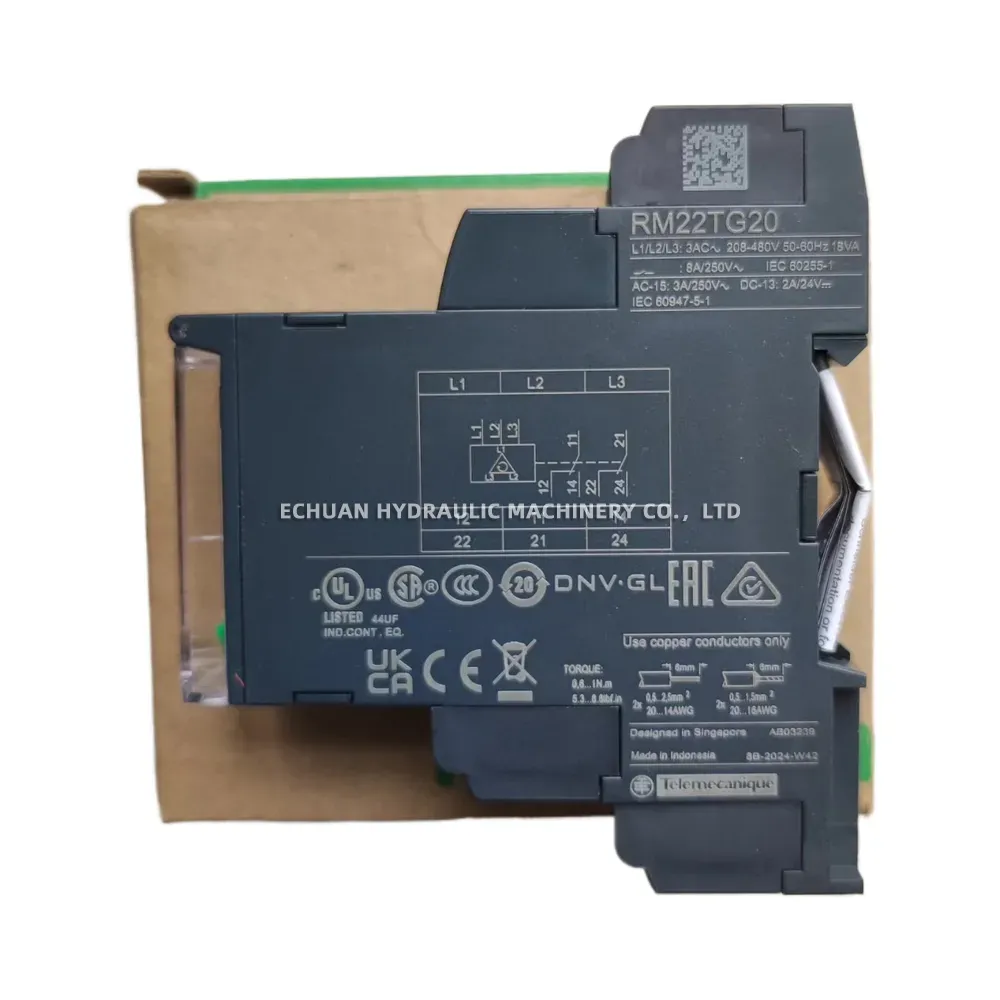

- Output Contacts: 2 C/O (Changeover) contacts (Terminals 11/12/14 and 21/22/24)
- Contact Rating: Max 8A/250V~ (AC-15: 3A/250V~, DC-13: 2A/24V=)
- Wiring Connection: Copper conductors only (0.5…2.5mm² / 20…14AWG)
- Tightening Torque: 0.8…1 N.m
- Mounting Type: DIN rail mounting
- Standards: IEC 60255-1, IEC 60947-5-1, GB/T14048.5
- Certifications: cULus LISTED, CSA, CCC, DNV·GL, EAC, UKCA, CE

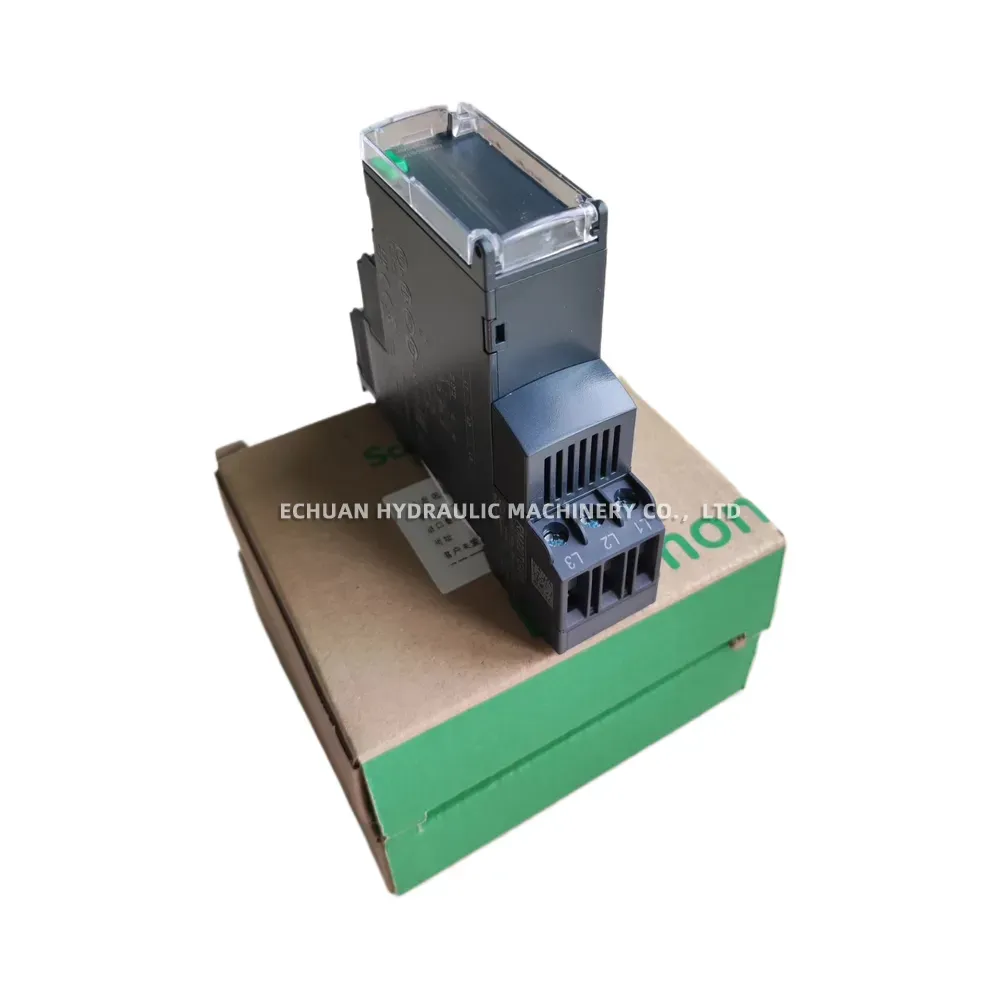

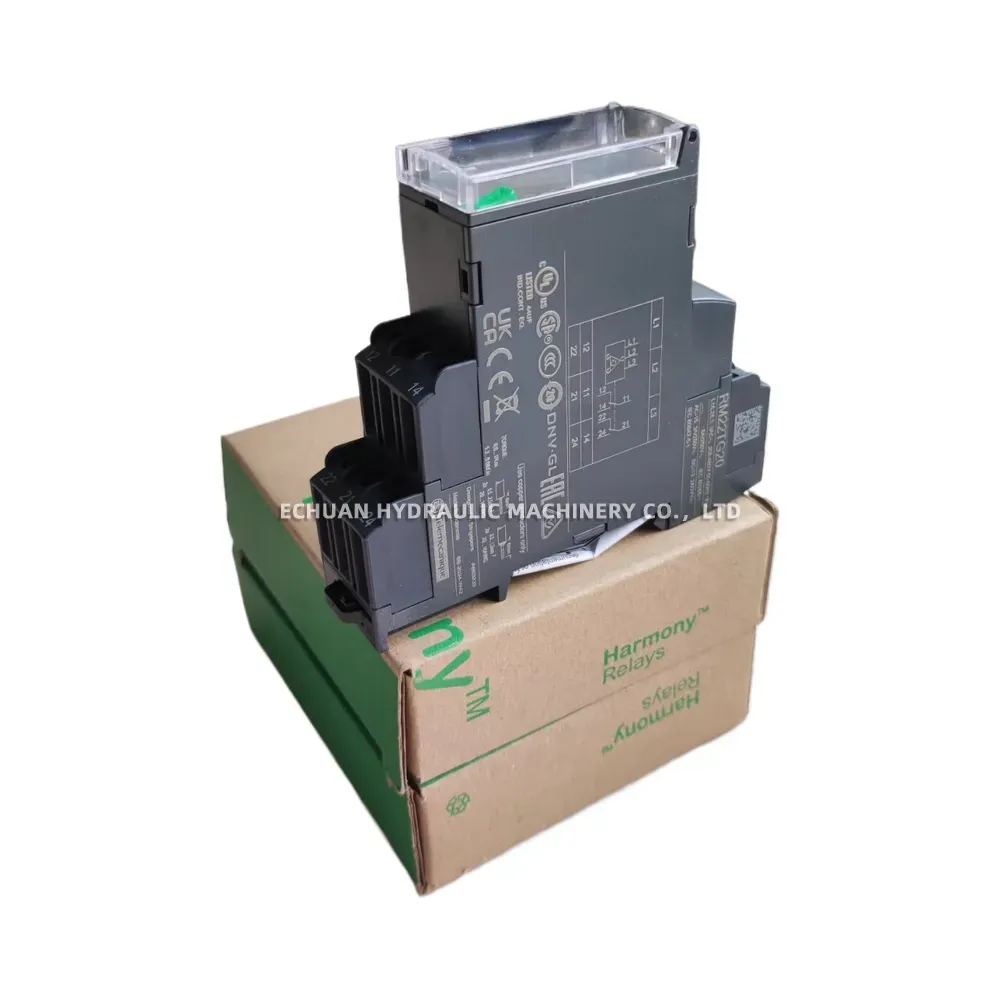

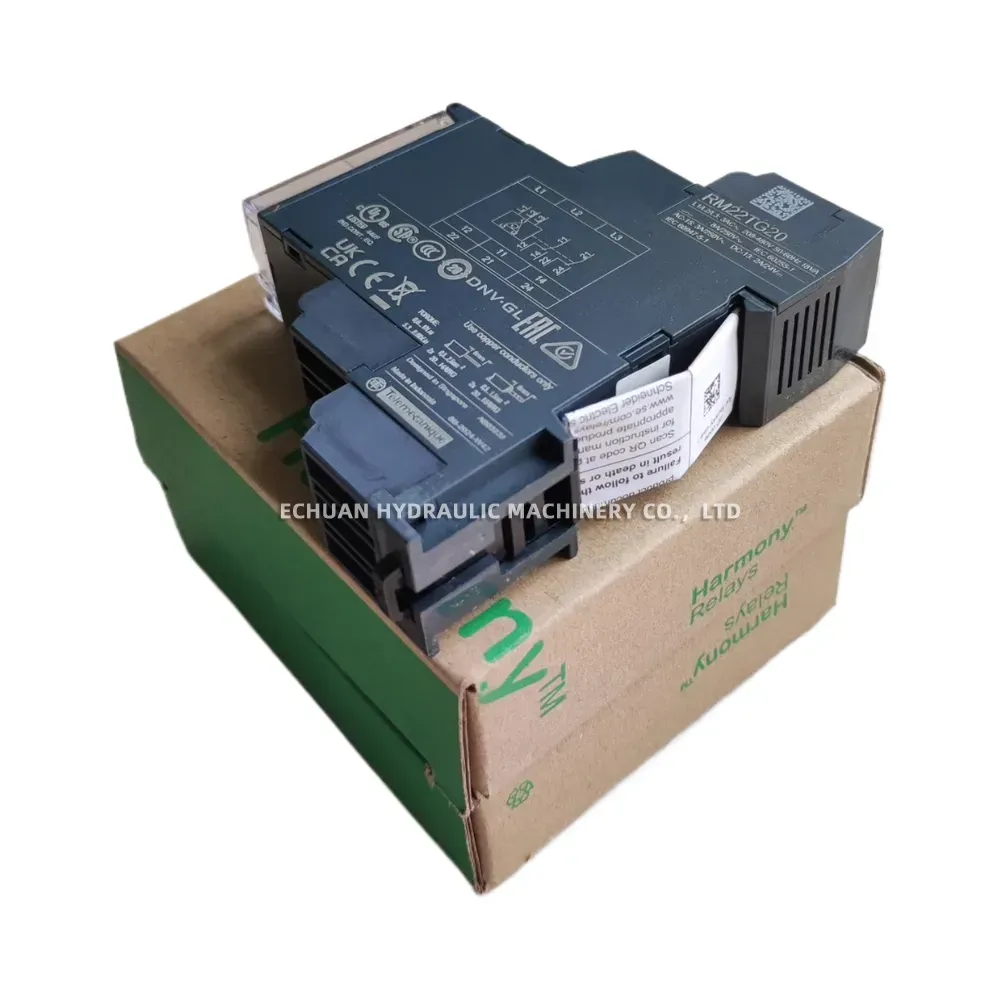

Schneider Electric RM22TG20 3-Phase Control Relay (Phase Sequence Relay)
Schneider Electric RM22TG20 3-Phase Control Relay (208-480V AC) for accurate phase sequence and phase loss monitoring. Features DIN rail mounting, 2 C/O contacts, and global certifications (UL/CE/CSA) for reliable industrial motor protection.
| Brand | Schneider Electric |
|---|---|
| Model | RM22TG20 |
| Part No. | 899549312861 |
| Category | Electrical |
