Product Description

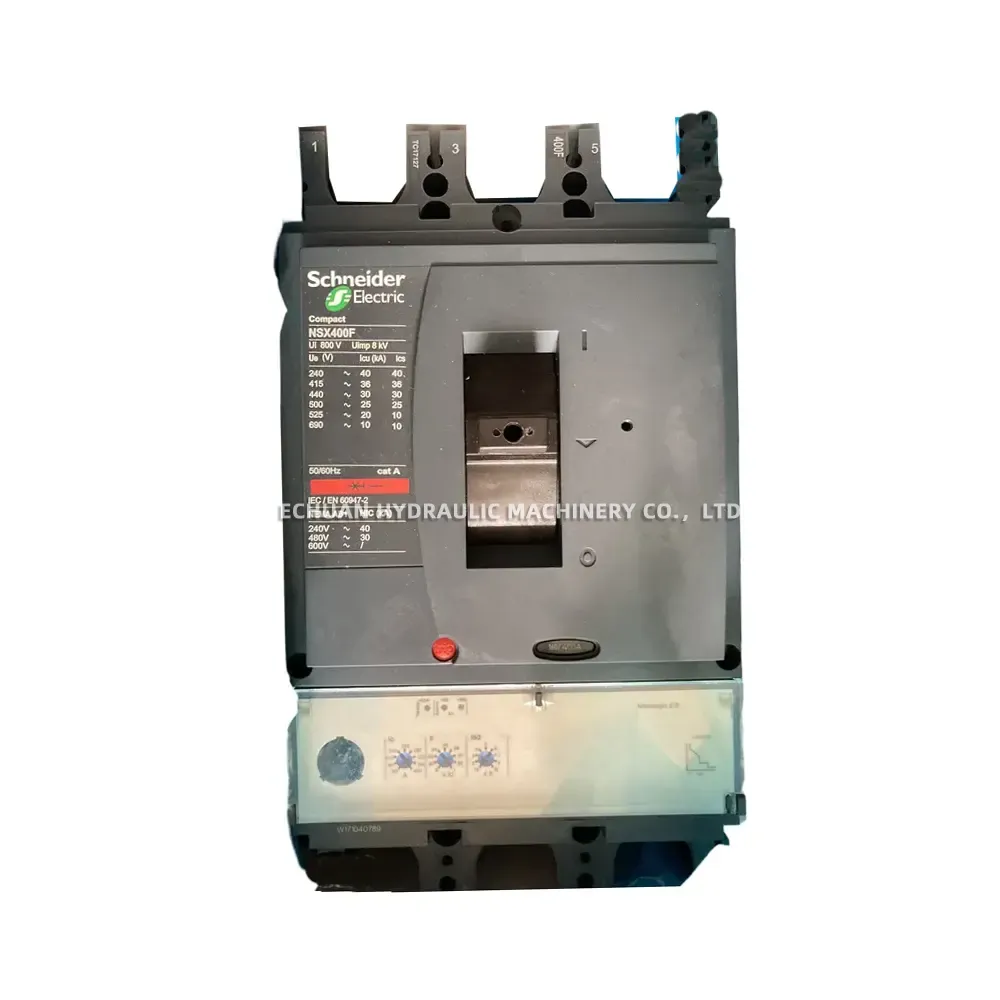

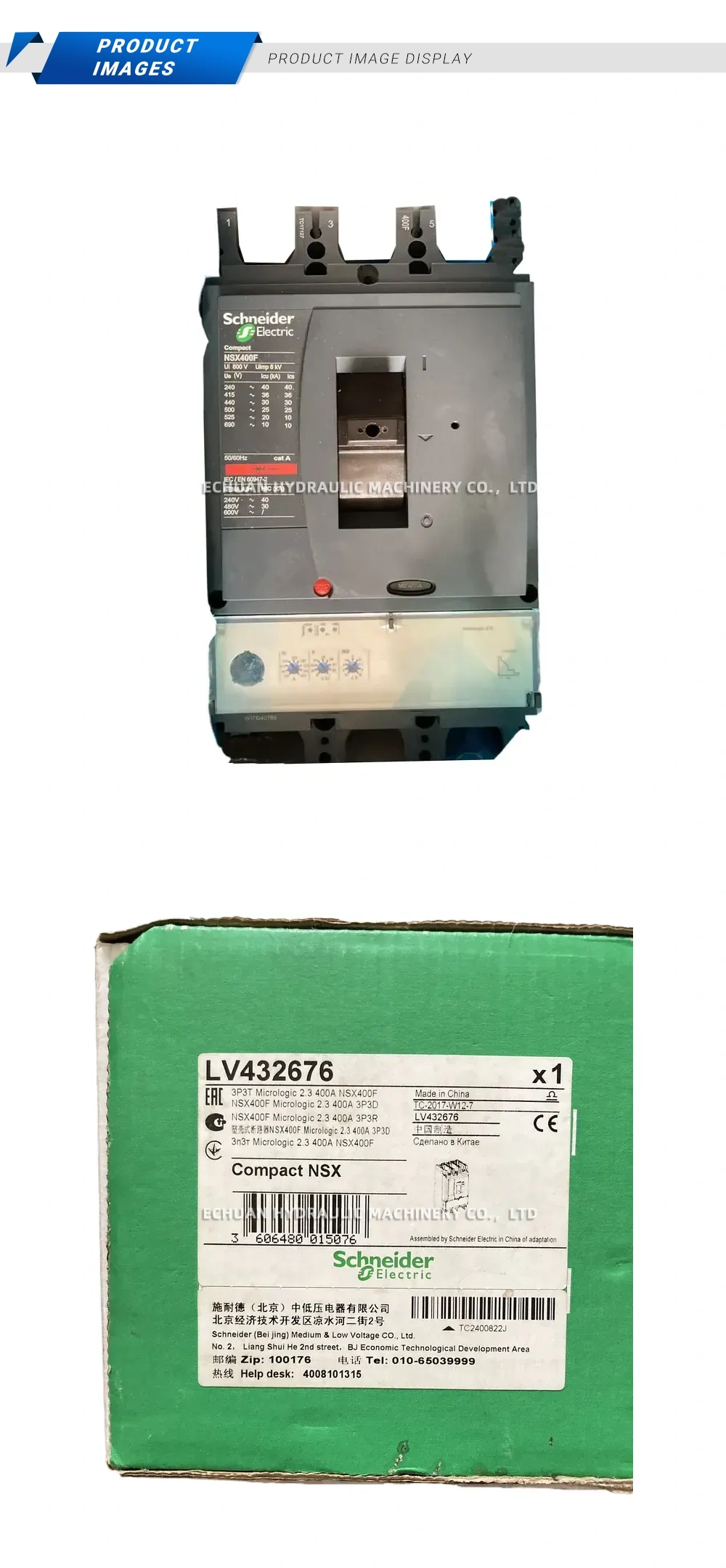

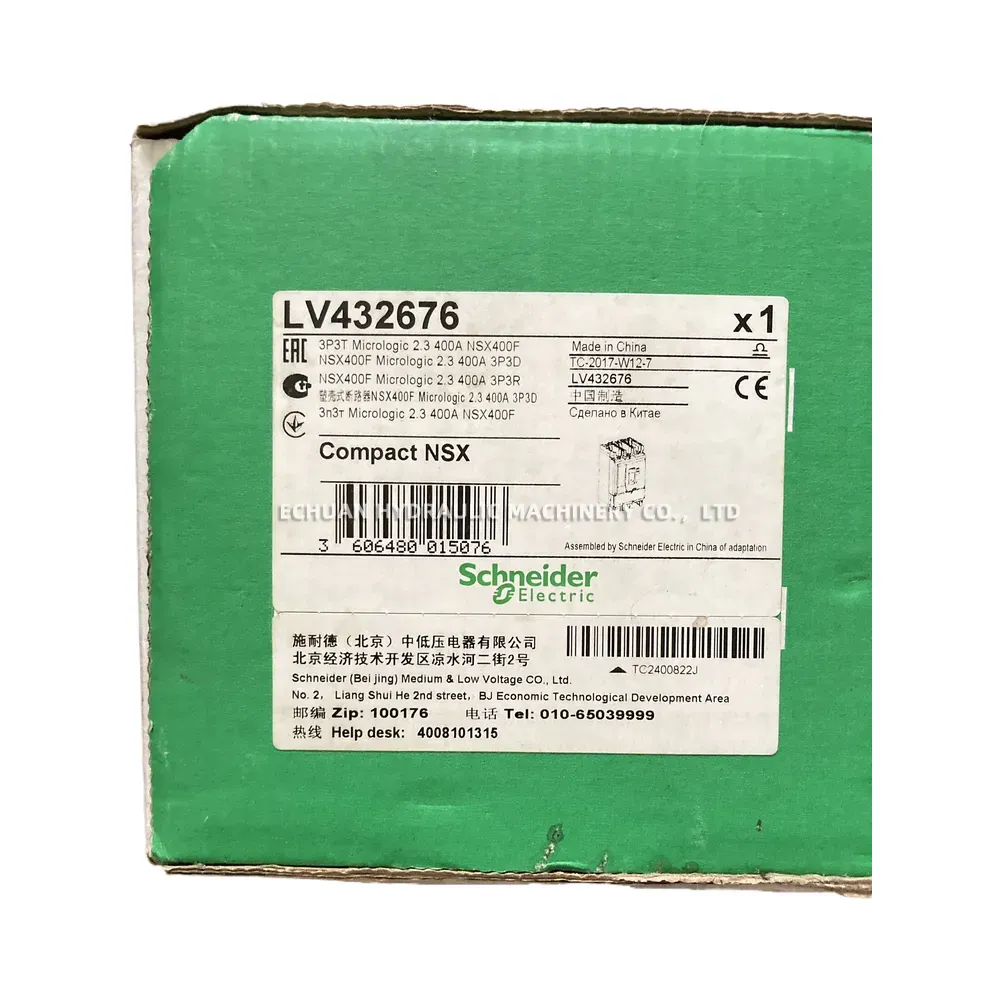

Schneider Electric LV432676 (NSX400F Micrologic 2.3 400A 3P3D) Molded Case Circuit Breaker
The Schneider Electric LV432676 is a high-performance Compact NSX400F Molded Case Circuit Breaker (MCCB) engineered to provide reliable and efficient protection for low-voltage electrical distribution systems. Featuring a 3-pole (3P3D) configuration and a robust 400A rated current, this breaker is equipped with the advanced Micrologic 2.3 electronic trip unit, ensuring precise overload and short-circuit protection. With an ultimate breaking capacity (Icu) of 36 kA at 415 V AC, it guarantees optimal safety and continuity of service for commercial and industrial applications. Fully compliant with international standards including IEC/EN 60947-2 and NEMA AB1, the NSX400F series seamlessly combines compact dimensions with exceptional electrical performance and durability.
Technical Specifications:
- Brand: Schneider Electric
- Model/Reference: LV432676 (Compact NSX400F)
- Product Type: Molded Case Circuit Breaker (MCCB)
- Poles Description: 3P (3 Protected Poles – 3P3D)
- Rated Current (In): 400 A
- Trip Unit Technology: Electronic (Micrologic 2.3)
- Rated Insulation Voltage (Ui): 800 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Breaking Capacity (Icu): 36 kA at 415 V AC (50/60 Hz)
- Standards: IEC/EN 60947-2, NEMA AB1, CE, EAC
Schneider Electric LV432676 (NSX400F Micrologic 2.3 400A 3P3D) Molded Case Circuit Breaker (MCCB)
Shop the Schneider Electric LV432676 Compact NSX400F MCCB. This reliable 400A, 3-pole circuit breaker features a Micrologic 2.3 electronic trip unit and a 36kA breaking capacity at 415V. Ideal for secure, high-performance industrial electrical protection.
| Brand | Schneider Electric |
|---|---|
| Model | LV432676 (NSX400F Micrologic 2.3 400A 3P3D) |
| Part No. | 725522956349 |
| Category | Electrical |
