Product Description
Siemens 1FL6042-1AF61-0AA1

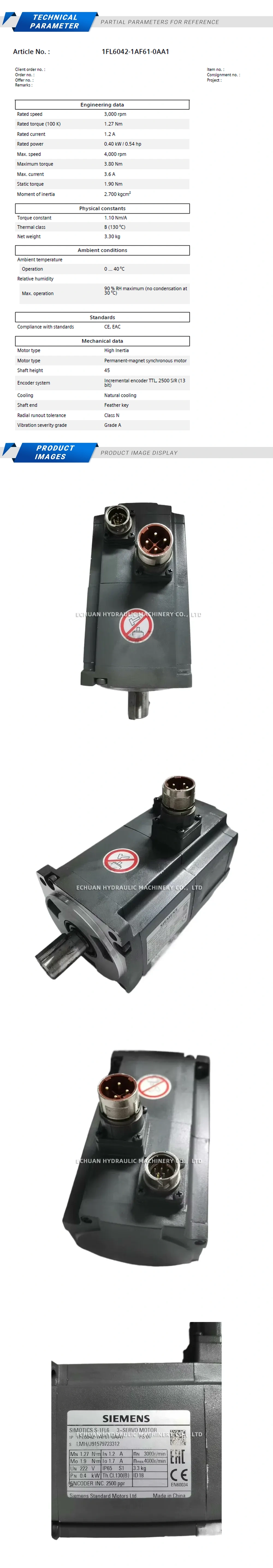

The Siemens 1FL6042-1AF61-0AA1 is a high-performance SIMOTICS S-1FL6 servo motor designed for seamless integration with the SINAMICS V90 servo drive system. This low-inertia motor is engineered for dynamic motion control applications that demand precision, reliability, and efficiency. It operates at a rated speed of 3000 rpm and delivers a rated torque of 1.27 Nm. With its robust IP65 protection rating and an integrated incremental encoder, this motor is an ideal solution for a wide range of tasks, including positioning, conveying, and processing in various industrial automation environments.
Technical Specifications:
- Product Series: SIMOTICS S-1FL6
- Rated Voltage: 230V 3AC
- Rated Power: 0.4 kW
- Rated Torque (M_n): 1.27 Nm
- Rated Speed (n_n): 3000 rpm
- Shaft Height: 40 mm
- Encoder Type: Incremental TTL 2500 increments/revolution
- Shaft Type: Plain shaft, tolerance N
- Degree of Protection: IP65 (with sealing ring)
- Holding Brake: No
Siemens 1FL6042-1AF61-0AA1
Discover the Siemens 1FL6042-1AF61-0AA1, a reliable SIMOTICS S-1FL6 servo motor offering 0.4 kW power, 1.27 Nm torque, and 3000 rpm. Ideal for precise motion control with SINAMICS V90 drives.
