Product Description

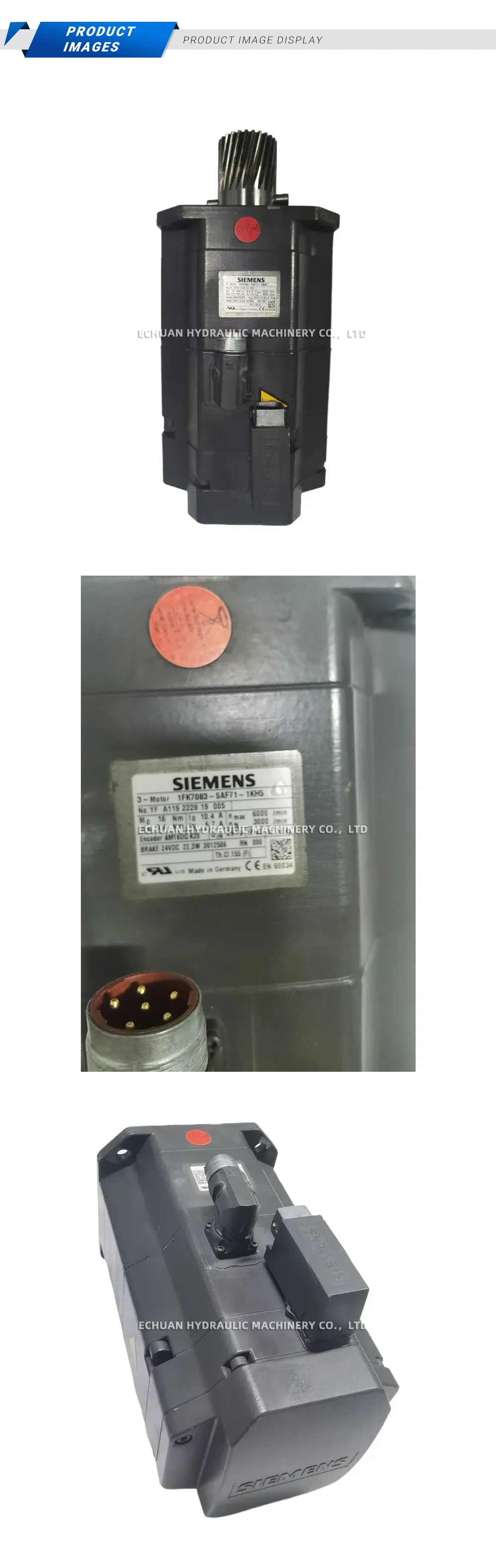

Siemens 1FK7083-5AF71-1KR5
The Siemens 1FK7083-5AF71-1KR5 is a high-performance synchronous servo motor from the SIMOTICS S-1FK7 Compact (CT) series. It is engineered for demanding motion control applications that require high dynamics, precision, and torque density in a compact frame. This motor features a high-resolution absolute encoder with a DRIVE-CLiQ interface, enabling precise positioning and speed control. It is equipped with an integrated holding brake for safety and stability, particularly in vertical axes or during power-off situations. The rugged IP65-rated construction ensures reliable operation in various industrial environments, making it an ideal choice for machine tools, robotics, packaging systems, and general automation.
Technical Specifications:
- Motor Type: SIMOTICS S-1FK7 Compact Synchronous Servo Motor
- Rated Speed (n_n): 3000 rpm
- Rated Torque (M_n): 11 Nm
- Static Torque (M_0): 16 Nm
- Rated Power (P_n): 3.46 kW
- Encoder System: Absolute encoder 24-bit + 12-bit multi-turn with DRIVE-CLiQ interface (AM24DQI)
- Brake: Integrated permanent-magnet holding brake
- Shaft Design: Shaft with feather key, tolerance N
- Protection Class: IP65, with sealing ring
- Cooling: Natural cooling
Siemens 1FK7083-5AF71-1KR5
Purchase the Siemens 1FK7083-5AF71-1KR5 SIMOTICS S servo motor. This compact, high-torque motor offers 11 Nm, 3000 rpm, a high-resolution DRIVE-CLiQ absolute encoder, and an integrated holding brake for precise and dynamic motion control.
| Brand | SIEMENS |
|---|---|
| Model | 1FK7083-5AF71-1KR5 |
| Category | Servo motors |
| Link | https://www.echuan-hydraulic.com/product/siemens-1fk7083-5af71-1kr5 |
