Product Description

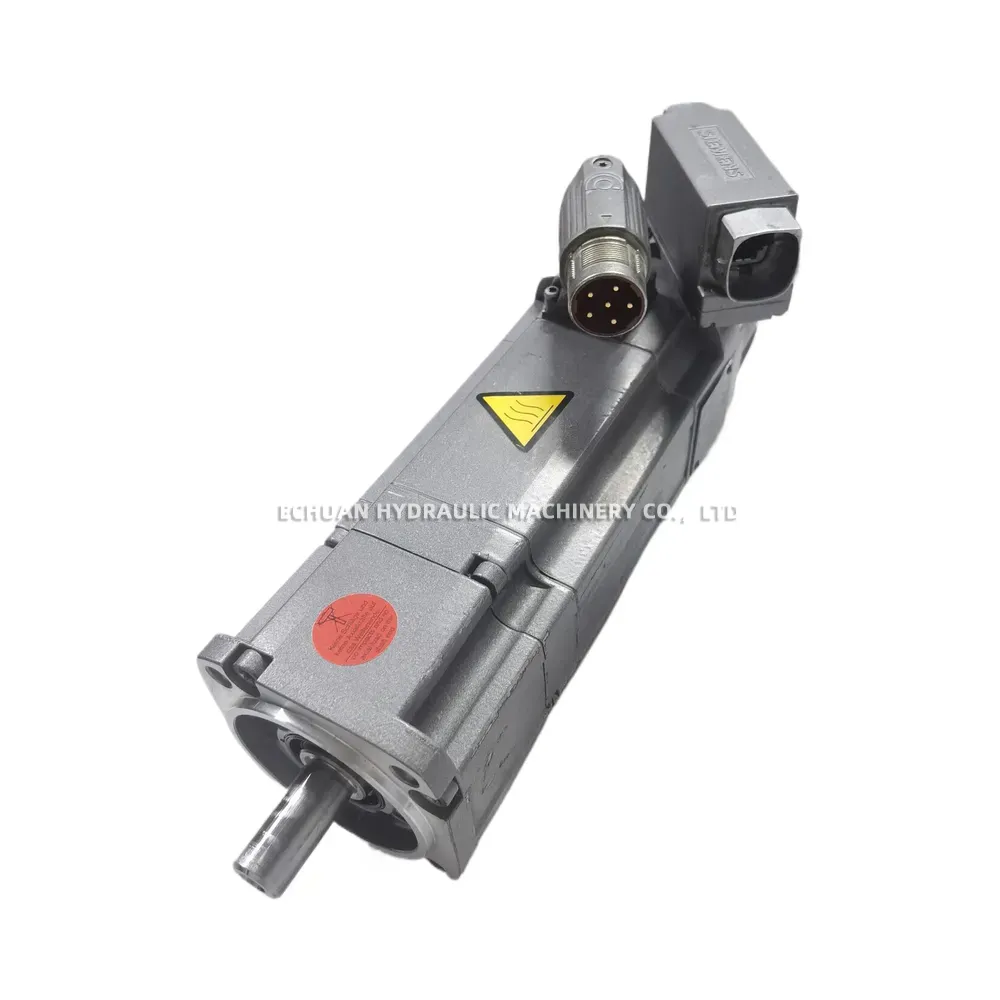

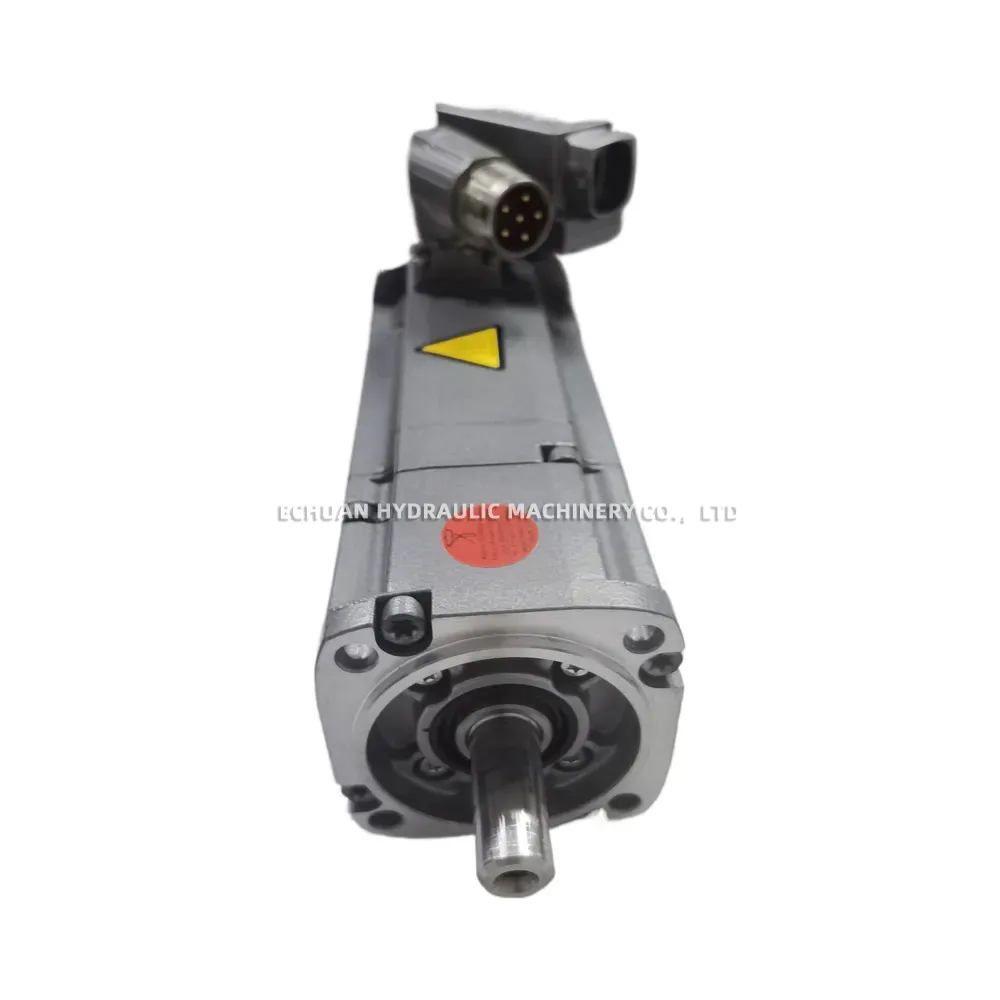

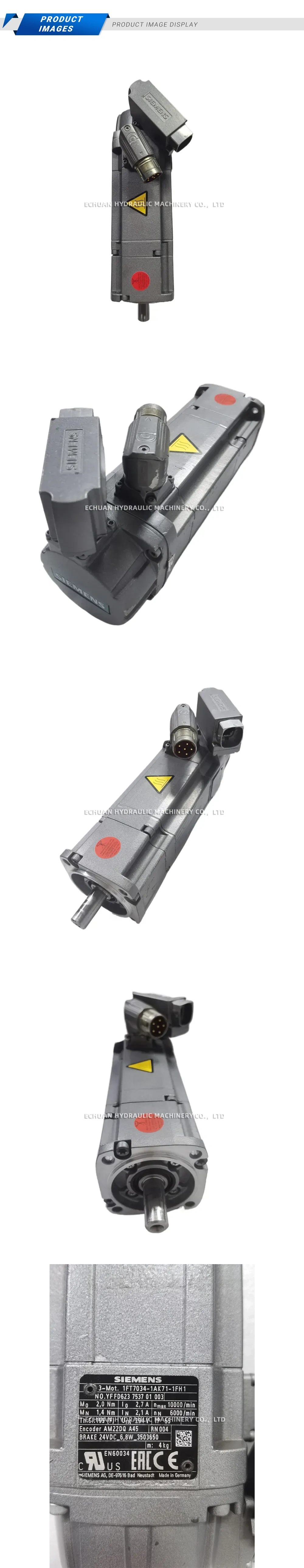

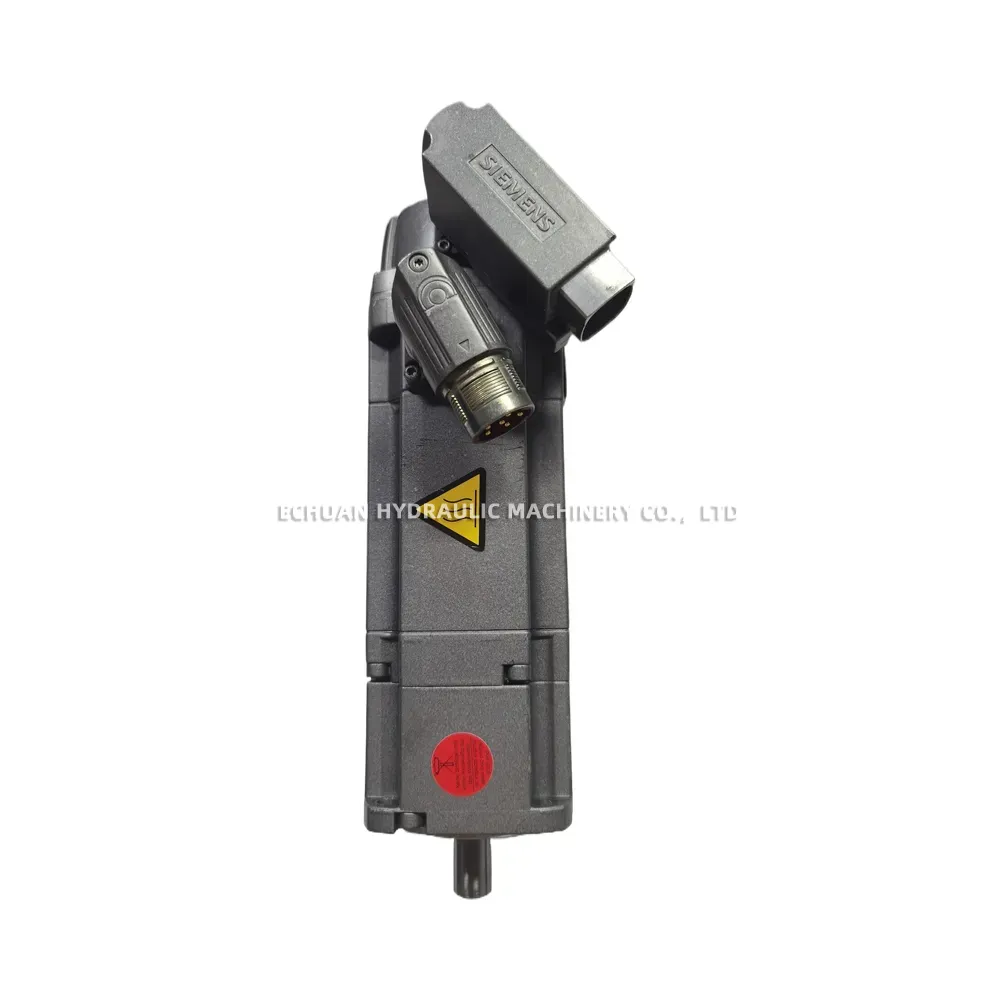

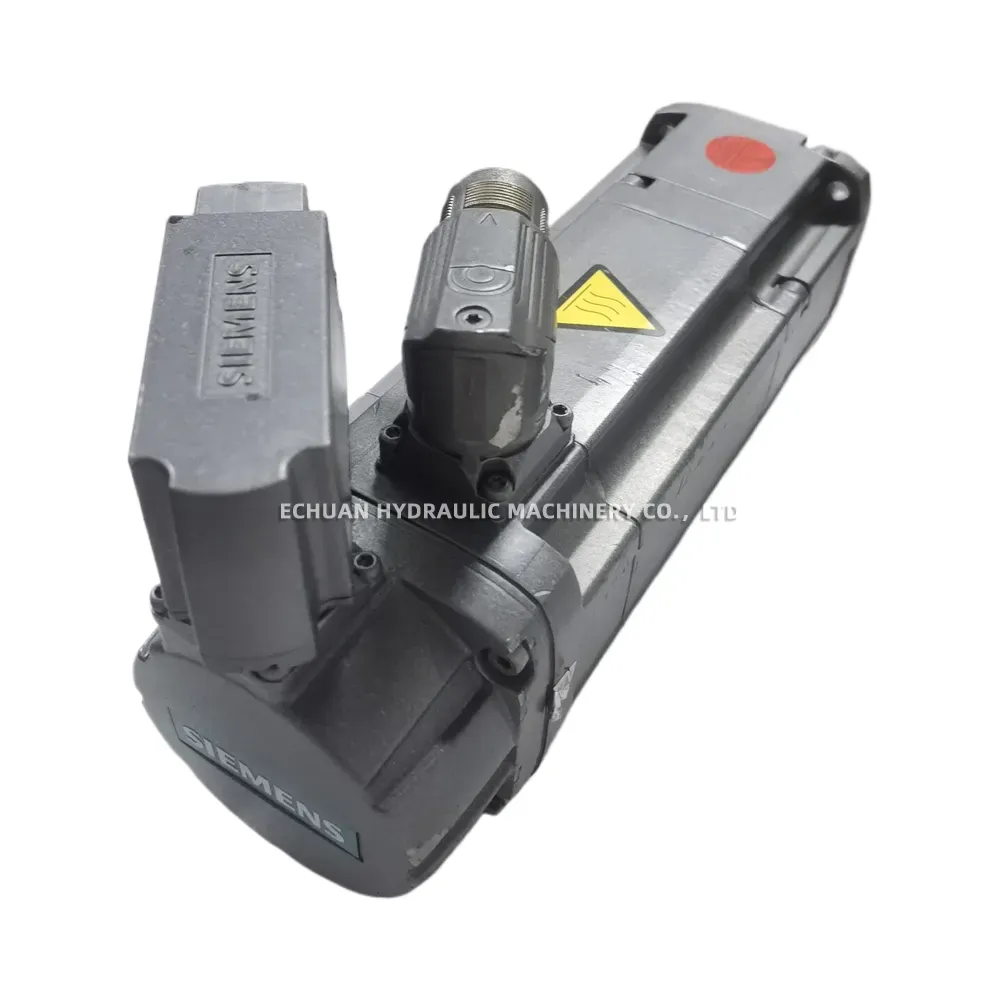

Siemens 1FT7034-1AK71-1FH1 Servo Motor
The Siemens 1FT7034-1AK71-1FH1 is a high-performance synchronous servo motor from the SIMOTICS S-1FT7 series, engineered for demanding motion control applications. This compact and powerful 3-phase motor delivers a rated torque of 1.4 Nm at a speed of 6000 rpm, making it ideal for tasks requiring precision, speed, and dynamic response. It features an integrated AM22DQ absolute encoder for precise position feedback and a 24VDC holding brake for safety and stability. With its robust IP65 protection rating, this motor is well-suited for use in harsh industrial environments, ensuring reliability and a long service life in automation, robotics, and machine tooling systems.

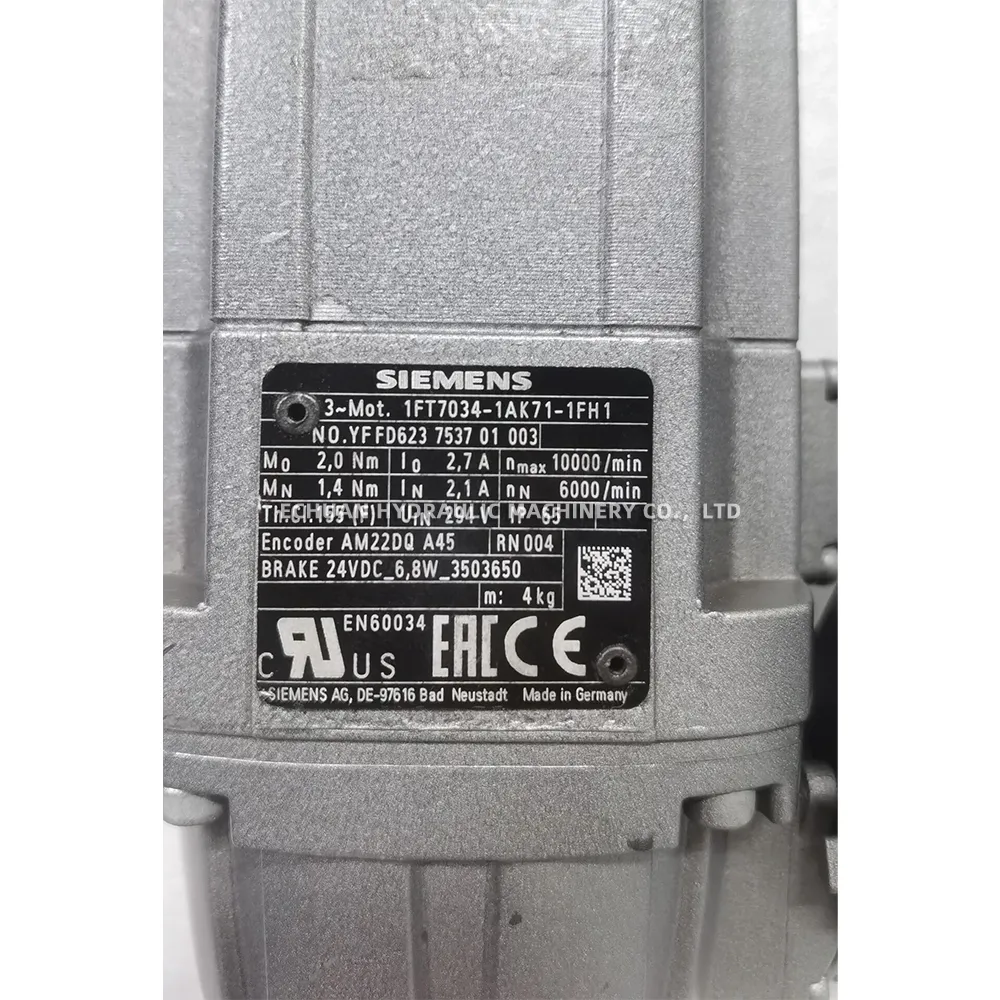

Technical Specifications:
- Model: 1FT7034-1AK71-1FH1
- Motor Type: SIMOTICS S-1FT7 Synchronous Servo Motor
- Rated Torque (MN): 1.4 Nm
- Rated Speed (nN): 6000 rpm
- Maximum Speed (nmax): 10000 rpm
- Rated Voltage (UIN): 294 V
- Rated Current (IN): 2.1 A
- Encoder: Absolute encoder AM22DQ (22-bit)
- Brake: Integrated 24VDC holding brake (6.8W)
- Protection Class: IP65
- Weight: 4 kg
Siemens 1FT7034-1AK71-1FH1 Servo Motor
Shop the Siemens 1FT7034-1AK71-1FH1, a compact SIMOTICS S-1FT7 synchronous servo motor. Features 1.4 Nm torque, 6000 rpm rated speed, an integrated 24V brake, and IP65 protection for high-performance industrial automation.
