Product Description

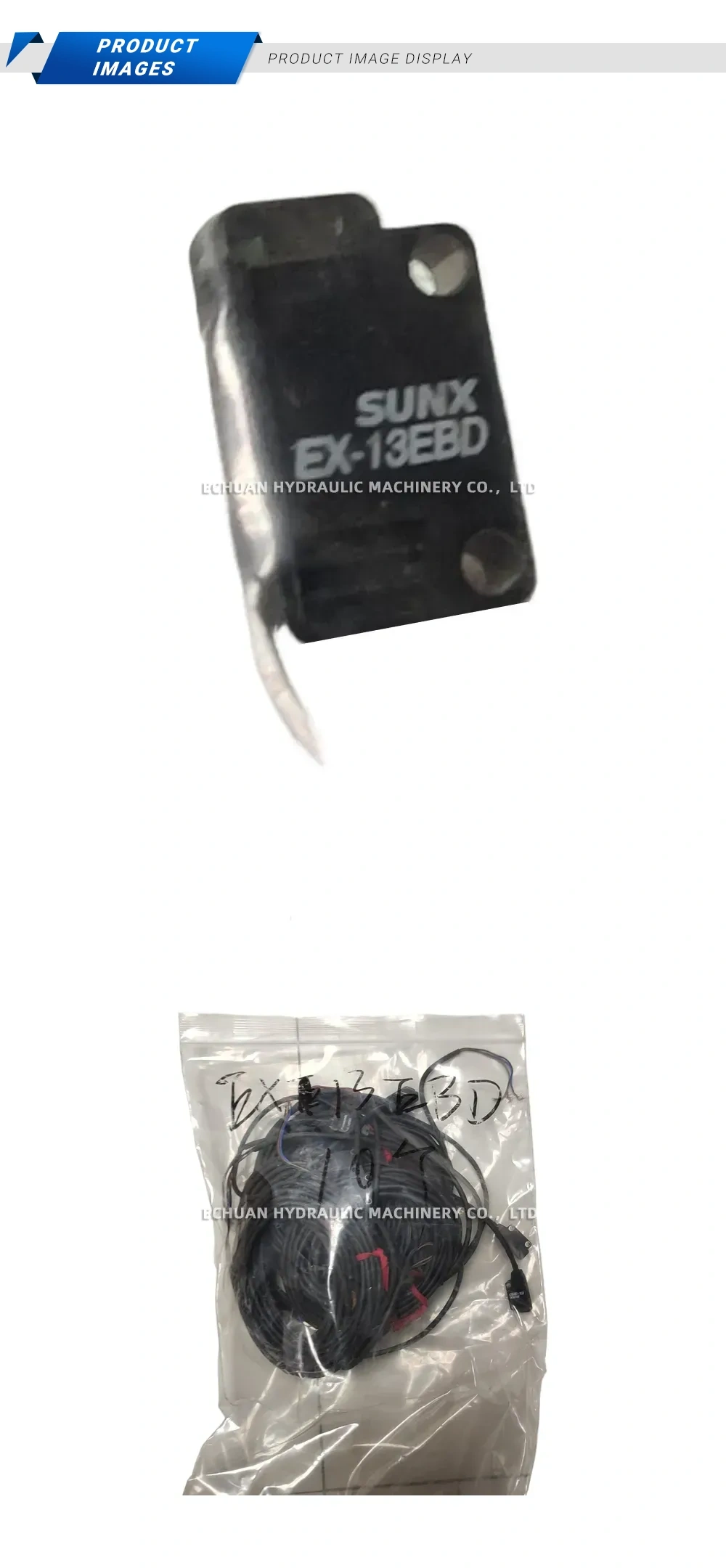

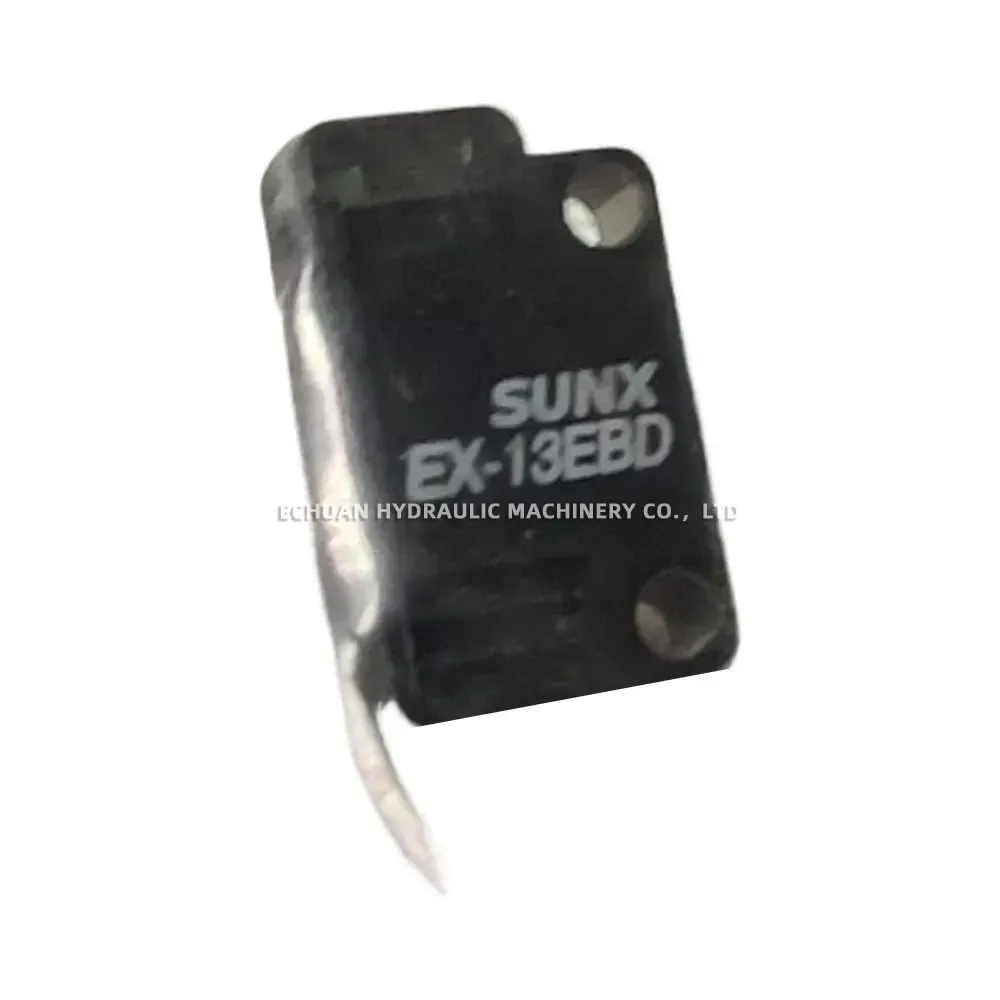

SUNX EX-13EBD Photoelectric Sensor
The SUNX EX-13EBD is an ultra-compact, high-performance thru-beam photoelectric sensor receiver designed for reliable object detection in space-constrained applications. As part of the EX-10 series, this sensor features a miniature rectangular housing, making it ideal for integration into complex machinery and automated systems. The EX-13EBD receiver, when paired with the corresponding EX-13EAP emitter, provides a precise sensing range of up to 500 mm. Its NPN open-collector output and Dark-ON operation mode ensure that the output is activated when an object interrupts the light beam. Built with an IP67-rated enclosure, this sensor delivers robust performance even in harsh industrial environments with dust or moisture.
Technical Specifications:
- Sensing Type: Thru-beam (Receiver)
- Sensing Distance: 500 mm (when used with EX-13EAP emitter)
- Output Type: NPN open-collector
- Operation Mode: Dark-ON (Light-interrupted)
- Supply Voltage: 12 to 24 V DC ±10%
- Response Time: 0.5 ms or less

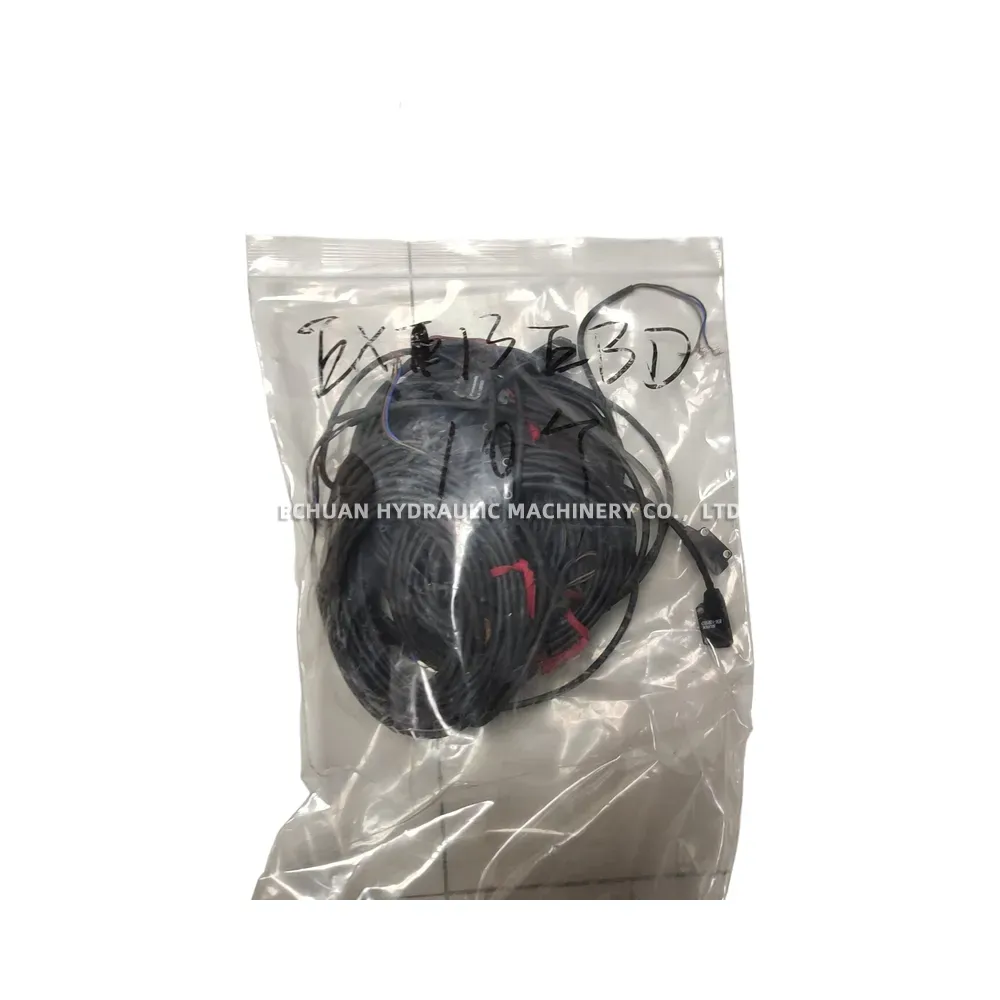

- Connection: Pre-wired 2m cable
- Protection Rating: IP67
SUNX EX-13EBD Photoelectric Sensor
Discover the SUNX EX-13EBD, an ultra-small thrubeam photoelectric sensor receiver with a 500mm range, NPN Dark-ON output, and IP67 rating, perfect for precise detection in tight spaces.
| Brand | SUNX |
|---|---|
| Model | EX-13EBD |
| Part No. | 678860797932 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/sunx-ex-13ebd-photoelectric-sensor |
