Product Description

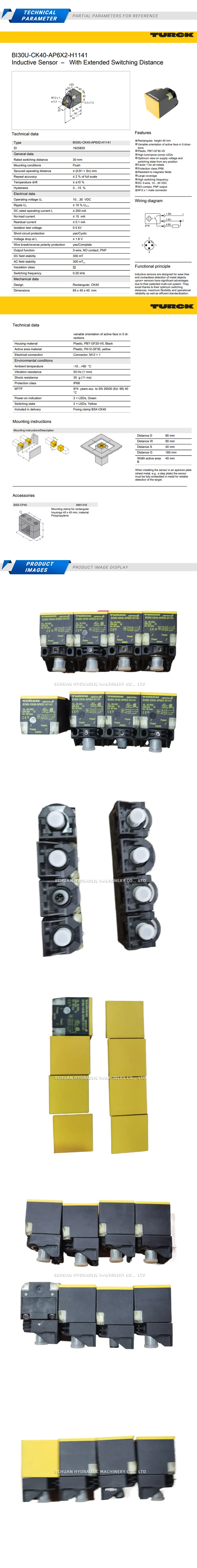

Turck BI30U-CK40-AP6X2-H1141
The Turck BI30U-CK40-AP6X2-H1141 is a high-performance inductive proximity sensor from the Uprox+ series, engineered for reliable non-contact detection of metal objects in demanding industrial applications. Housed in a robust, rectangular CK40 plastic enclosure, this sensor provides an extended sensing distance of 30 mm for non-flush mounting. Its standout feature is the patented Uprox+ Factor 1 technology, which guarantees the same sensing range for all types of metals—including steel, aluminum, brass, and copper—eliminating the need for sensor adjustments or correction factors. This simplifies installation and enhances process reliability. With an IP68 protection rating, it is exceptionally resistant to dust and water ingress. The sensor is equipped with a standard M12 connector for easy integration and provides a PNP normally open (NO) switching output.
Technical Specifications:
- Sensing Range: 30 mm
- Mounting Condition: Non-flush
- Housing Style: Rectangular, CK40, 40 x 40 x 66 mm
- Output Function: 3-wire, NO contact, PNP
- Operating Voltage: 10…30 VDC
- Electrical Connection: Connector, M12 x 1
- Protection Class: IP68
- Special Feature: Uprox+ Factor 1 for all metals
Turck BI30U-CK40-AP6X2-H1141
Turck BI30U-CK40-AP6X2-H1141 Uprox+ inductive sensor with a 30 mm non-flush sensing range. Features Factor 1 for all metals, a rugged CK40 rectangular housing, and a PNP NO output with an M12 connector.
