Product Description

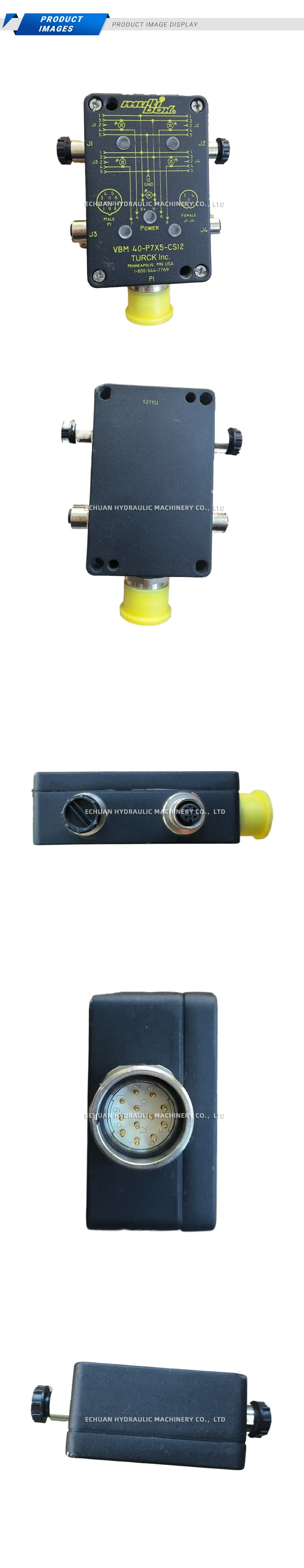

TURCK VBM 40-P7X5-CSI2
The TURCK VBM 40-P7X5-CSI2 is a compact and robust passive M12 distribution box designed for industrial automation applications. It serves as a reliable junction point, simplifying wiring by consolidating signals from up to four sensors or actuators into a single homerun cable. Its durable plastic housing and IP67 protection rating ensure dependable performance even in harsh industrial environments. This 4-port distribution box features gold-plated contacts for excellent conductivity and corrosion resistance, making it an ideal solution for efficient and organized fieldbus installations.
Technical Specifications:
- Type: VBM 40-P7X5-CSI2
- ID Number: 6603704
- Housing Material: Plastic, PA, Black
- Number of Ports: 4
- Connector Type: M12 x 1
- Rated Voltage: max. 60 V
- Current per Contact: max. 4 A
- Total Current: max. 10 A
- Protection Class: IP67 (when coupled)
- Ambient Temperature: -40 to +90 °C
TURCK VBM 40-P7X5-CSI2
Discover the TURCK VBM 40-P7X5-CSI2, a rugged 4-port M12 passive distribution box. With an IP67 rating, it’s perfect for consolidating sensor and actuator signals in demanding industrial automation environments.
