Product Description

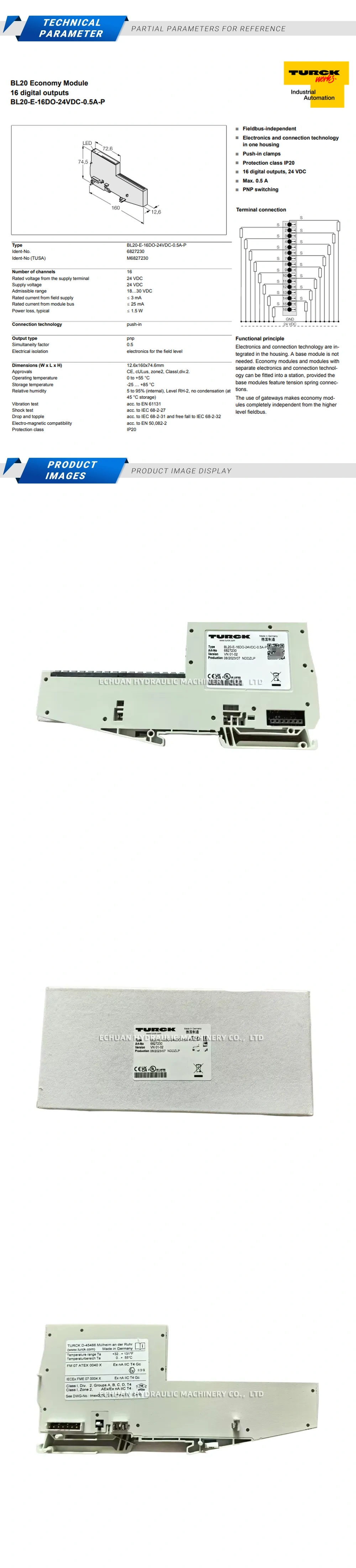

Turck BL20-E-16DO-24VDC-0.5A-P
The Turck BL20-E-16DO-24VDC-0.5A-P is a high-density economy digital output module designed for the flexible BL20 modular I/O system. It provides 16 PNP (p-switching) digital output channels, each capable of delivering up to 0.5 A at a nominal voltage of 24 VDC. This module is an ideal solution for controlling a wide range of actuators, solenoid valves, indicators, and other loads in industrial automation applications. Featuring channel-specific diagnostics for short-circuits and overloads, it ensures reliable operation and simplifies troubleshooting. The tool-free, spring-type terminal connections facilitate quick and secure installation, making it a cost-effective and efficient component for building or expanding control systems.
Technical Specifications:
- Model: BL20-E-16DO-24VDC-0.5A-P
- Number of Channels: 16 Digital Outputs (PNP)
- Rated Voltage: 24 VDC (from power feeding)
- Output Current per Channel: 0.5 A
- Max. Total Current: 8 A
- Diagnostics: Per-channel diagnostics (short-circuit/overload)
- Protection Class: IP20
Turck BL20-E-16D0-24VDC-0 5A-P
Discover the Turck BL20-E-16DO-24VDC-0.5A-P, a 16-channel PNP digital output module for the BL20 I/O system. It provides reliable 0.5A, 24VDC switching with channel diagnostics for industrial automation.
