Turck TB-Q08-0.15-RS4.47T

The Turck TB-Q08-0.15-RS4.47T is a compact and robust passive actuator/sensor junction box designed to streamline wiring in industrial automation applications. It features four 3-pin M8 female ports, allowing for the consolidation of signals from multiple sensors or actuators into a single 4-pin M12 male homerun connector. The housing is made from durable PA plastic, and the integrated 0.15-meter PUR cable ensures resilience against oils and chemicals. With an IP67 protection rating, this junction box is fully sealed against dust and water, making it ideal for use in harsh industrial environments where reliability is paramount.

Technical Specifications:

  • Type: Passive Actuator-Sensor Box

  • Number of Ports: 4 x M8 female, 3-pin

  • Homerun Connector: 1 x M12 male, 4-pin

  • Operating Voltage: 10…30 VDC

  • Current Rating: 2 A per port, 3 A total

  • Cable Length: 0.15 meters

  • Protection Class: IP67

  • Housing Material: Plastic, PA, Black

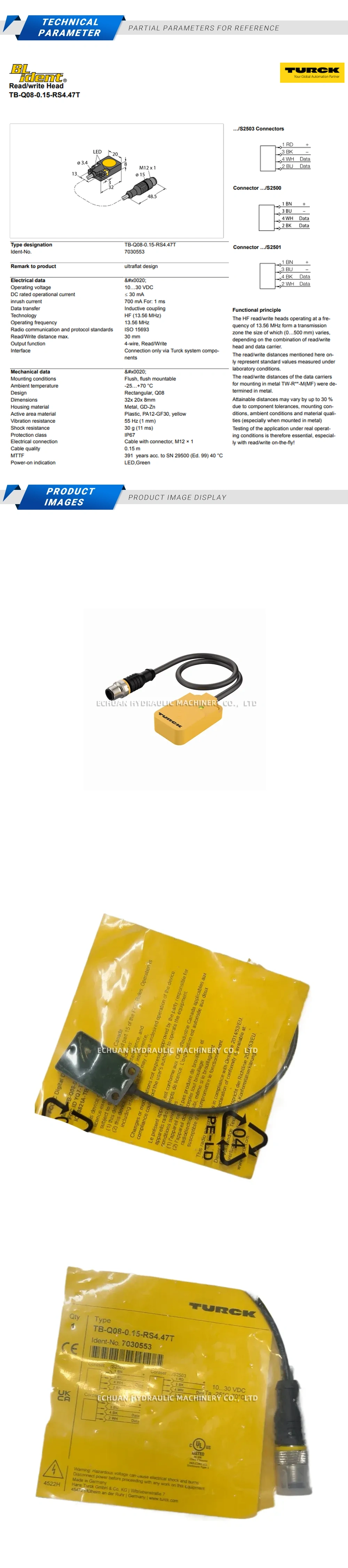

Turck TB-Q08-0.15-RS4.47T Description

Turck TB-Q08-0.15-RS4.47T

Turck TB-Q08-0.15-RS4.47T passive M8 junction box, 4-port, with a 0.15m PUR pigtail and M12 male connector. IP67 rated for reliable signal consolidation in harsh industrial environments.

BrandTURCK
ModelTB-Q08-0.15-RS4.47T
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/turck-tb-q08-0-15-rs4-47t
