Product Description

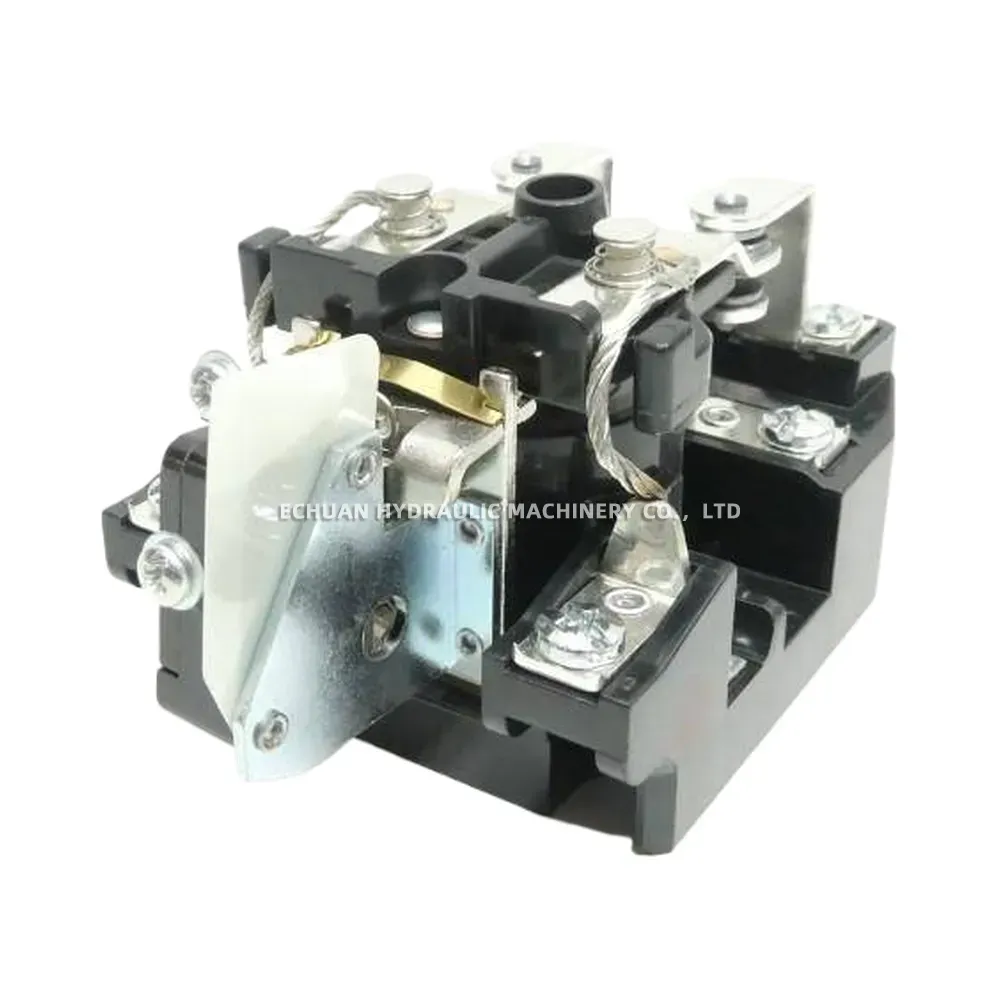

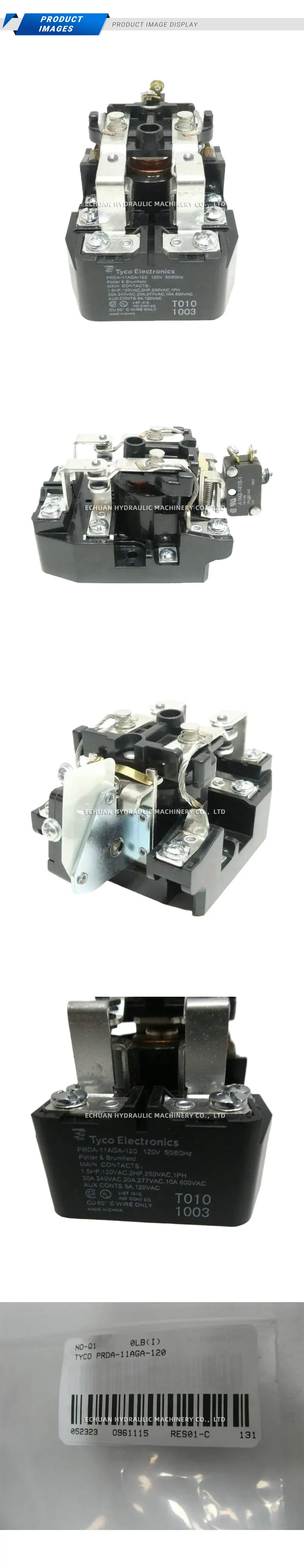

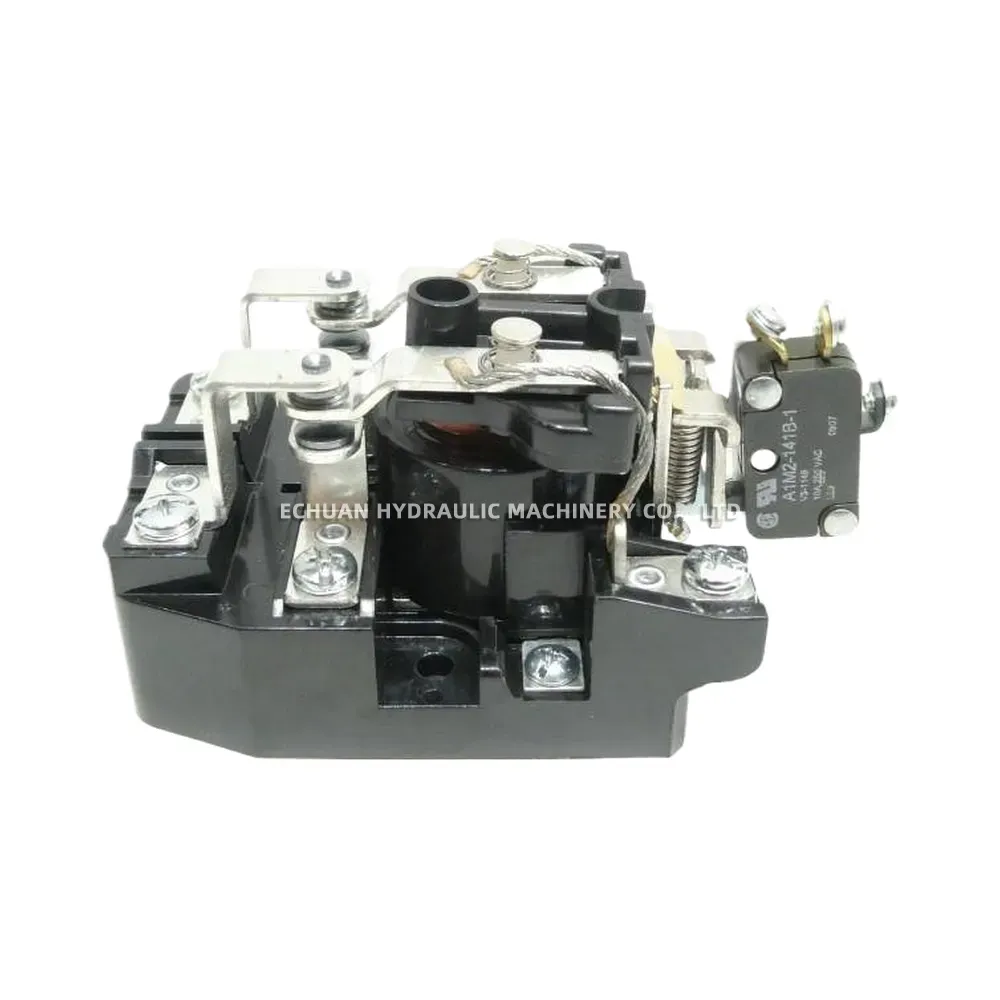

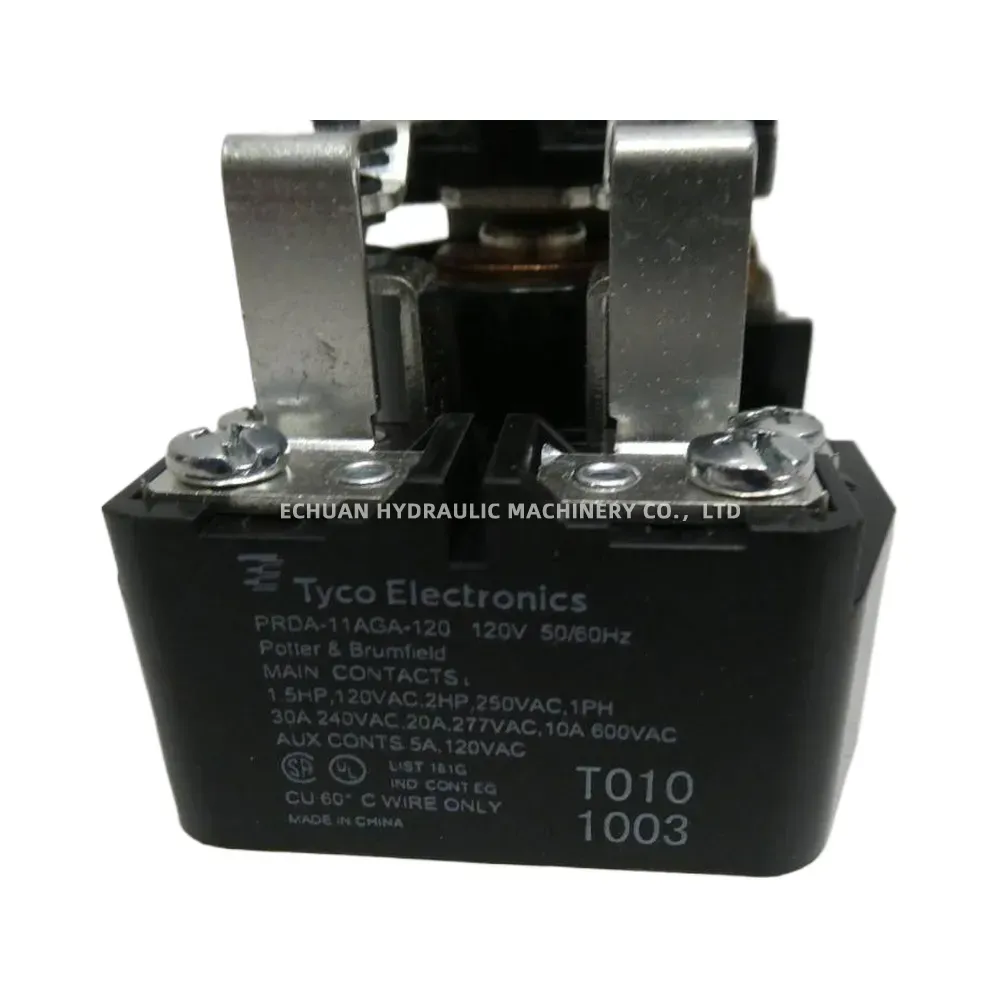

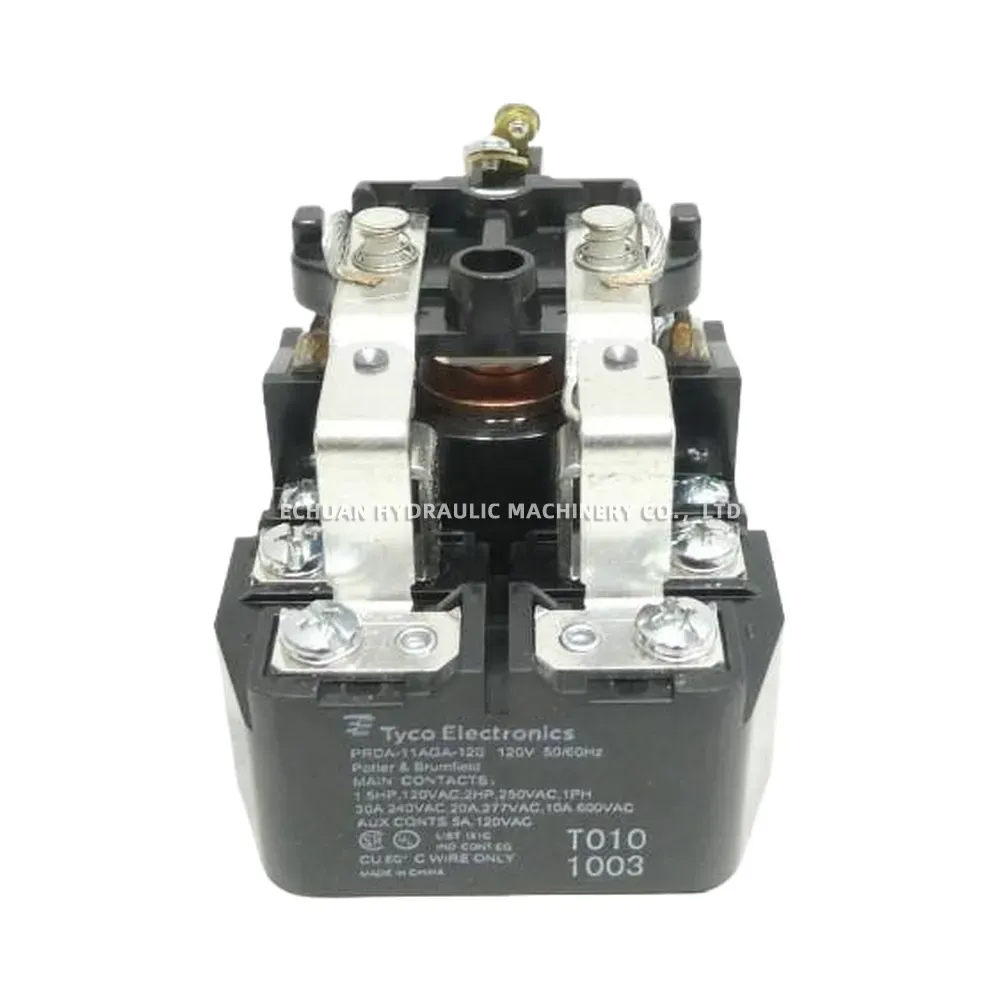

Tyco Electronics PRDA-11AGA-120 Power Relay
The Tyco Electronics (Potter & Brumfield) PRDA-11AGA-120 is a highly reliable electromagnetic power relay engineered for demanding industrial control and commercial applications. Equipped with a 120V 50/60Hz coil, this heavy-duty relay delivers exceptional switching performance with main contacts rated up to 30A at 240VAC, and motor load capacities of 1.5HP at 120VAC and 2HP at 250VAC (Single Phase). Additionally, it features auxiliary contacts rated for 5A at 120VAC, providing enhanced versatility for complex control circuits. Built to stringent industry standards, it is suitable for industrial control equipment installations and is designed exclusively for use with 60°C copper wiring.
Technical Specifications:
- Brand: Tyco Electronics (Potter & Brumfield)
- Model: PRDA-11AGA-120
- Coil Voltage: 120V 50/60Hz
- Main Contact Rating (Current): 30A @ 240VAC, 20A @ 277VAC, 10A @ 600VAC
- Main Contact Rating (Motor): 1.5HP @ 120VAC, 2HP @ 250VAC (1PH)
- Auxiliary Contact Rating: 5A @ 120VAC
- Wiring Requirement: CU (Copper) 60°C Wire Only
Tyco Electronics PRDA-11AGA-120 Power Relay
Buy the Tyco Electronics PRDA-11AGA-120 Power Relay online. This heavy-duty Potter & Brumfield electromagnetic relay features a 120VAC coil, 30A main contacts, and 5A auxiliary contacts, making it the perfect replacement part for industrial control equipment.
| Brand | Tyco Electronics |
|---|---|
| Model | PRDA-11AGA-120 |
| Part No. | 1042061124601 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/tyco-electronics-prda-11aga-120-power-relay |
