Product Description

Beckhoff CP7832-1013-0010

The Beckhoff CP7832-1013-0010 is a high-performance 15-inch multi-touch Control Panel designed for mounting arm installation in demanding industrial environments. Featuring a robust aluminum housing with an IP65 protection rating at the front, this panel is built to withstand harsh conditions. It utilizes DVI/USB Extended technology, allowing the display to be operated up to 50 meters away from the industrial PC. The projected capacitive touch (PCT) technology enables intuitive, multi-finger operation, making it an ideal human-machine interface (HMI) for a wide range of automation and control applications.

Technical Specifications:

  • Model: CP7832-1013-0010

  • Display Size: 15-inch TFT

  • Resolution: 1024 x 768 XGA

  • Touch Technology: Multi-touch, projected capacitive (PCT)

  • Housing: Aluminum enclosure

  • Protection Class: IP65 (front), IP20 (rear)

  • Installation: Mounting arm adapter for 48 mm tube, top or bottom connection

  • Interface: DVI/USB Extended

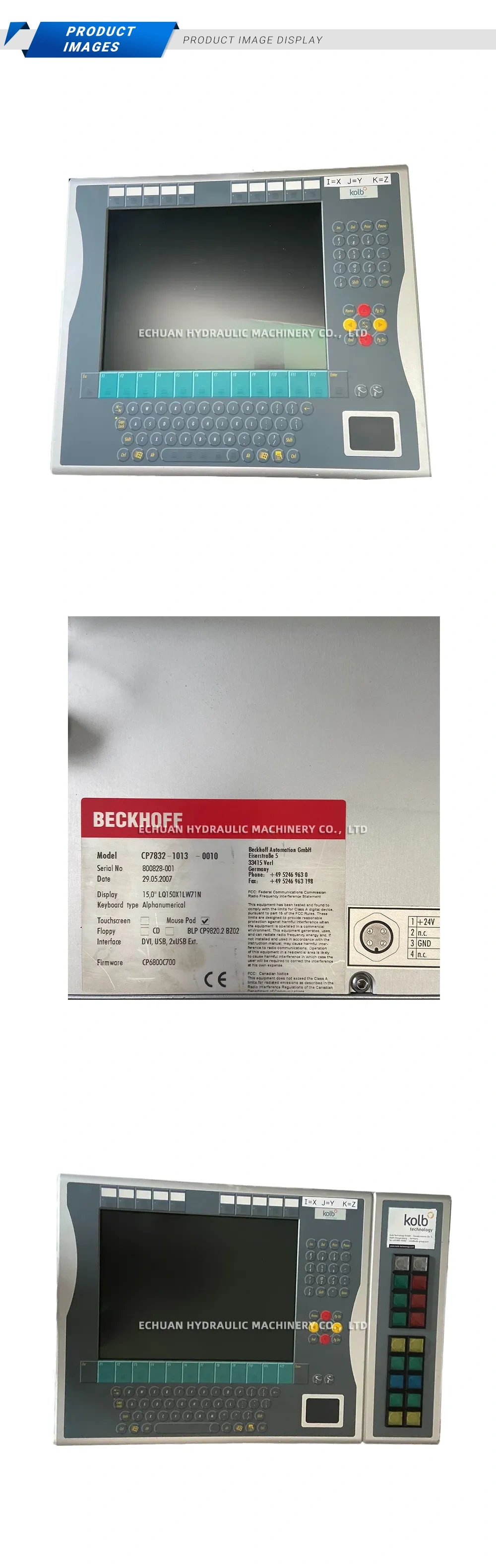

Beckhoff CP7832-1013-0010 Description

Beckhoff CP7832-1013-0010

Discover the Beckhoff CP7832-1013-0010, a rugged 15-inch multi-touch control panel with DVI/USB Extended interface, designed for mounting arm installation in industrial automation systems.
