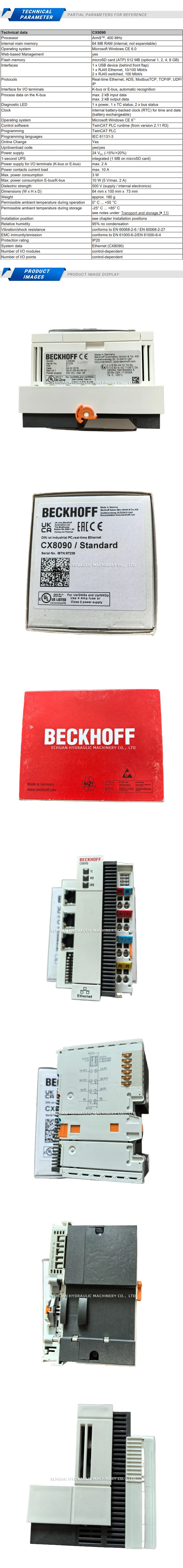

Beckhoff CX8090 Embedded PC
The Beckhoff CX8090 is a compact, DIN rail-mountable Embedded PC designed for universal use in control and automation applications. It features a powerful 400 MHz ARM9 processor and operates on Microsoft Windows CE 6, providing a robust platform for PLC, motion control, and visualization tasks. The CX8090 is equipped with two switched 10/100 Mbit/s Ethernet ports, allowing for the creation of a simple line topology without the need for additional Ethernet switches. It serves as an intelligent controller that can be programmed with TwinCAT 2 software, offering a cost-effective and space-saving solution for decentralized control systems.
Technical Specifications:
- Processor: 400 MHz ARM9
- Operating System: Microsoft Windows CE 6
- Internal Memory: 256 MB DDR3 RAM
- Storage: Slot for microSD flash card (512 MB included)
- Interfaces: 2 x RJ45 (10/100 Mbit/s, switched), 1 x USB 2.0
- Bus Interface: Automatic E-bus or K-bus recognition
- Power Supply: 24 V DC (-15 %/+20 %)
- Software: TwinCAT 2 PLC runtime
Beckhoff CX8090
The Beckhoff CX8090 is a compact Embedded PC with a 400 MHz ARM9 CPU and two Ethernet ports, ideal for cost-effective PLC and automation control tasks. It runs on Windows CE and supports both K-bus and E-bus terminals.
