Product Description

Danfoss MBC5000 1011-1DB04 061B200566

The Danfoss MBC 5000 is a compact, block-type pressure switch designed for use in demanding industrial and marine applications. This robust switch is engineered to withstand harsh conditions, offering high vibration resistance and reliability. Its compact design makes it suitable for installations where space is a critical factor. The MBC 5000 features a fixed, low differential to ensure accurate monitoring and control of pressure systems. With all major ship approvals, it is a trusted component for monitoring, alarm, and regulation systems in marine engines, gears, thrusters, and pumps.

Technical Specifications:

  • Model: MBC5000 1011-1DB04

  • Part Number: 061B200566

  • Regulation Range: 1 – 10 bar (14.5 – 145 psi)

  • Contact Function: SPDT (Single Pole Double Throw)

  • Pressure Connection: G 1/4 Female

  • Enclosure Rating: IP65

  • Approvals: All major marine approvals

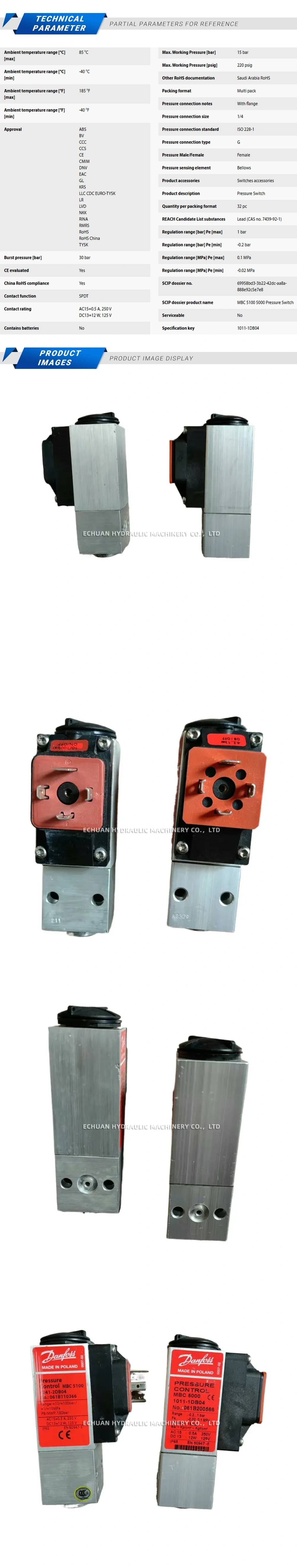

Danfoss MBC5000 1011-1DB04 061B200566 Description

Danfoss MBC5000 1011-1DB04 061B200566

Danfoss MBC5000 1011-1DB04 (061B200566) compact pressure switch, 1-10 bar range with G1/4 connection. Features SPDT contacts and IP65 rating, ideal for robust marine and industrial applications.
