Product Description
Danfoss MBS5100 060N1260
The Danfoss MBS 5100 is a high-accuracy, block-type pressure transmitter designed for demanding marine applications. This model is ship-approved and engineered to deliver reliable pressure measurement even in harsh environmental conditions characterized by severe vibration, shock, and EMC interference. Its robust, compact design and high degree of protection make it suitable for a wide range of maritime systems, including monitoring and control in engines, pumps, compressors, and hydraulic power units. The MBS 5100 ensures stable and precise performance, meeting the stringent requirements of the marine industry.

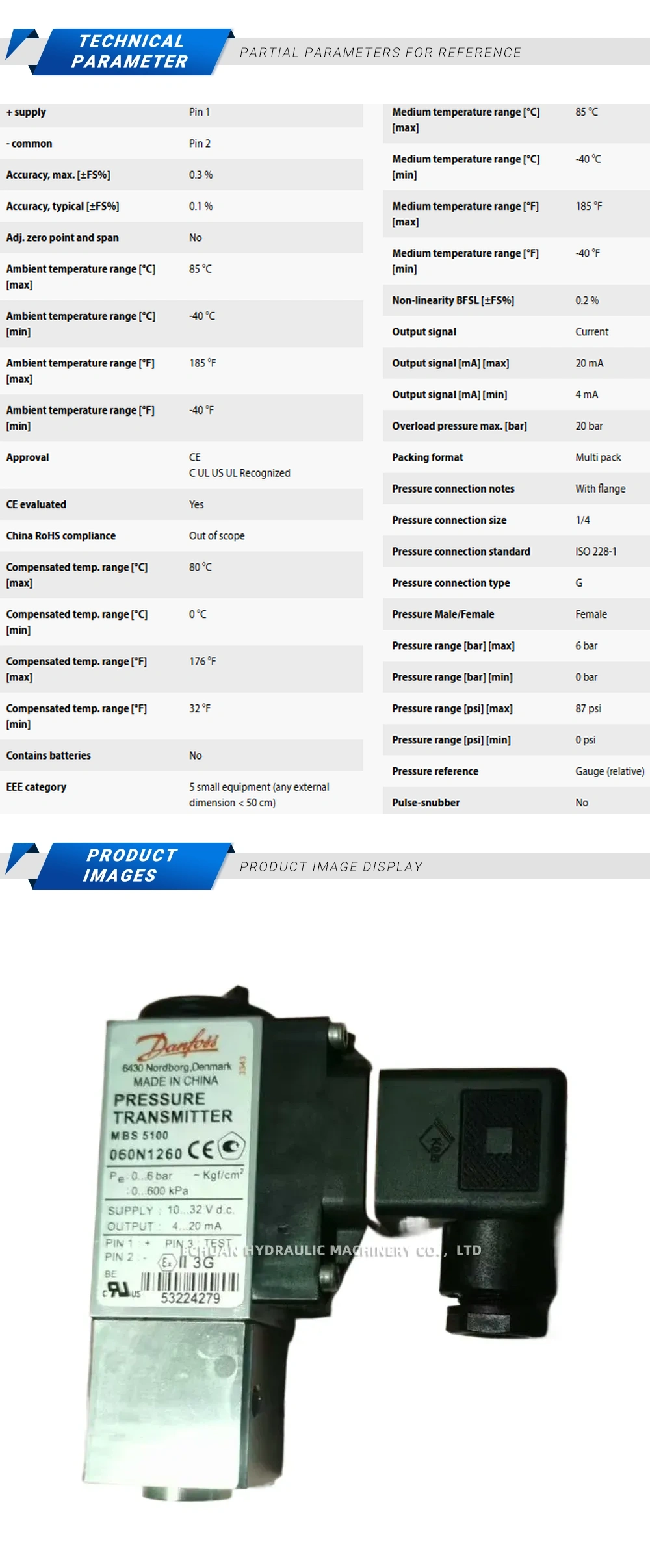

Technical Specifications:
- Type: Pressure Transmitter, MBS 5100
- Pressure Range: 0 to 6 bar (Gauge)
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A (ISO 228-1)
- Electrical Connection: Plug, DIN 43650-A, Pg 9
- Supply Voltage: 10 – 32 V DC
- Accuracy (Max): ±0.5 % FS
- Approvals: DNV GL, LR, ABS, BV, CCS, KR, NKK, RINA, RMRS
Danfoss MBS5100 060N1260
Buy the Danfoss MBS 5100 pressure transmitter, part number 060N1260. This ship-approved sensor features a 0-6 bar range, 4-20 mA output, and a G 1/4 connection, designed for harsh marine environments.
| Brand | DANFOSS |
|---|---|
| Model | MBS5100 060N1260 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbs5100-060n1260 |
